Brake Pedal: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the stop lamp switch. See BRAKE LAMP SWITCH .
  2. Remove clip securing booster push rod to brake pedal. See Fig 1.
  3. Remove the pedal pivot pin C-clip and slide pin out of support bracket and pedal.
  4. Remove the pedal and bushings.

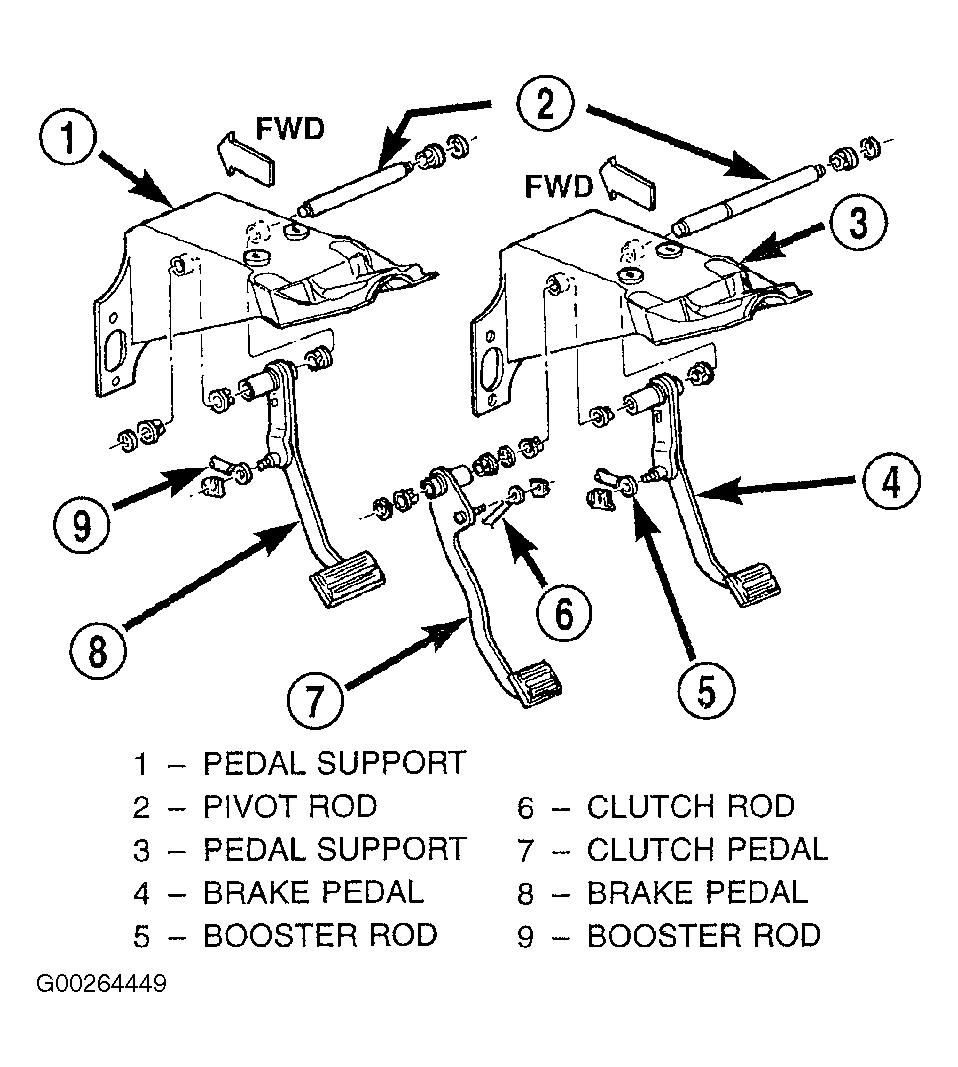

Fig 1: Removing & Installing Brake Pedal
G00264449Courtesy of CHRYSLER CORP.
