Brake Lamp Switch: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect switch harness. See Fig 1.
  2. Press and hold brake pedal in applied position.
  3. Rotate switch counterclockwise about 30° to align switch lock tab with notch in bracket.
  4. Pull switch rearward out of mounting bracket and release brake pedal.

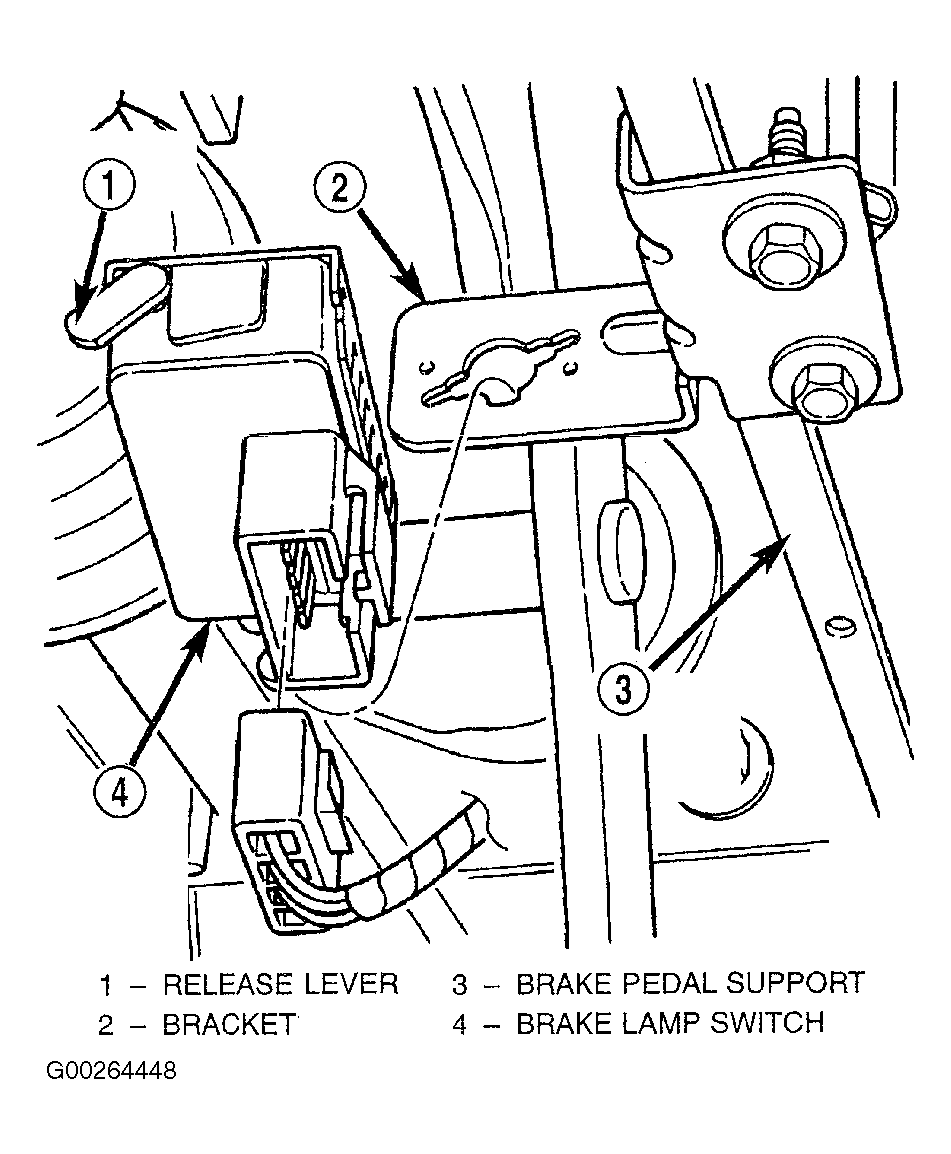

Fig 1: Removing & Installing Brake Lamp Switch
G00264448Courtesy of CHRYSLER CORP.
