Wheel Cylinder: Disassembly

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove push rods and boots. See Fig 1.
  2. Press pistons, cups, spring, and expander out of bore.
  3. Remove bleed screw.

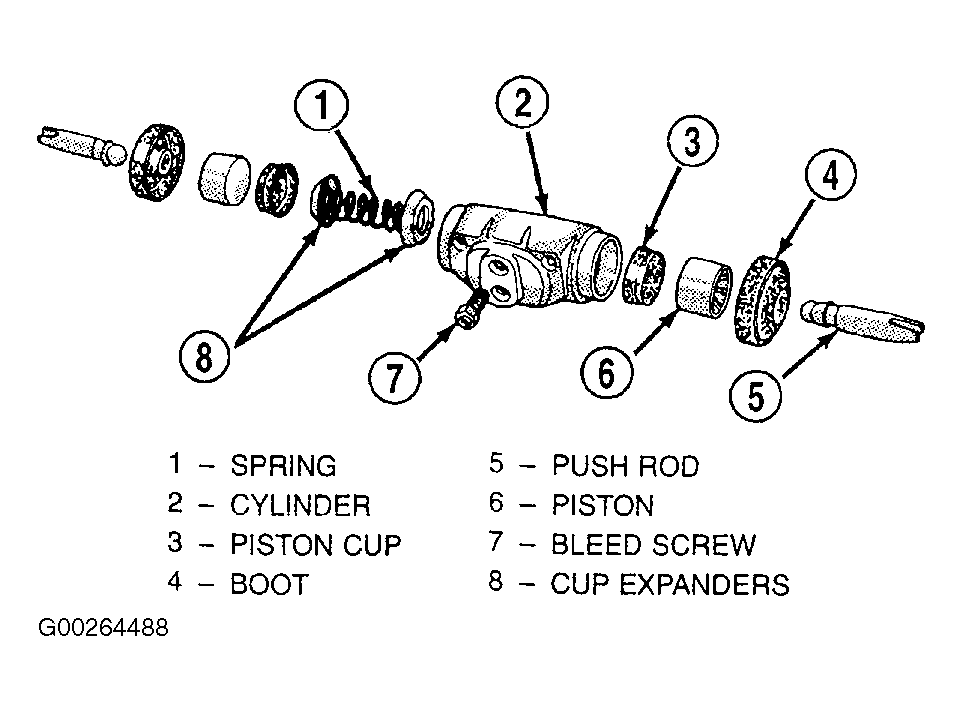

Fig 1: Exploded View Of Wheel Cylinder (Typical)
G00264488Courtesy of CHRYSLER CORP.
