Master Cylinder Bleeding

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A new master cylinder should be bled before installation on the vehicle. Required bleeding tools include bleed tubes and a wooden dowel to stroke the pistons. Bleed tubes can be fabricated from brake line.
  1. Mount master cylinder in vise.
  2. Attach bleed tubes to cylinder output ports. Then position each tube into the reservoir. See Fig 1.
  3. Fill reservoir with fresh brake fluid.
  4. Press cylinder pistons inward with wood dowel. Then release pistons and allow them to return under spring pressure. Continue bleeding operations until air bubbles are no longer visible in fluid.

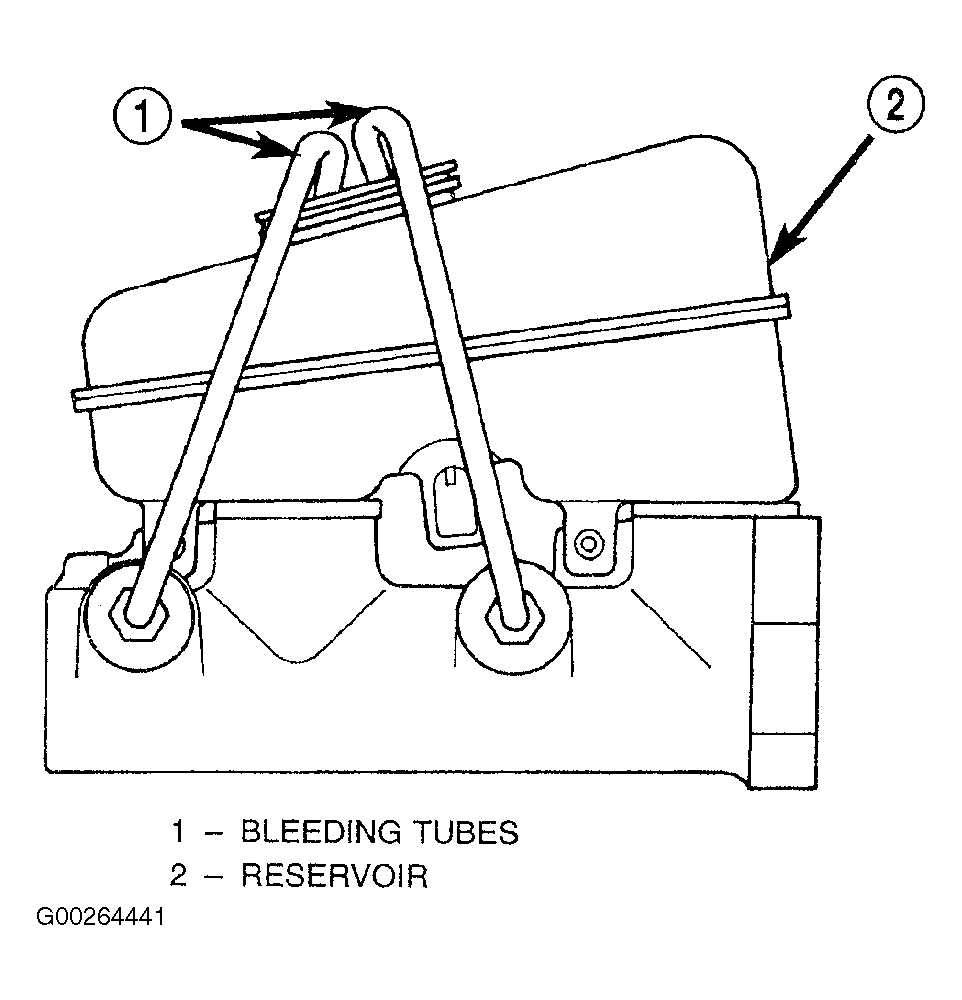

Fig 1: Bleeding Master Cylinder
G00264441Courtesy of CHRYSLER CORP.
