Manual Bleeding

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove reservoir filler caps and fill reservoir.
  2. If calipers, or wheel cylinders were overhauled, open all caliper and wheel cylinder bleed screws. Then close each bleed screw as fluid starts to drip from it. Top off master cylinder reservoir once more before proceeding.
  3. Attach one end of bleed hose to bleed screw and insert opposite end in glass container partially filled with brake fluid. See Fig 1.
    4. NOTE: Be sure end of bleed hose is immersed in fluid.
  4. Open bleeder, then have a helper press down the brake pedal. Once the pedal is down, close the bleeder. Repeat bleeding until fluid stream is clear and free of bubbles. Then move to the next wheel.

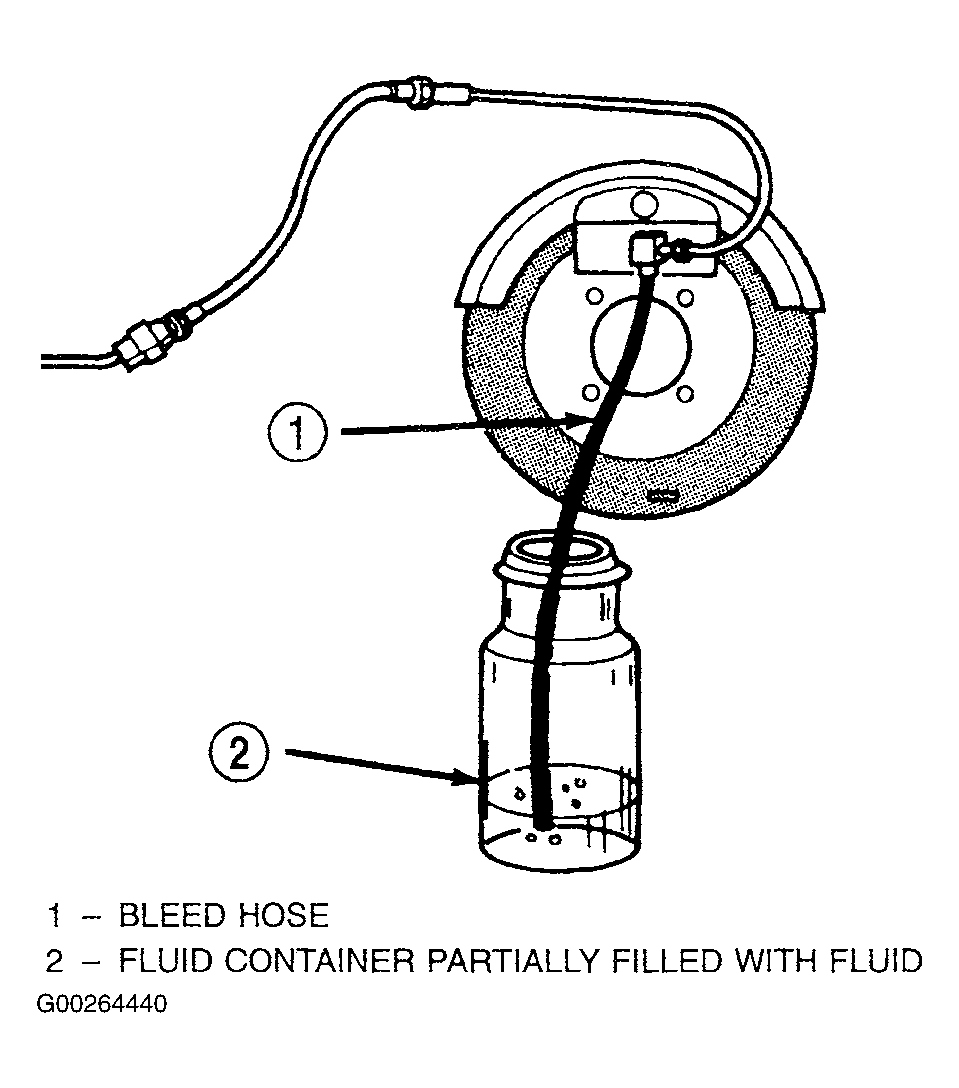

Fig 1: Bleeding Brake System
G00264440Courtesy of CHRYSLER CORP.
