Firing Order & Cylinder Identification: Illustrations

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

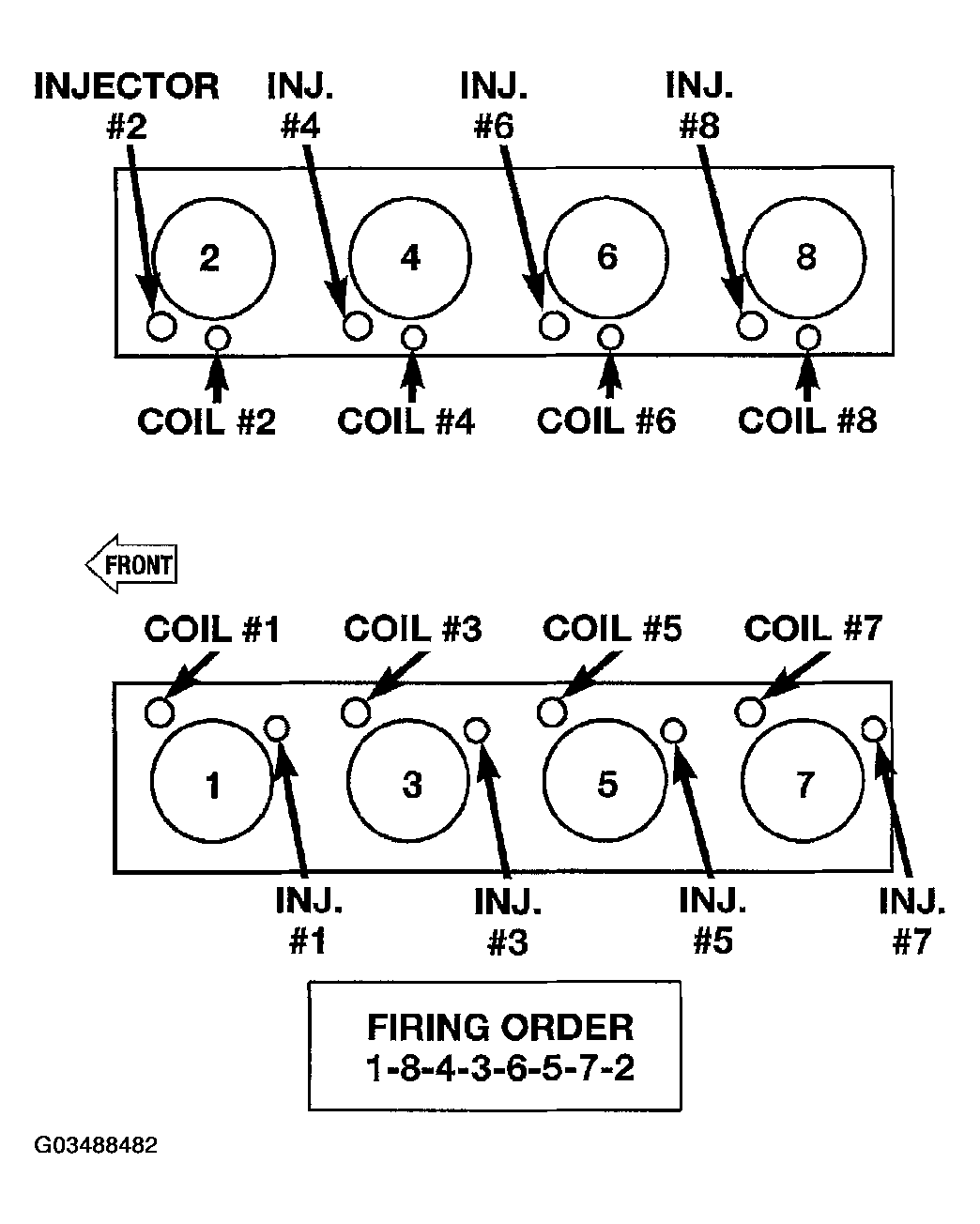

Fig 1: Identifying Engine Firing Order - 4.7L V8
G03488482Courtesy of DAIMLERCHRYSLER CORP.
