Drive Belt

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

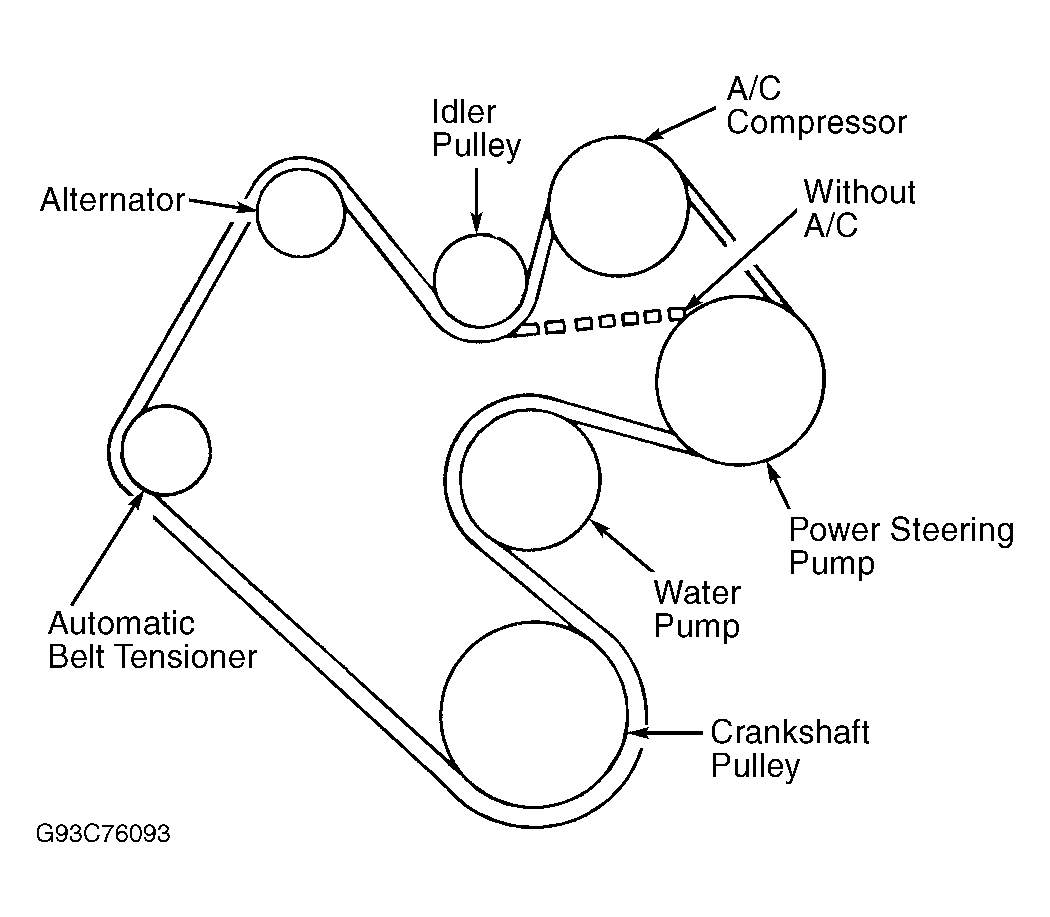

Fig 1: Identifying Drive Belt (3.9L & 5.9L)
G93C76093Courtesy of CHRYSLER CORP.

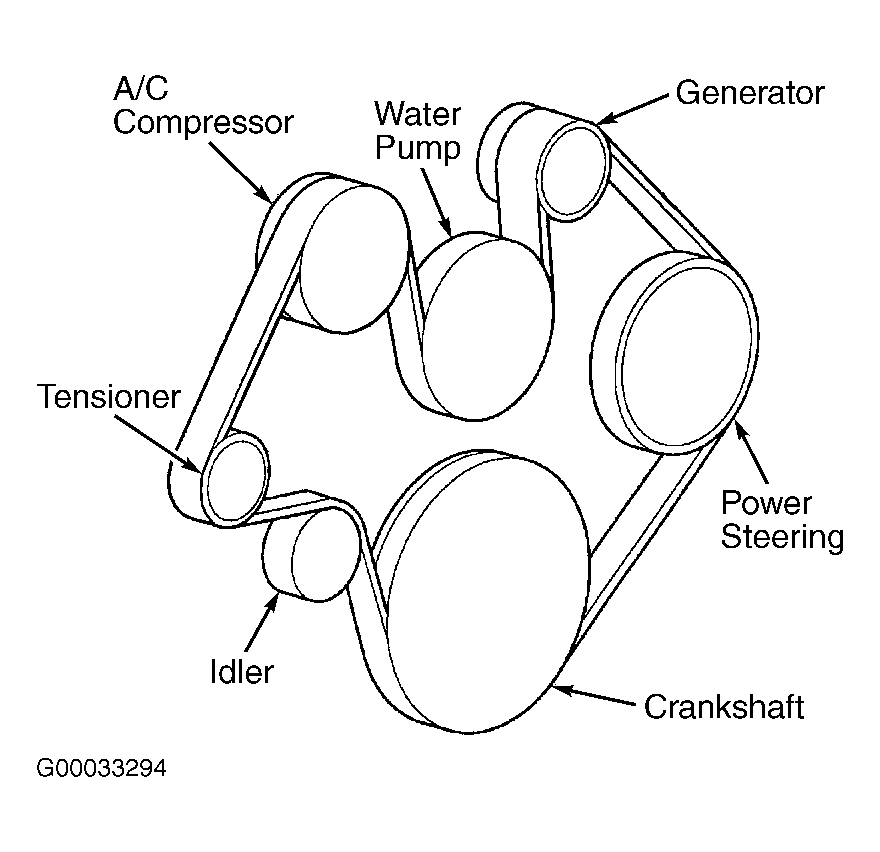

Fig 1: Identifying Drive Belt (4.7L)
G00033294Courtesy of CHRYSLER CORP.
