Section 15 (Engine Controls - Self Diagnostics - 4.7L)
>>
Connector Identification
Connector Identification
WARNING:
This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
See
Fig 1
-
Fig 74
for connector identification.
Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 2: Identifying A/C Pressure Transducer Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 5: Identifying Brake Lamp Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 7: Identifying Camshaft Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 8: Identifying Capacitor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 9: Identifying Clutch Interlock Switch (M/T) Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 10: Identifying Clutch Interlock Switch Jumper Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 11: Identifying Controller Anti-lock Brake C1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 12: Identifying Controller Anti-lock Brake C2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 13: Identifying Crankshaft Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 14: Identifying Data Link Connector Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 15: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 16: Identifying Engine Oil Pressure Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 17: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 18: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 19: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 20: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 21: Identifying Fuel Injector No. 5 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 22: Identifying Fuel Injector No. 6 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 23: Identifying Fuel Injector No. 7 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 24: Identifying Fuel Injector No. 8 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 25: Identifying Fuel Pump Module Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 26: Identifying Generator Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 27: Identifying Idle Air Control Motor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 28: Identifying Ignition Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 29: Identifying Injector Coil On Plug No. 1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 30: Identifying Injector Coil On Plug No. 2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 31: Identifying Injector Coil On Plug No. 3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 32: Identifying Injector Coil On Plug No. 4 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 33: Identifying Injector Coil On Plug No. 5 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 34: Identifying Injector Coil On Plug No. 6 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 35: Identifying Injector Coil On Plug No. 7 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 36: Identifying Injector Coil On Plug No. 8 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 37: Identifying Input Speed Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 38: Identifying Intake Air Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 39: Identifying Junction Block Fuse View (1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 40: Identifying Junction Block Circuits (2 Of 2)
Courtesy of CHRYSLER CORP.

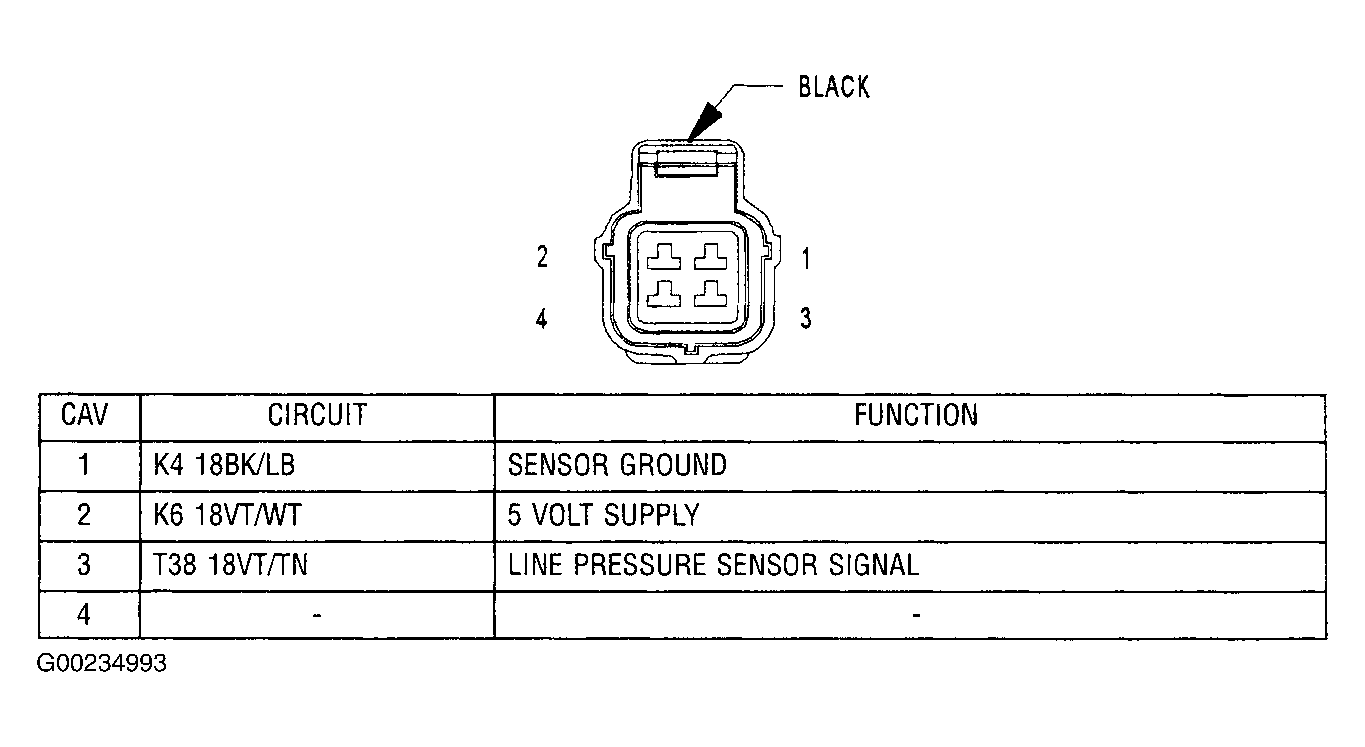

Fig 41: Identifying Line pressure Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 42: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 43: Identifying Natural Vacuum Leak Detection Assembly Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 44: Identifying Output Speed Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 45: Identifying Overdrive Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.

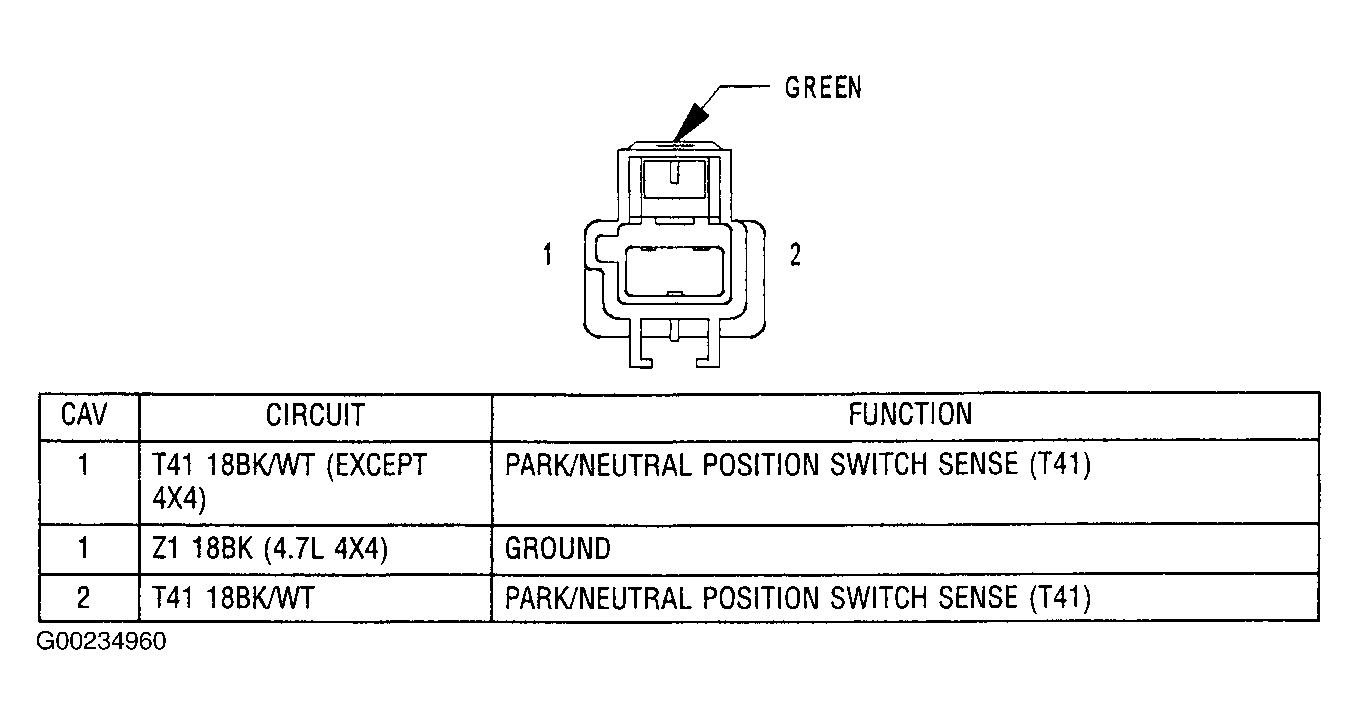

Fig 46: Identifying Power Distribution Center Components & Circuits (1 Of 3)
Courtesy of DAIMLERCHRYSLER
Fig 47: Identifying Power Distribution Center Components & Circuits (2 Of 3)
Courtesy of CHRYSLER CORP.
Fig 48: Identifying Power Distribution Center Components & Circuits (3 Of 3)
Courtesy of CHRYSLER CORP.
Fig 49: Identifying Power Steering Pressure Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.

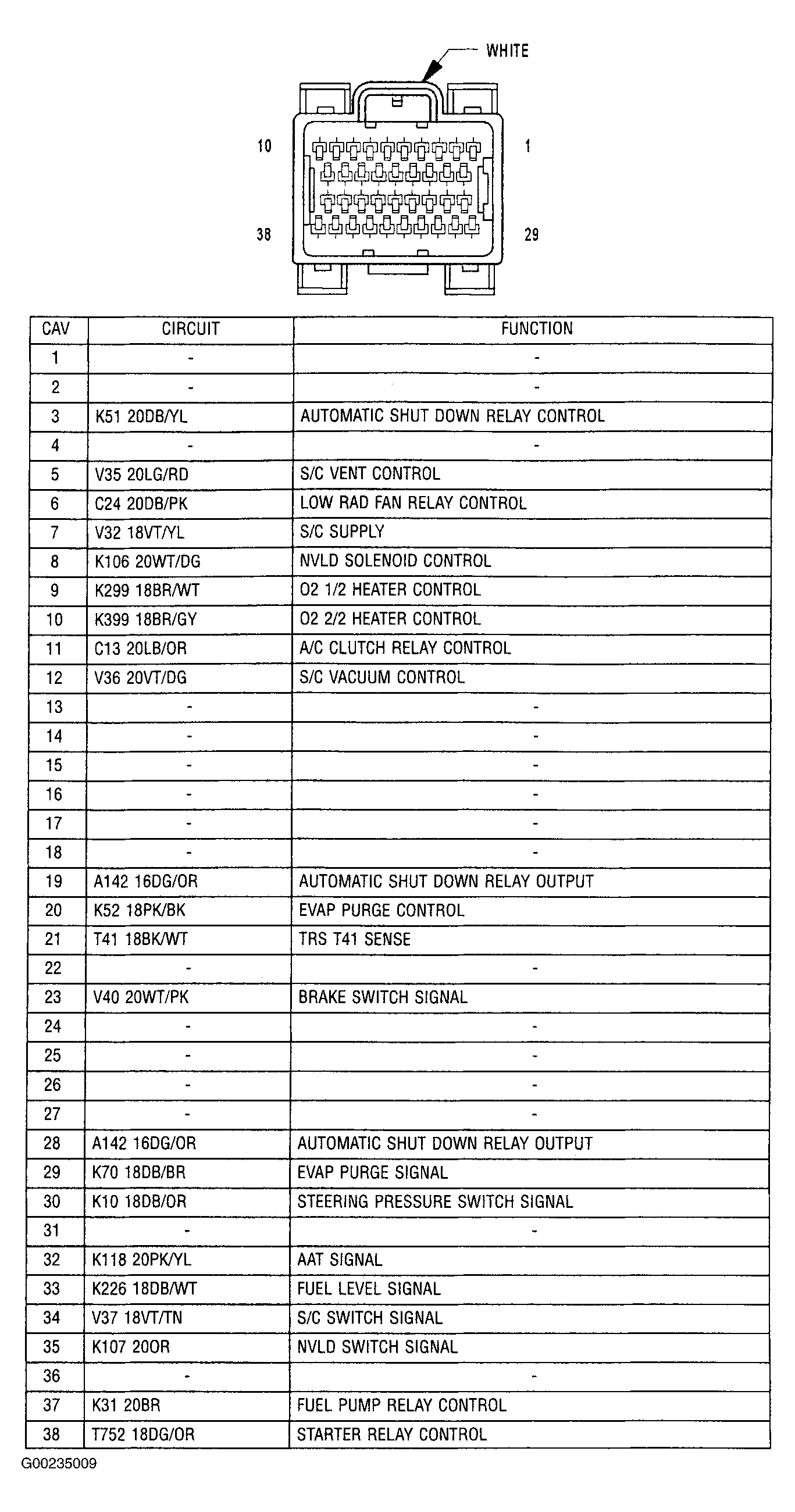

Fig 50: Identifying Powertrain Control Module C1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 51: Identifying Powertrain Control Module C2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.

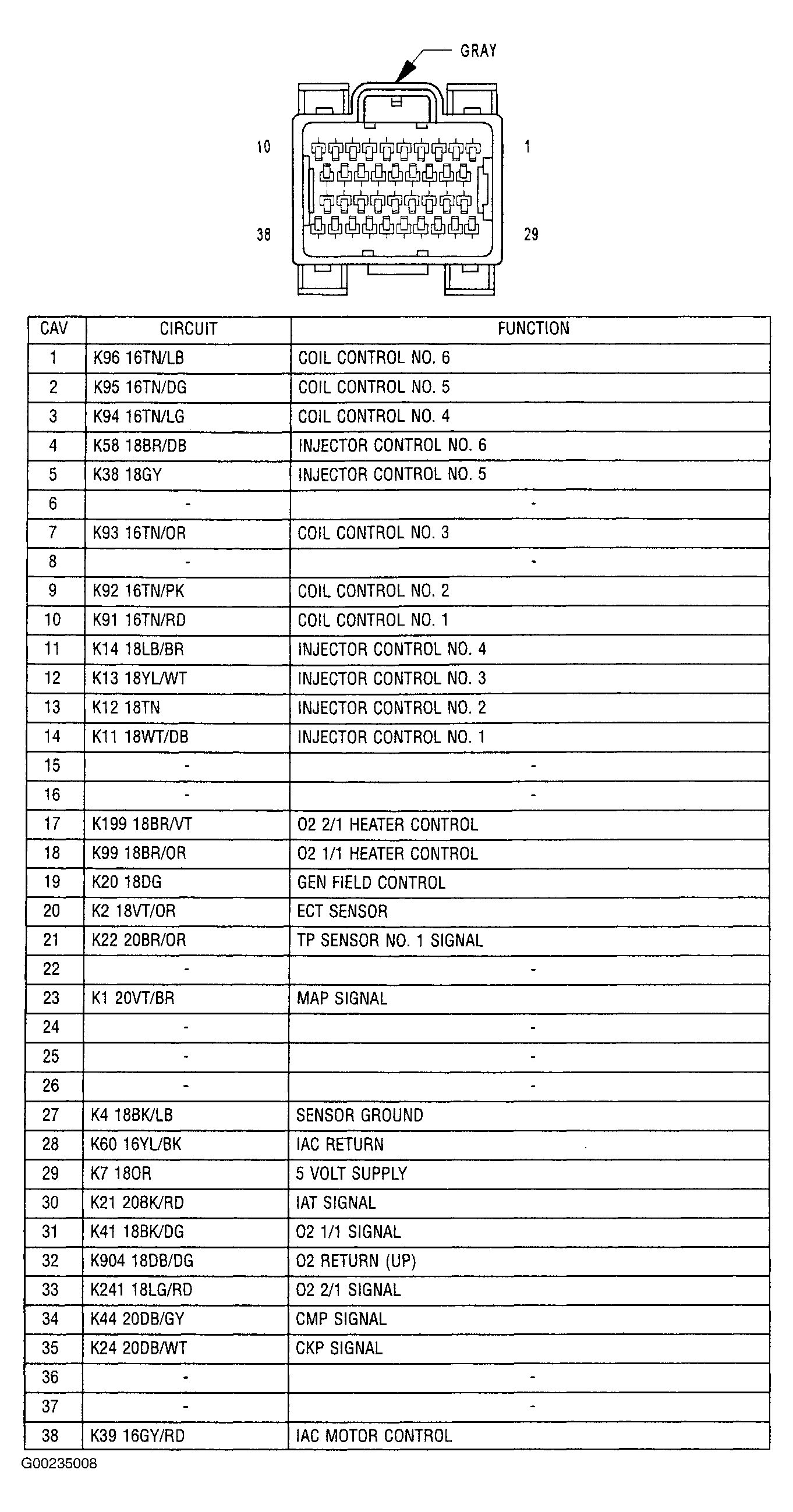

Fig 52: Identifying Powertrain Control Module C3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 53: Identifying Powertrain Control Module C4 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 54: Identifying Proportional Purge Solenoid Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 55: Identifying Radiator Fan Motor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 56: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER
Fig 57: Identifying Speed Sensor Rear Wheel Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 58: Identifying Speed Control Servo Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 59: Identifying Speed Control Switch (Left) Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 60: Identifying Speed Control Switch (Right) Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 61: Identifying Throttle Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 62: Identifying Transfer Case Control Module C1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 63: Identifying Transfer Case Control Module C2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 64: Identifying Transfer Case Control Module C3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 65: Identifying Transfer Case Mode Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 66: Identifying Transfer Case Selector Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 67: Identifying Transfer Case Shift Motor Harness Connector Terminals
Courtesy of CHRYSLER CORP.

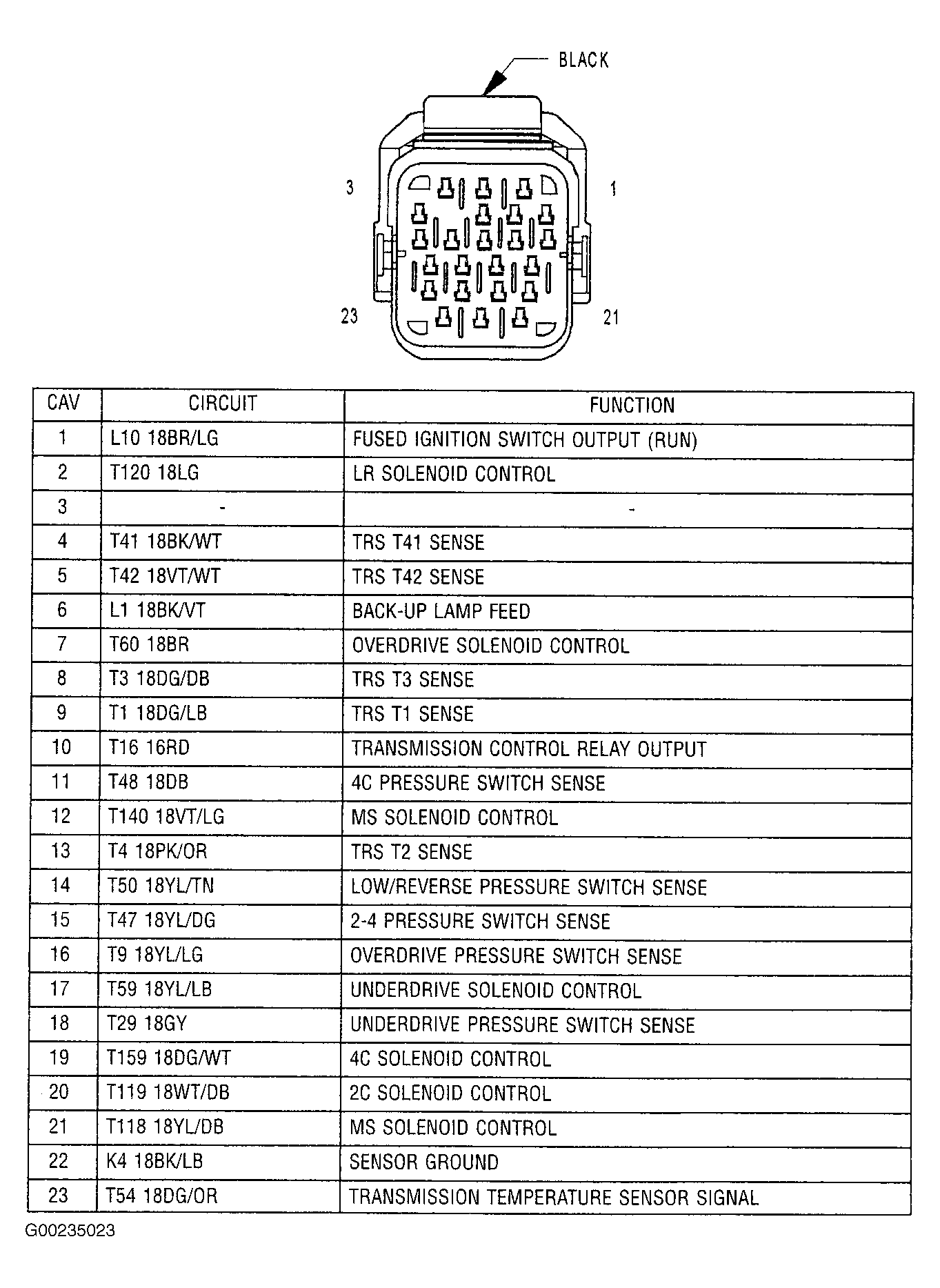

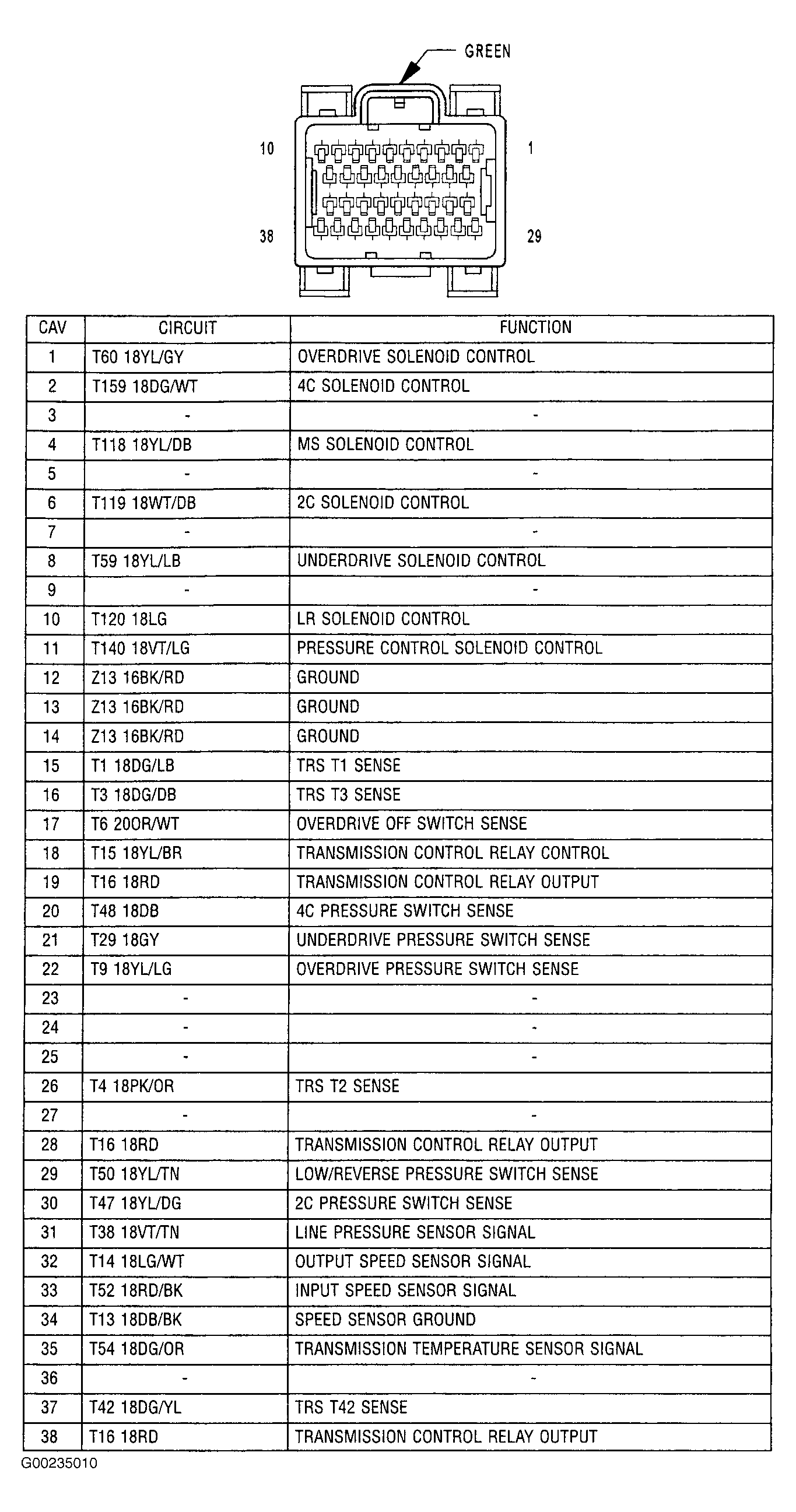

Fig 68: Identifying Transmission Solenoid/TRS Assembly Harness Connector Terminals
Courtesy of CHRYSLER CORP.

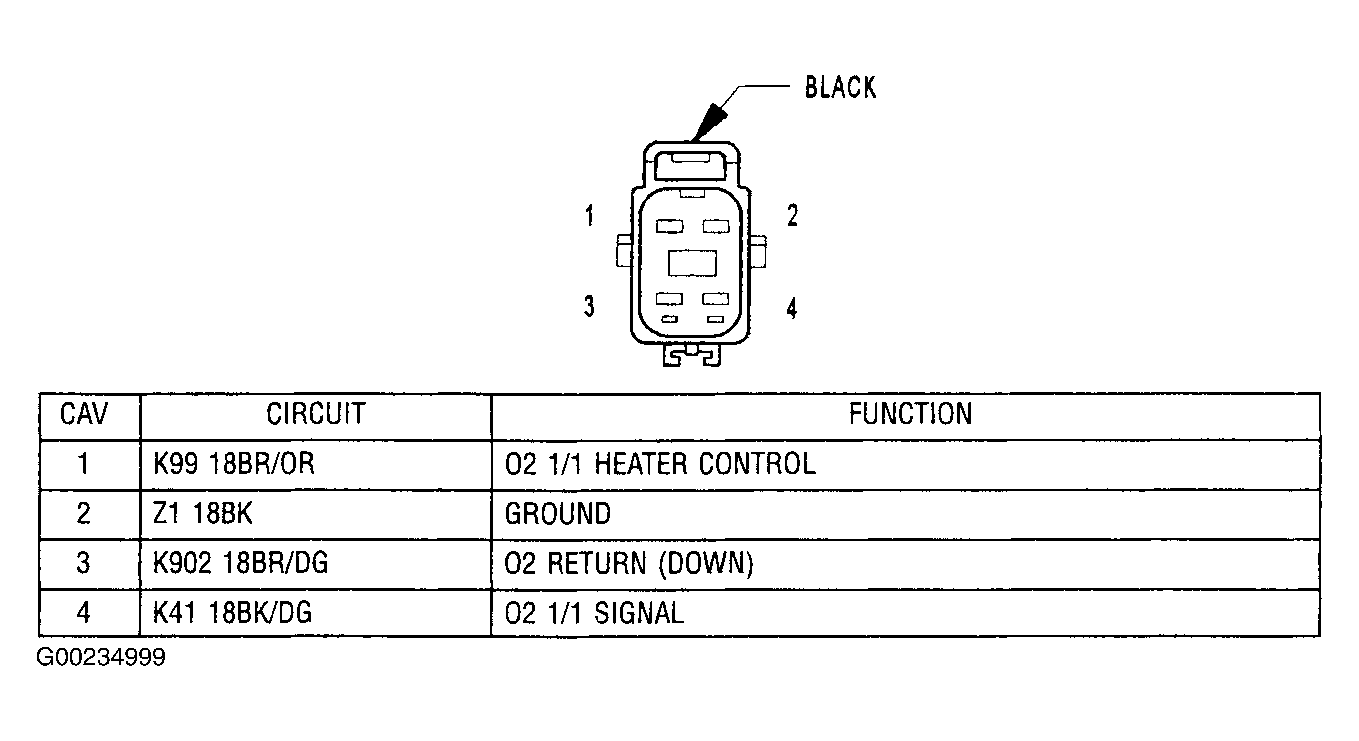

Fig 69: Identifying 1/1 Oxygen Sensor (California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.

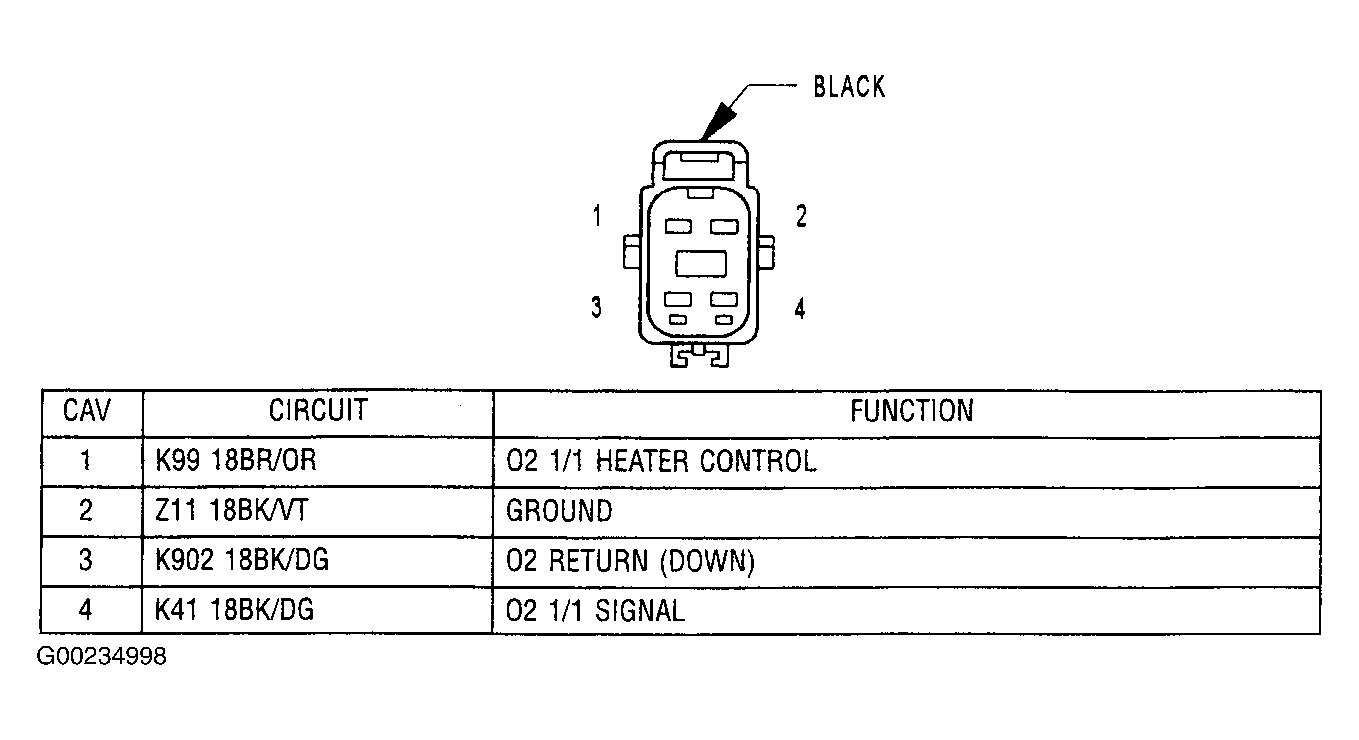

Fig 70: Identifying 1/1 Oxygen Sensor (Except California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.

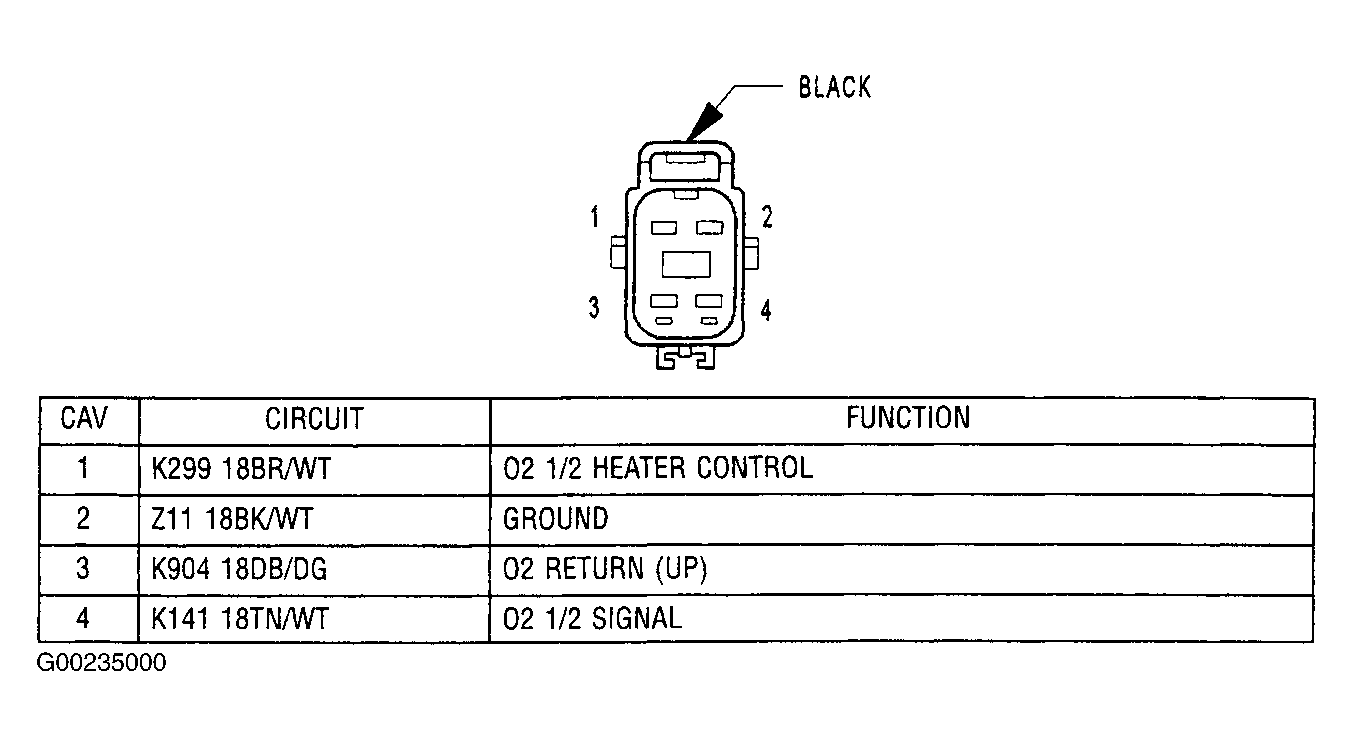

Fig 71: Identifying 1/2 Oxygen Sensor (California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.

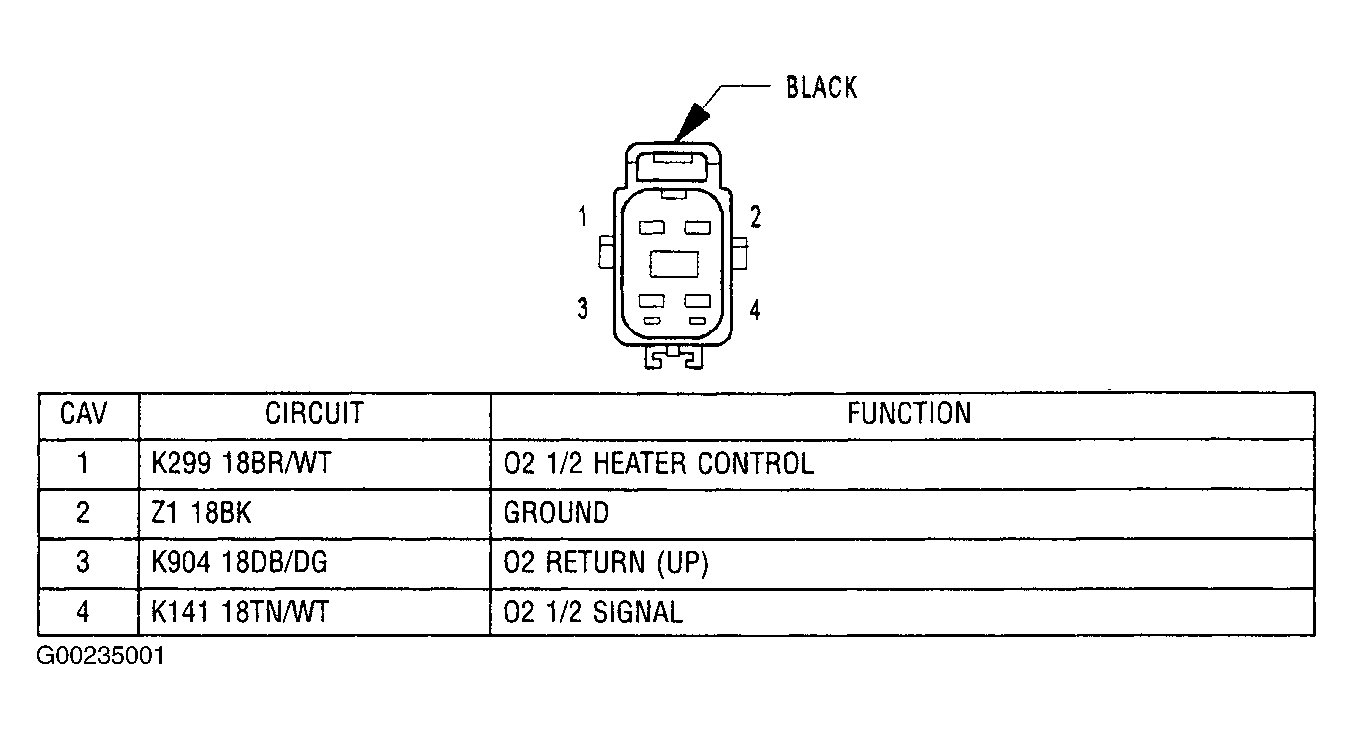

Fig 72: Identifying 1/2 Oxygen Sensor (Except California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.

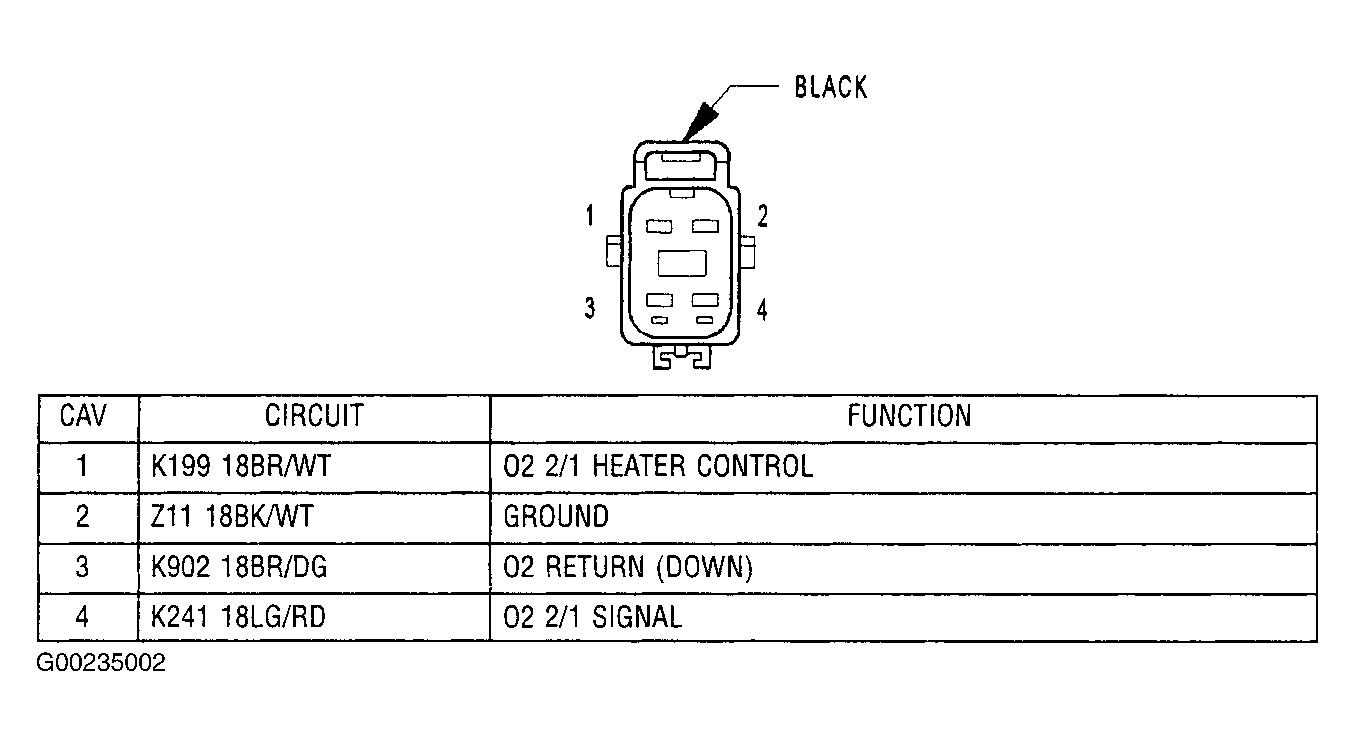

Fig 73: Identifying 2/1 Oxygen Sensor (California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.

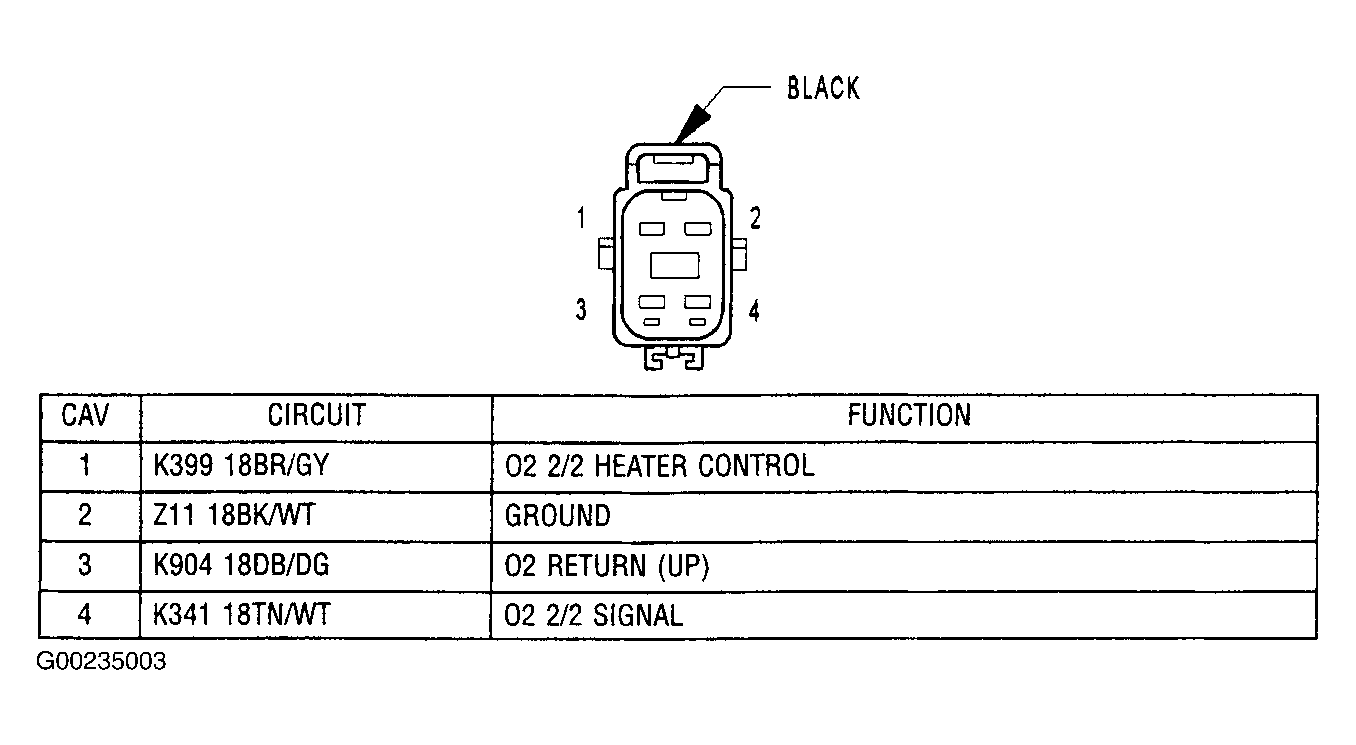

Fig 74: Identifying 2/2 Oxygen Sensor (Except California) Harness Connector Terminals
Courtesy of CHRYSLER CORP.
