Removal & Installation (Dual Tab)
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

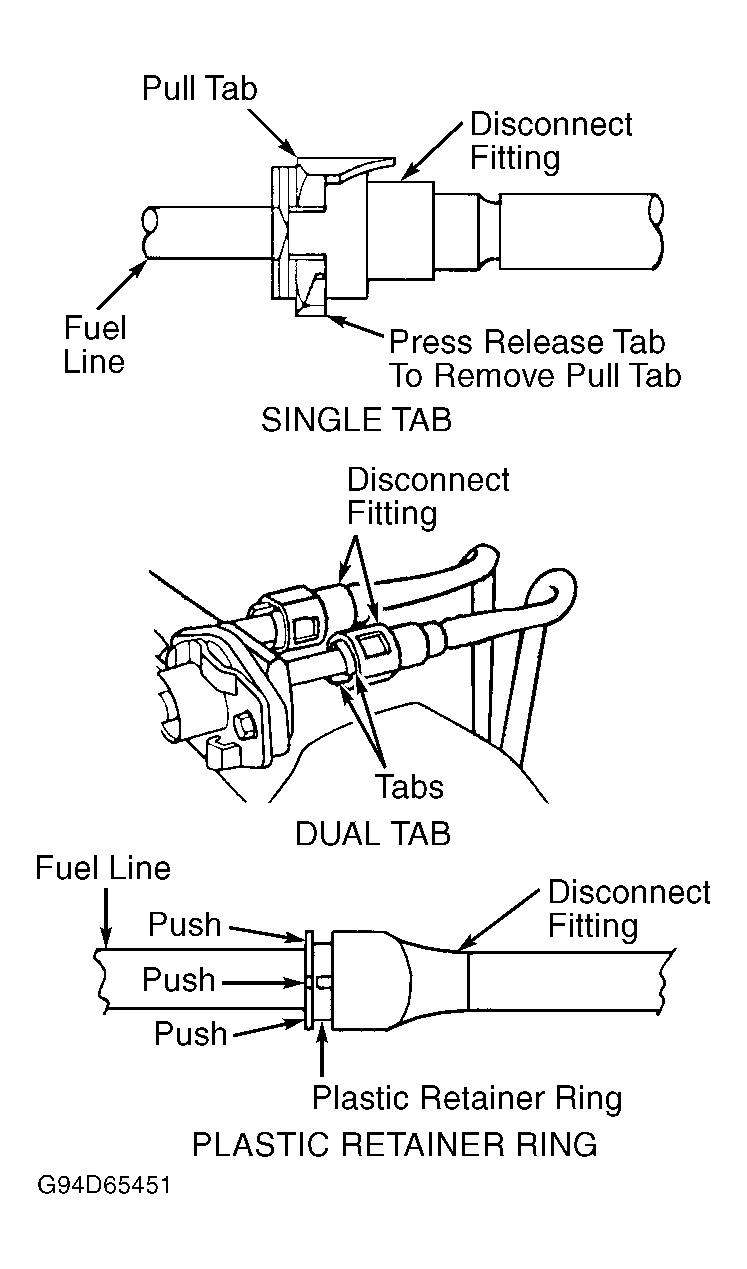

- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Disconnect negative battery cable. Ensure disconnect fitting and fuel lines are clean. Note location of tabs on disconnect fitting. See Figure.
- Squeeze both tabs against disconnect fitting. Pull disconnect fitting from fuel line. The plastic retainer will remain on fuel system component being serviced. The "O" rings and spacer will remain in the disconnect fitting.
- Inspect components for damage. If disconnect fitting is damaged, entire assembly must be replaced. The only component that may be replaced is the plastic retainer. If plastic retainer must be removed from fuel system component, carefully release plastic retainer from fuel system component using 2 screwdrivers. Inspect plastic retainer for cracks or damage. Replace plastic retainer if defective.
- To install, ensure fuel line and disconnect fitting are clean. Lubricate fuel line and disconnect fitting with engine oil. Install disconnect fitting on fuel line until click sound is heard.
- Pull on fuel line and disconnect fitting to ensure components are properly locked together. Reconnect negative battery cable. Start engine and check for leaks.
