Camshaft Position Sensor
3.9L & 5.9L - The Camshaft Position (CMP) sensor is located in the distributor. See Fig 1 . The sensor contains a hall effect device called a sync signal generator to generate a fuel sync signal. This sync signal generator detects a rotating pulse ring (shutter) on the distributor shaft. The pulse ring rotates 180 degrees through the sync signal generator. Its signal is used in conjunction with the Crankshaft Position (CKP) sensor to differentiate between fuel injection and spark events. It is also used to synchronize the fuel injectors with their respective cylinders. When the leading edge of the pulse ring (shutter) enters the sync signal generator the following occurs. The interruption of magnetic field causes the voltage to switch high resulting in a sync signal of approximately 5 volts. When the trailing edge of the pulse ring (shutter) leaves the sync signal generator the following occurs. The change of the magnetic field causes the sync signal voltage to switch low to 0 volts.

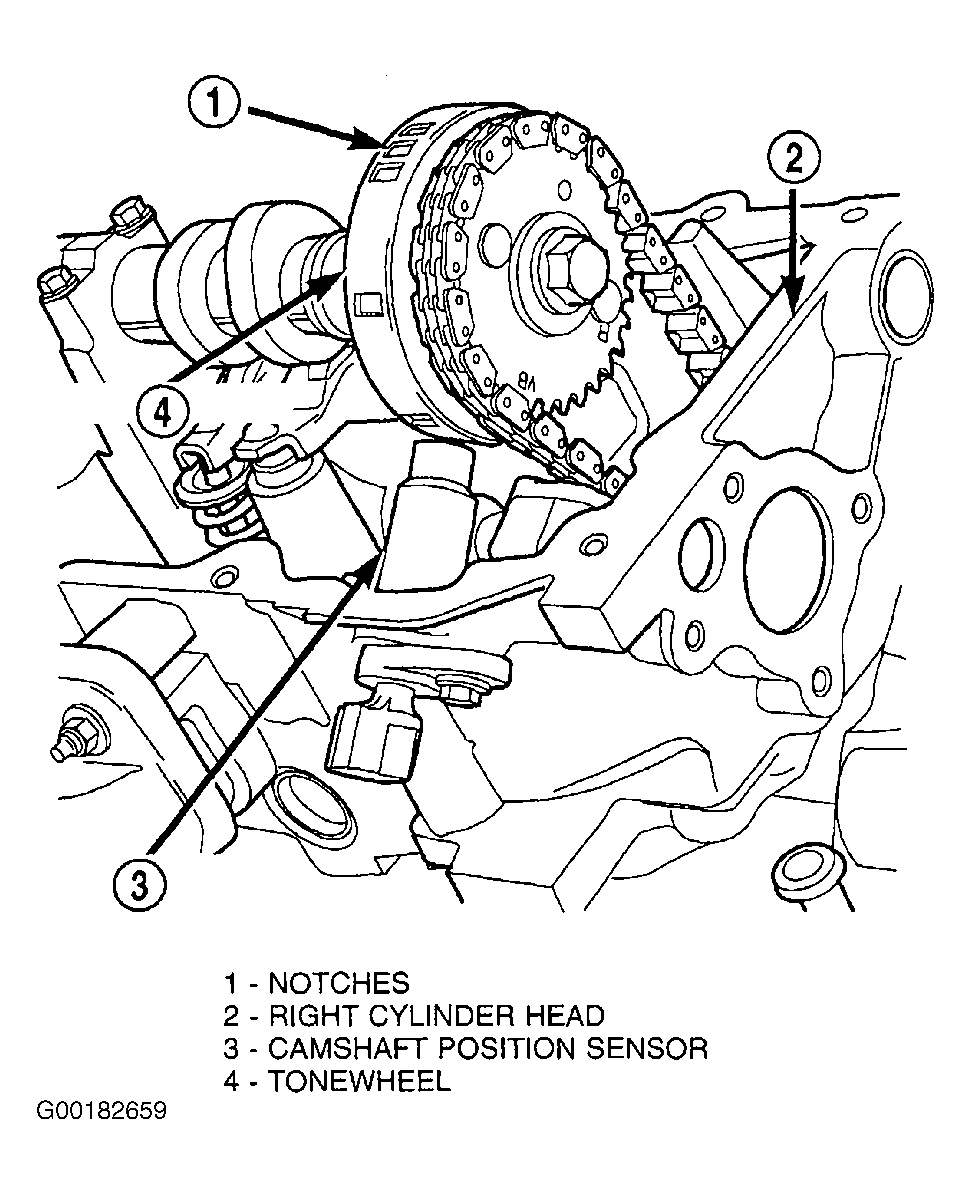

4.7L - The Camshaft Position (CMP) sensor is located on front of right cylinder head. A Distributorless Ignition System (DIS) is used. The CMP sensor reads slots in cam timing sprocket. See Fig 2 and Fig 3 . The CMP sensor contains a hall effect device called a sync signal generator to generate a fuel sync signal. This sync signal generator detects notches located on a tone wheel. The tone wheel is located at the front of the camshaft for the right cylinder head. See Fig 3 . As the tone wheel rotates, the notches pass through the sync signal generator. The pattern of the notches (viewed counter-clockwise from front of engine) is: 1 notch, 2 notches, 3 notches, 3 notches, 2 notches, 1 notch, 3 notches and 1 notch. The signal from the CMP sensor is used in conjunction with the crankshaft position sensor to differentiate between fuel injection and spark events. It is also used to synchronize the fuel injectors with their respective cylinders.
