Vapor Canister: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

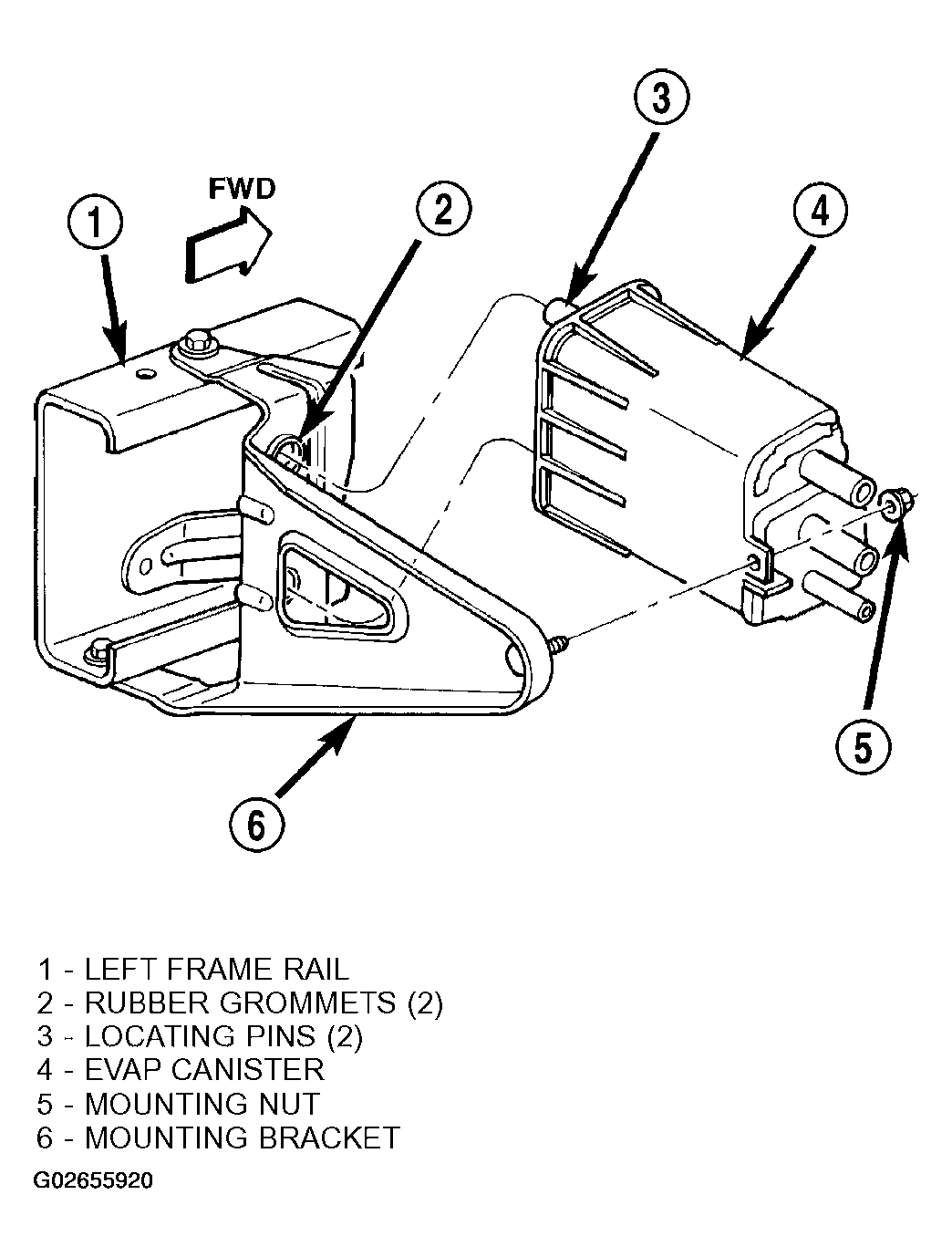

The EVAP canister is located below the vehicle, inside the left frame rail, in front of the fuel tank (Fig 1 ).
- Raise vehicle.
- Disconnect vacuum lines at EVAP canister. Note location of lines before removal.
- Remove canister mounting nut.
- Remove canister from mounting bracket.
