Timing Belt / Chain Cover(S): Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Drain cooling system (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
  3. Remove fan and fan drive assembly.
  4. Disconnect both heater hoses at timing cover.
  5. Disconnect lower radiator hose at engine.
  6. Remove crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER-REMOVAL ).
  7. Remove accessory drive belt tensioner assembly (Fig 1).

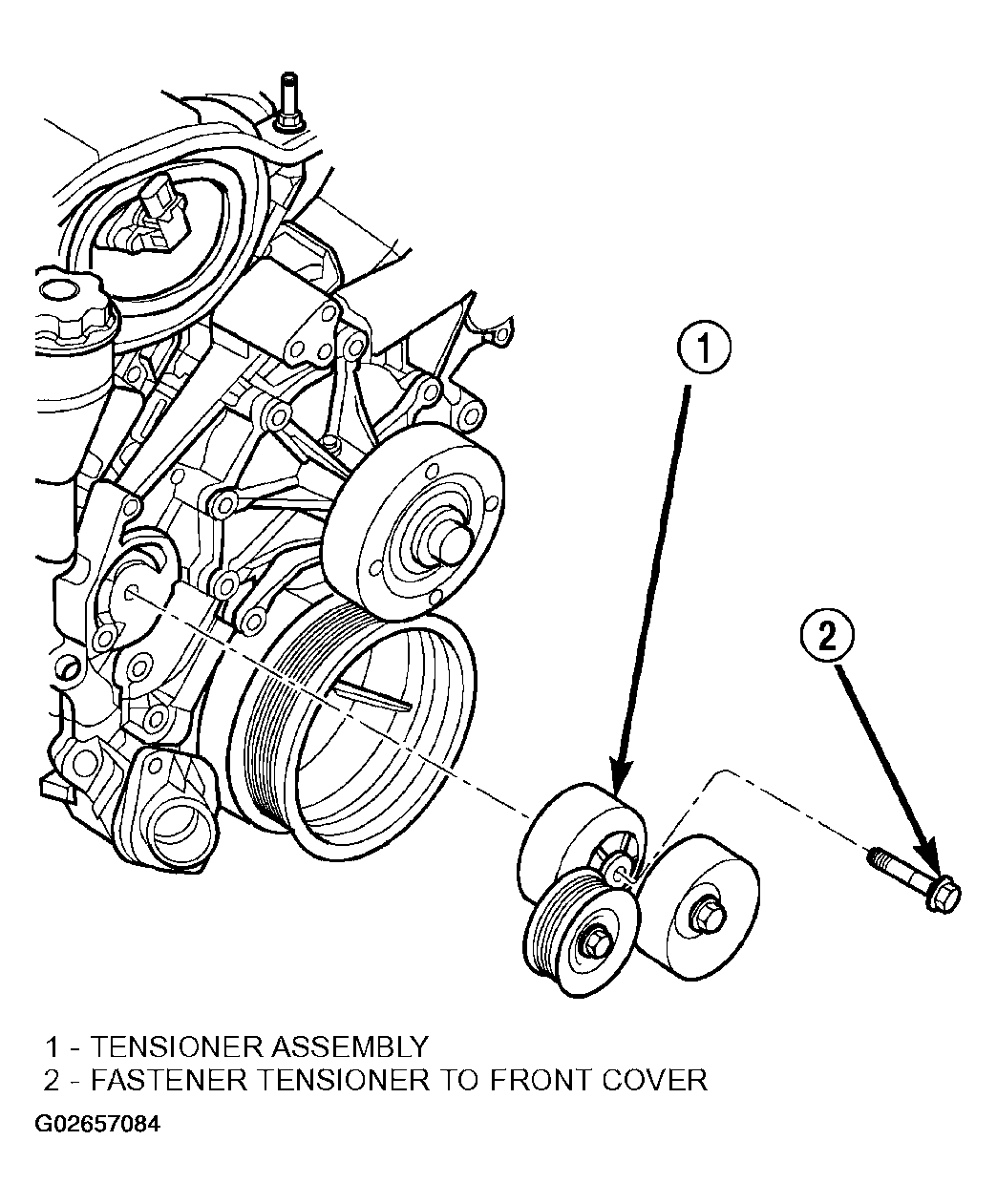

    Fig 1: Removing Accessory Drive Belt Tensioner
    G02657084Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove the generator (Refer to GENERATORS & REGULATORS ).
  9. Remove A/C compressor (Refer to A/C COMPRESSOR ).
  10. Remove cover and gasket (Fig 2).
    Fig 2: Removing Timing Chain Cover Fasteners
    G02657085Courtesy of DAIMLERCHRYSLER CORP.
