Data Link Connector Connector End View

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

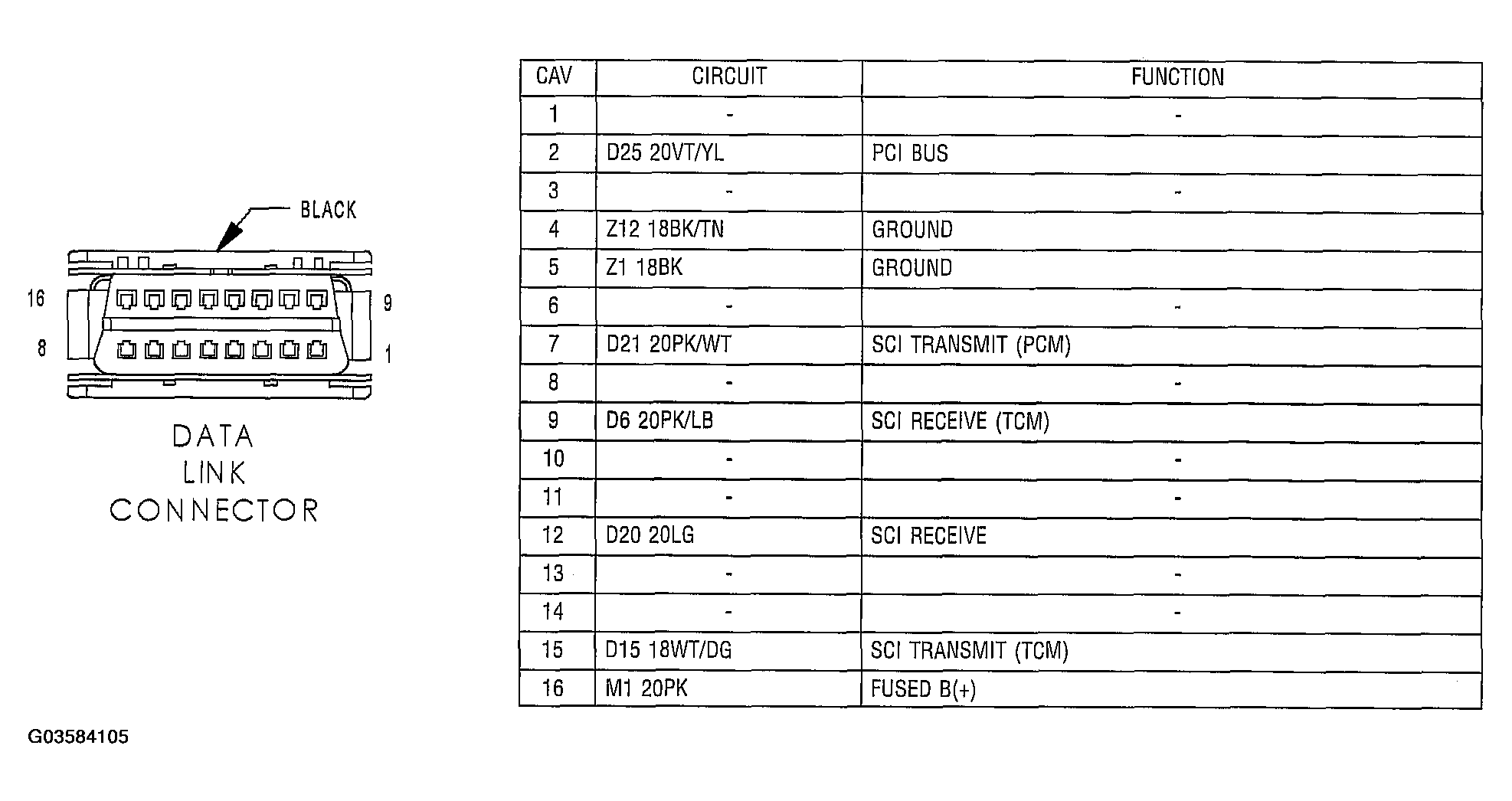

Fig 1: Identifying Data Link Connector - Black 16 Way
G03584105Courtesy of DAIMLERCHRYSLER CORP.
