Controller Antilock Brake Connector End View

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

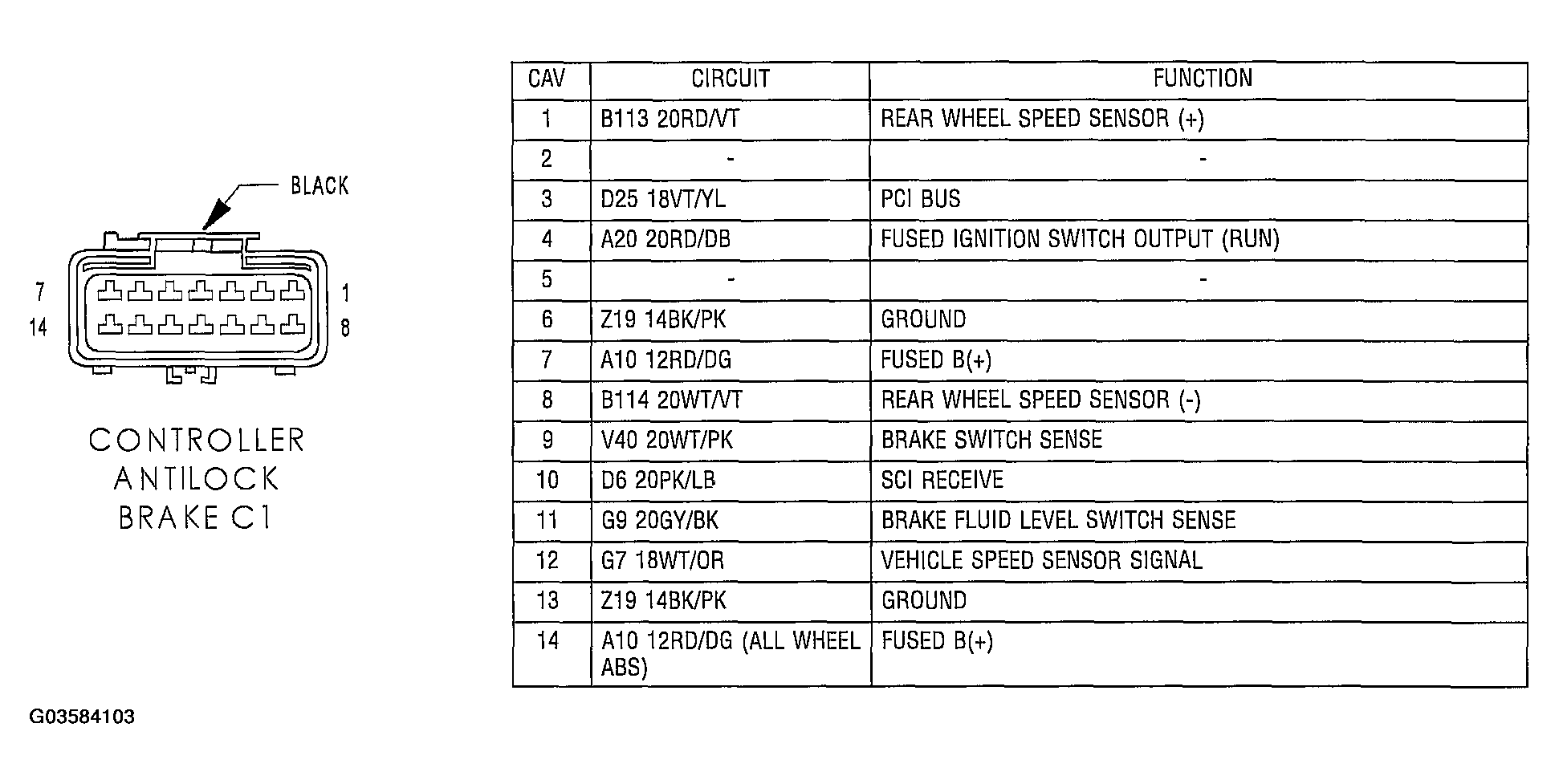

Fig 1: Identifying Controller Antilock Brake C1 - Black 14 Way
G03584103Courtesy of DAIMLERCHRYSLER CORP.

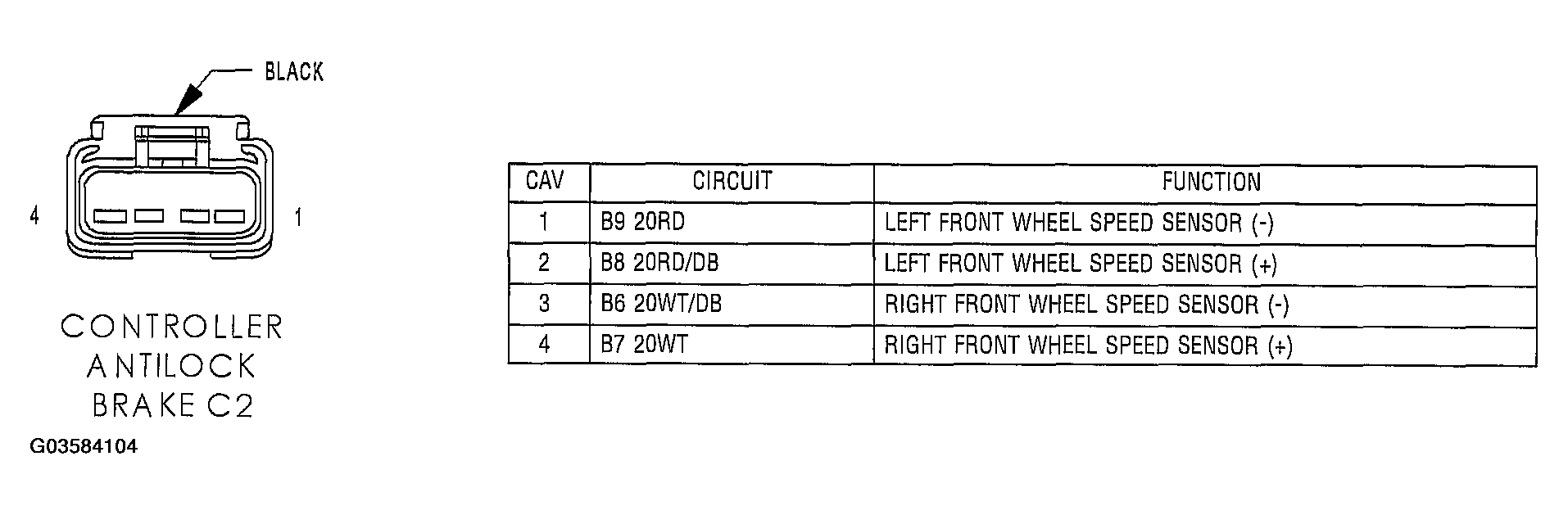

Fig 2: Identifying Controller Antilock Brake C2 - Black 4 Way
G03584104Courtesy of DAIMLERCHRYSLER CORP.
