Section 106 (Chassis Diagnostic Procedures - Anti-Lock Brake System)
>>
Component Locations
>>
Left Front Wheel Speed Sensor Connector
Left Front Wheel Speed Sensor Connector
WARNING:
This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

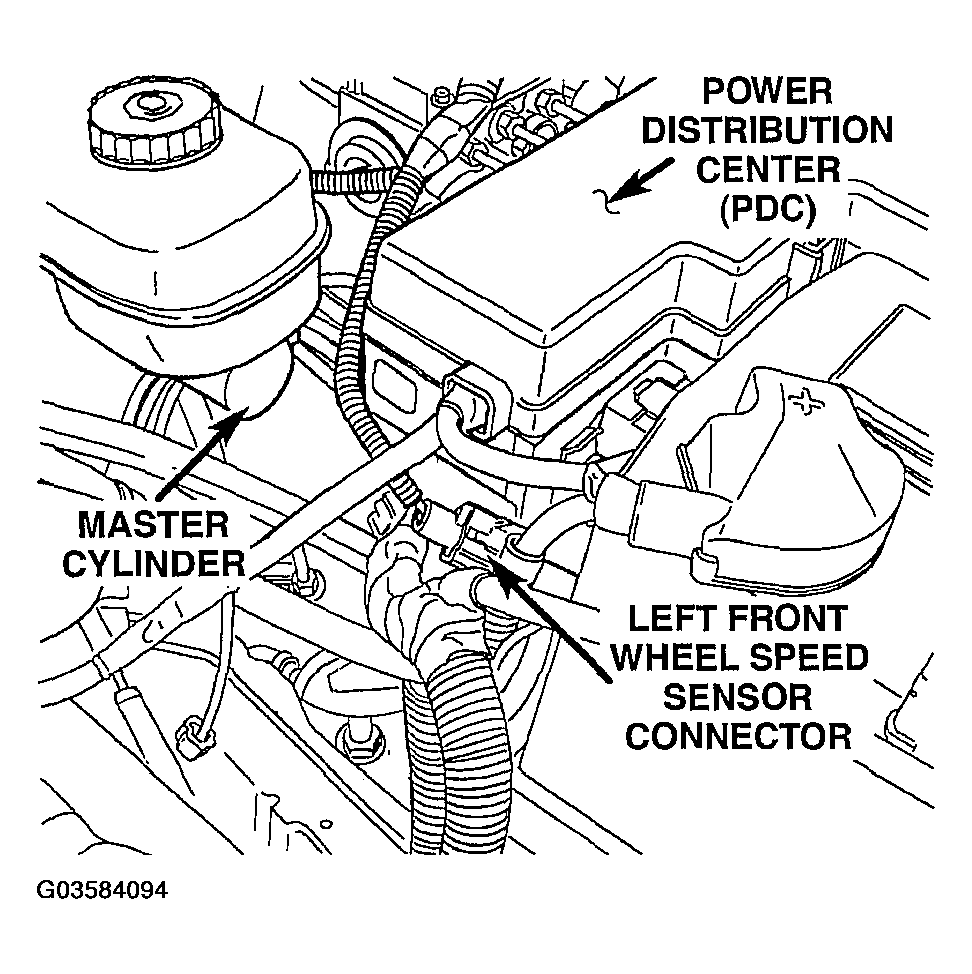

Fig 1: Identifying Left Front Wheel Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
