Vehicle Communication

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

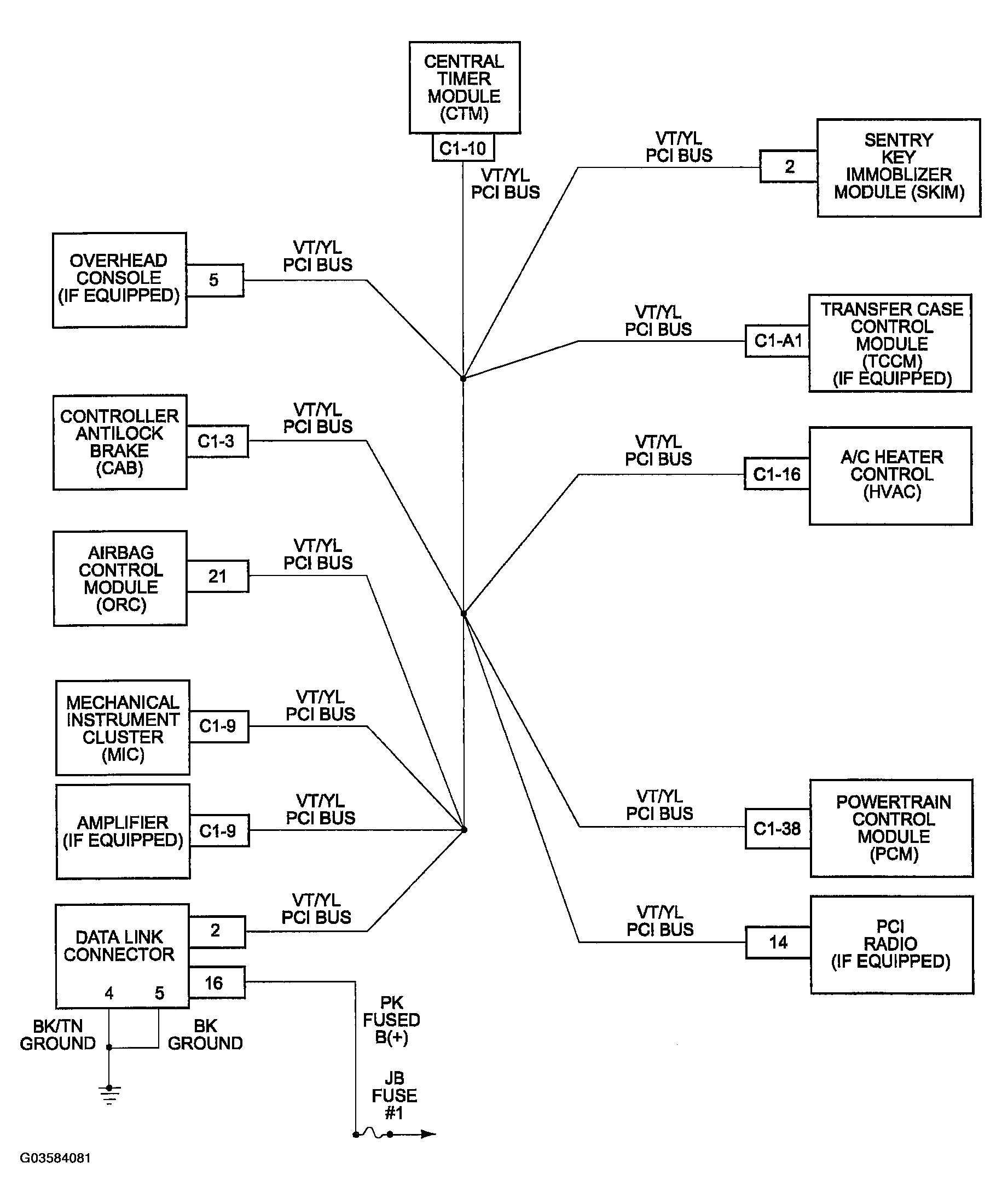

Fig 1: Communication Schematic Diagrams
G03584081Courtesy of DAIMLERCHRYSLER CORP.

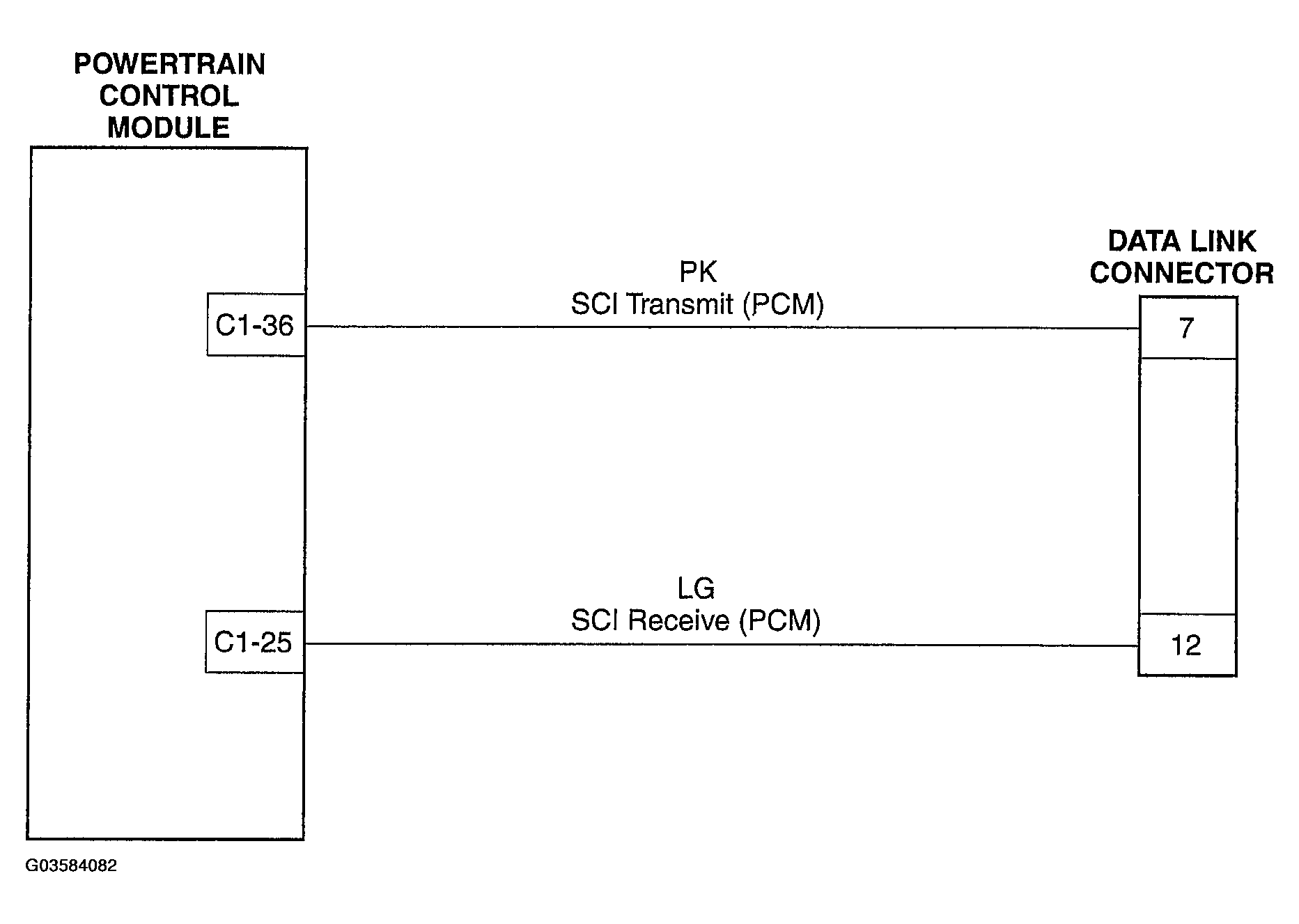

Fig 2: PCM Communication Schematic Diagrams
G03584082Courtesy of DAIMLERCHRYSLER CORP.
