Door Ajar

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

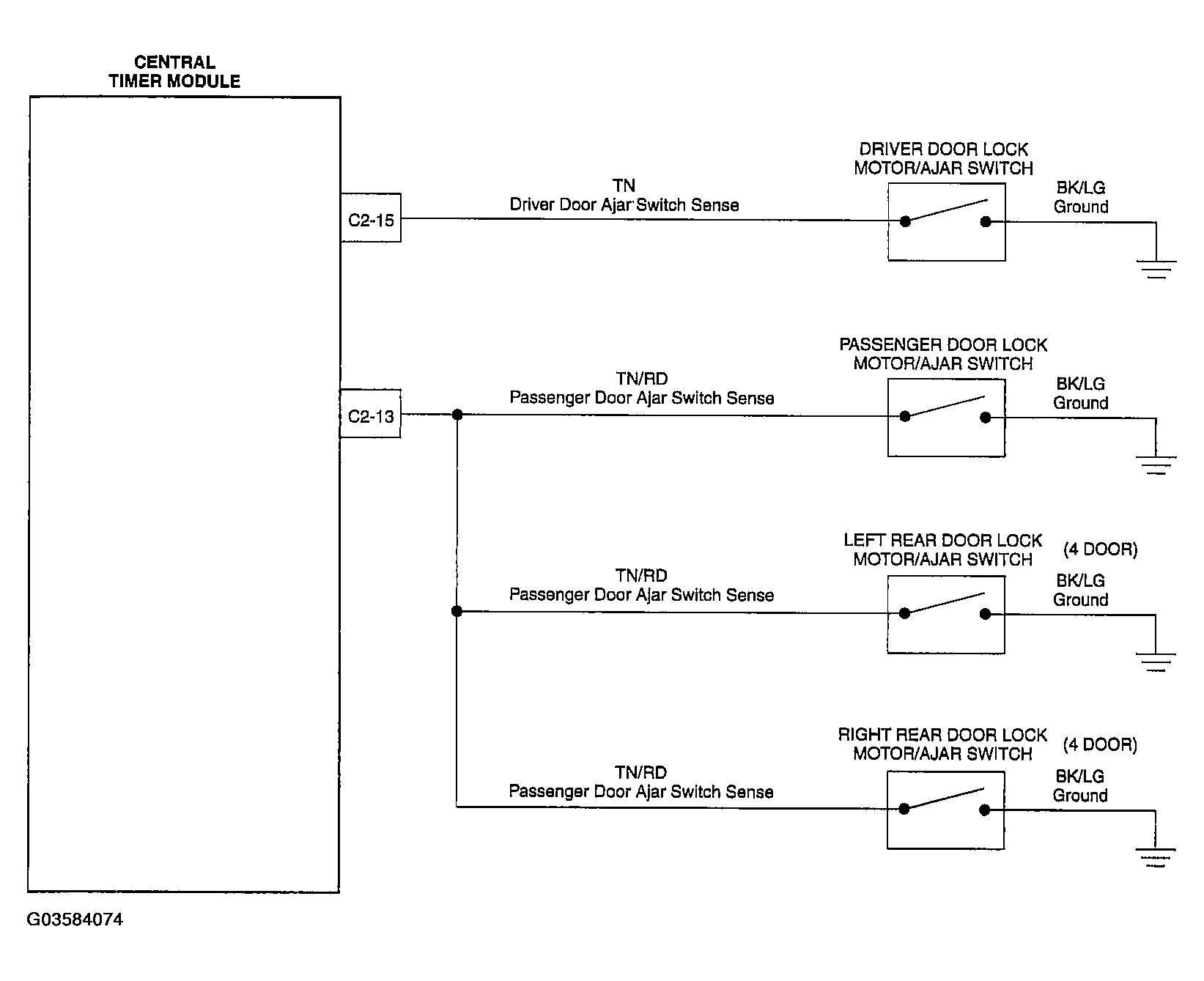

Fig 1: Door Ajar Schematic Diagrams
G03584074Courtesy of DAIMLERCHRYSLER CORP.
