Audio System

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

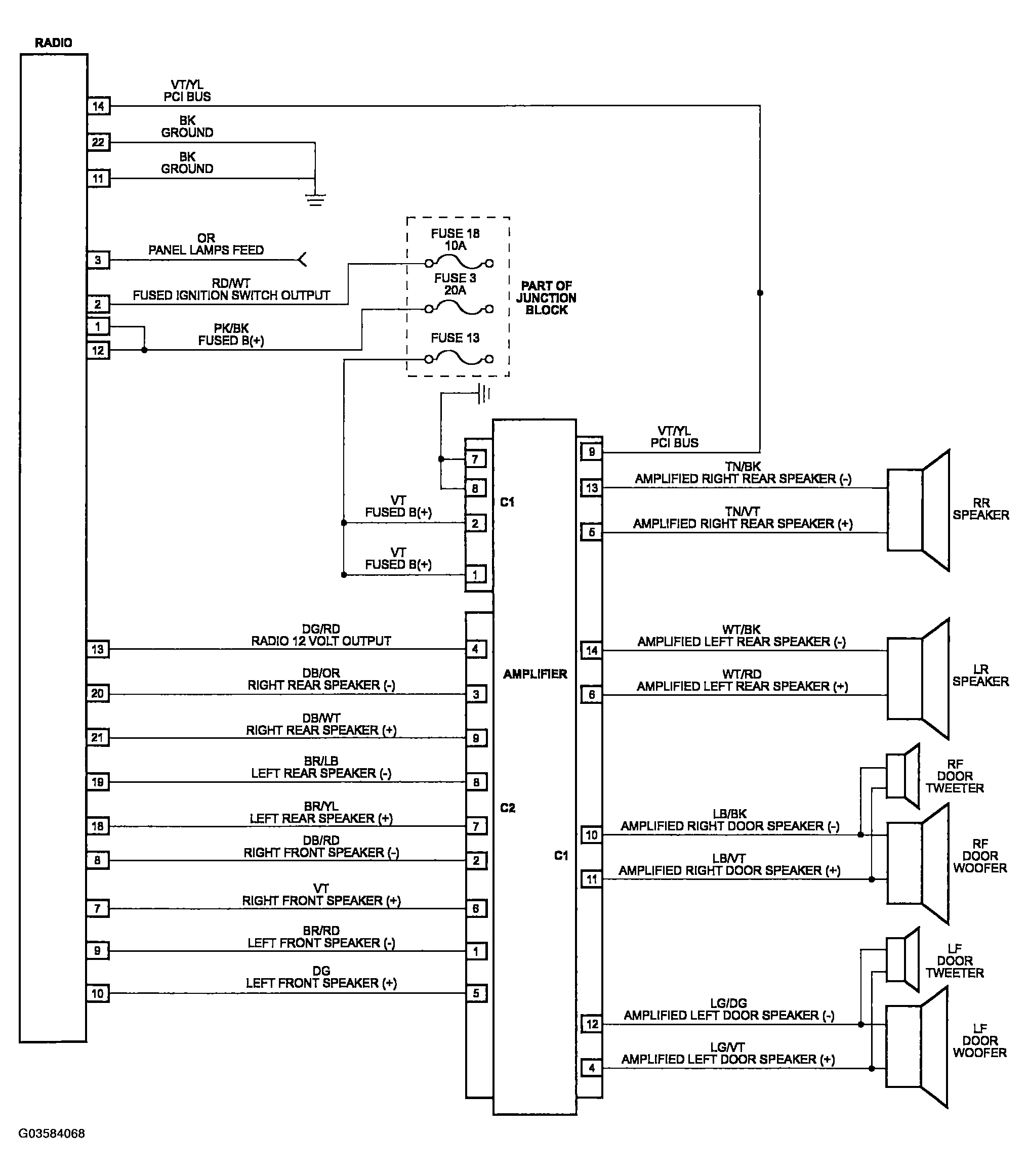

Fig 1: Premium Audio System Schematic Diagrams

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Base Audio System Schematic Diagrams

Courtesy of DAIMLERCHRYSLER CORP.

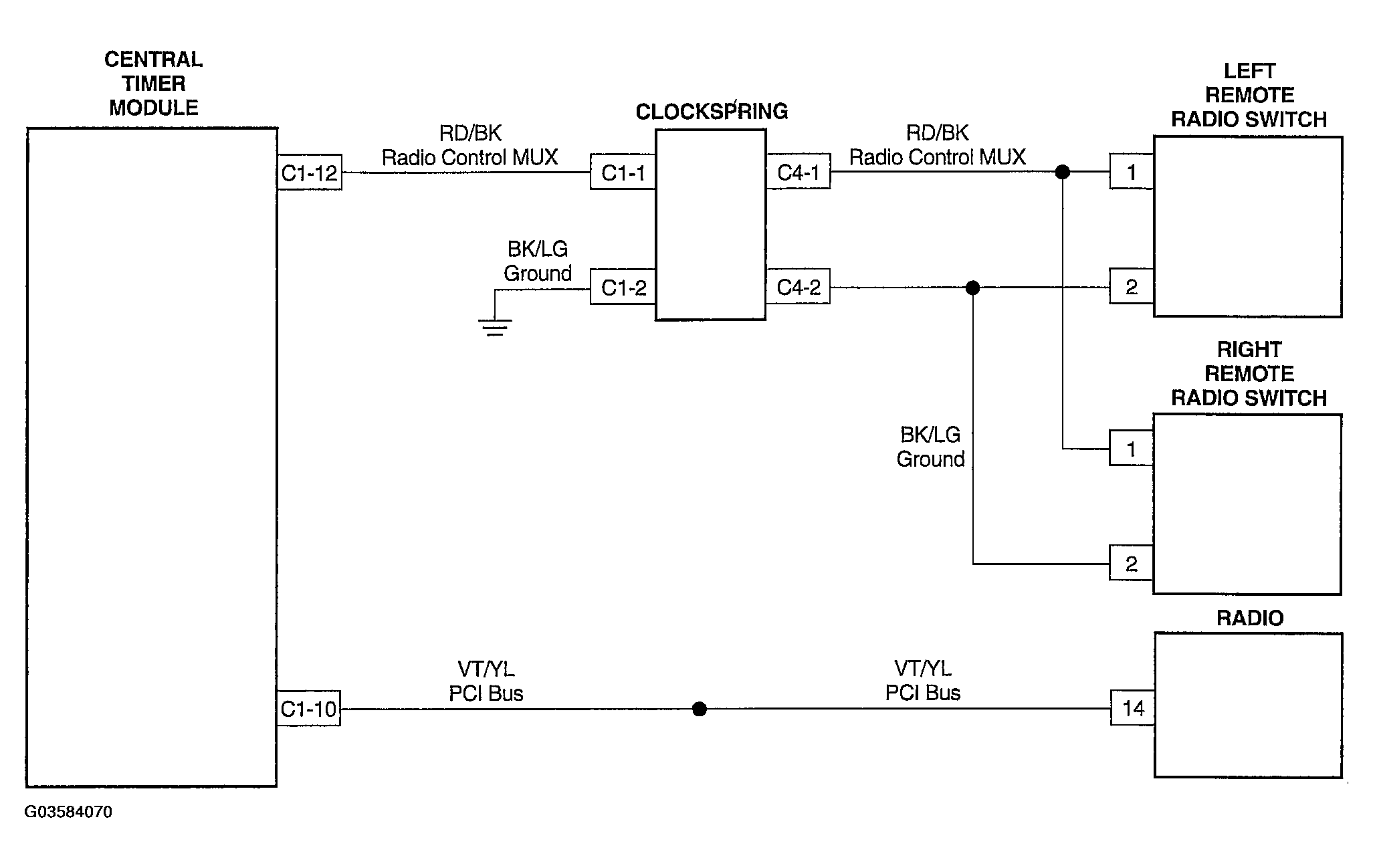

Fig 3: Remote Radio Controls Schematic Diagrams

Courtesy of DAIMLERCHRYSLER CORP.
