Airbag System

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

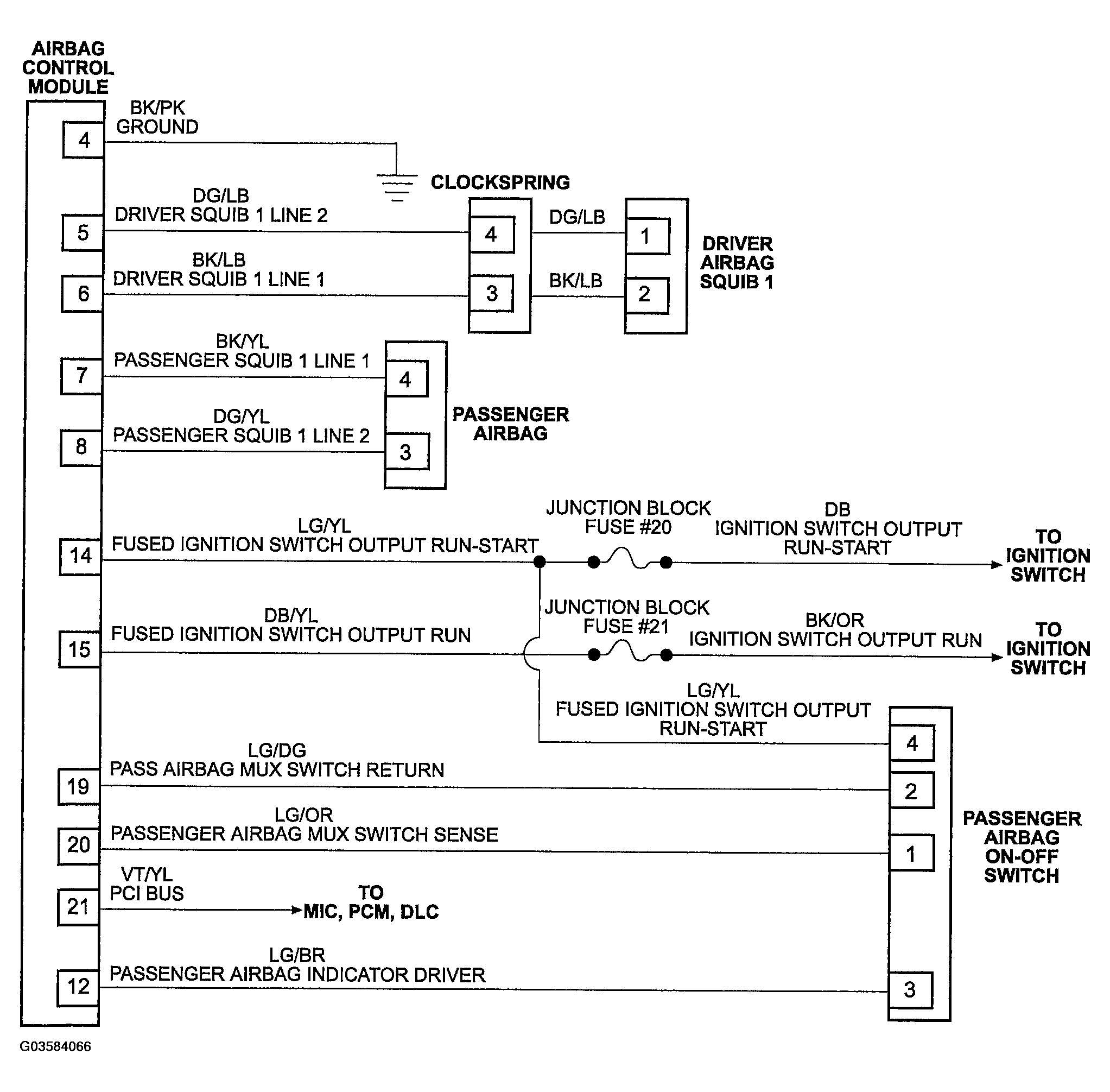

Fig 1: 2-Door Model (AN) Schematic Diagrams
G03584066Courtesy of DAIMLERCHRYSLER CORP.

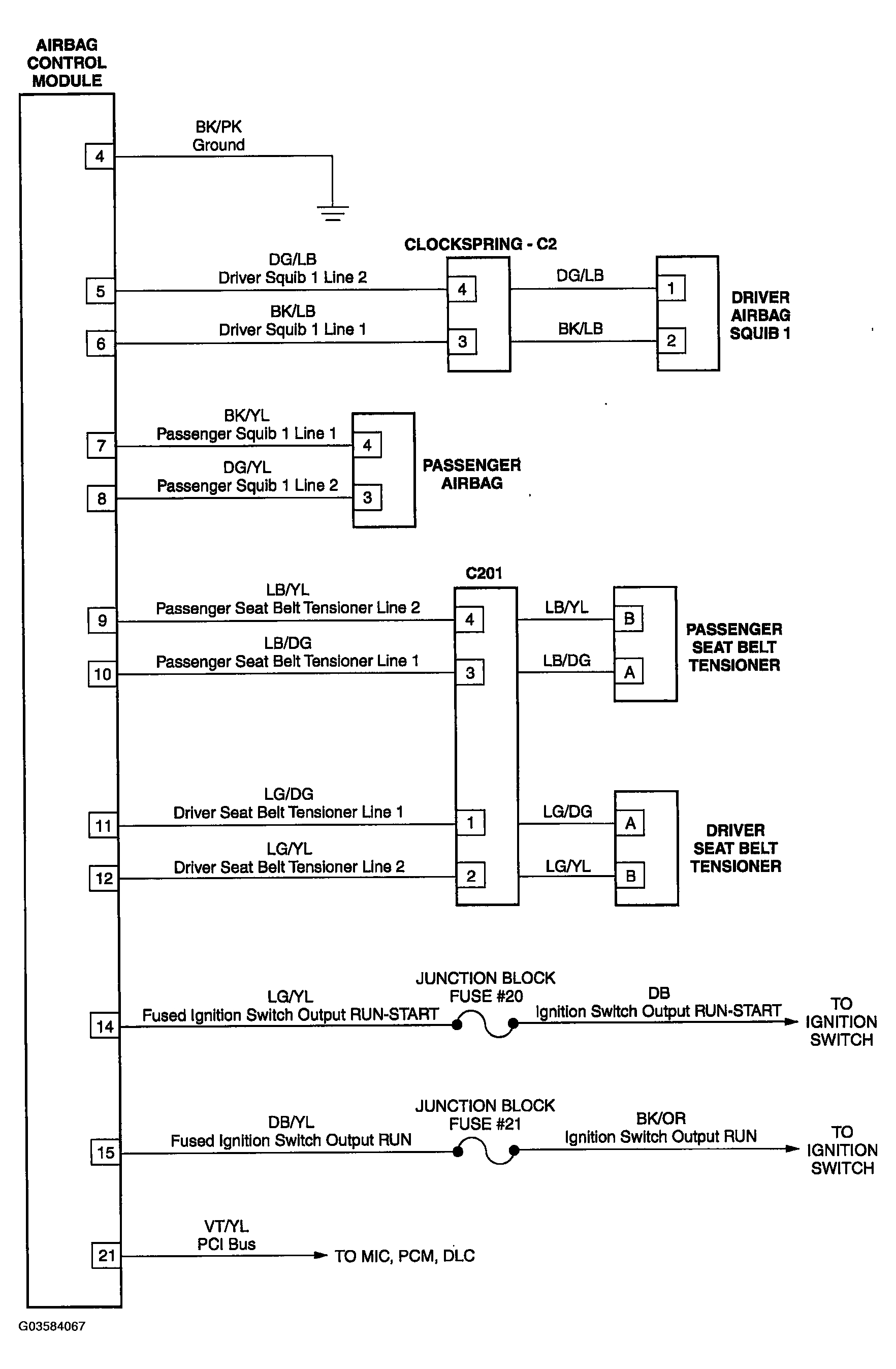

Fig 2: 4-Door Model (AN84) Schematic Diagrams
G03584067Courtesy of DAIMLERCHRYSLER CORP.
