Connector PINOUTS

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

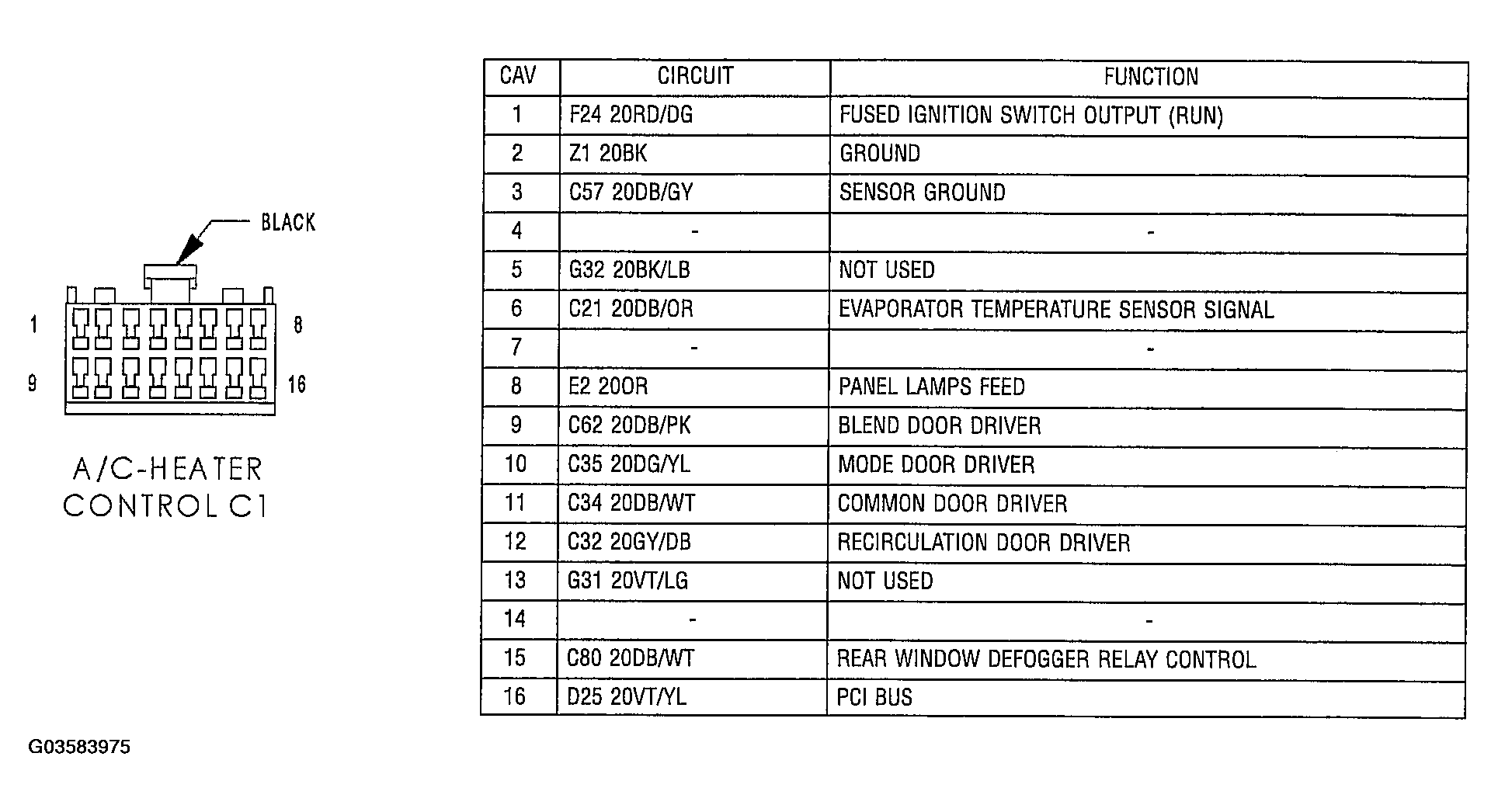

Fig 1: Identifying Connector A/C-Heater Control C1 - 16-Way
G03583975Courtesy of DAIMLERCHRYSLER CORP.

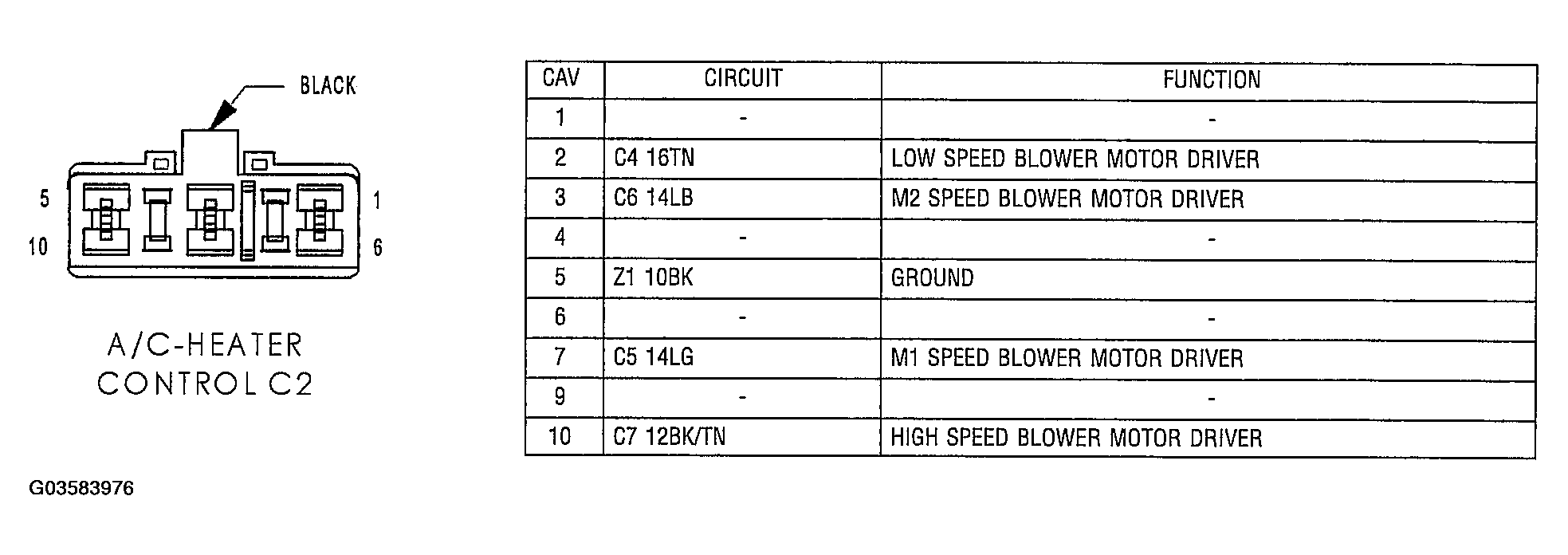

Fig 2: Identifying Connector A/C-Heater Control C2 - 10-Way
G03583976Courtesy of DAIMLERCHRYSLER CORP.

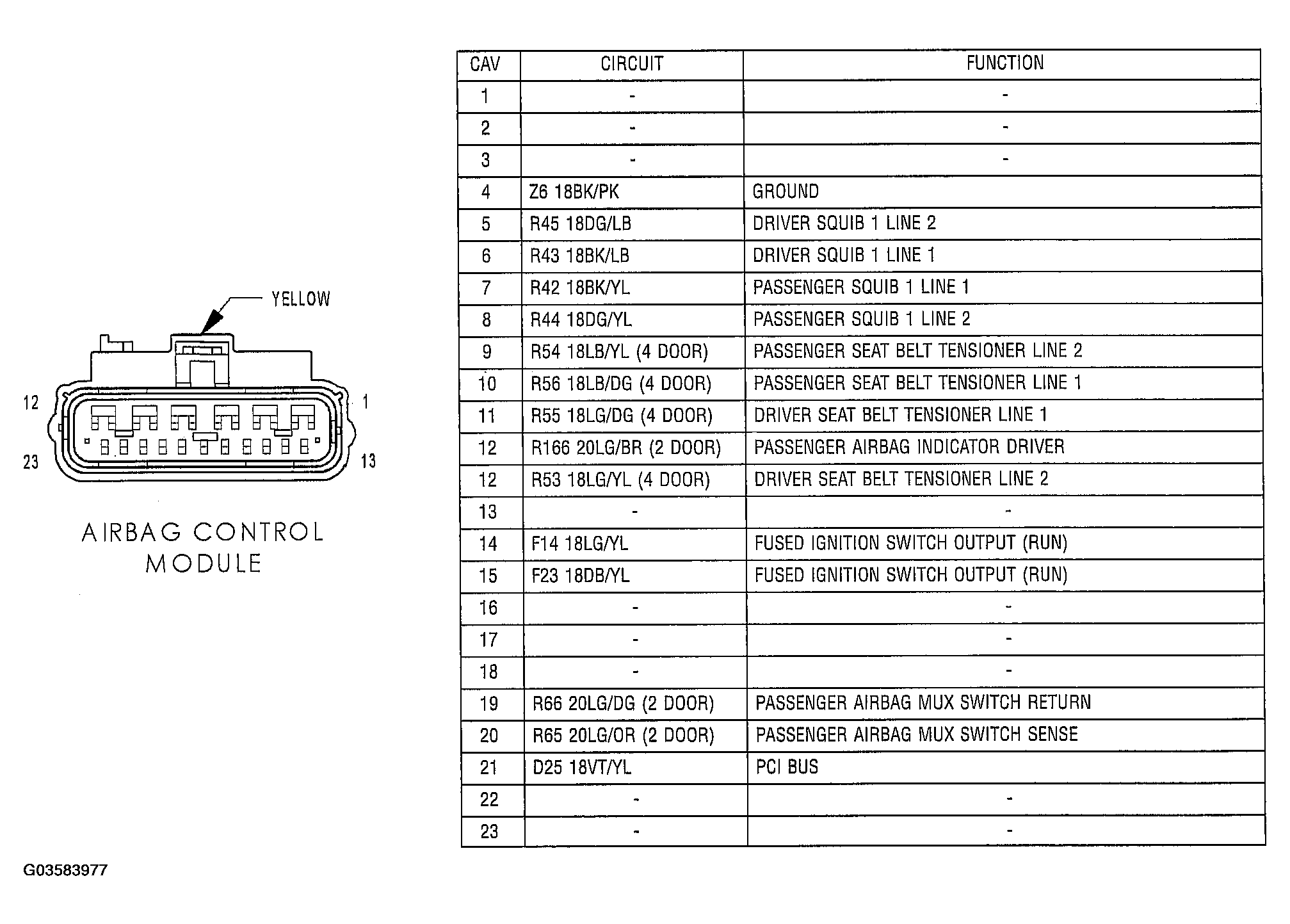

Fig 3: Identifying Connector Airbag Control Module - 23-Way
G03583977Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Connector Ambient Temperature Sensor - 2-Way
G03583978Courtesy of DAIMLERCHRYSLER CORP.

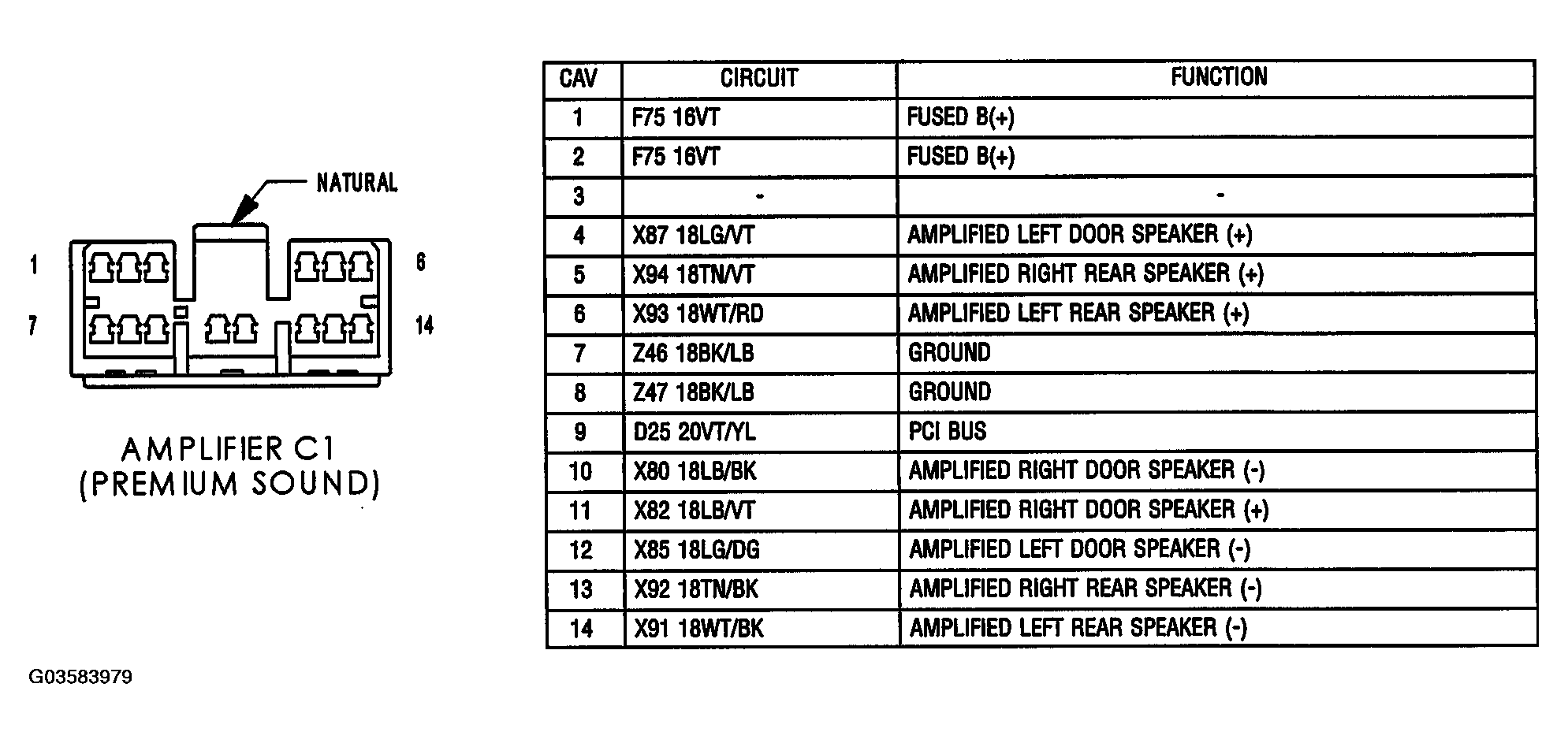

Fig 5: Identifying Connector Amplifier C1 (Premium Sound) - 14-Way
G03583979Courtesy of DAIMLERCHRYSLER CORP.

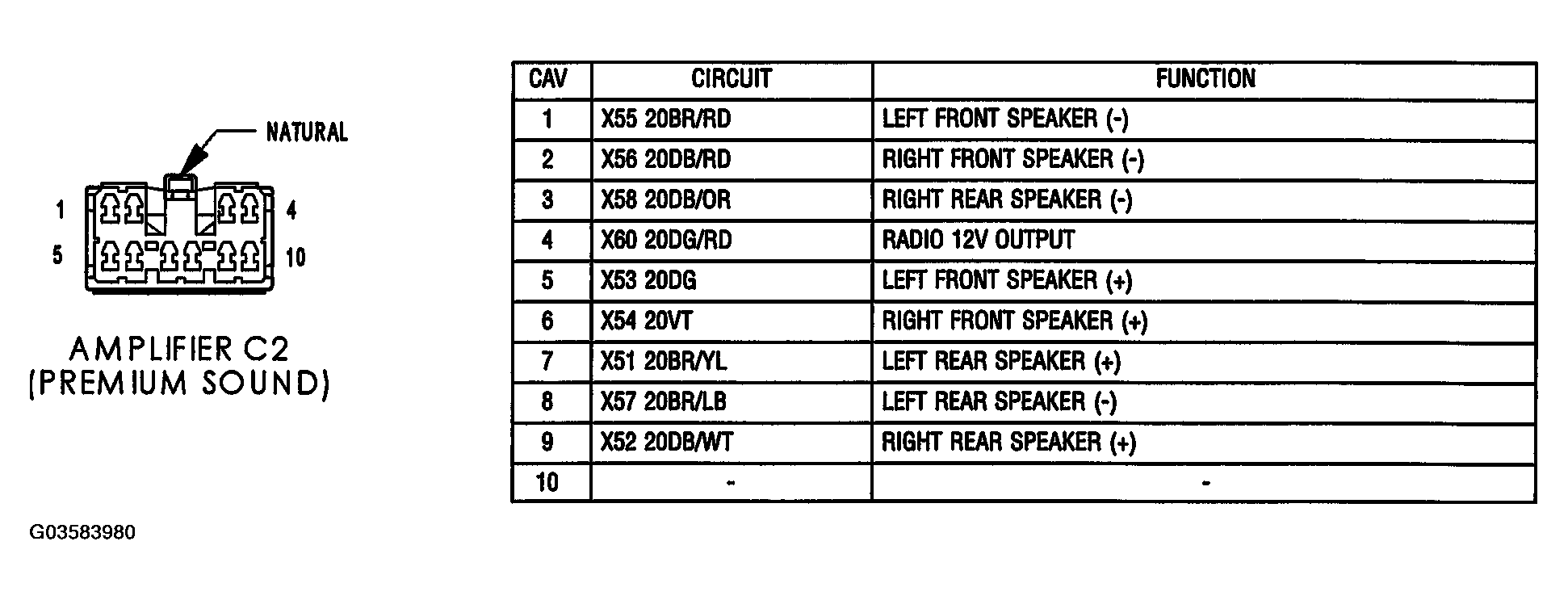

Fig 6: Identifying Connector Amplifier C2 (Premium Sound) - 10-Way
G03583980Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Identifying Connector Blend Door Actuator - 2-Way
G03583981Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Identifying Connector Blower Motor - 2-Way
G03583982Courtesy of DAIMLERCHRYSLER CORP.

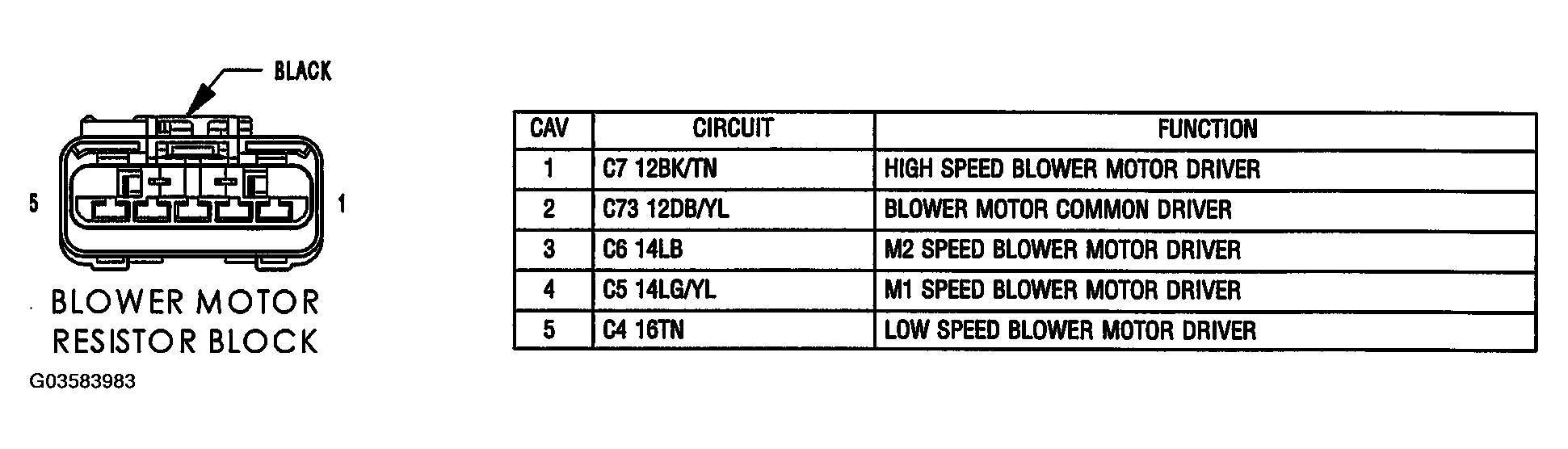

Fig 9: Identifying Connector Blower Motor Resistor Block - 5-Way
G03583983Courtesy of DAIMLERCHRYSLER CORP.

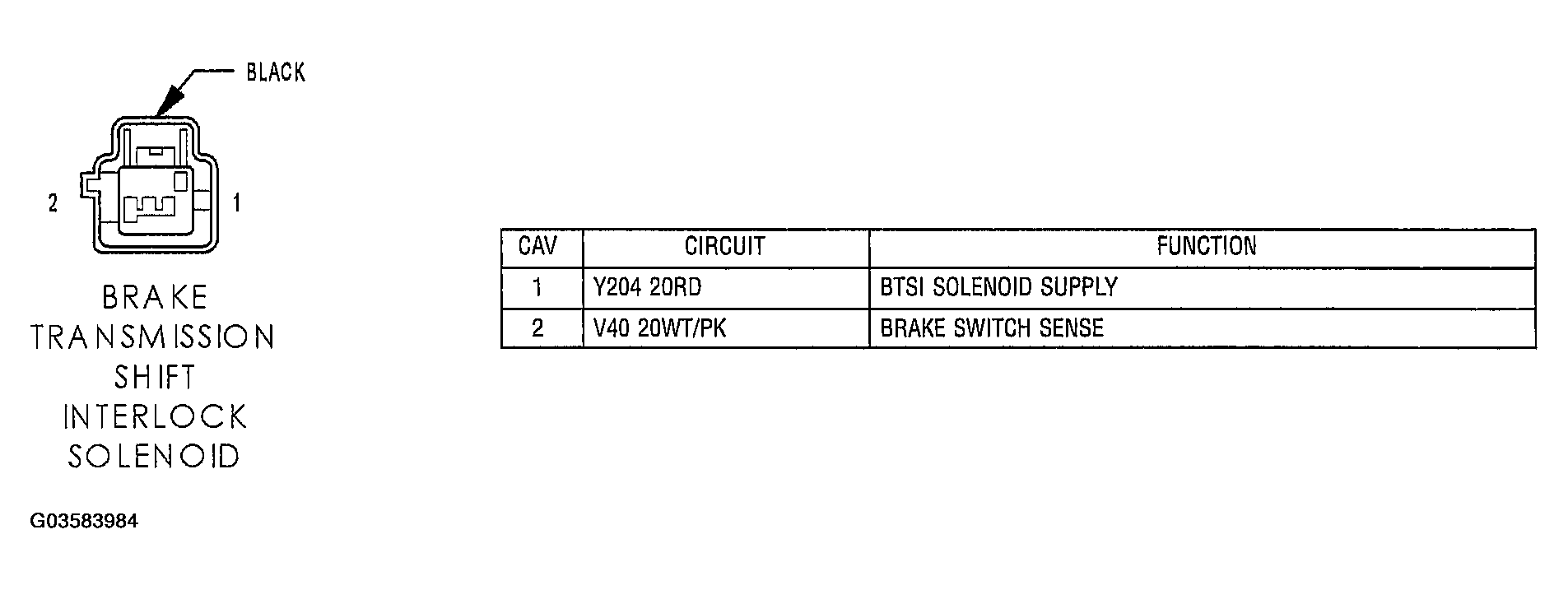

Fig 10: Identifying Connector Brake Transmission Shift Interlock Solenoid - 2-Way
G03583984Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying Connector C201 (4 Door) - (Body Side)
G03583985Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Identifying Connector C201 (4 Door) - (Instrument Panel Side)
G03583986Courtesy of DAIMLERCHRYSLER CORP.

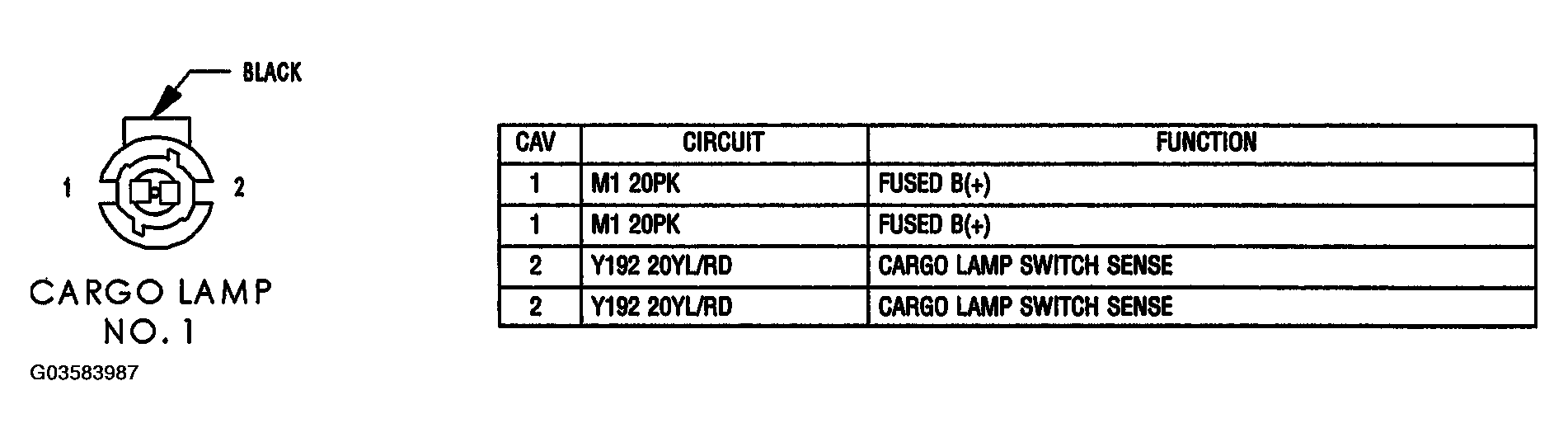

Fig 13: Identifying Connector Cargo Lamp No. 1 - 2-Way
G03583987Courtesy of DAIMLERCHRYSLER CORP.

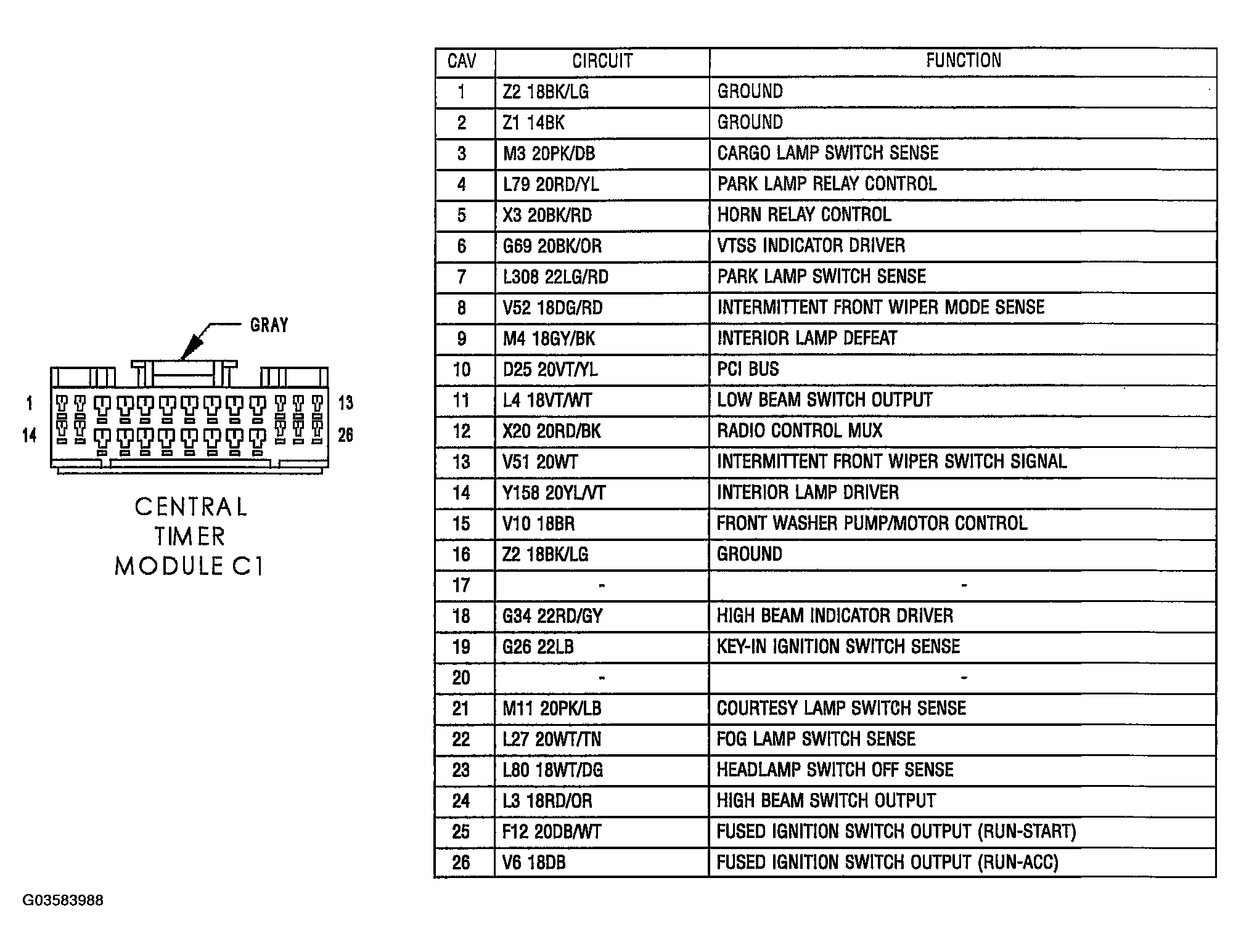

Fig 14: Identifying Connector Central Timer Module C1 - 26-Way
G03583988Courtesy of DAIMLERCHRYSLER CORP.

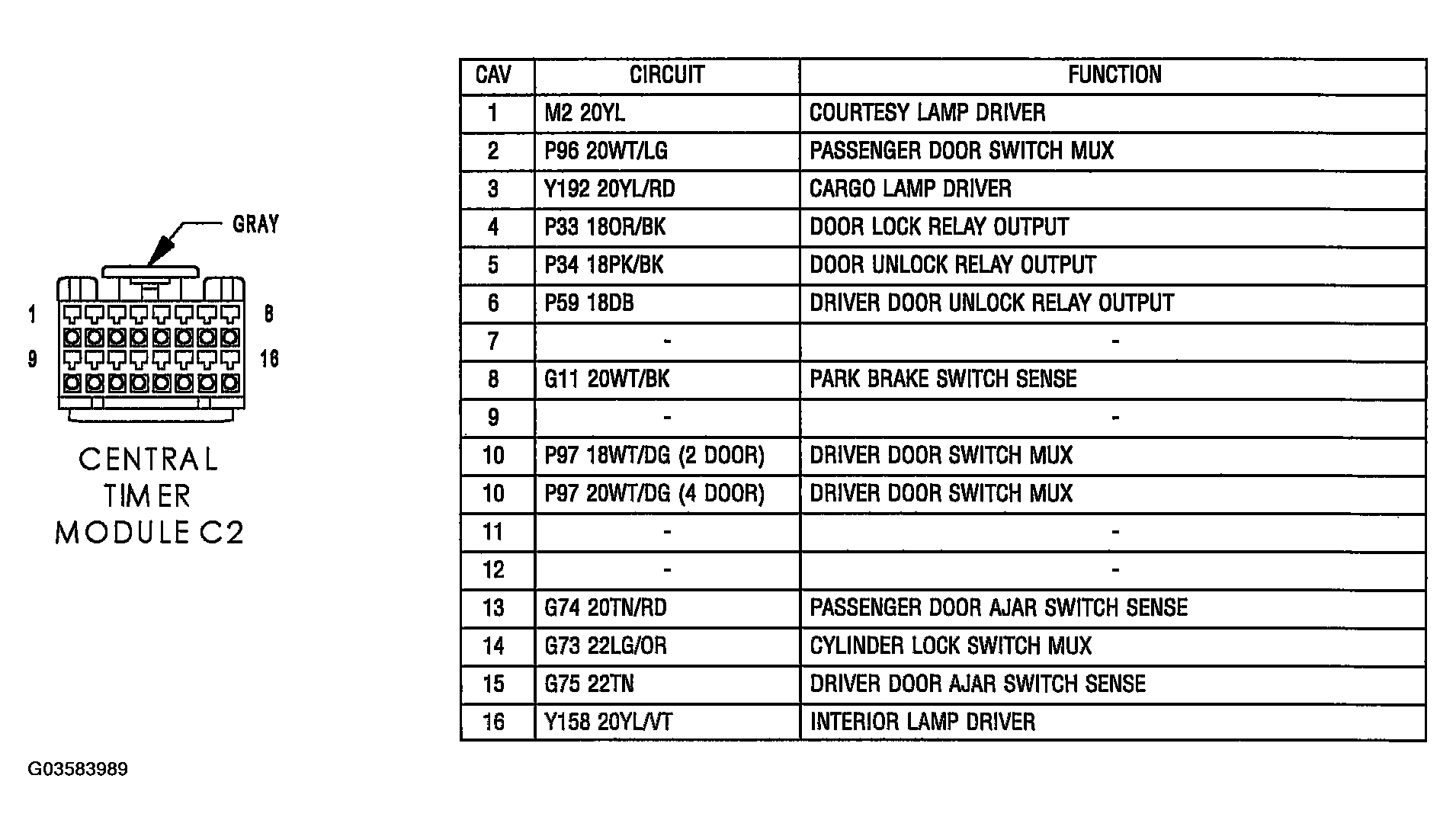

Fig 15: Identifying Connector Central Timer Module C2 - 16-Way
G03583989Courtesy of DAIMLERCHRYSLER CORP.

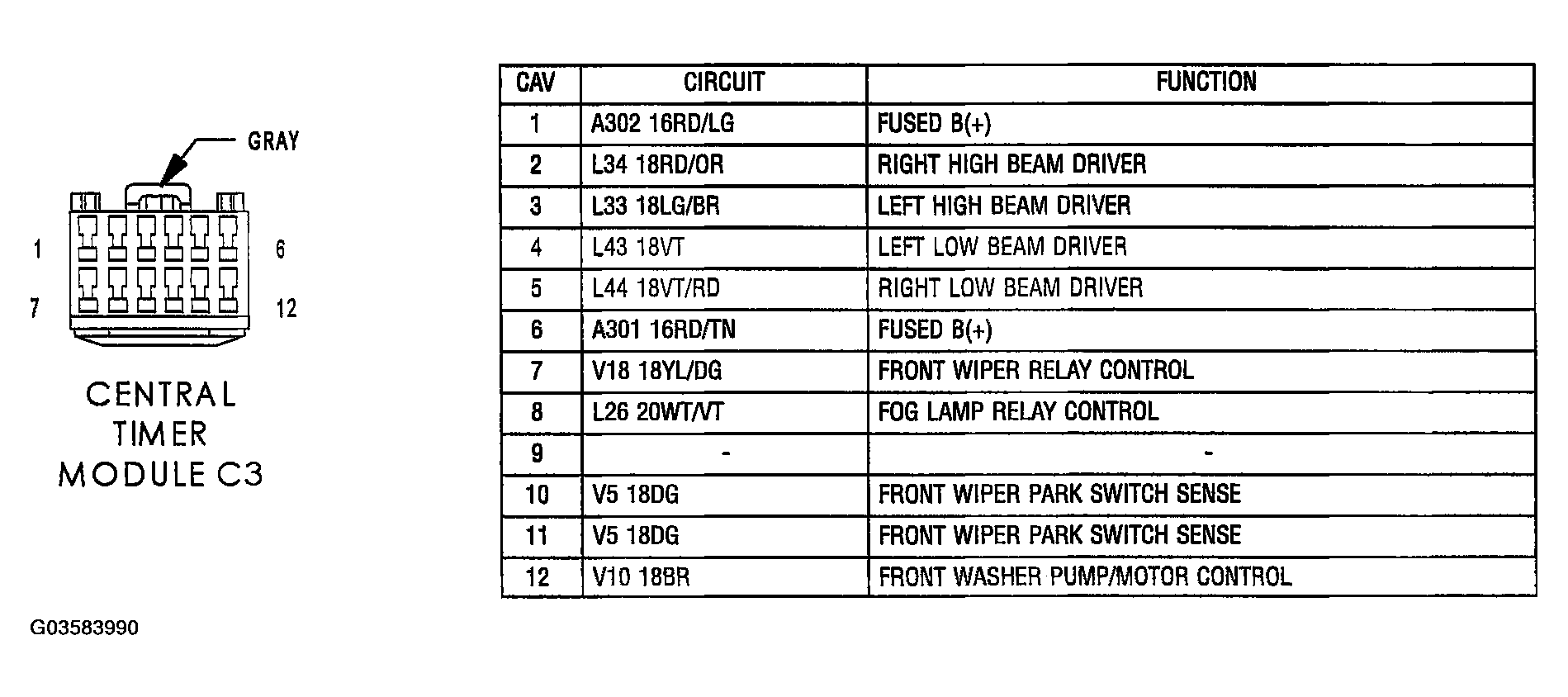

Fig 16: Identifying Connector Central Timer Module C3 - 12-Way
G03583990Courtesy of DAIMLERCHRYSLER CORP.

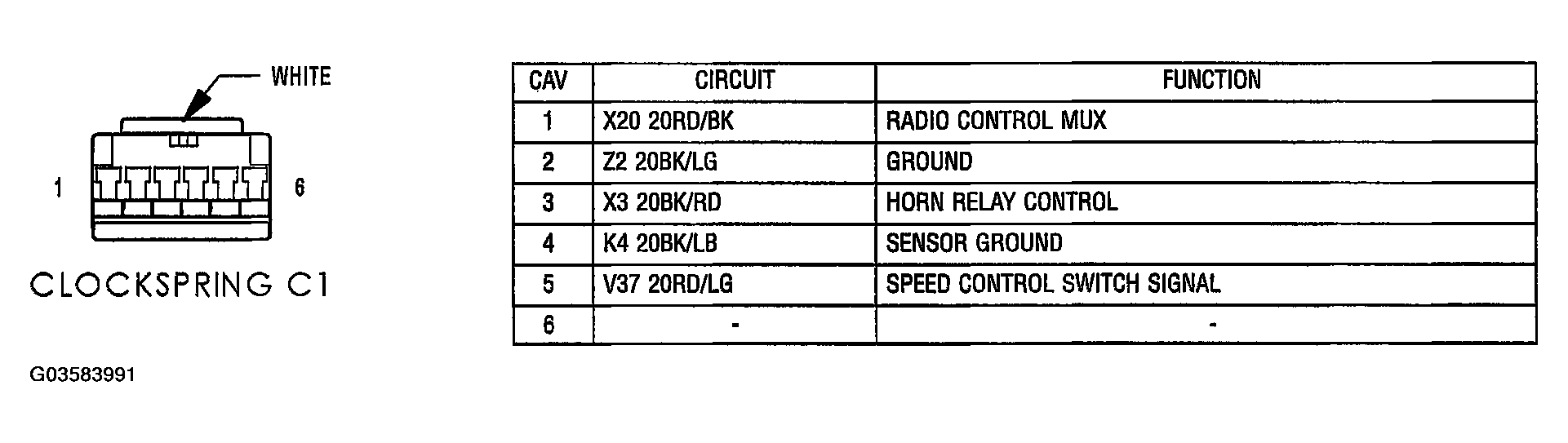

Fig 17: Identifying Connector Clockspring C1 - 6-Way
G03583991Courtesy of DAIMLERCHRYSLER CORP.

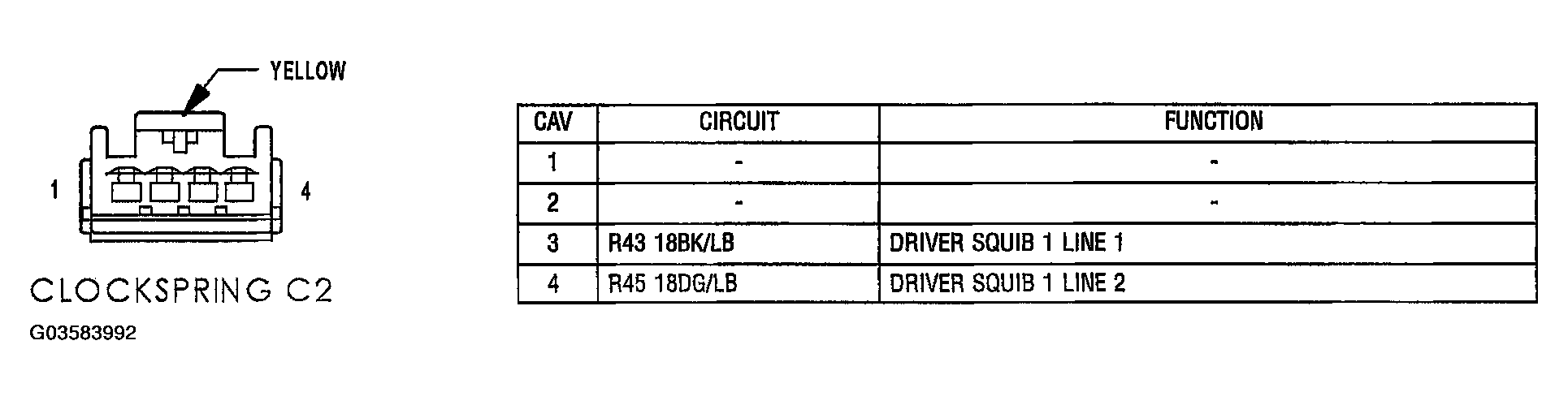

Fig 18: Identifying Connector Clockspring C2 - 4-Way
G03583992Courtesy of DAIMLERCHRYSLER CORP.

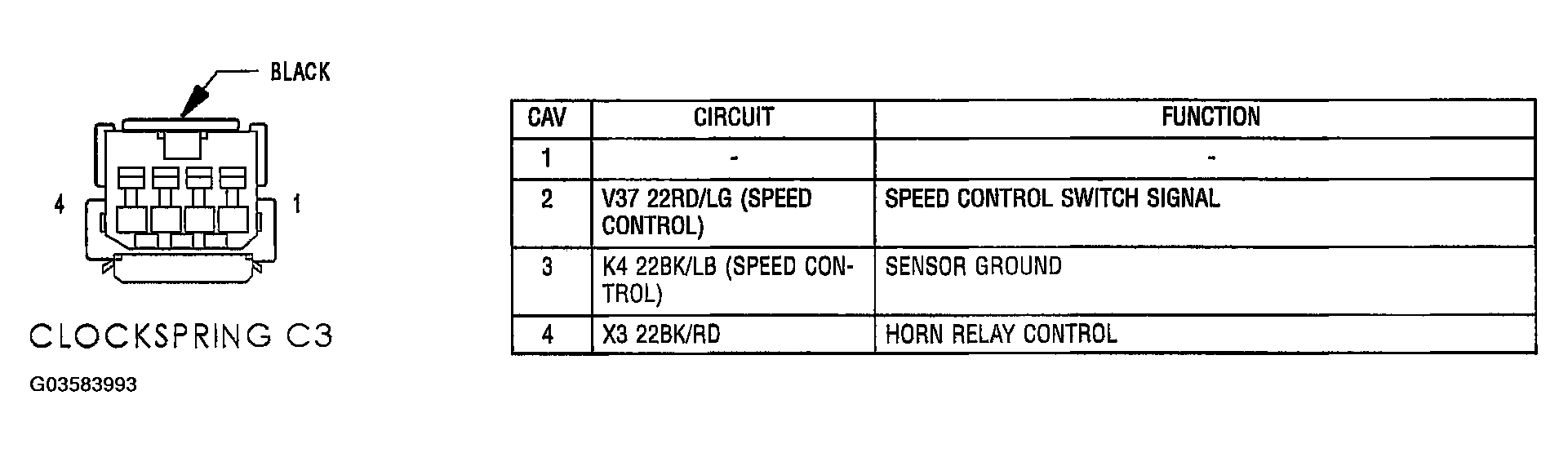

Fig 19: Identifying Connector Clockspring C3 - Black 4-Way
G03583993Courtesy of DAIMLERCHRYSLER CORP.

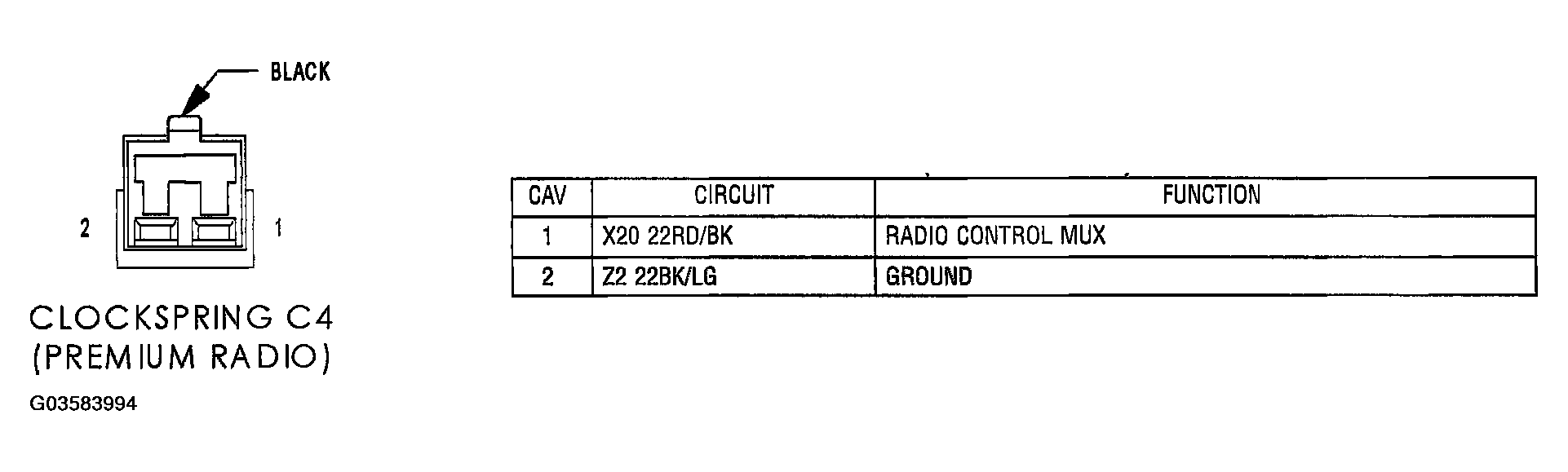

Fig 20: Identifying Connector Clockspring C4 (Premium Radio) - 2-Way
G03583994Courtesy of DAIMLERCHRYSLER CORP.

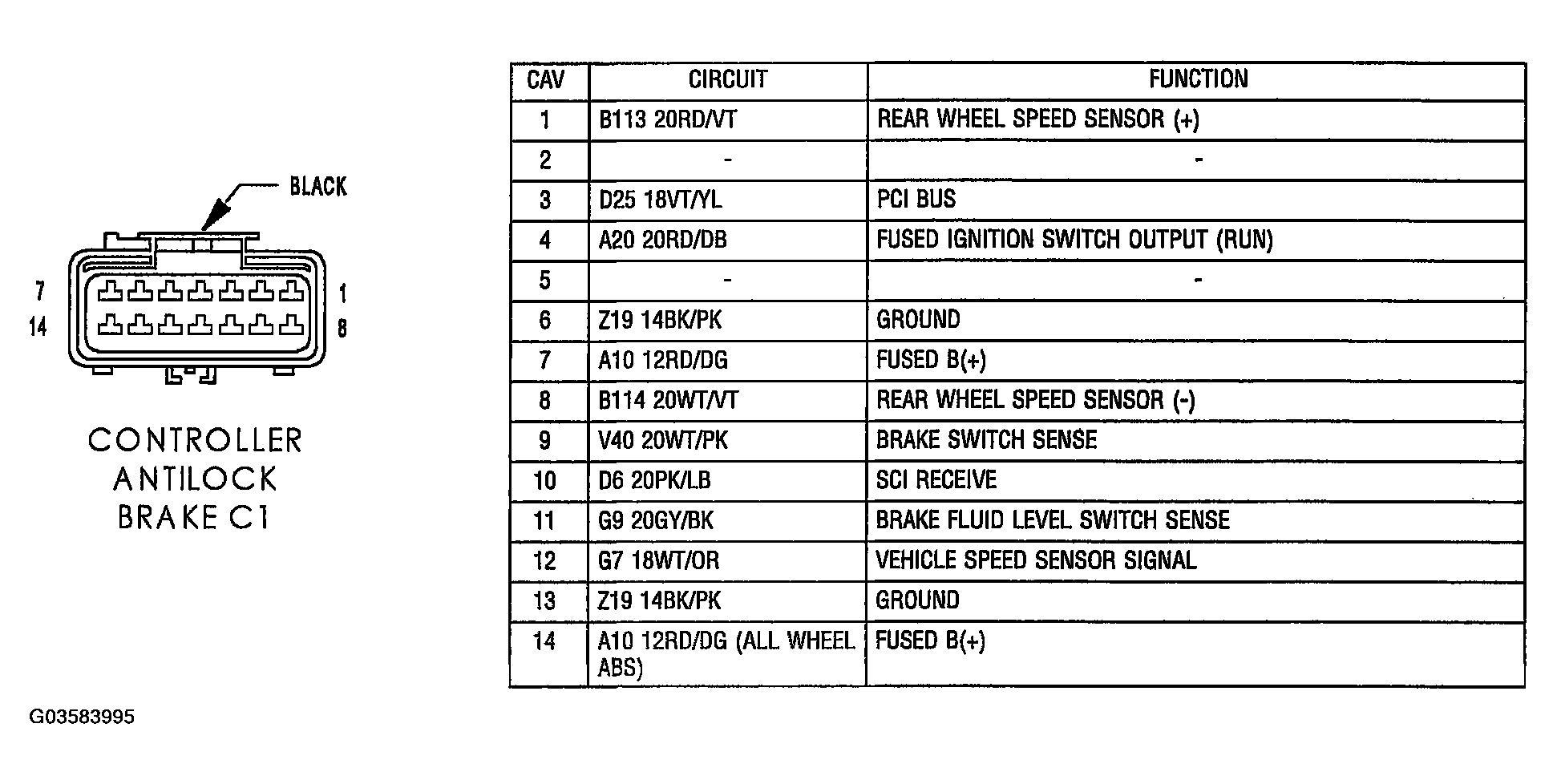

Fig 21: Identifying Connector Controller Antilock Brake C1 - 14-Way
G03583995Courtesy of DAIMLERCHRYSLER CORP.

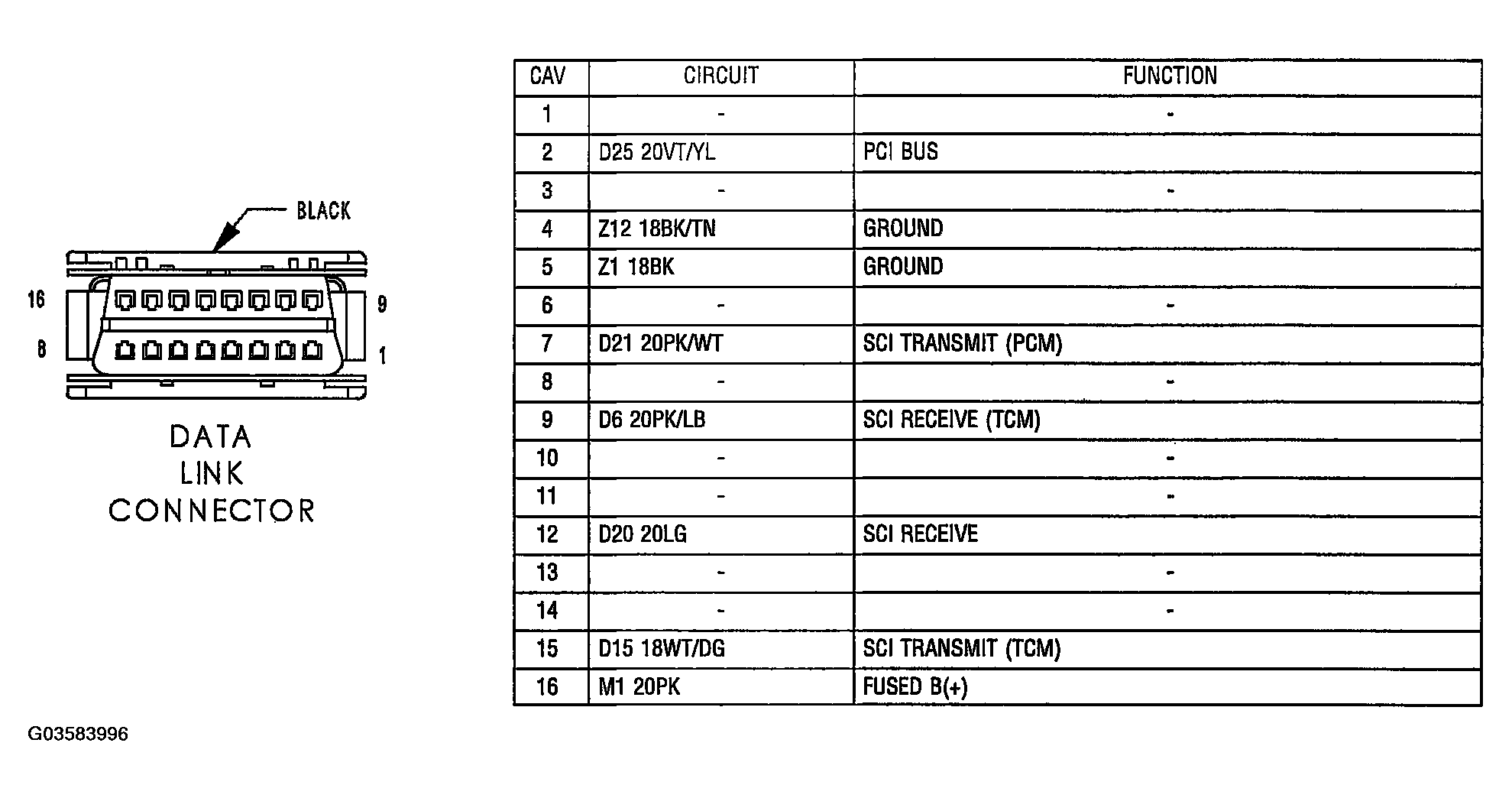

Fig 22: Identifying Connector Data Link Connector - 16-Way
G03583996Courtesy of DAIMLERCHRYSLER CORP.

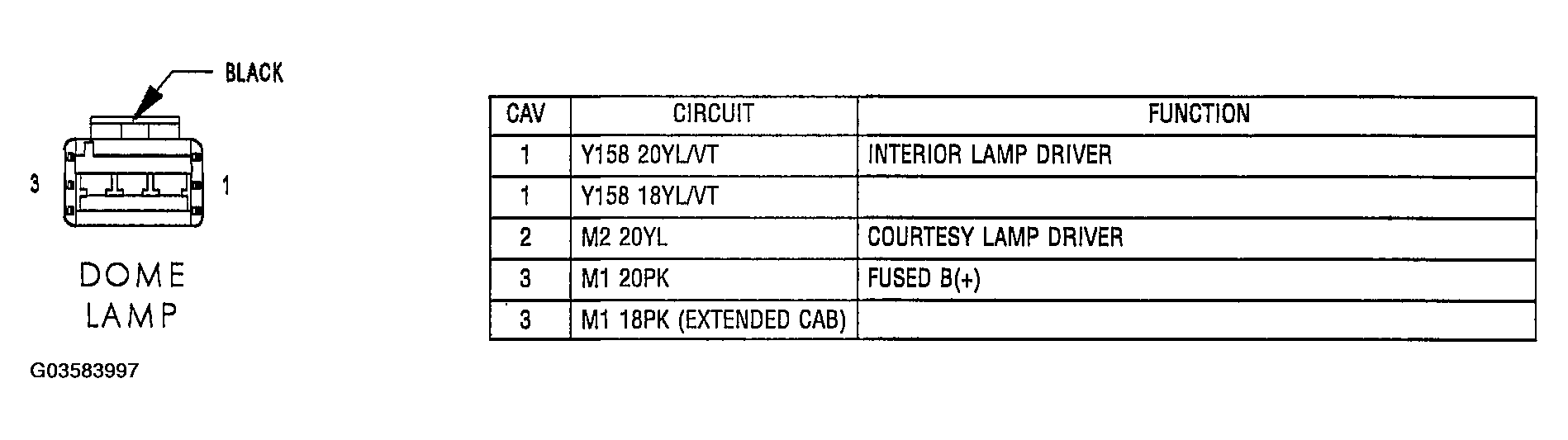

Fig 23: Identifying Connector Dome Lamp - 3-Way
G03583997Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Identifying Connector Driver Airbag Squib 1 - 2-Way
G03583998Courtesy of DAIMLERCHRYSLER CORP.

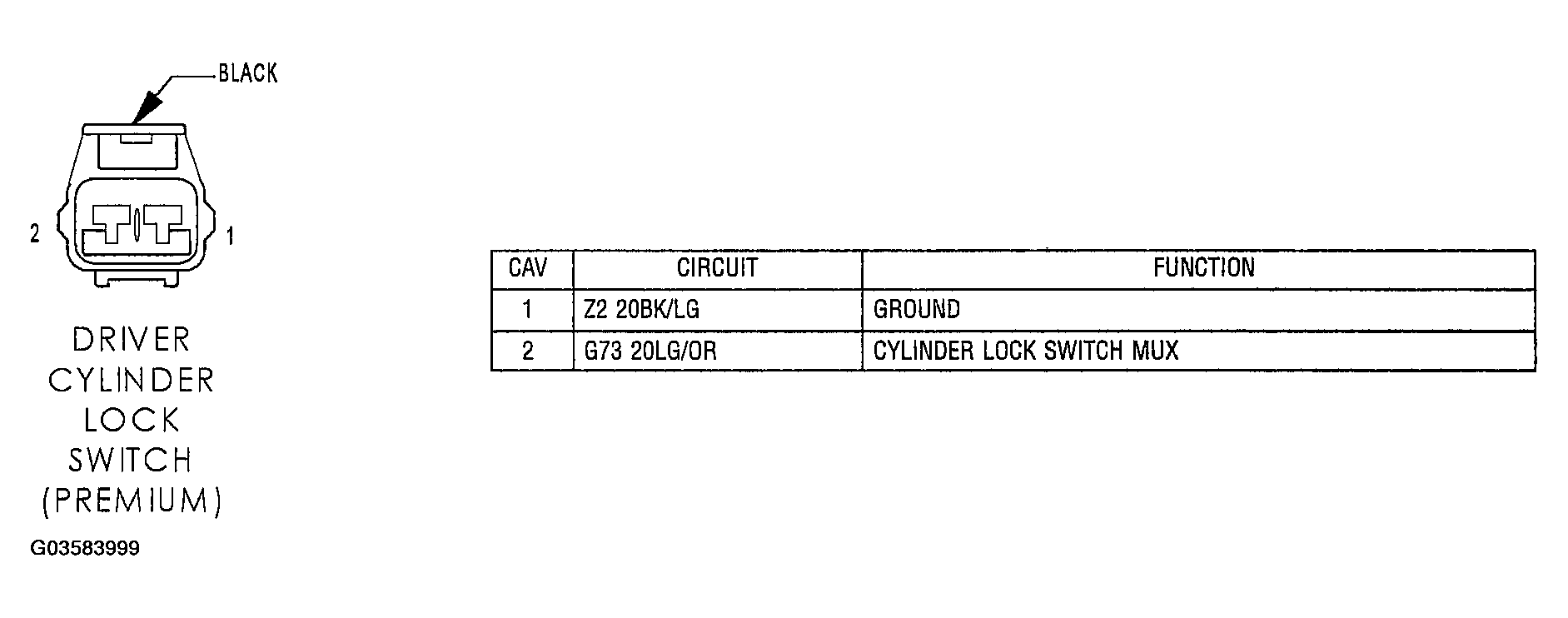

Fig 25: Identifying Connector Driver Cylinder Lock Switch (Premium) - 2-Way
G03583999Courtesy of DAIMLERCHRYSLER CORP.

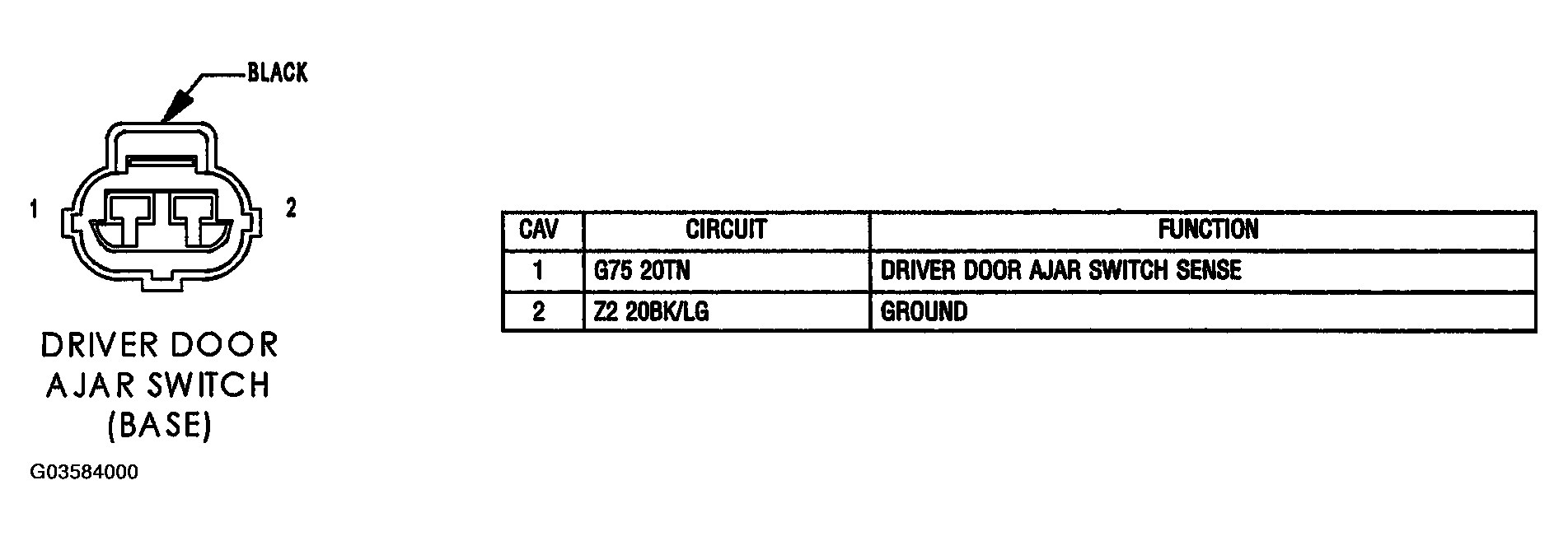

Fig 26: Identifying Connector Driver Door Ajar Switch (Base) - 2-Way
G03584000Courtesy of DAIMLERCHRYSLER CORP.

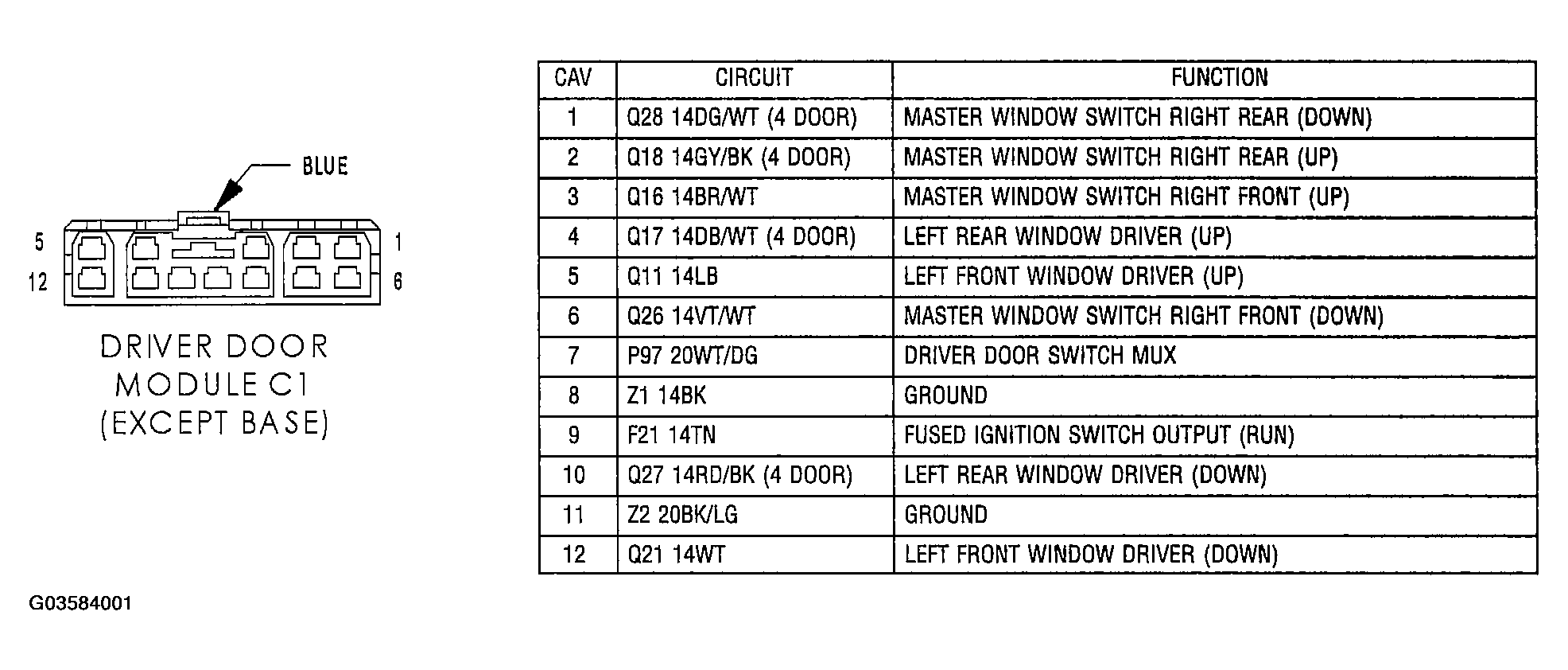

Fig 27: Identifying Connector Driver Door Module C1 (Except Base) - 12-Way
G03584001Courtesy of DAIMLERCHRYSLER CORP.

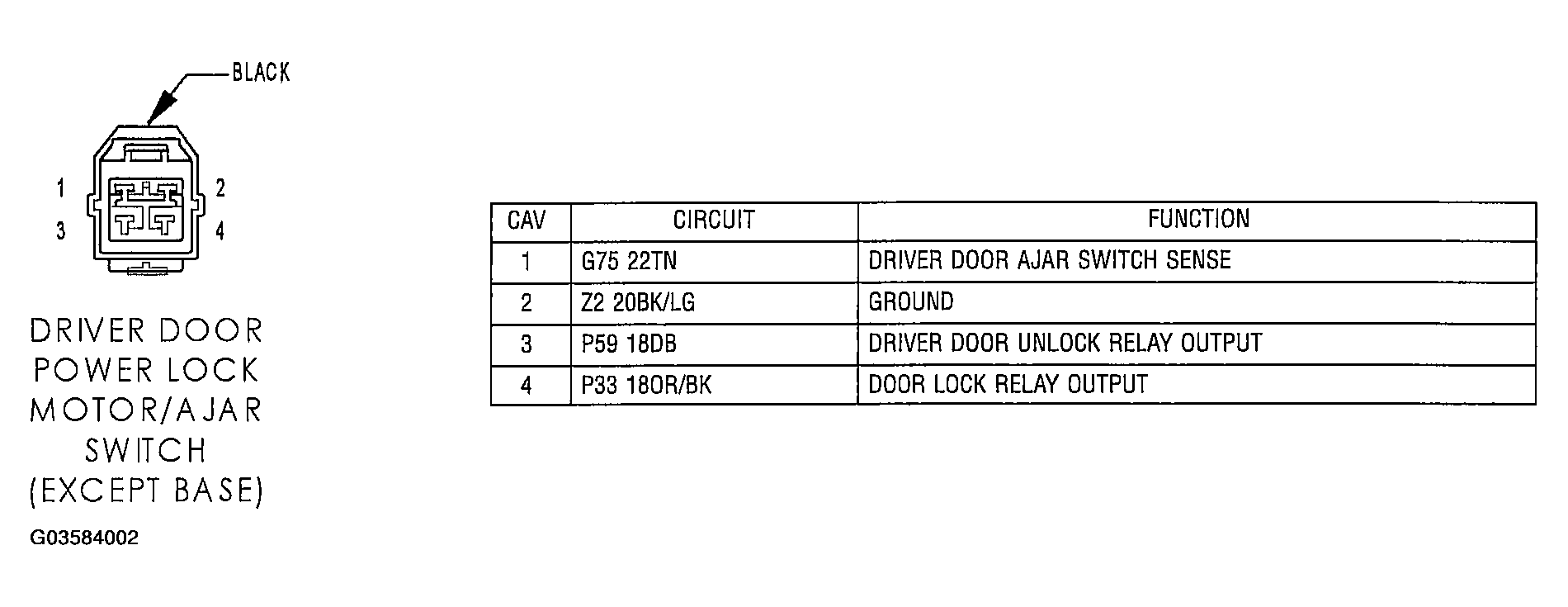

Fig 28: Identifying Connector Driver Door Power Lock Motor/Ajar Switch (Except Base) - 4-Way
G03584002Courtesy of DAIMLERCHRYSLER CORP.

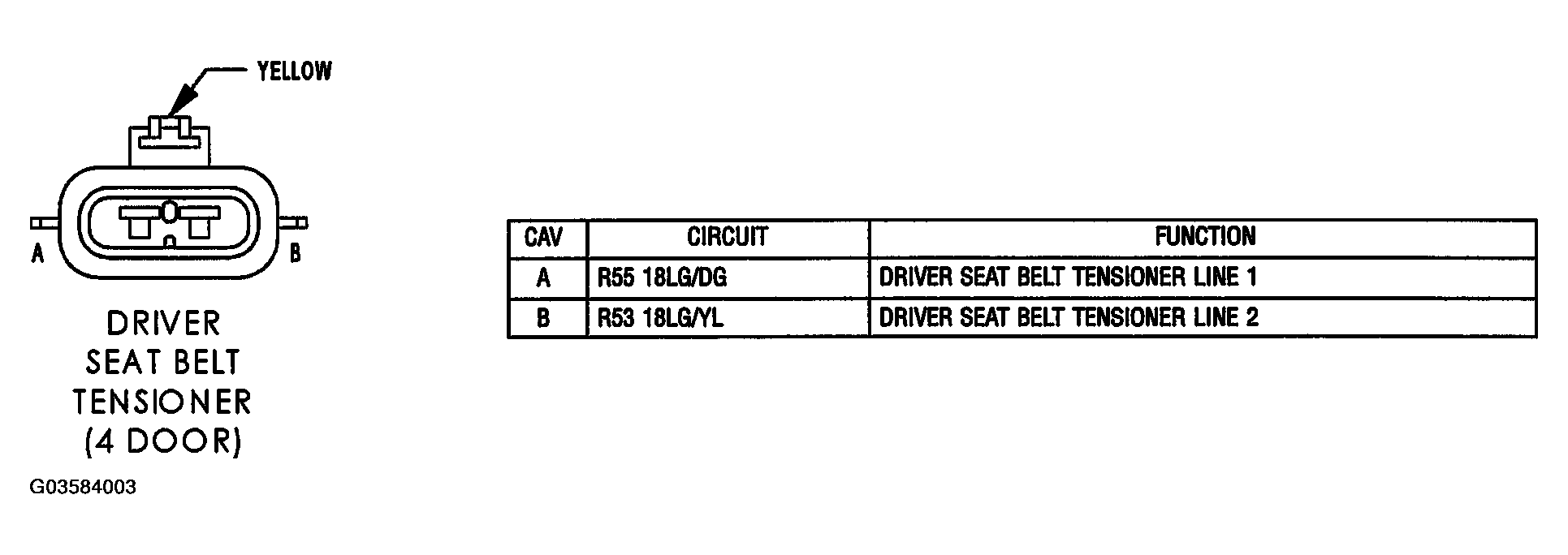

Fig 29: Identifying Connector Driver Seat Belt Tensioner (4 Door) - 2-Way
G03584003Courtesy of DAIMLERCHRYSLER CORP.

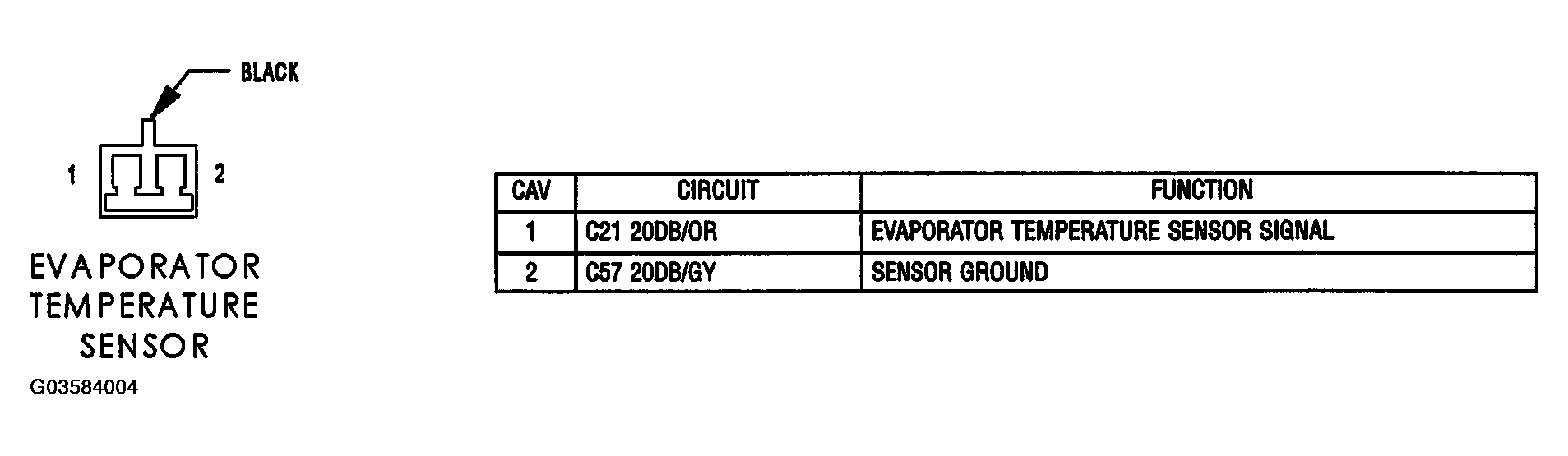

Fig 30: Identifying Connector Evaporator Temperature Sensor - 2-Way
G03584004Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying Connector Front Washer Pump/Motor - 2-Way
G03584005Courtesy of DAIMLERCHRYSLER CORP.

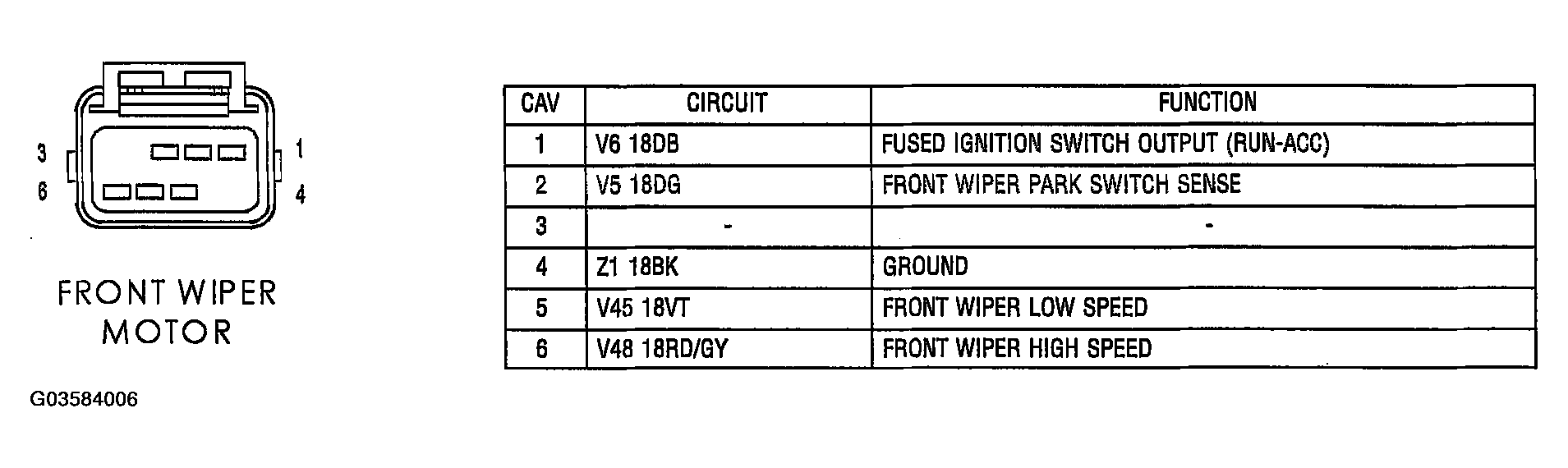

Fig 32: Identifying Connector Front Wiper Motor - 6-Way
G03584006Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: Identifying Connector Glove Box Lamp And Switch - 2-Way
G03584007Courtesy of DAIMLERCHRYSLER CORP.

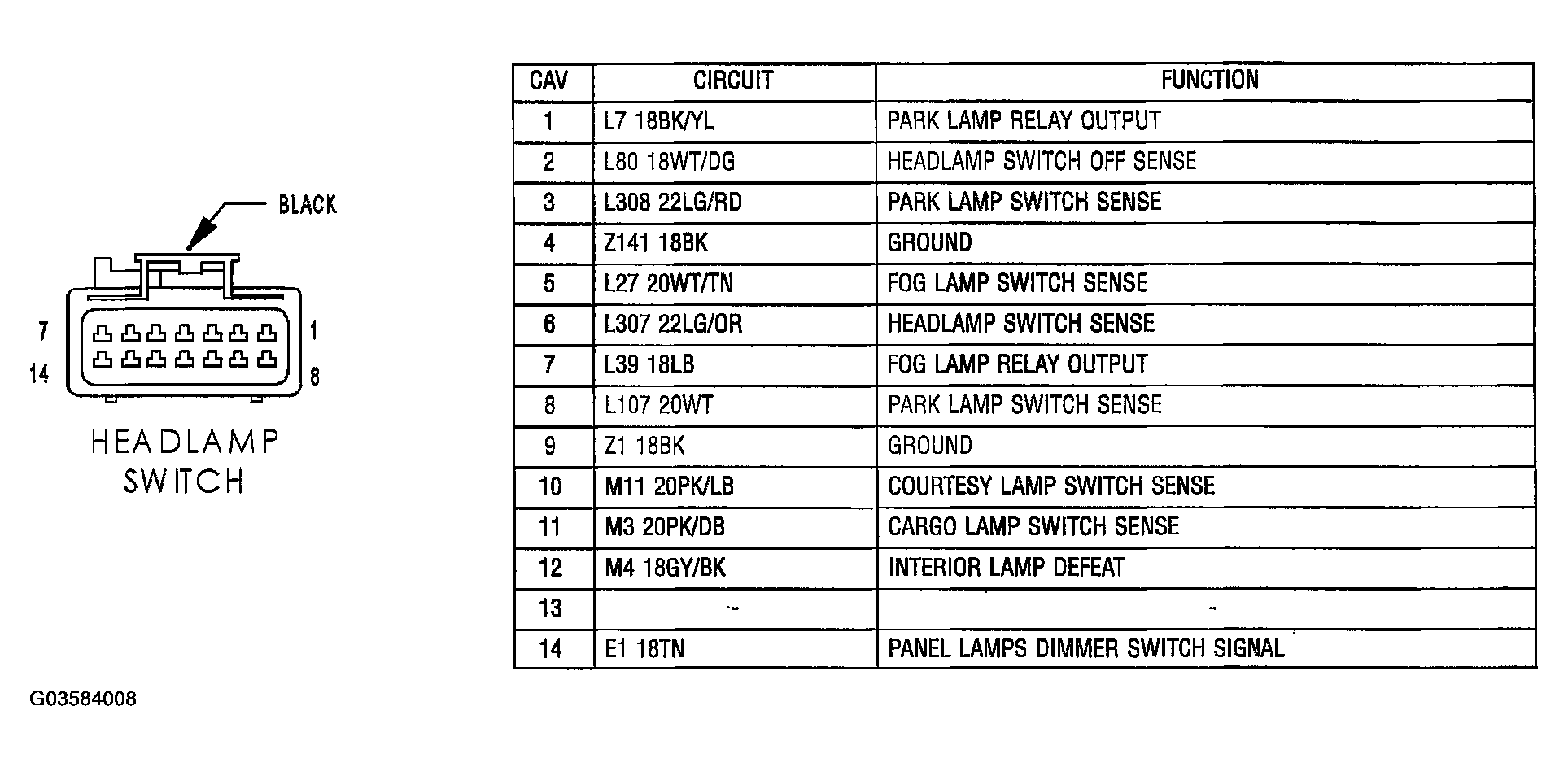

Fig 34: Identifying Connector Headlamp Switch - 14-Way
G03584008Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Identifying Connector High Note Horn - 2-Way
G03584009Courtesy of DAIMLERCHRYSLER CORP.

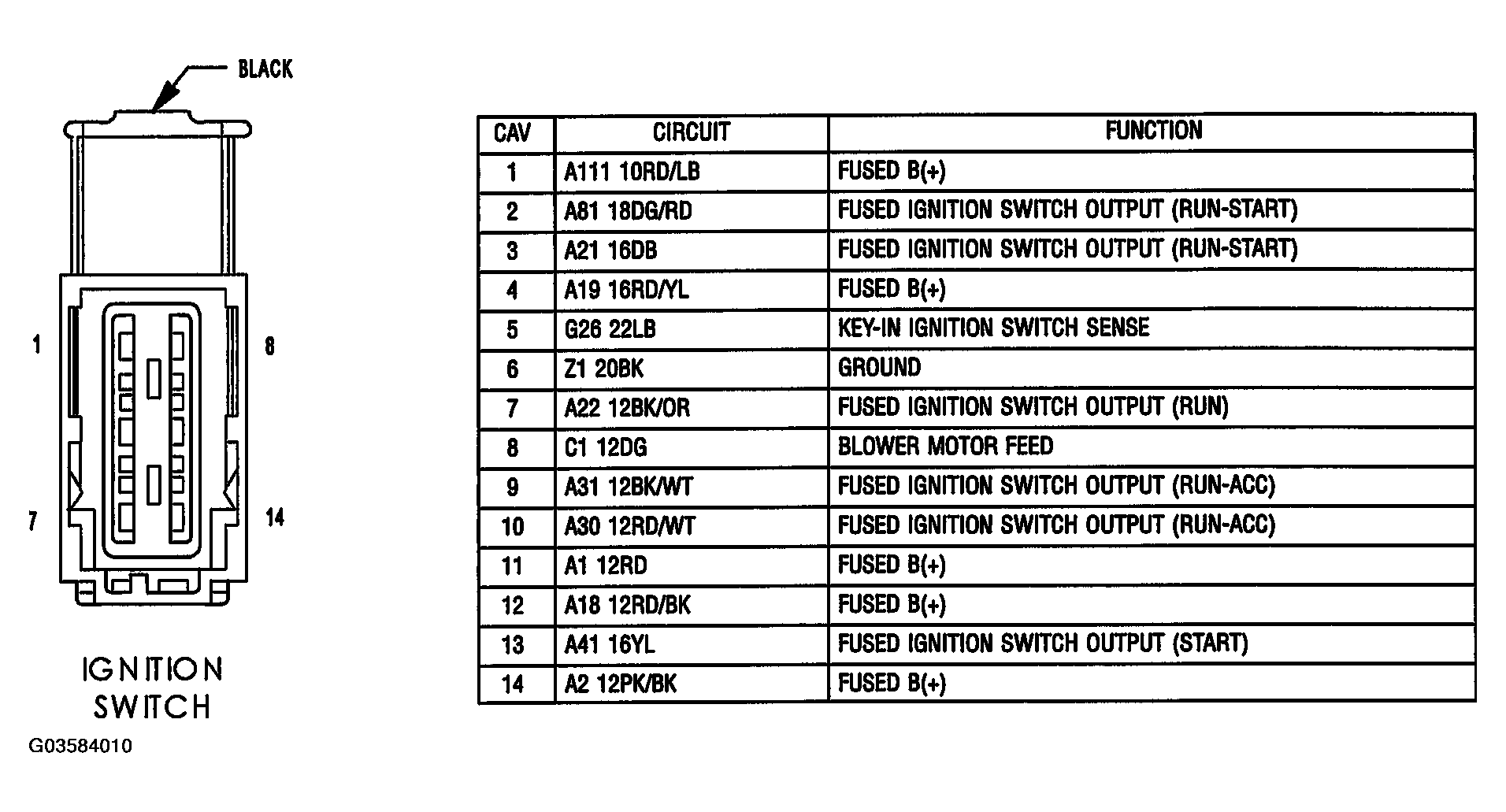

Fig 36: Identifying Connector Ignition Switch - 14-Way
G03584010Courtesy of DAIMLERCHRYSLER CORP.

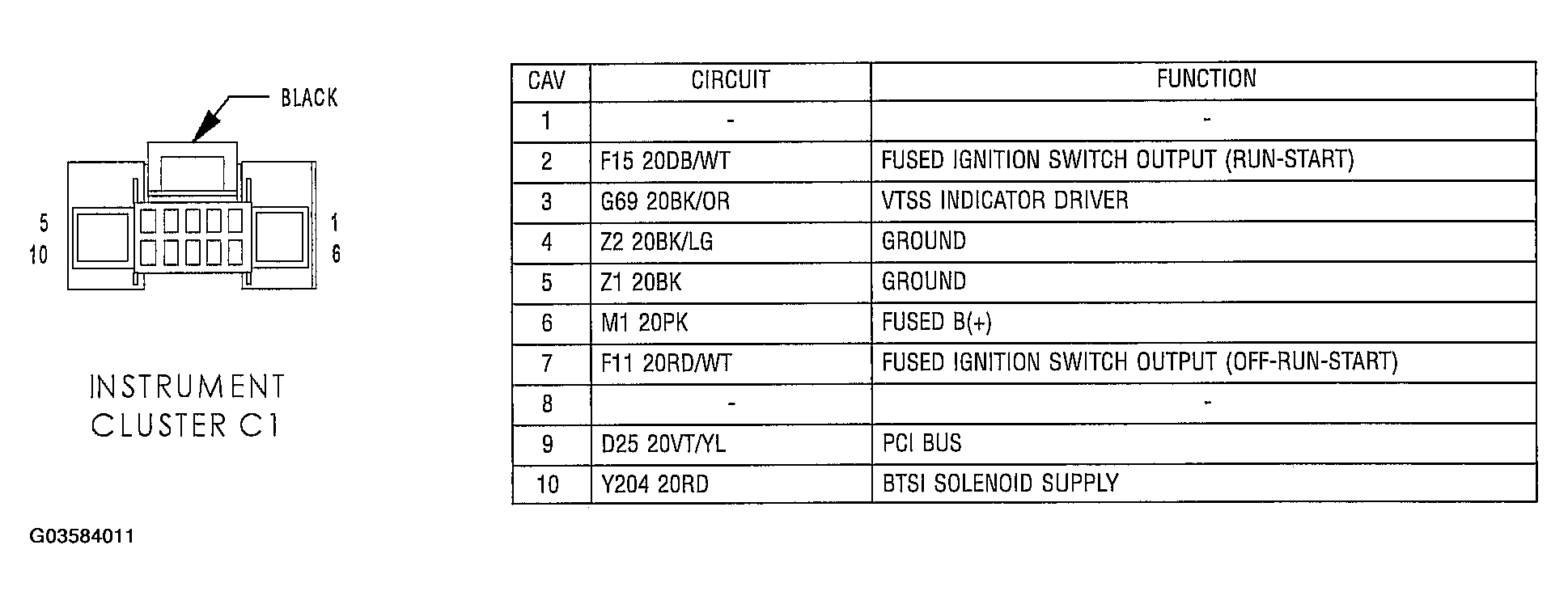

Fig 37: Identifying Connector Instrument Cluster C1 - 10-Way
G03584011Courtesy of DAIMLERCHRYSLER CORP.

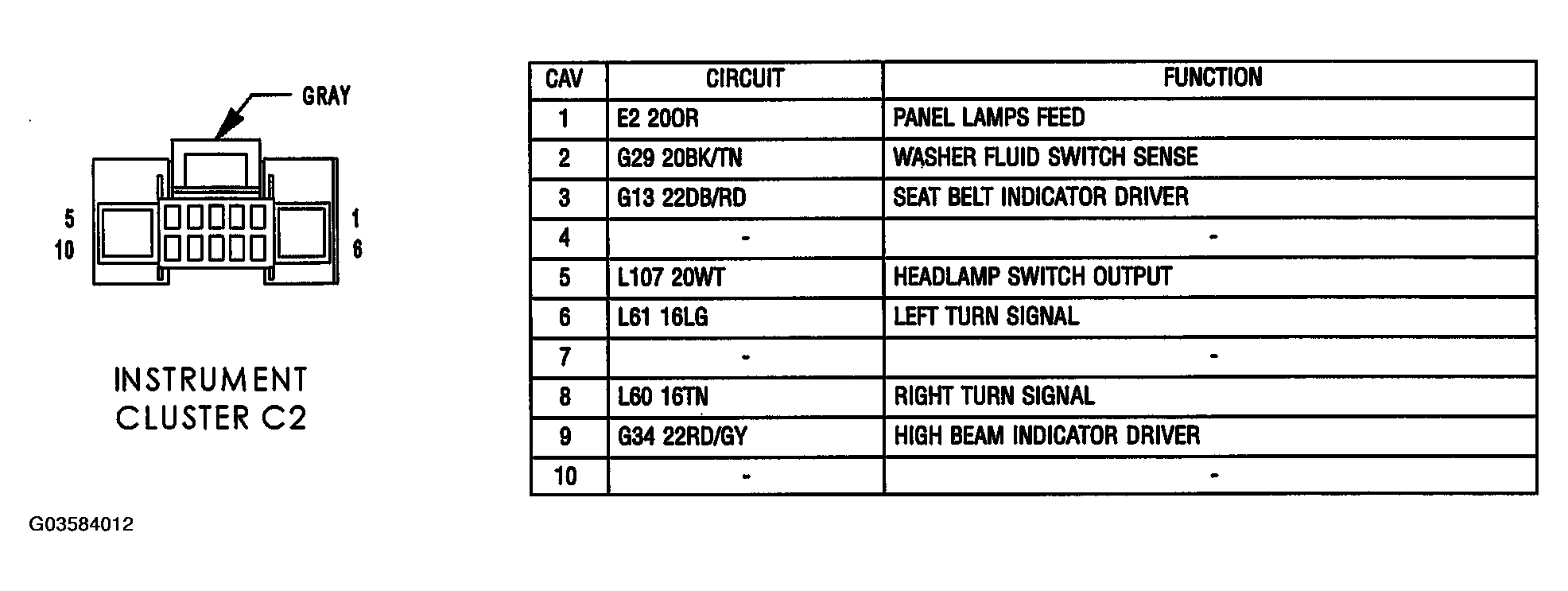

Fig 38: Identifying Connector Instrument Cluster C2 - 10-Way
G03584012Courtesy of DAIMLERCHRYSLER CORP.

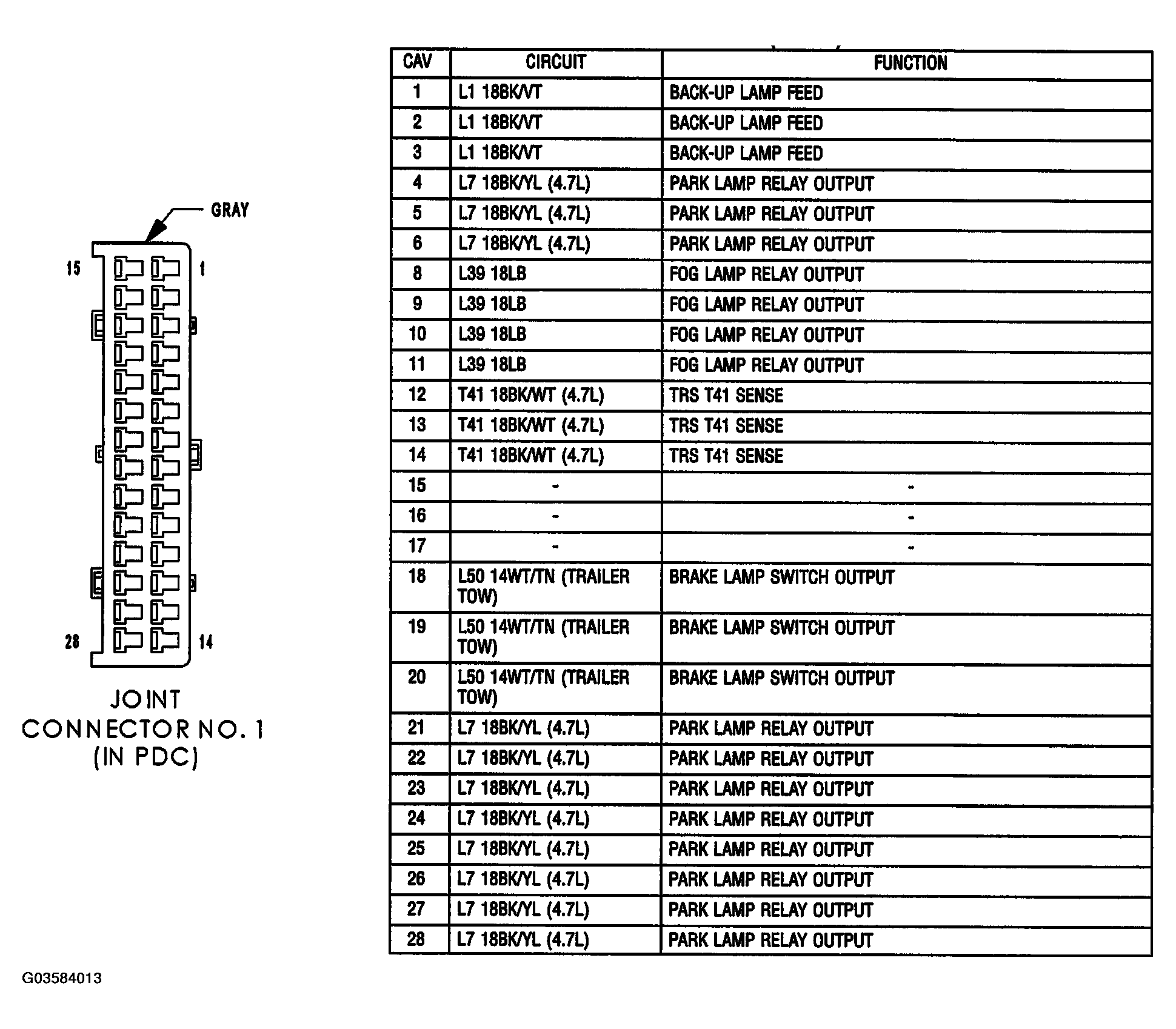

Fig 39: Identifying Connector Joint Connector No. 1 (In PDC) - 28-Way
G03584013Courtesy of DAIMLERCHRYSLER CORP.

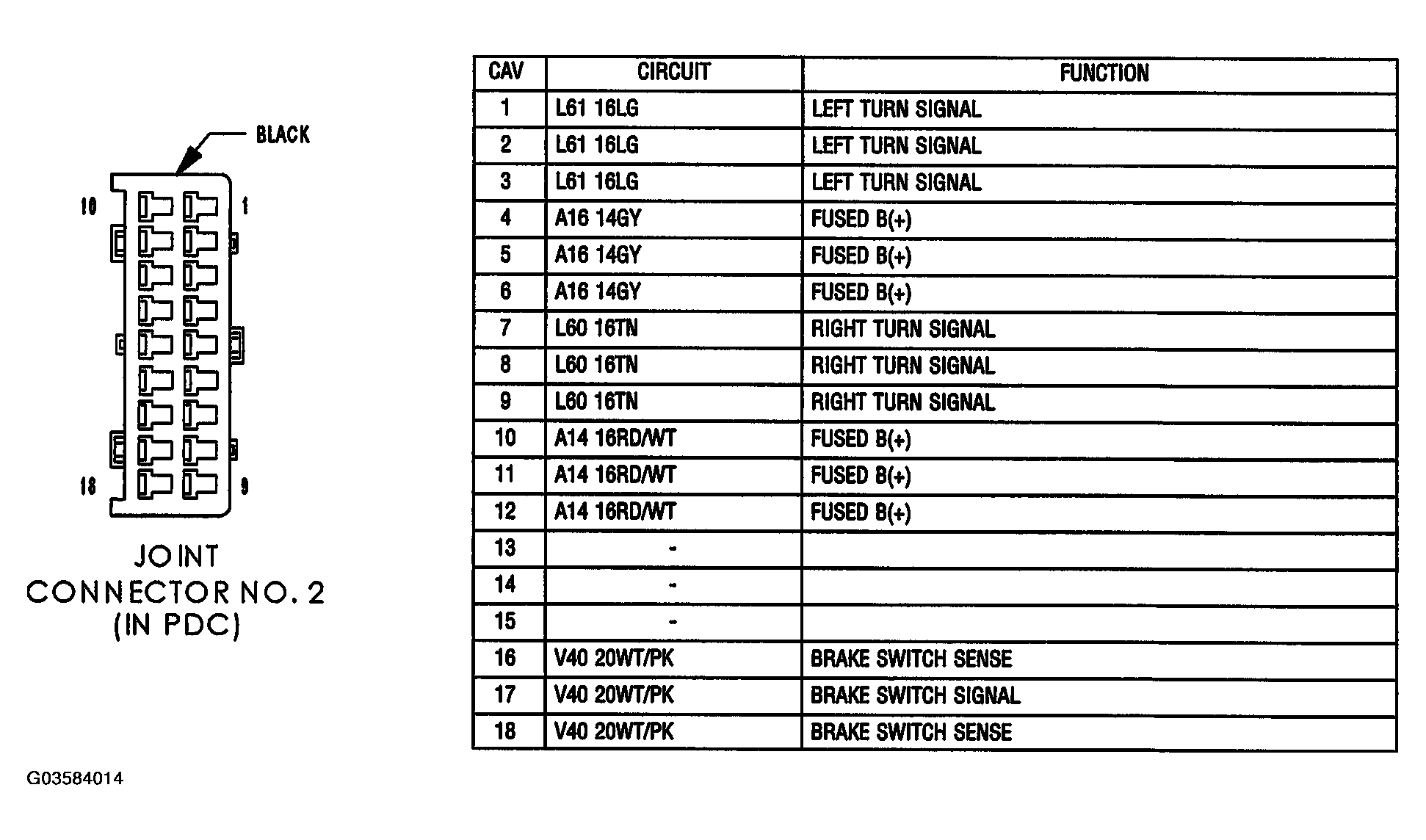

Fig 40: Identifying Connector Joint Connector No. 2 (In PDC) - 18-Way
G03584014Courtesy of DAIMLERCHRYSLER CORP.

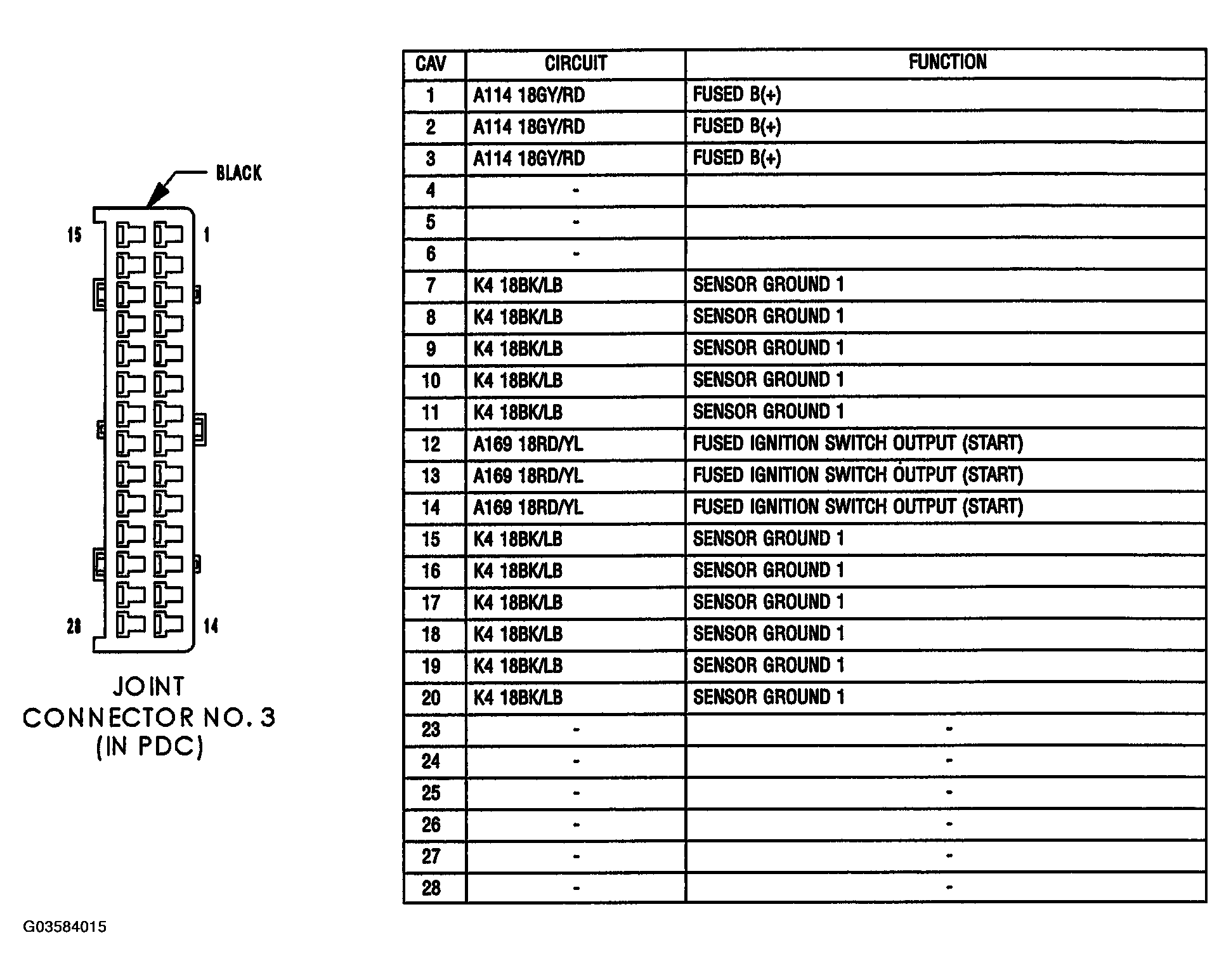

Fig 41: Identifying Connector Joint Connector No. 3 (In PDC) - 28-Way
G03584015Courtesy of DAIMLERCHRYSLER CORP.

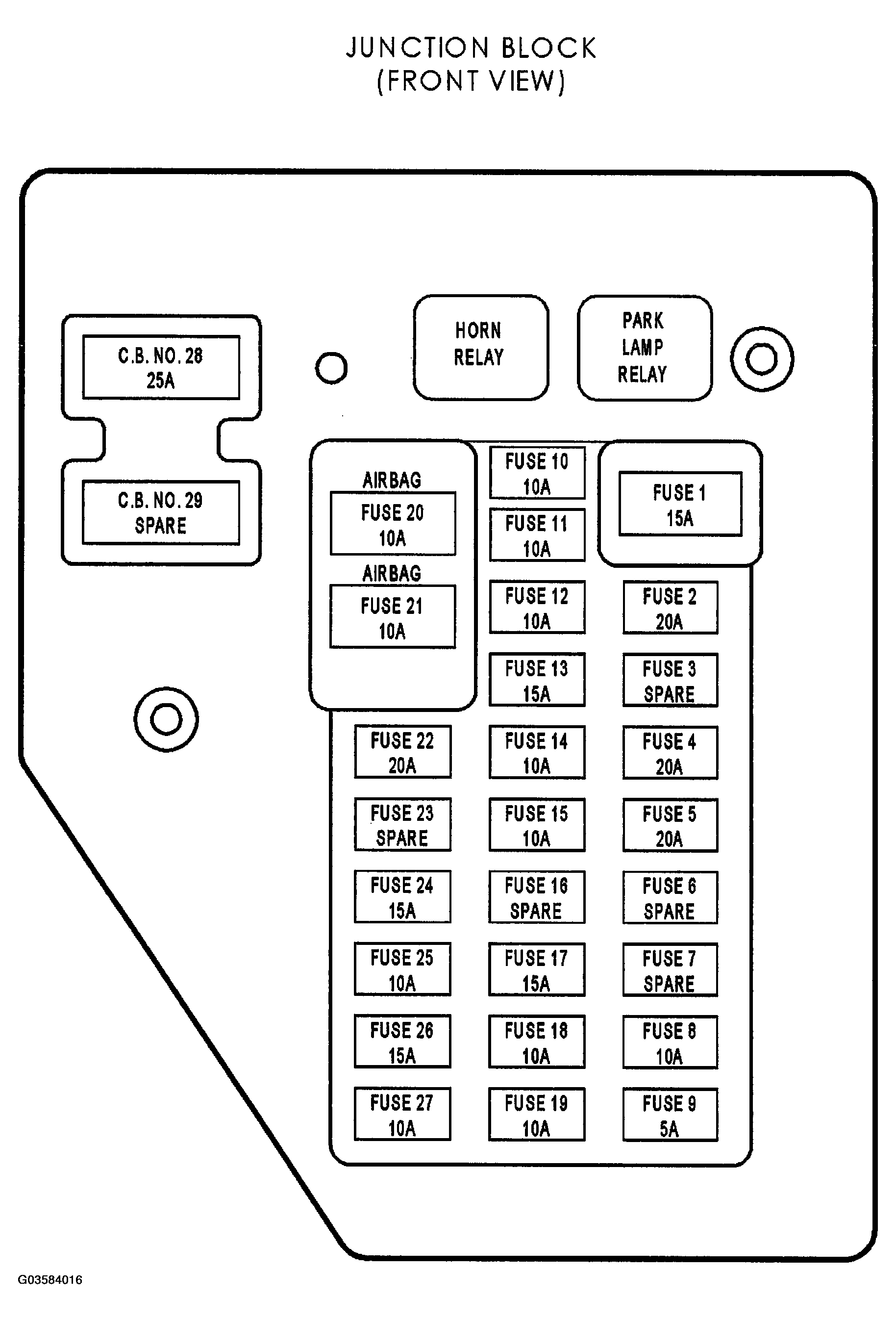

Fig 42: Identifying Connector Junction Block (Front View)
G03584016Courtesy of DAIMLERCHRYSLER CORP.

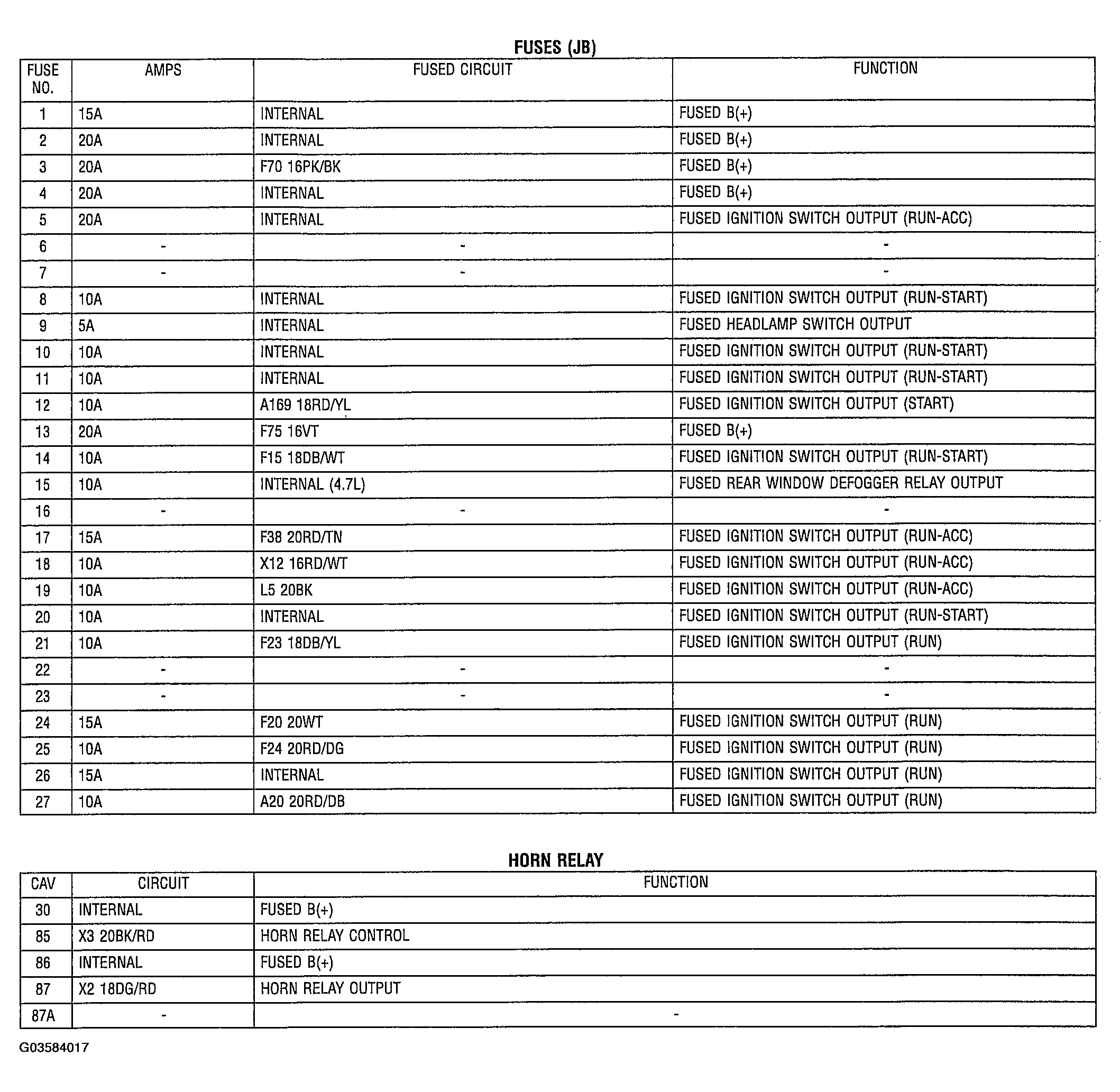

Fig 43: Connector Fuses (JB) Table
G03584017Courtesy of DAIMLERCHRYSLER CORP.

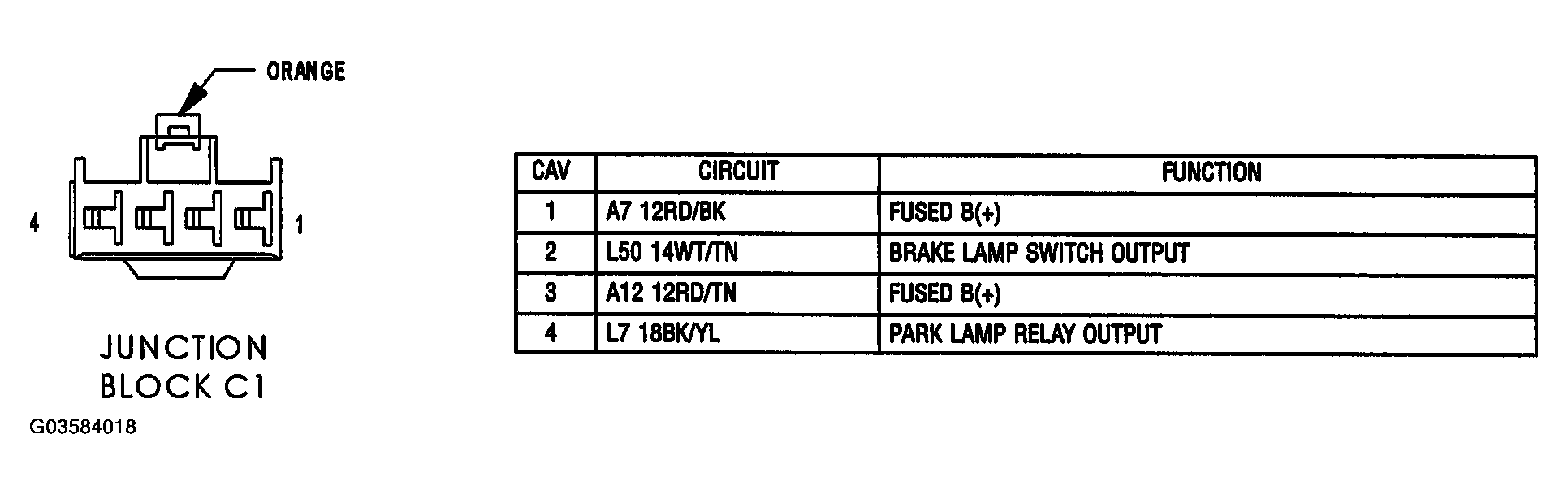

Fig 44: Identifying Connector Junction Block C1 - 4-Way
G03584018Courtesy of DAIMLERCHRYSLER CORP.

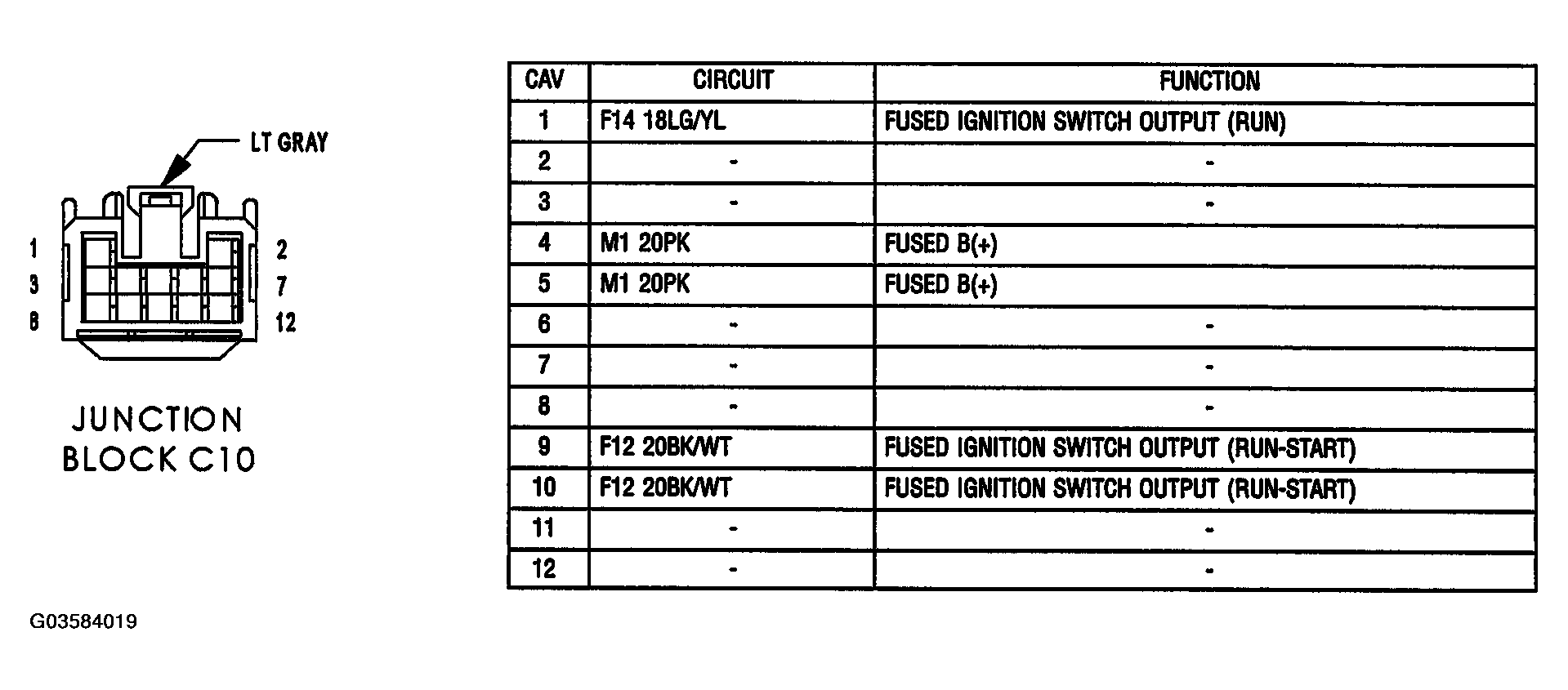

Fig 45: Identifying Connector Junction Block C10 - 12-Way
G03584019Courtesy of DAIMLERCHRYSLER CORP.

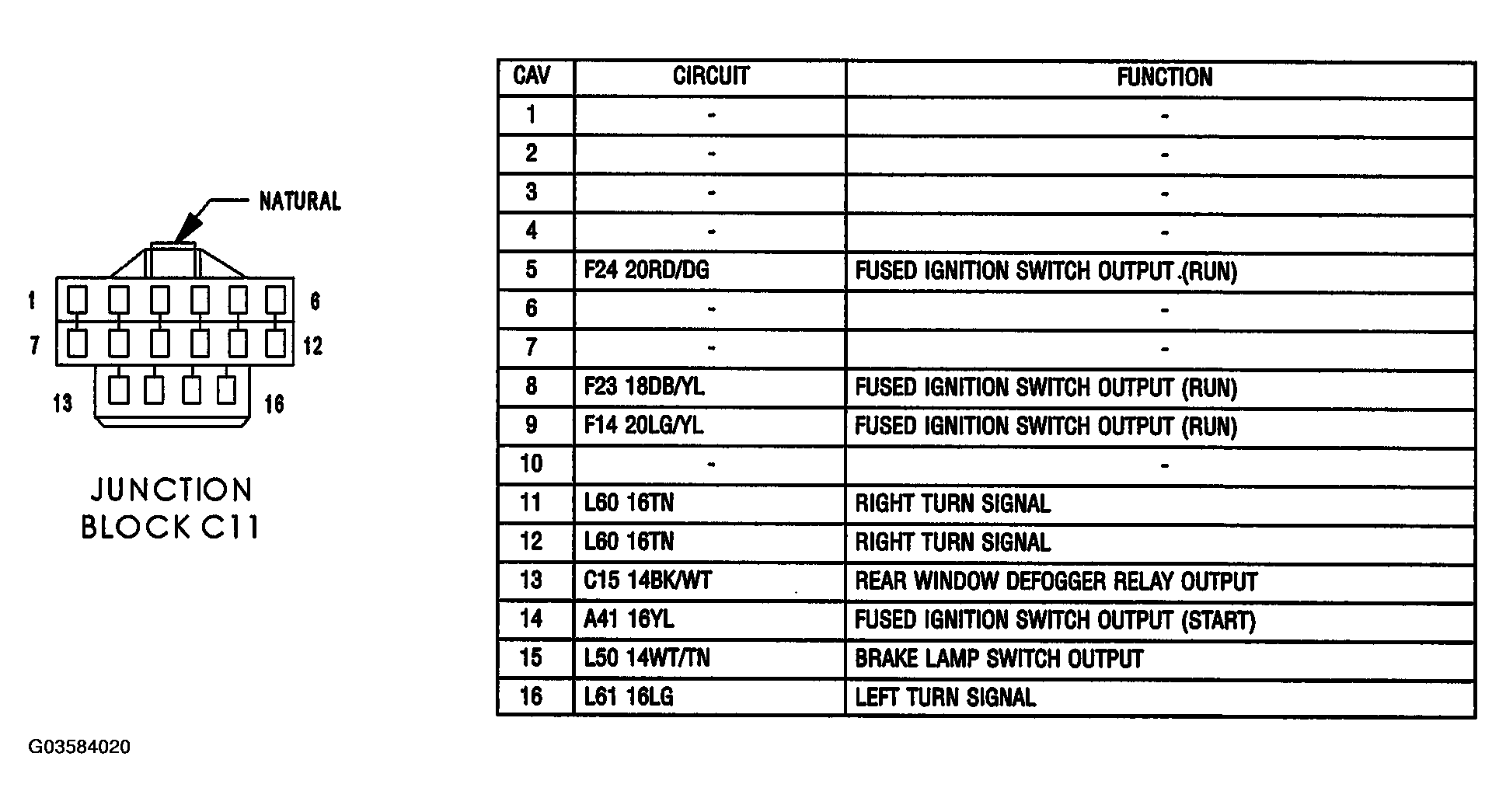

Fig 46: Identifying Connector Junction Block C11 - 16-Way
G03584020Courtesy of DAIMLERCHRYSLER CORP.

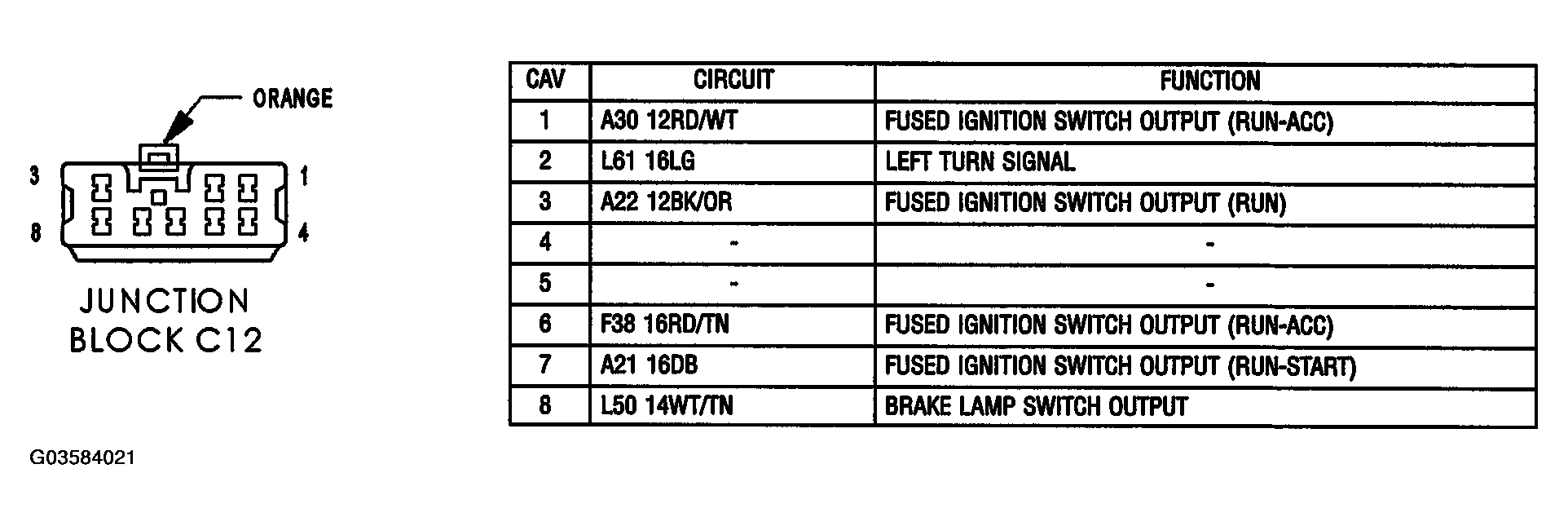

Fig 47: Identifying Connector Junction Block C12 - 8-Way
G03584021Courtesy of DAIMLERCHRYSLER CORP.

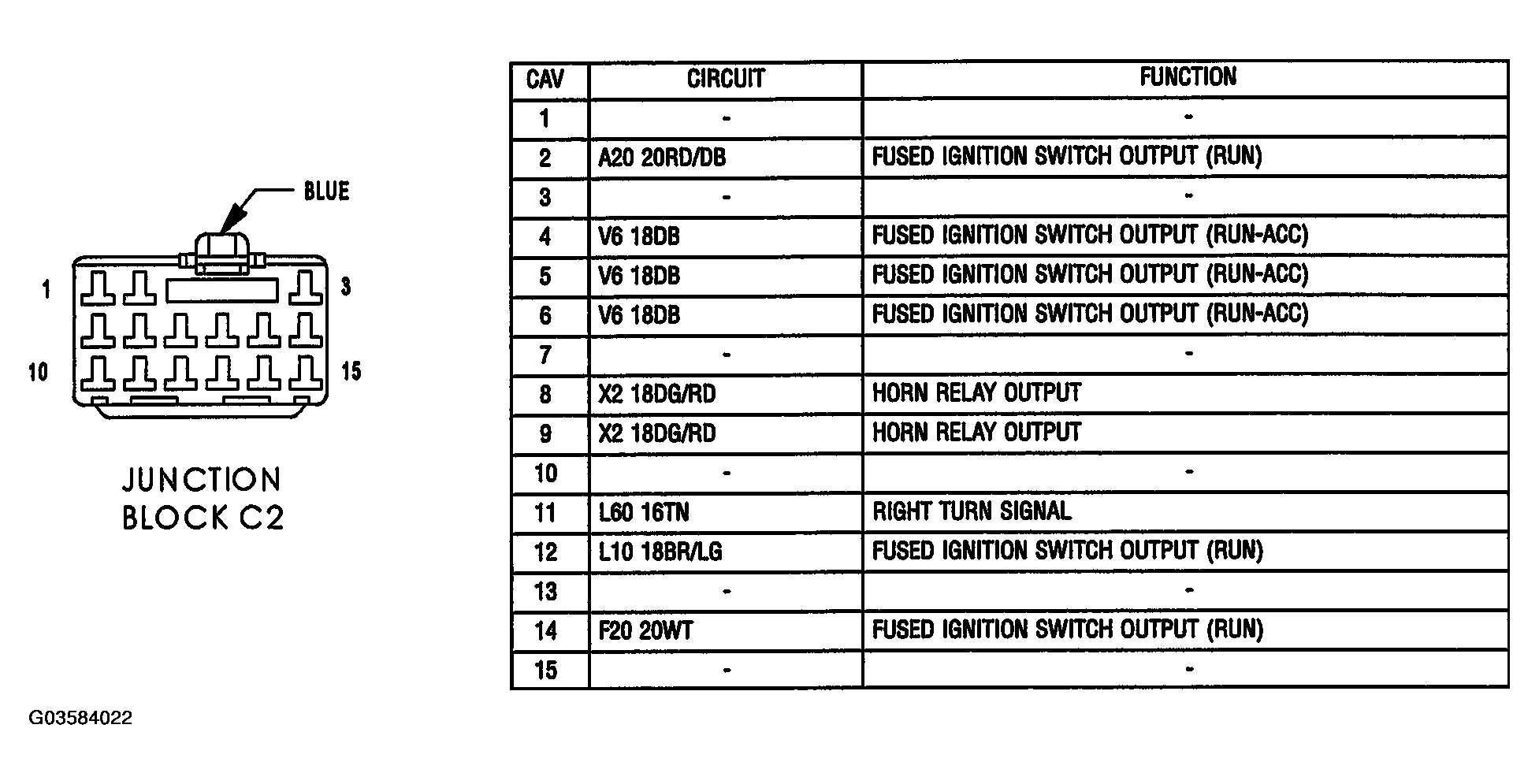

Fig 48: Identifying Connector Junction Block C2 - 15-Way
G03584022Courtesy of DAIMLERCHRYSLER CORP.

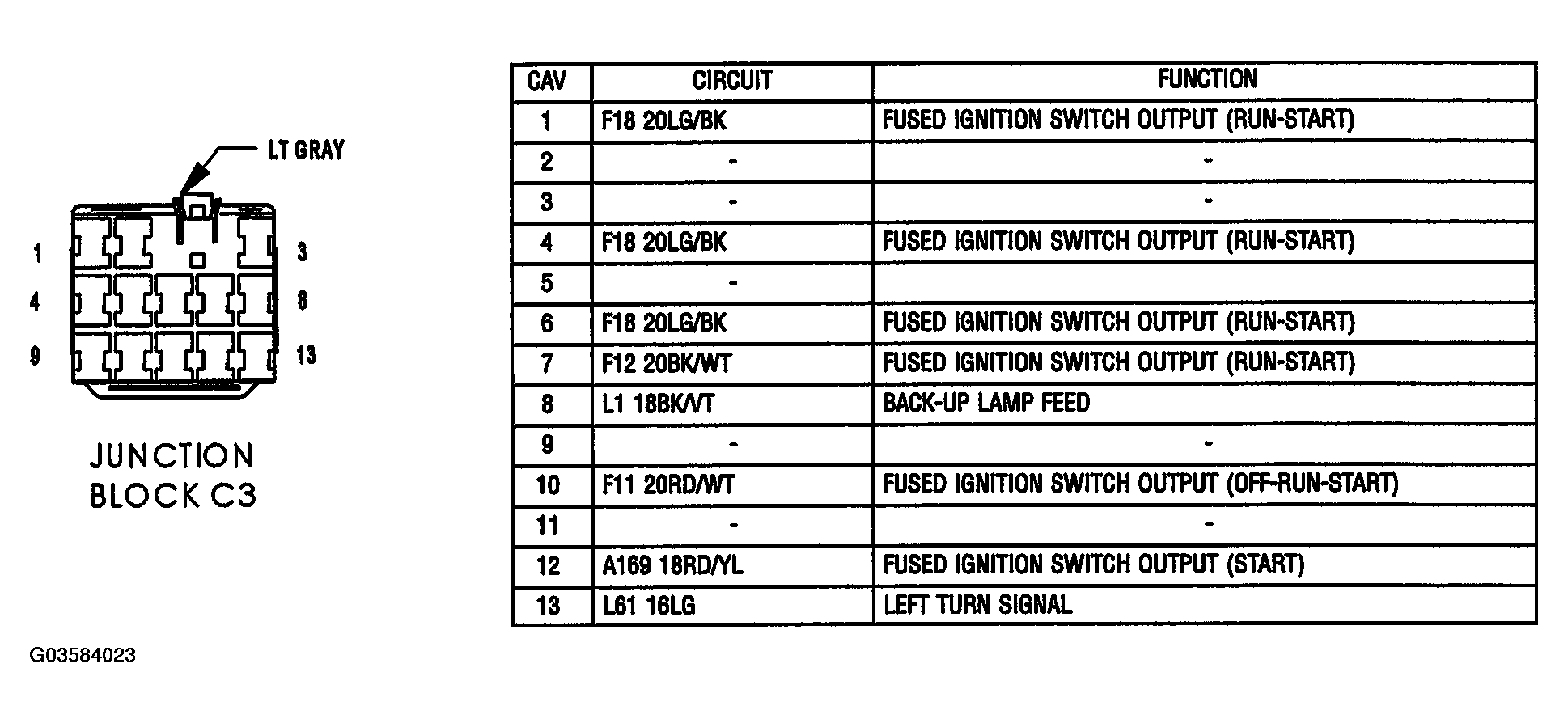

Fig 49: Identifying Connector Junction Block C3 - 13-Way
G03584023Courtesy of DAIMLERCHRYSLER CORP.

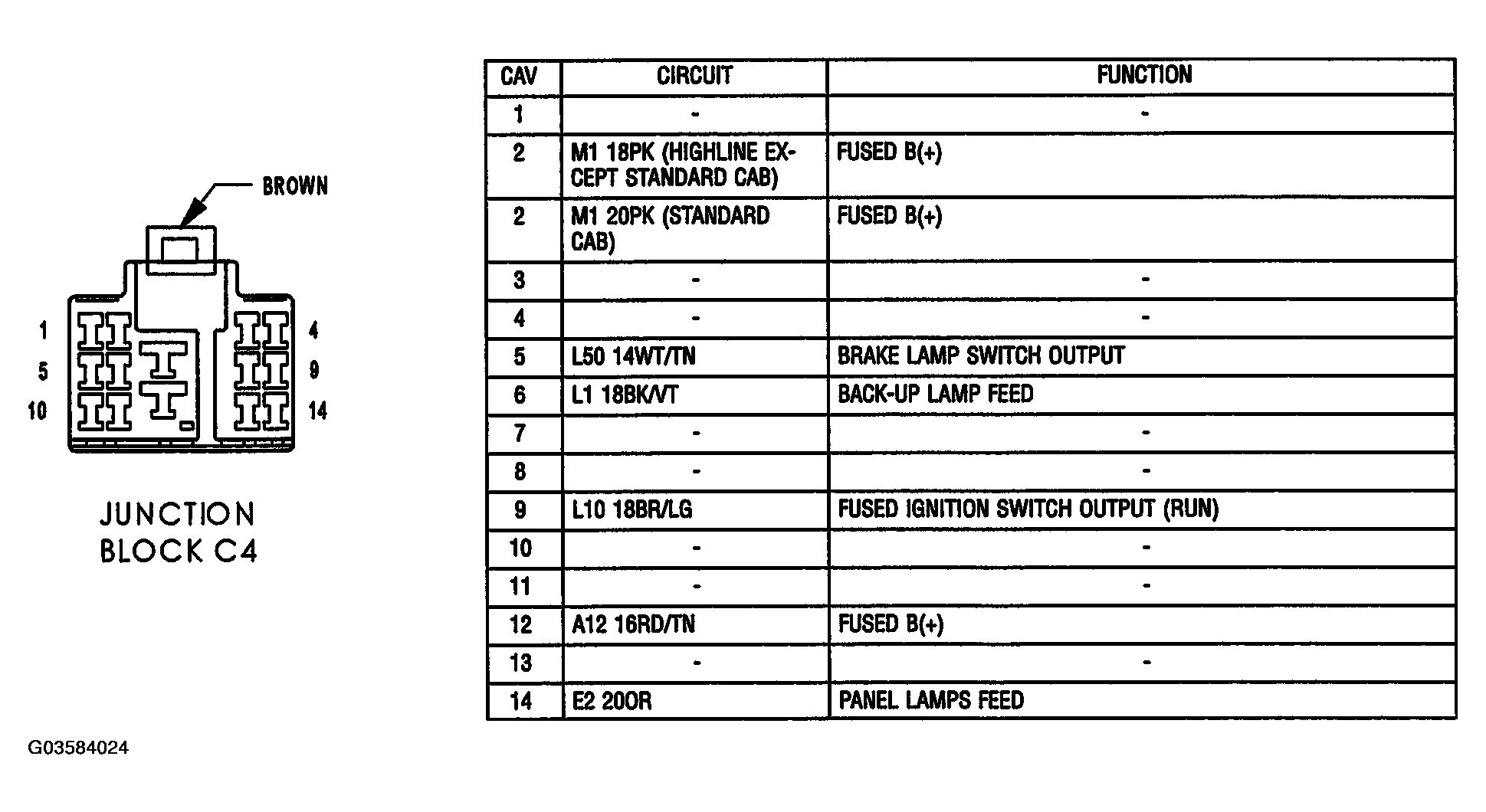

Fig 50: Identifying Connector Junction Block C4 - 14-Way
G03584024Courtesy of DAIMLERCHRYSLER CORP.

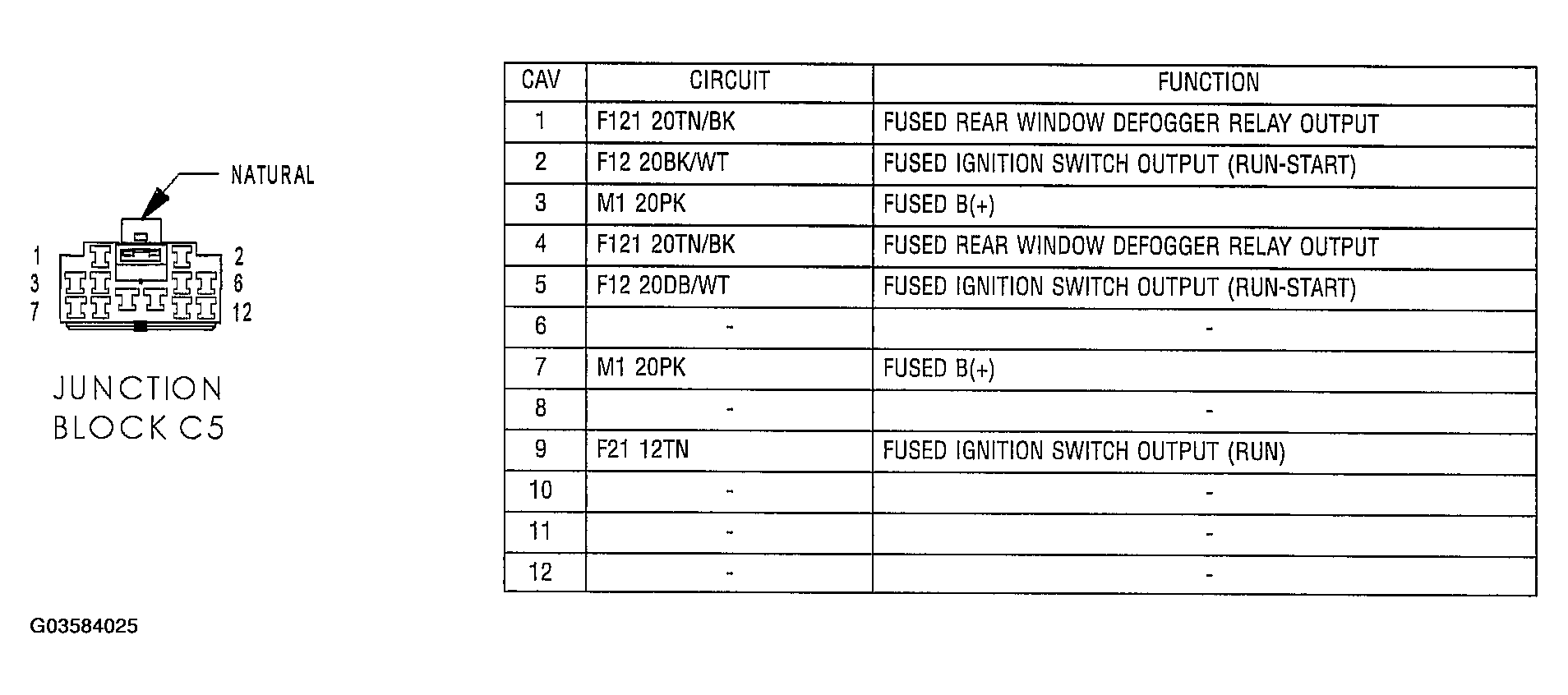

Fig 51: Identifying Connector Junction Block C5 - 12-Way
G03584025Courtesy of DAIMLERCHRYSLER CORP.

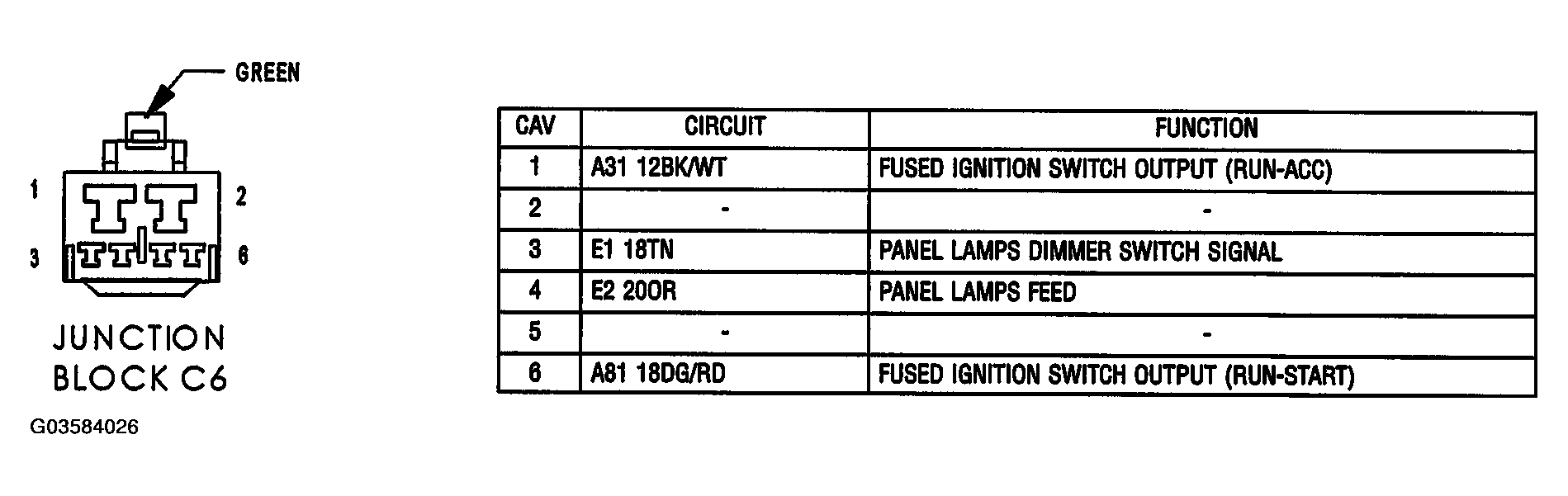

Fig 52: Identifying Connector Junction Block C6 - 6-Way
G03584026Courtesy of DAIMLERCHRYSLER CORP.

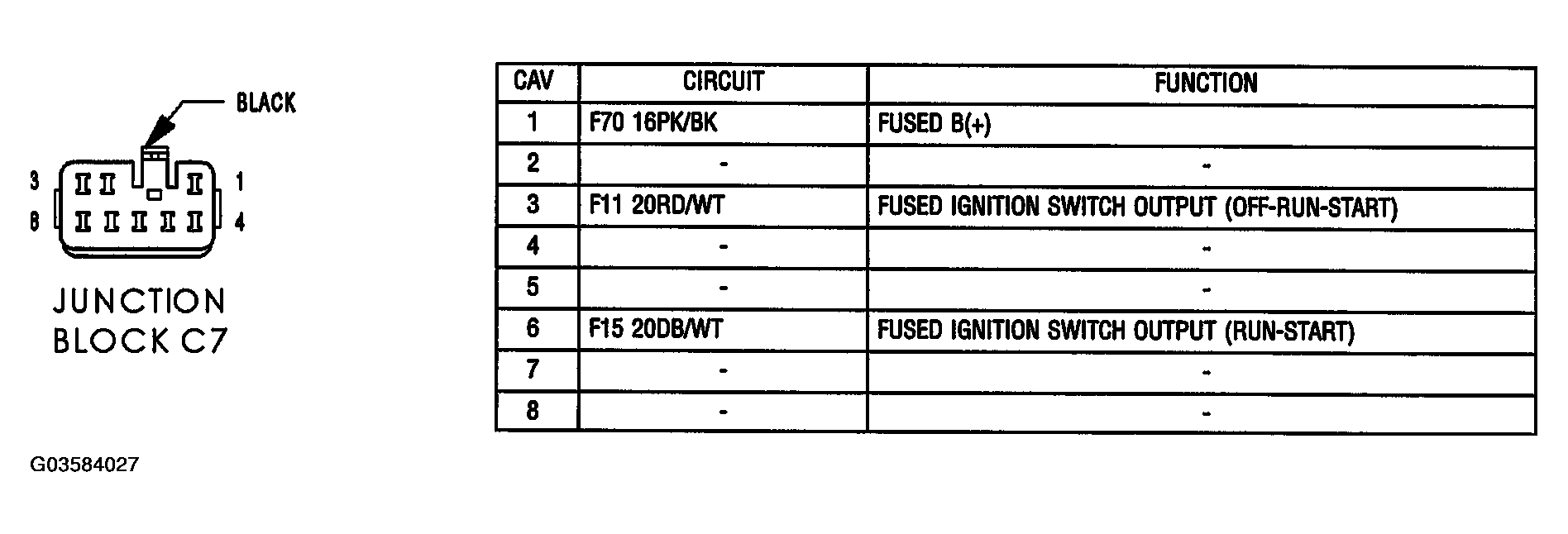

Fig 53: Identifying Connector Junction Block C7 - 8-Way
G03584027Courtesy of DAIMLERCHRYSLER CORP.

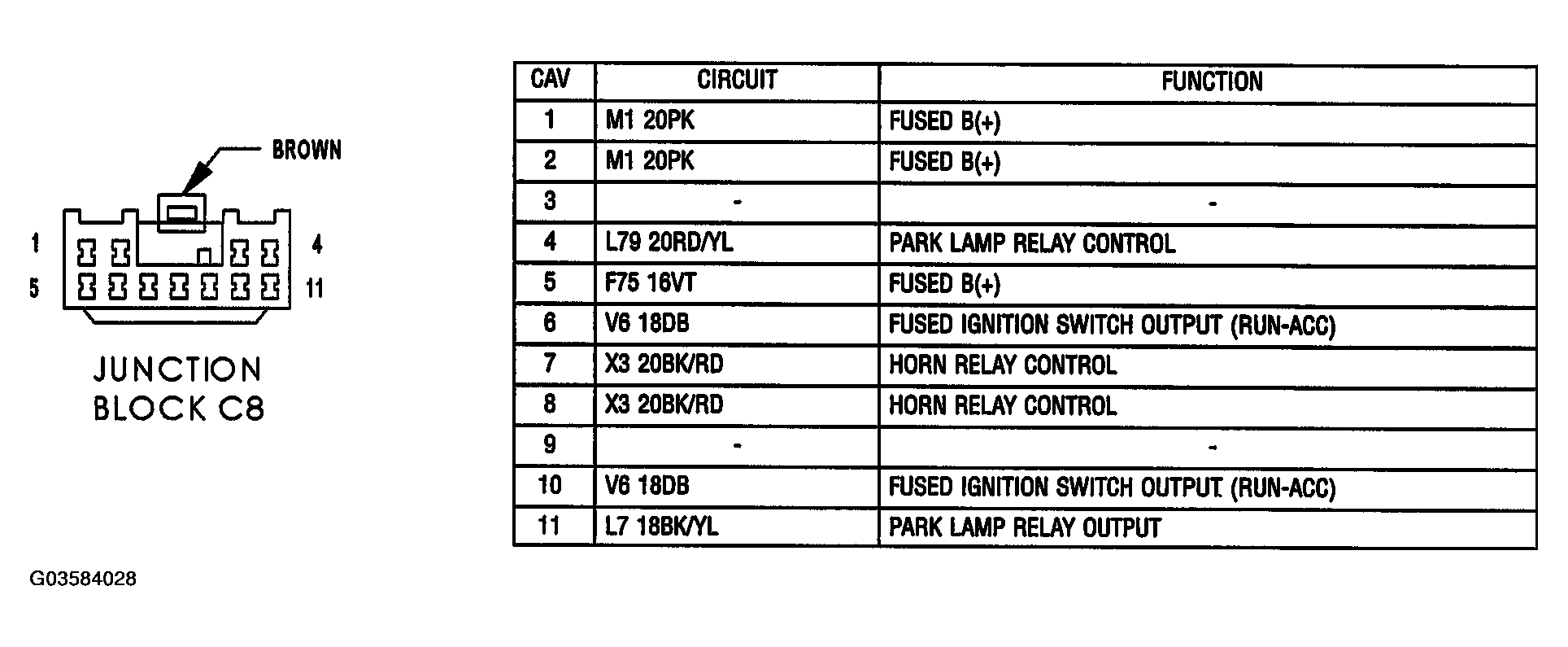

Fig 54: Identifying Connector Junction Block C8 - 11-Way
G03584028Courtesy of DAIMLERCHRYSLER CORP.

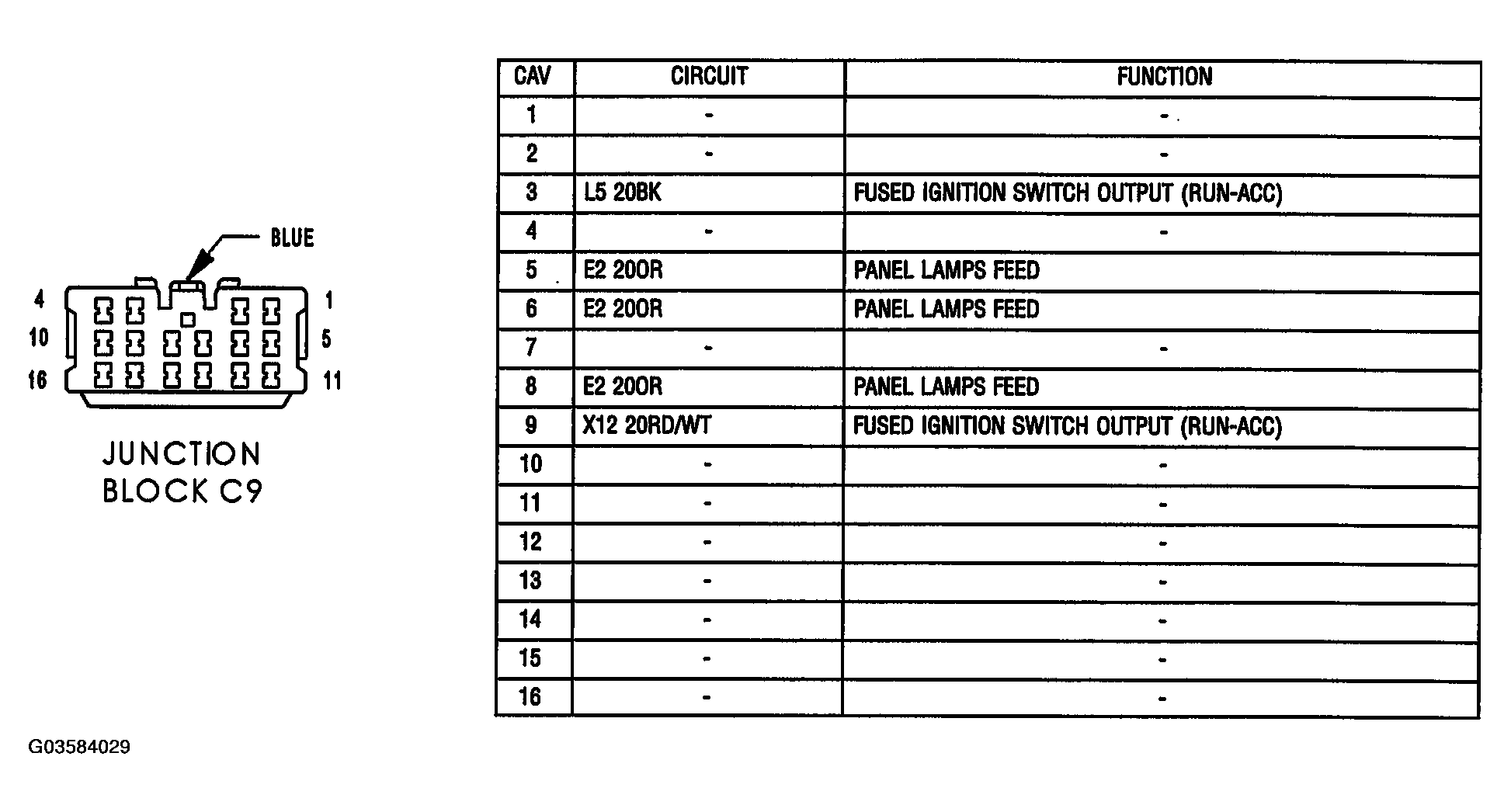

Fig 55: Identifying Connector Junction Block C9 - 16-Way
G03584029Courtesy of DAIMLERCHRYSLER CORP.

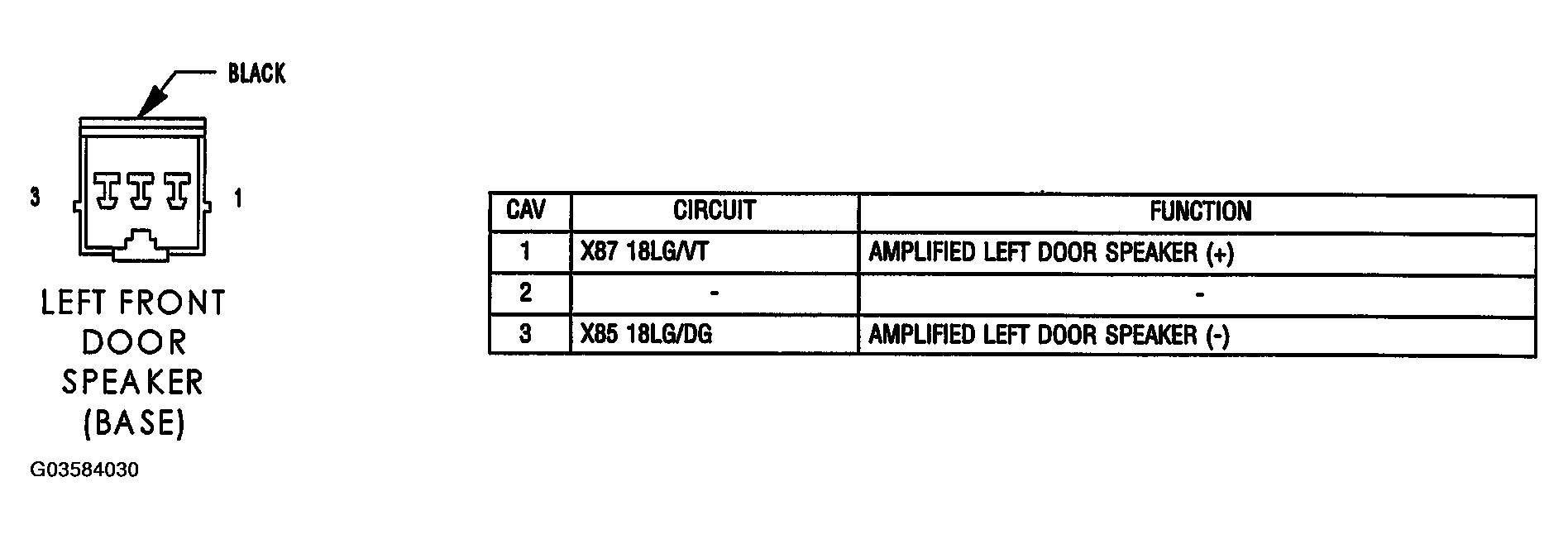

Fig 56: Identifying Connector Left Front Door Speaker (Base) - 3-Way
G03584030Courtesy of DAIMLERCHRYSLER CORP.

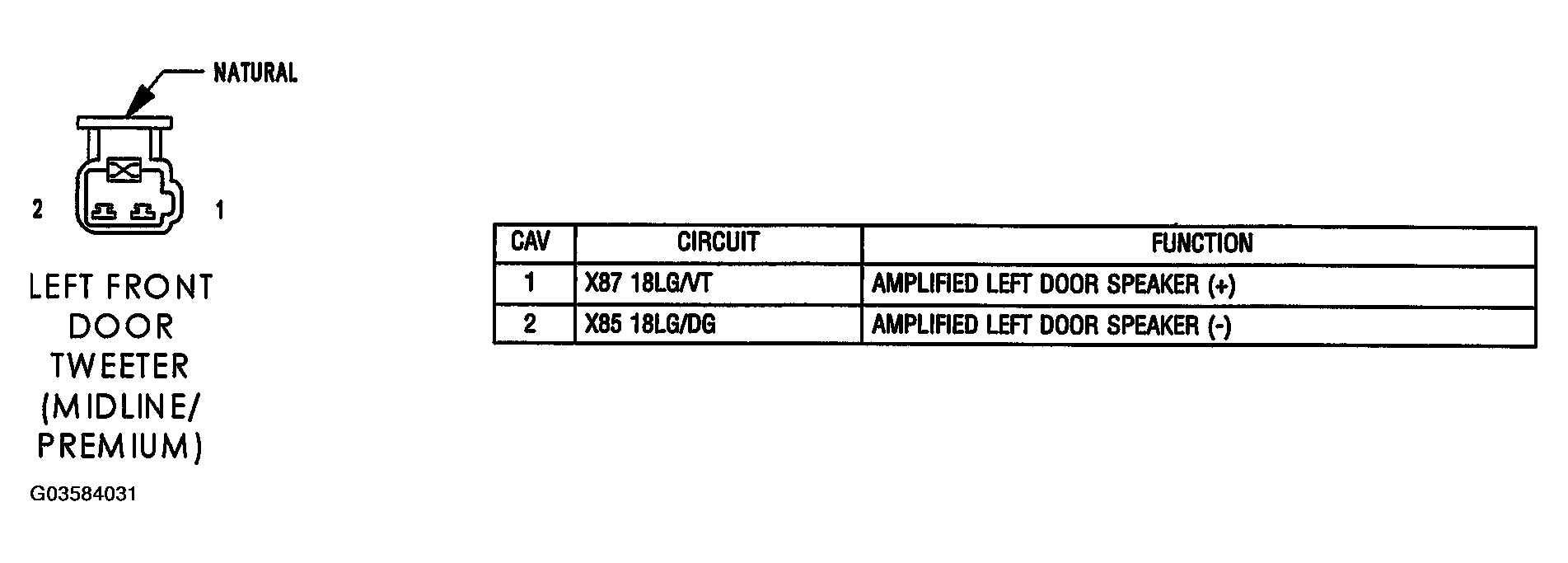

Fig 57: Identifying Connector Left Front Door Tweeter (Midline/Premium) - 2-Way
G03584031Courtesy of DAIMLERCHRYSLER CORP.

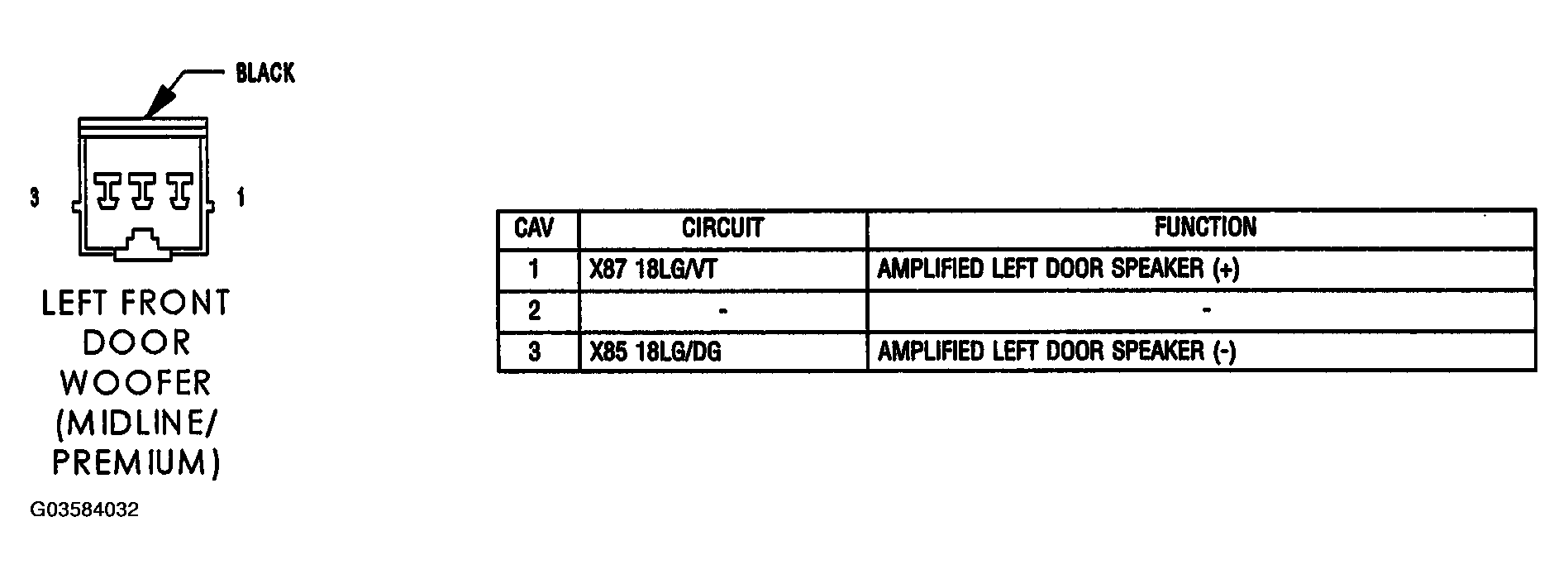

Fig 58: Identifying Connector Left Front Door Woofer (Midline/Premium) - 3-Way
G03584032Courtesy of DAIMLERCHRYSLER CORP.

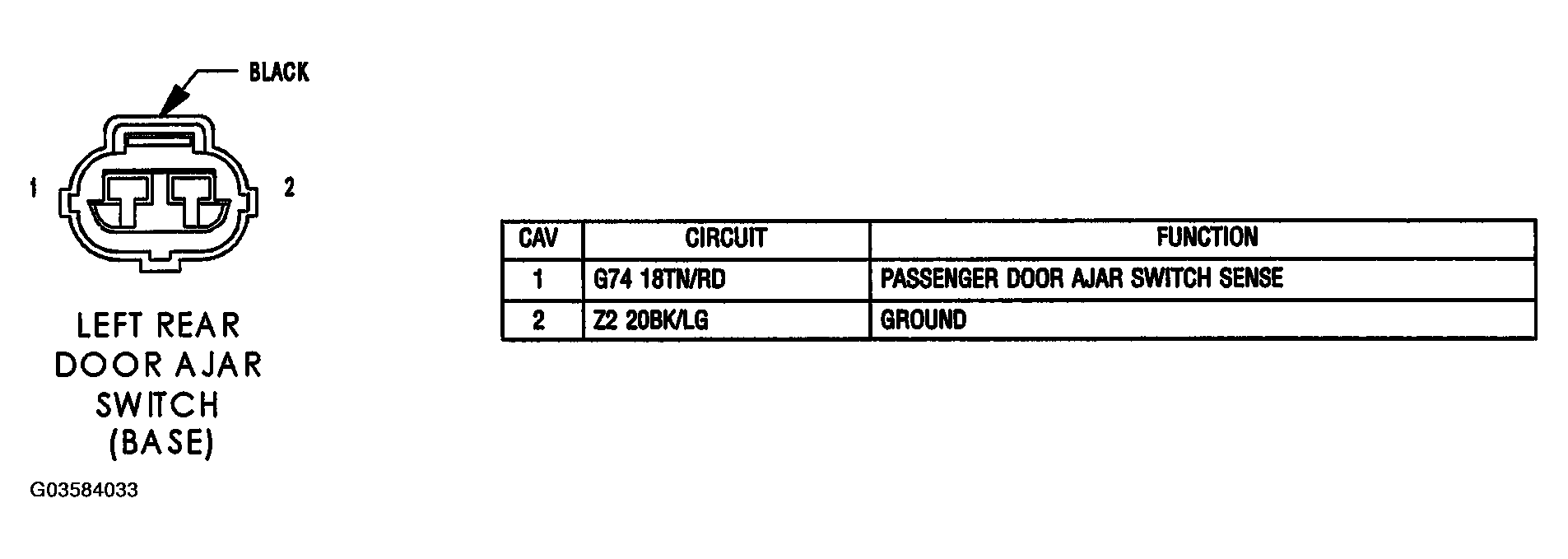

Fig 59: Identifying Connector Left Rear Door Ajar Switch (Base) - 2-Way
G03584033Courtesy of DAIMLERCHRYSLER CORP.
Fig 60: Identifying Connector Left Rear Door Power Lock Motor/Ajar Switch (Except Base) - 4-Way
G03584034Courtesy of DAIMLERCHRYSLER CORP.

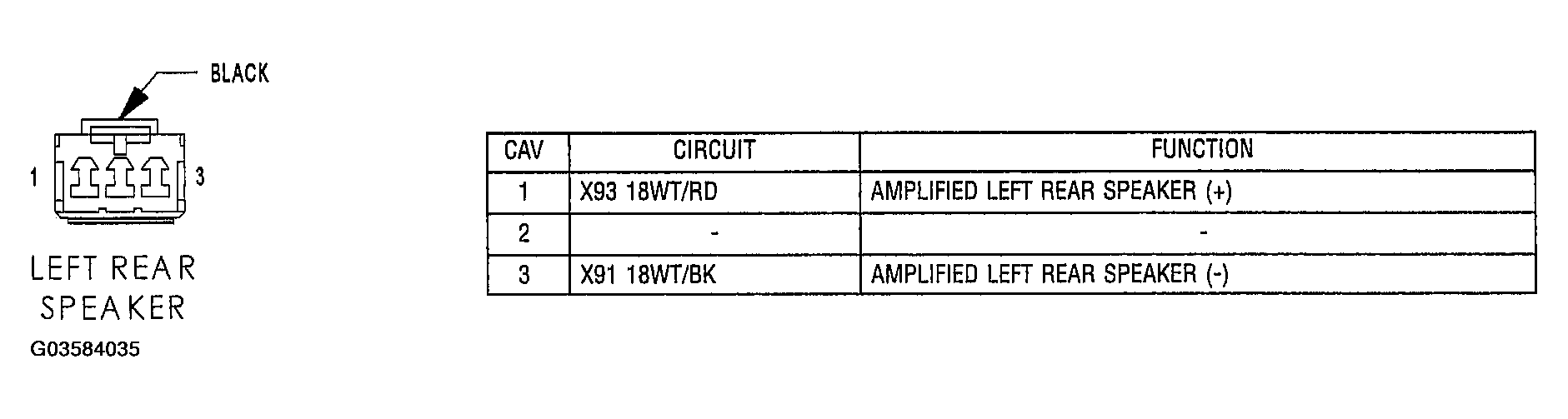

Fig 61: Identifying Connector Left Rear Speaker - 3-Way
G03584035Courtesy of DAIMLERCHRYSLER CORP.

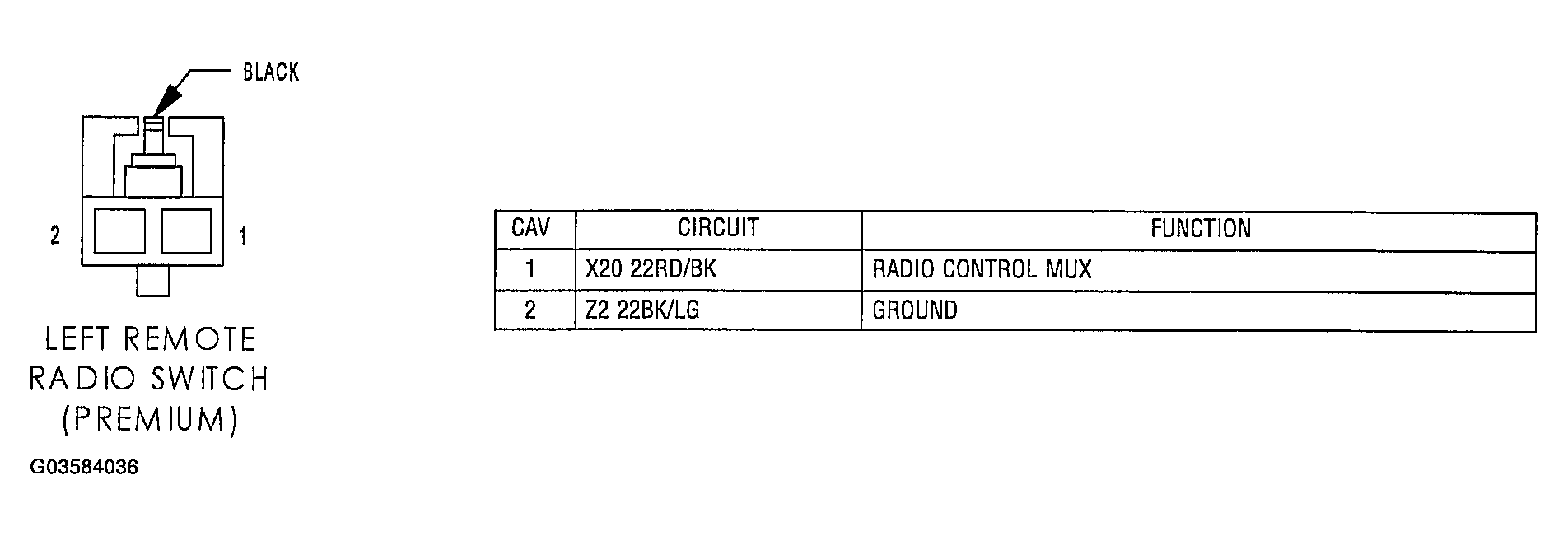

Fig 62: Identifying Connector Left Remote Radio Switch (Premium) - 2-Way
G03584036Courtesy of DAIMLERCHRYSLER CORP.
Fig 63: Identifying Connector Low Note Horn - 2-Way
G03584037Courtesy of DAIMLERCHRYSLER CORP.
Fig 64: Identifying Connector Mode Door Actuator - 2-Way
G03584038Courtesy of DAIMLERCHRYSLER CORP.

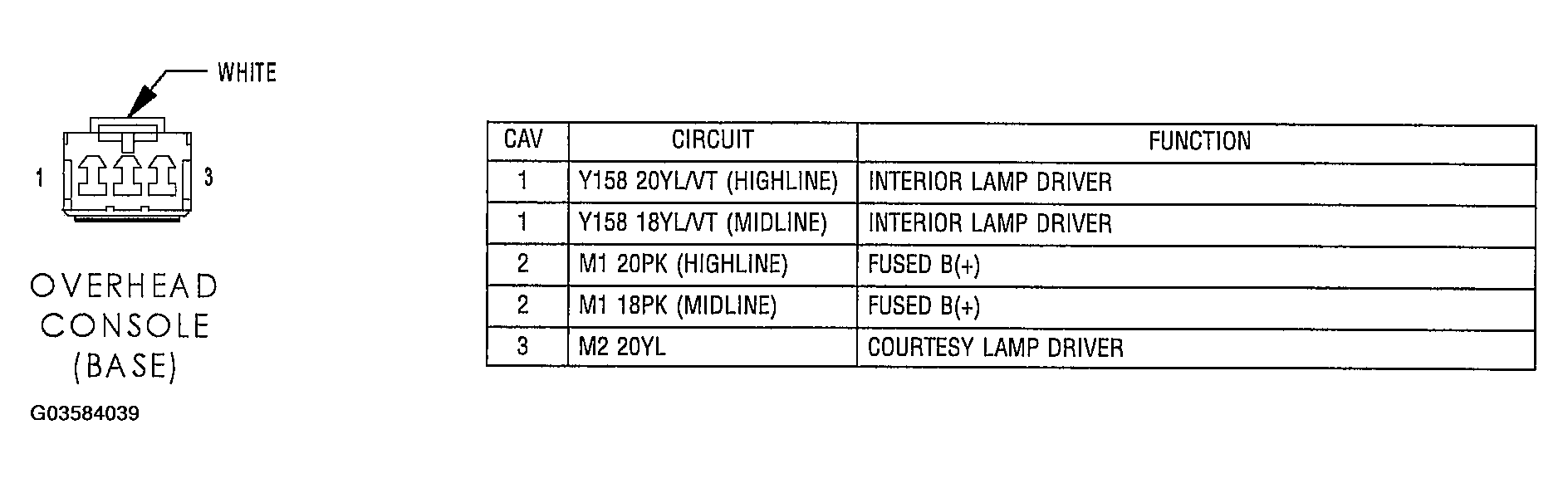

Fig 65: Identifying Connector Overhead Console (Base) - 3-Way
G03584039Courtesy of DAIMLERCHRYSLER CORP.

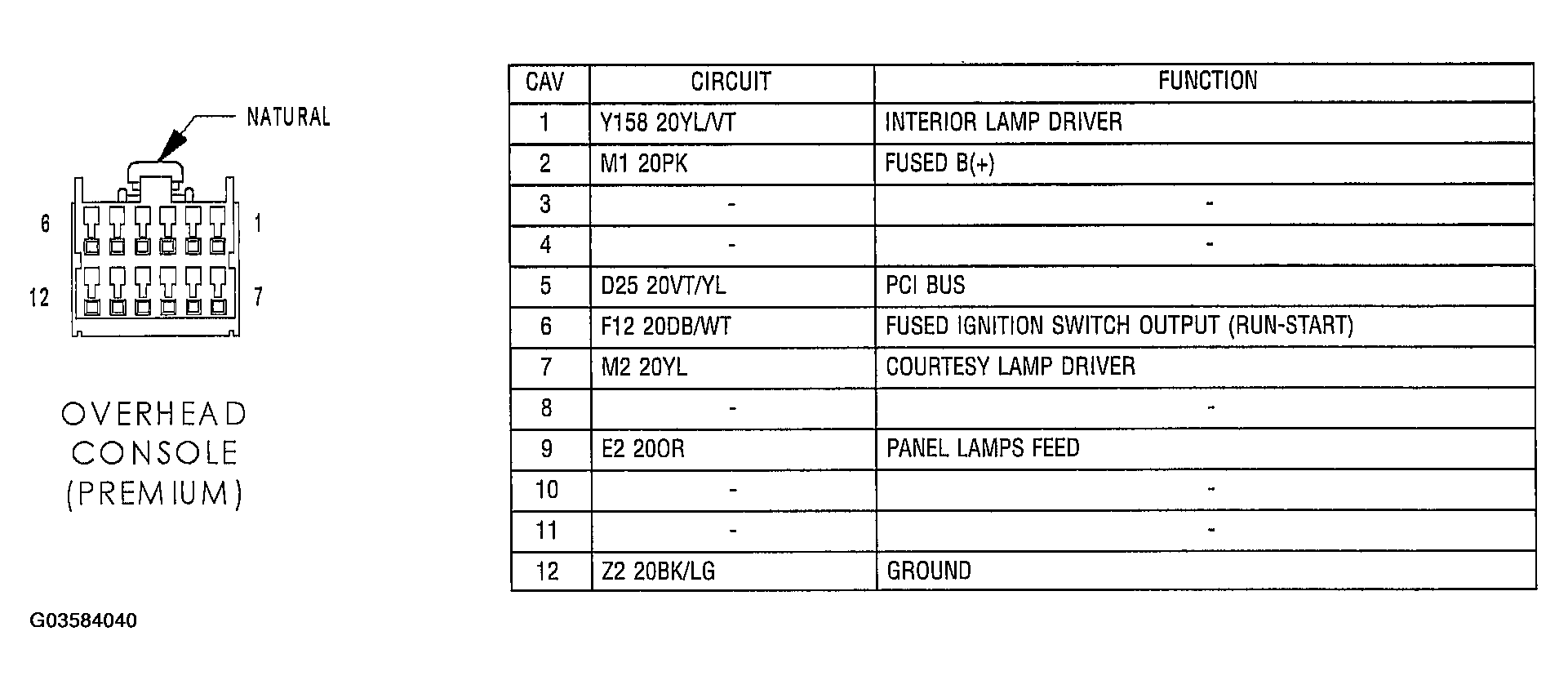

Fig 66: Identifying Connector Overhead Console (Premium) - 12-Way
G03584040Courtesy of DAIMLERCHRYSLER CORP.

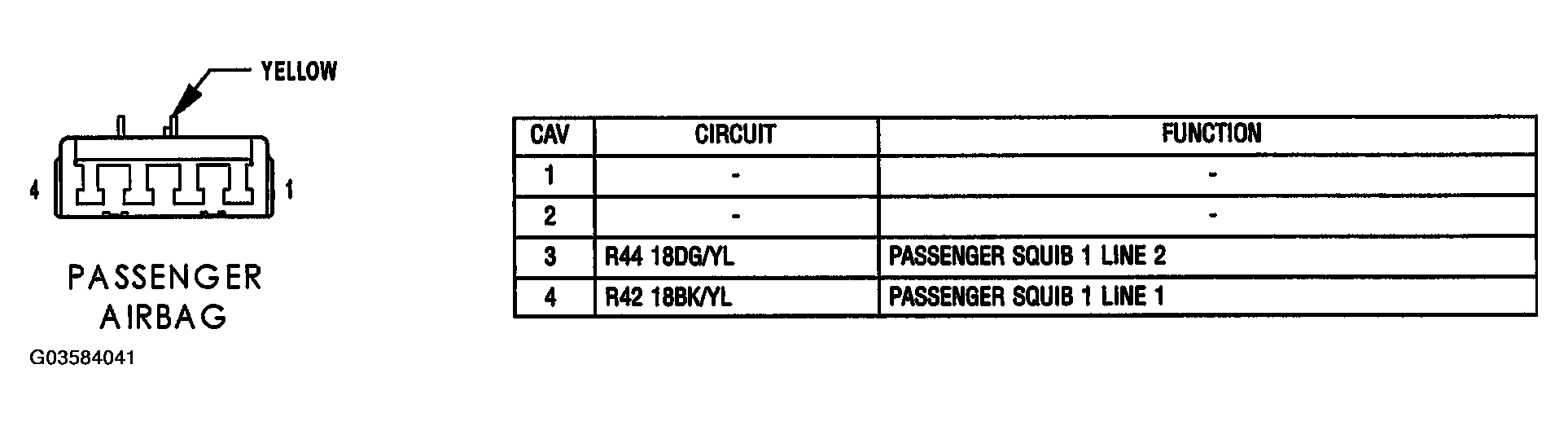

Fig 67: Identifying Connector Passenger Airbag - 4-Way
G03584041Courtesy of DAIMLERCHRYSLER CORP.

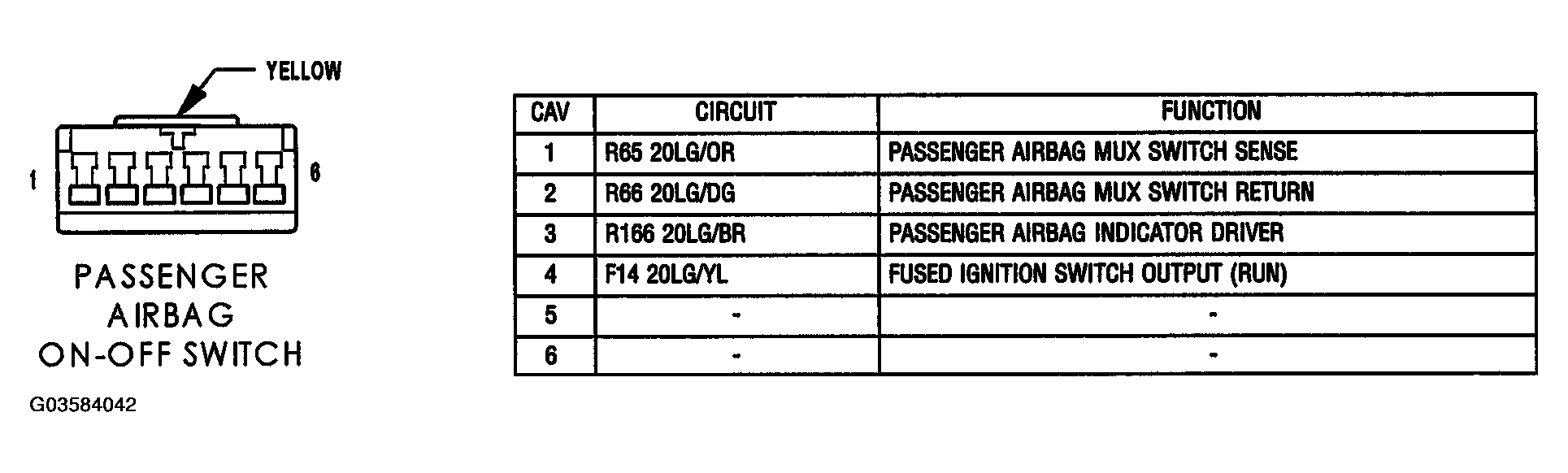

Fig 68: Identifying Connector Passenger Airbag On-Off Switch - 6-Way
G03584042Courtesy of DAIMLERCHRYSLER CORP.

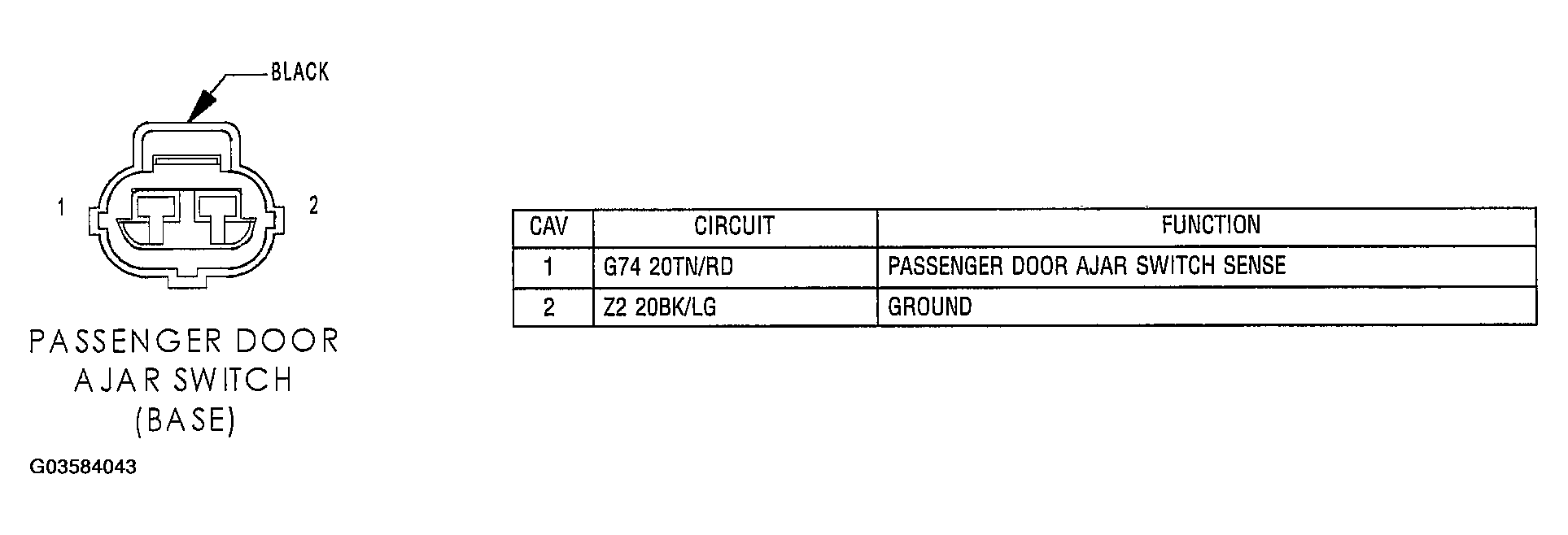

Fig 69: Identifying Connector Passenger Door Ajar Switch (Base) - 2-Way
G03584043Courtesy of DAIMLERCHRYSLER CORP.

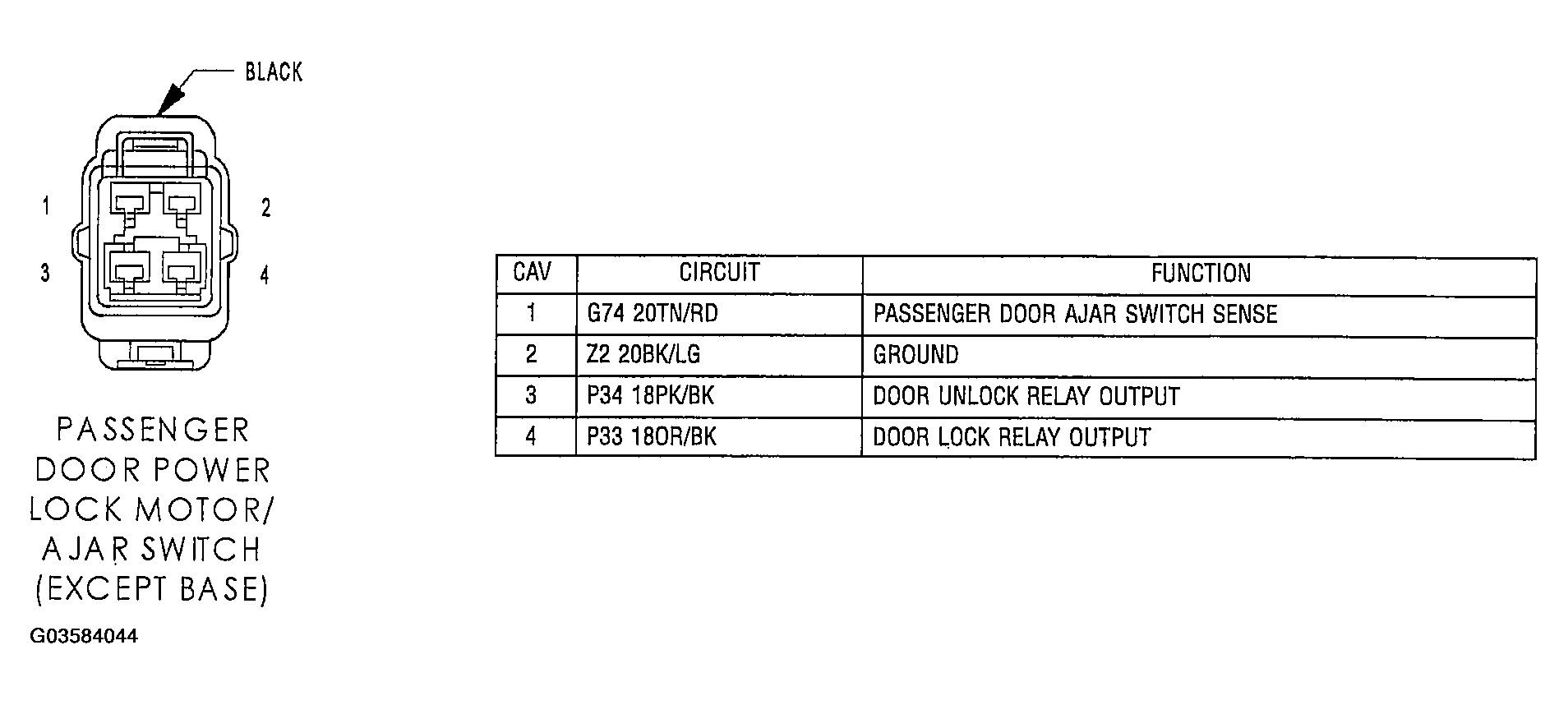

Fig 70: Identifying Connector Passenger Door Power Lock Motor/Ajar Switch (Except Base) - 4-Way
G03584044Courtesy of DAIMLERCHRYSLER CORP.

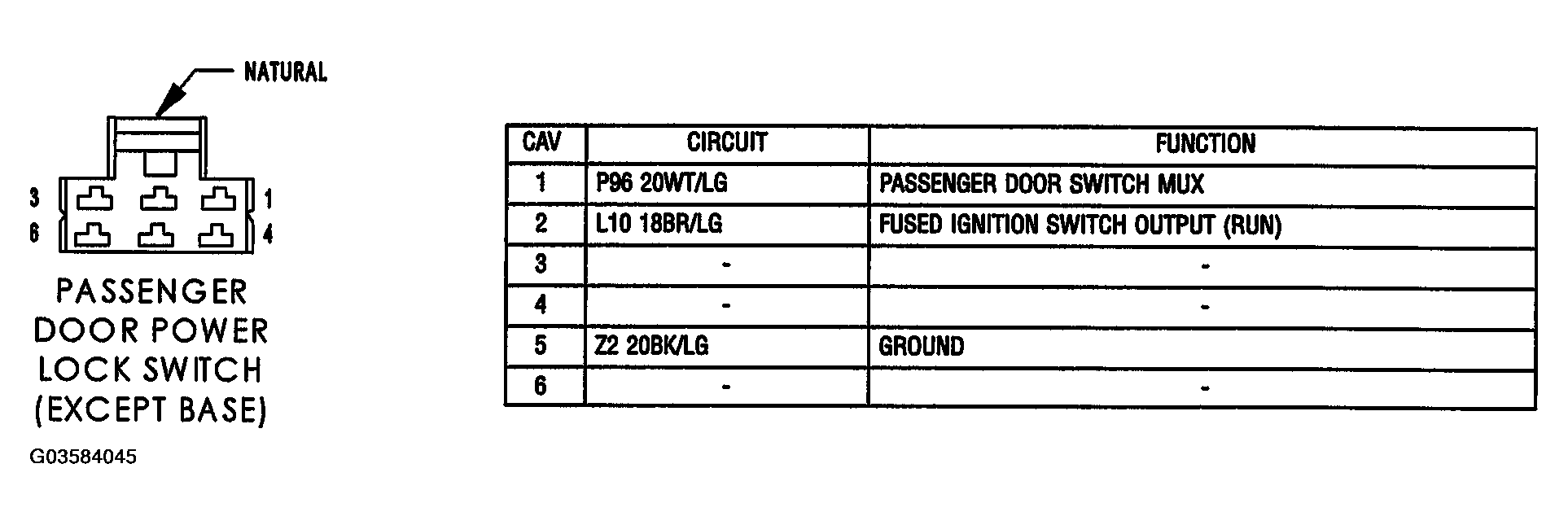

Fig 71: Identifying Connector Passenger Door Power Lock Switch (Except Base) - 6-Way
G03584045Courtesy of DAIMLERCHRYSLER CORP.

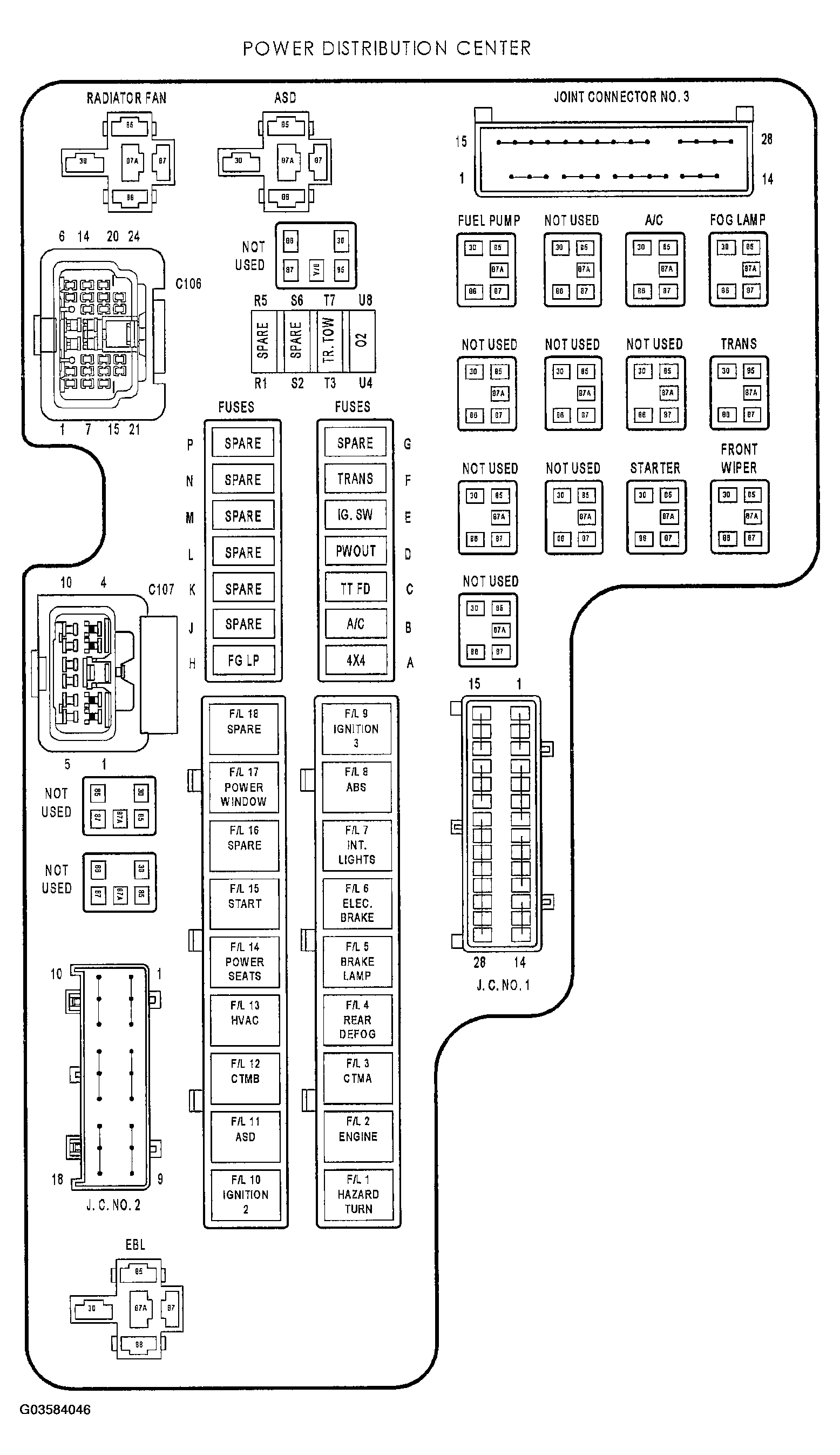

Fig 72: Identifying Connector Power Distribution Center
G03584046Courtesy of DAIMLERCHRYSLER CORP.

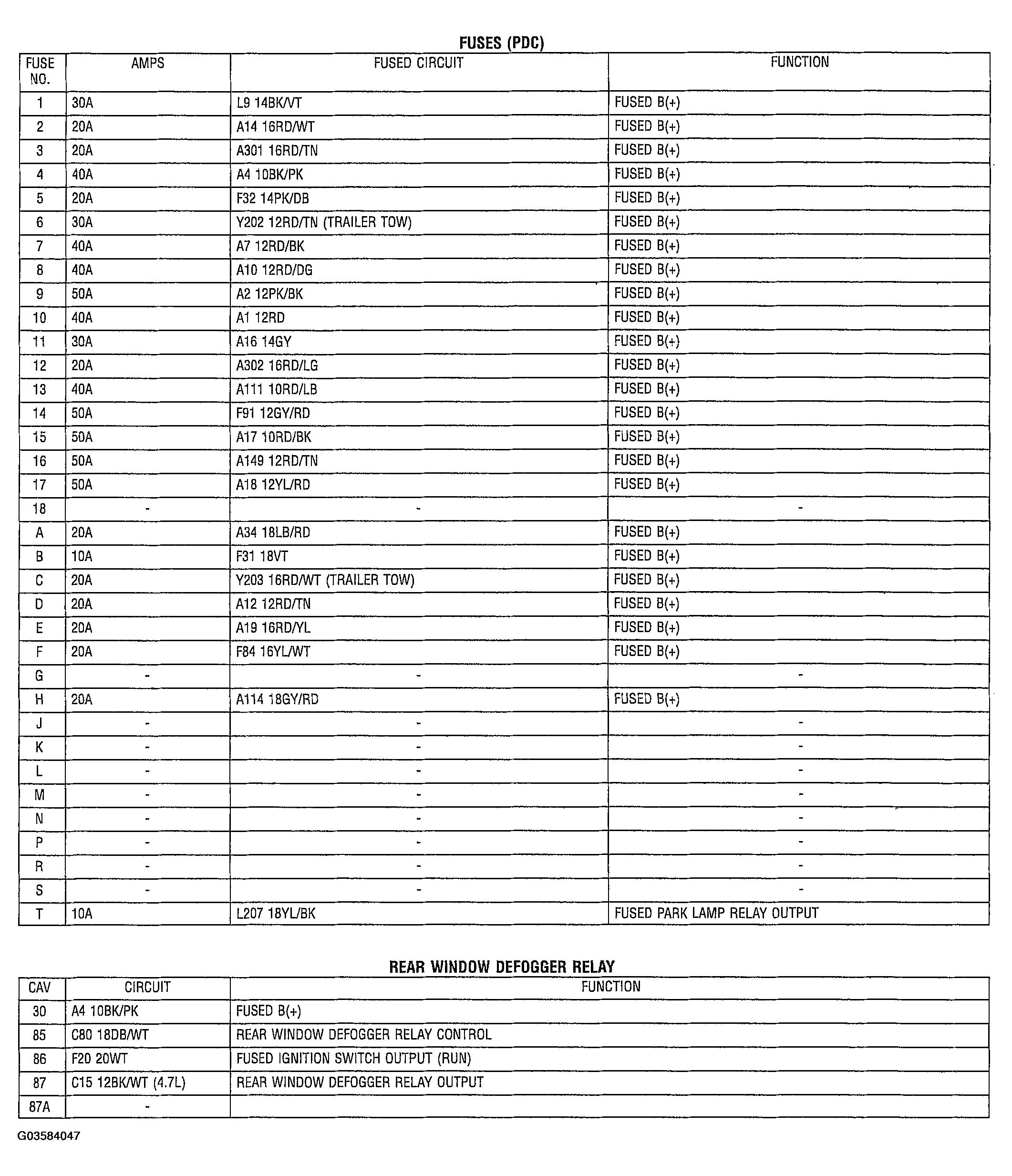

Fig 73: Connector Fuses (PDC) Table
G03584047Courtesy of DAIMLERCHRYSLER CORP.

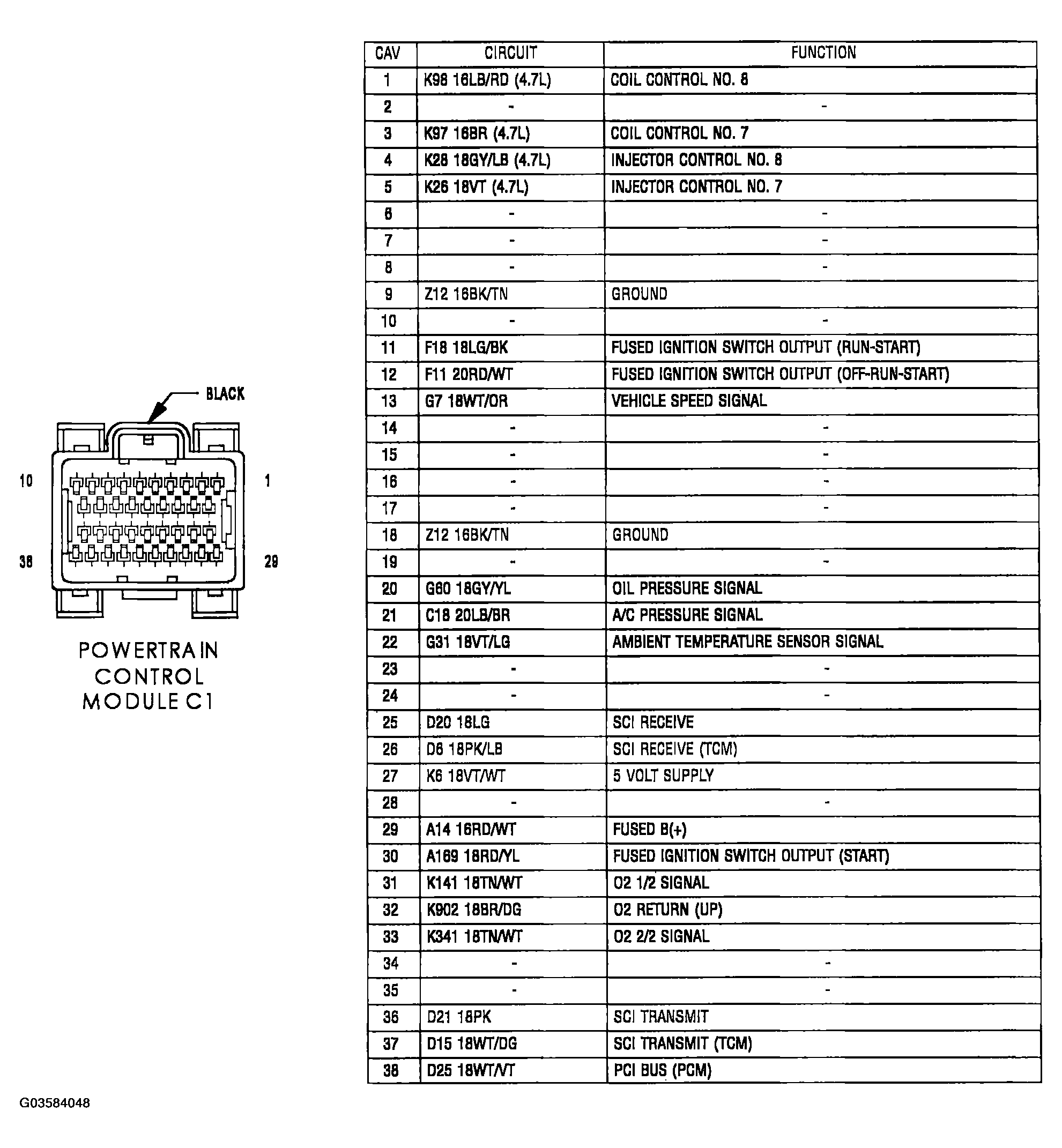

Fig 74: Identifying Connector Powertrain Control Module C1 - 38-Way
G03584048Courtesy of DAIMLERCHRYSLER CORP.

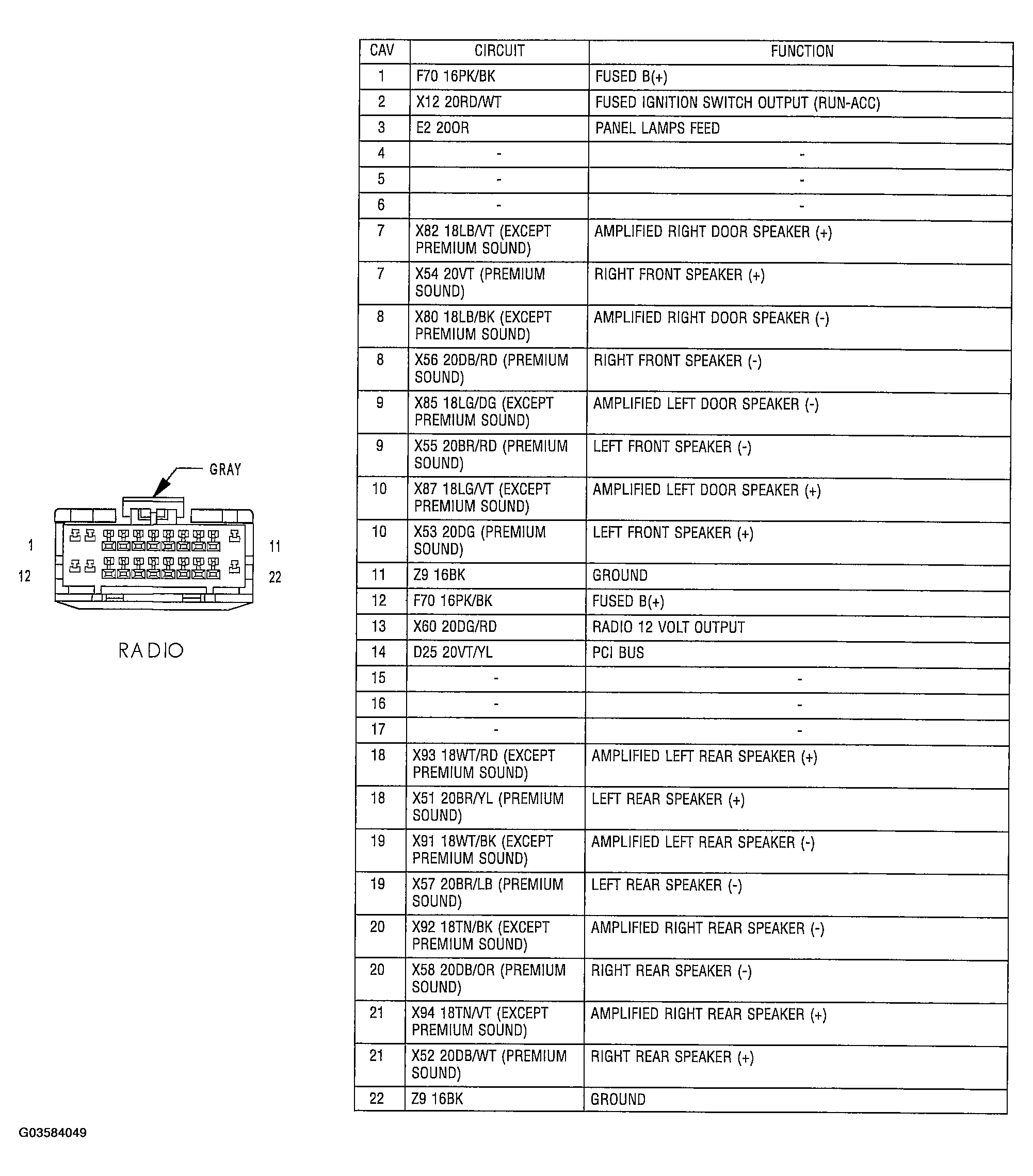

Fig 75: Identifying Connector Radio - 22-Way
G03584049Courtesy of DAIMLERCHRYSLER CORP.

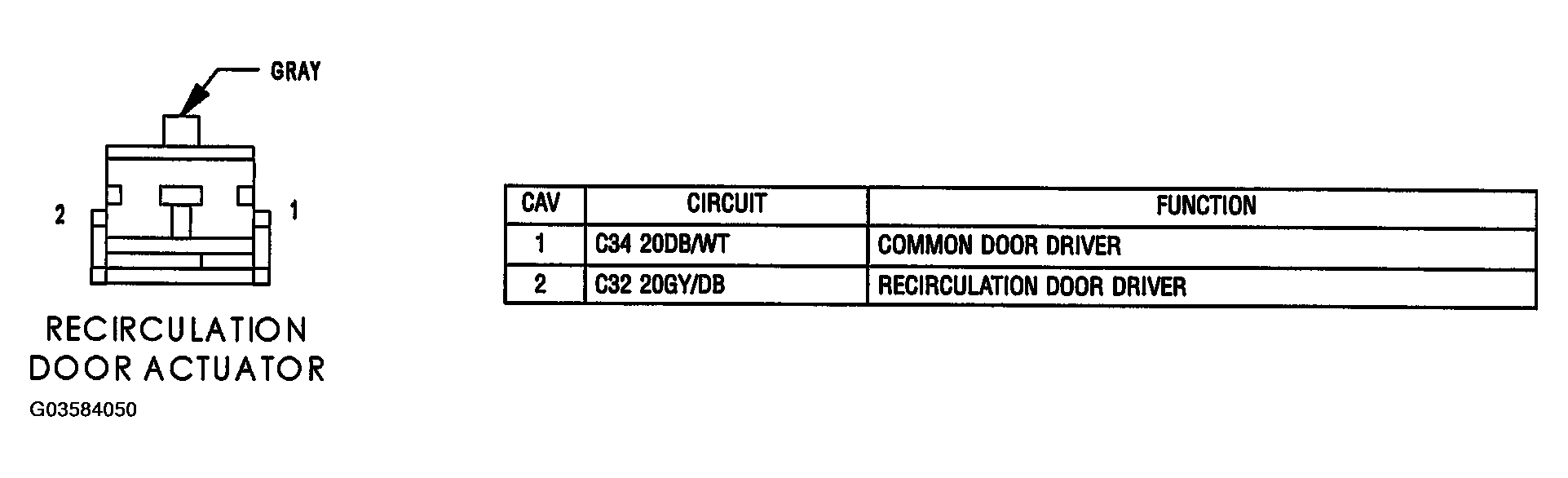

Fig 76: Identifying Connector Recirculation Door Actuator - 2-Way
G03584050Courtesy of DAIMLERCHRYSLER CORP.

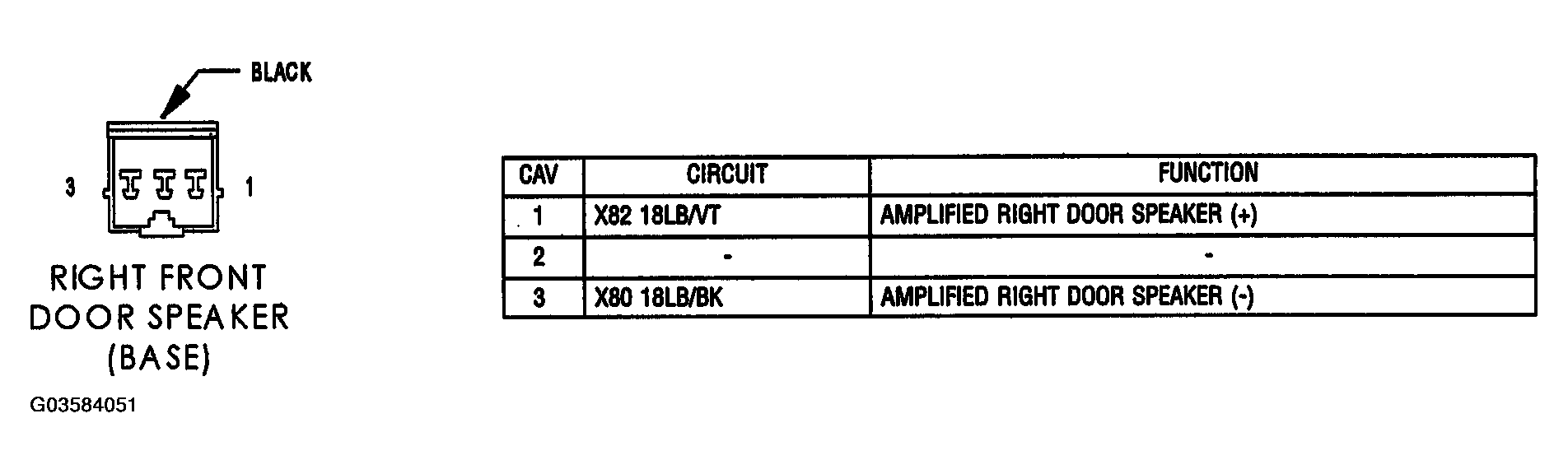

Fig 77: Identifying Connector Right Front Door Speaker (Base) - 3-Way
G03584051Courtesy of DAIMLERCHRYSLER CORP.

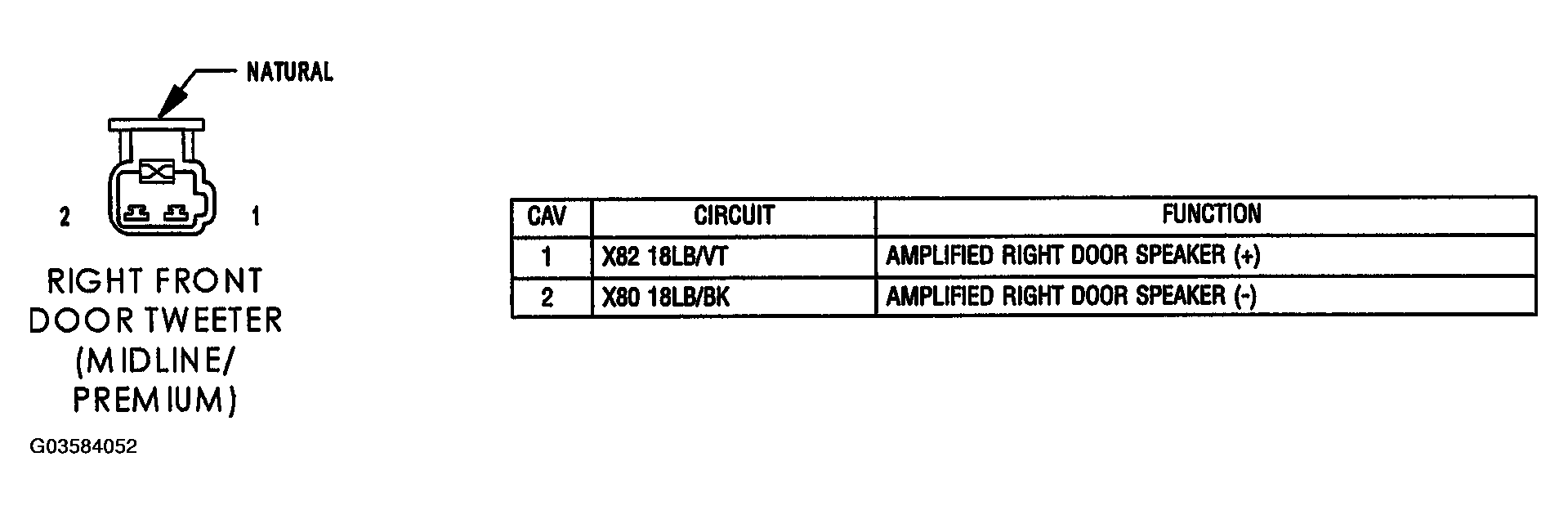

Fig 78: Identifying Connector Right Front Door Tweeter (Midline/Premium) - 2-Way
G03584052Courtesy of DAIMLERCHRYSLER CORP.

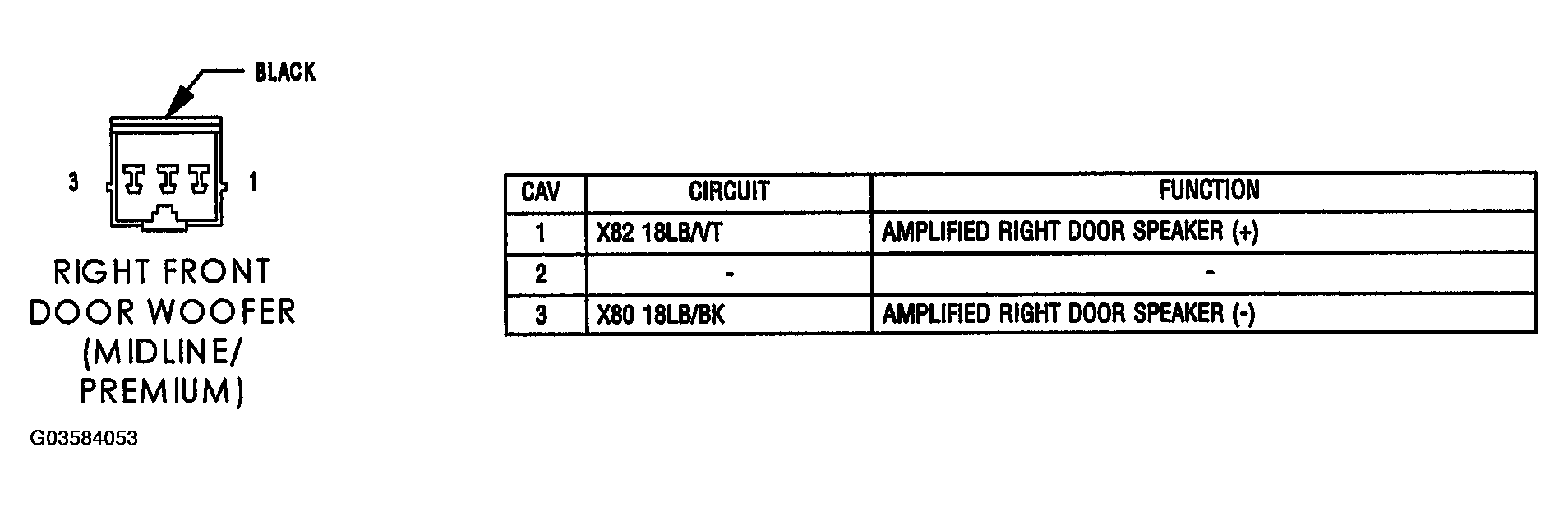

Fig 79: Identifying Connector Right Front Door Woofer (Midline/Premium) - 3-Way
G03584053Courtesy of DAIMLERCHRYSLER CORP.

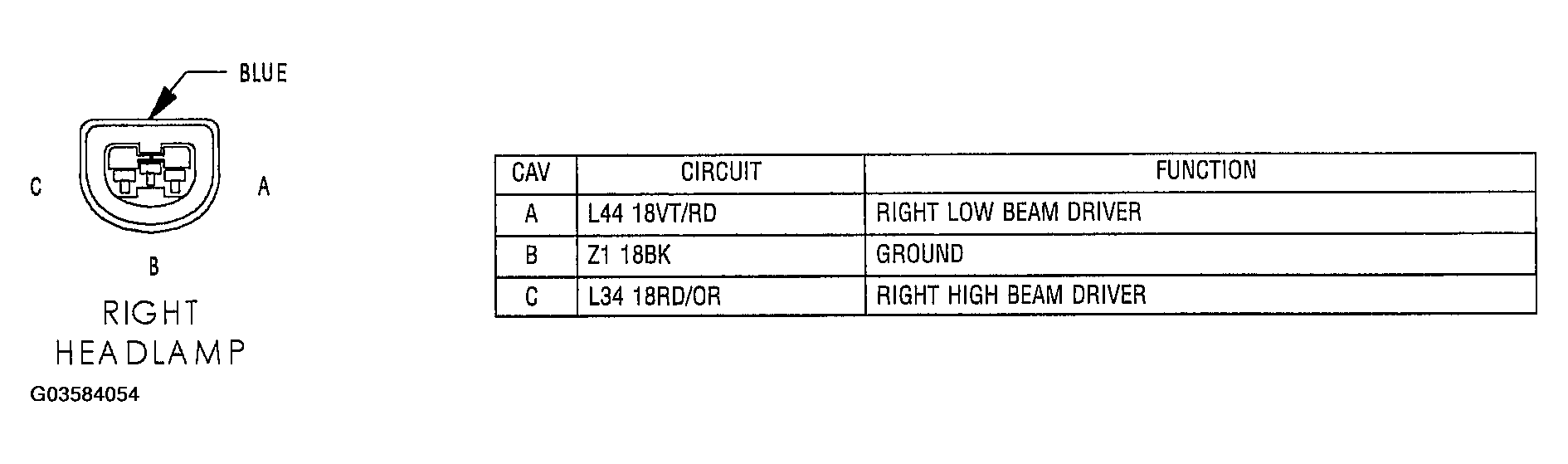

Fig 80: Identifying Connector Right Headlamp - 3-Way
G03584054Courtesy of DAIMLERCHRYSLER CORP.

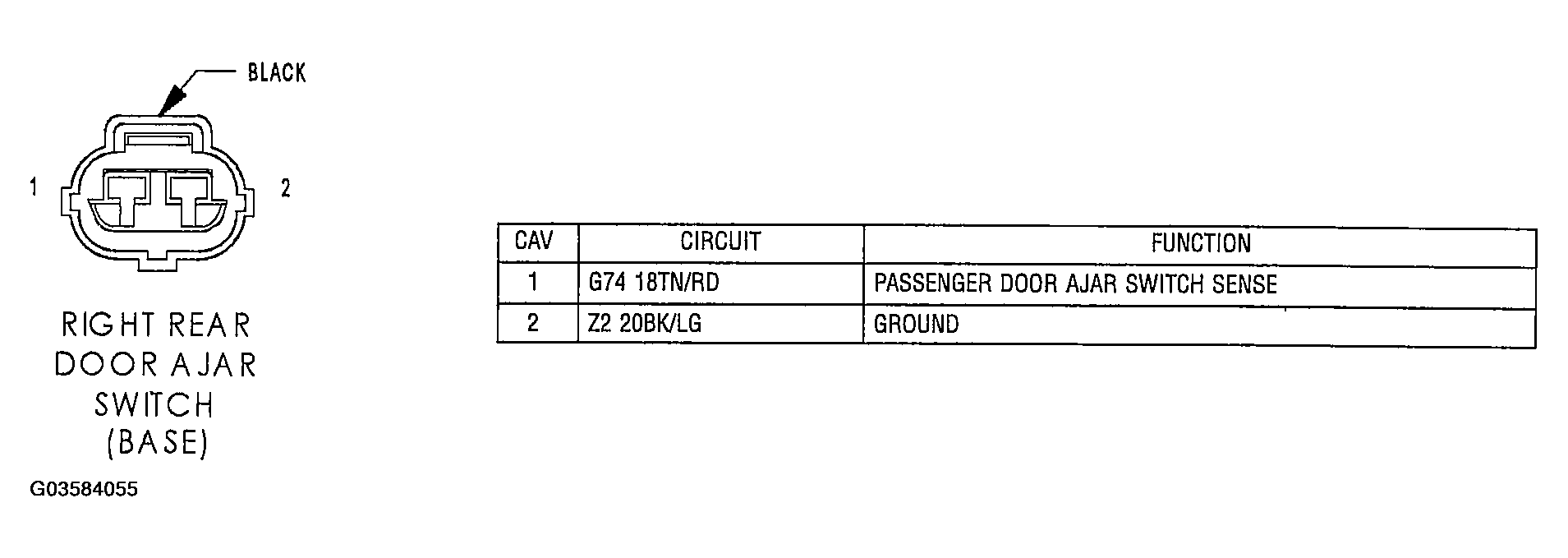

Fig 81: Identifying Connector Right Rear Door Ajar Switch (Base) - 2-Way
G03584055Courtesy of DAIMLERCHRYSLER CORP.

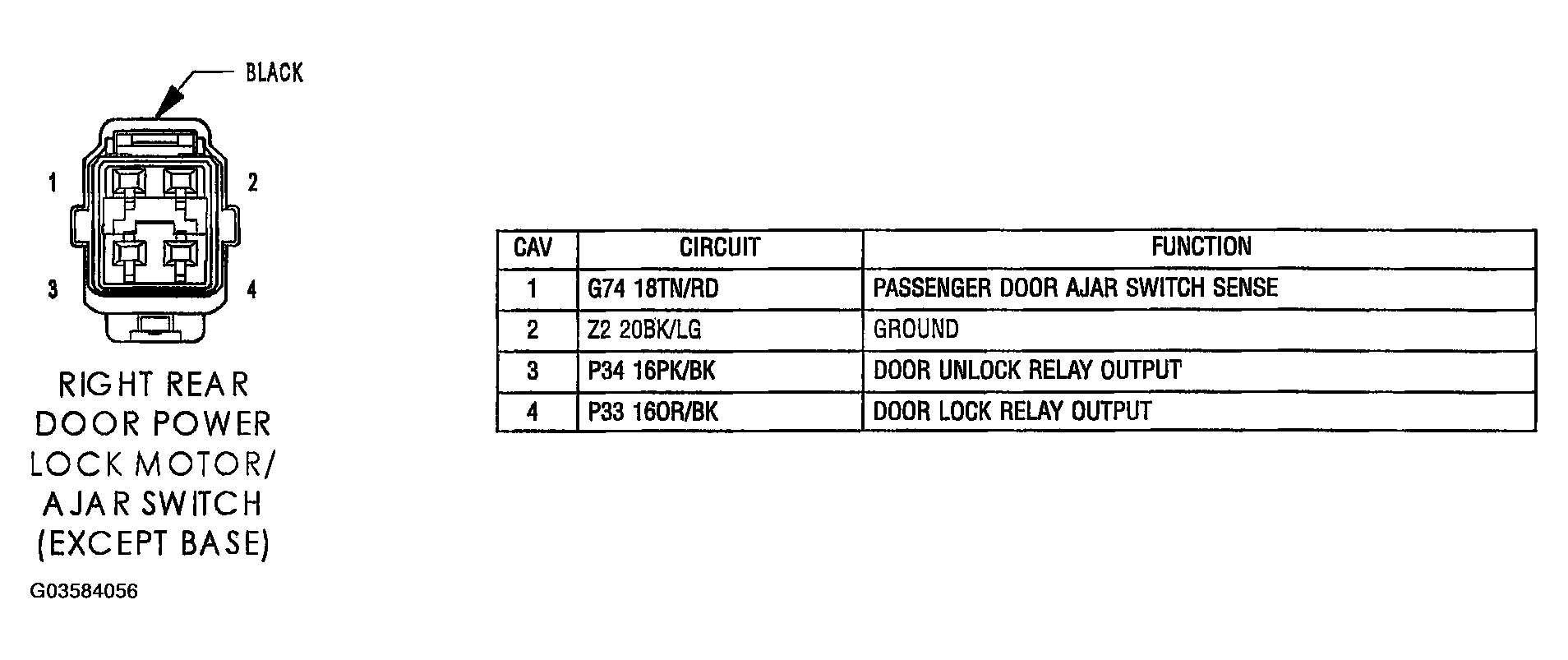

Fig 82: Identifying Connector Right Rear Door Power Lock Motor/Ajar Switch (Except Base) - 4-Way
G03584056Courtesy of DAIMLERCHRYSLER CORP.

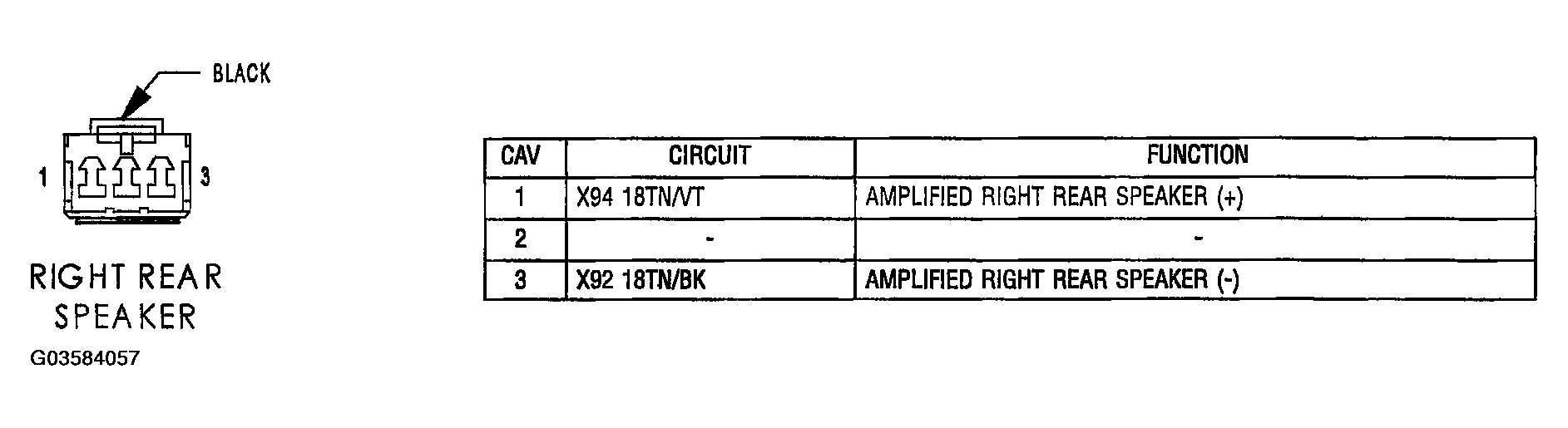

Fig 83: Identifying Connector Right Rear Speaker - 3-Way
G03584057Courtesy of DAIMLERCHRYSLER CORP.

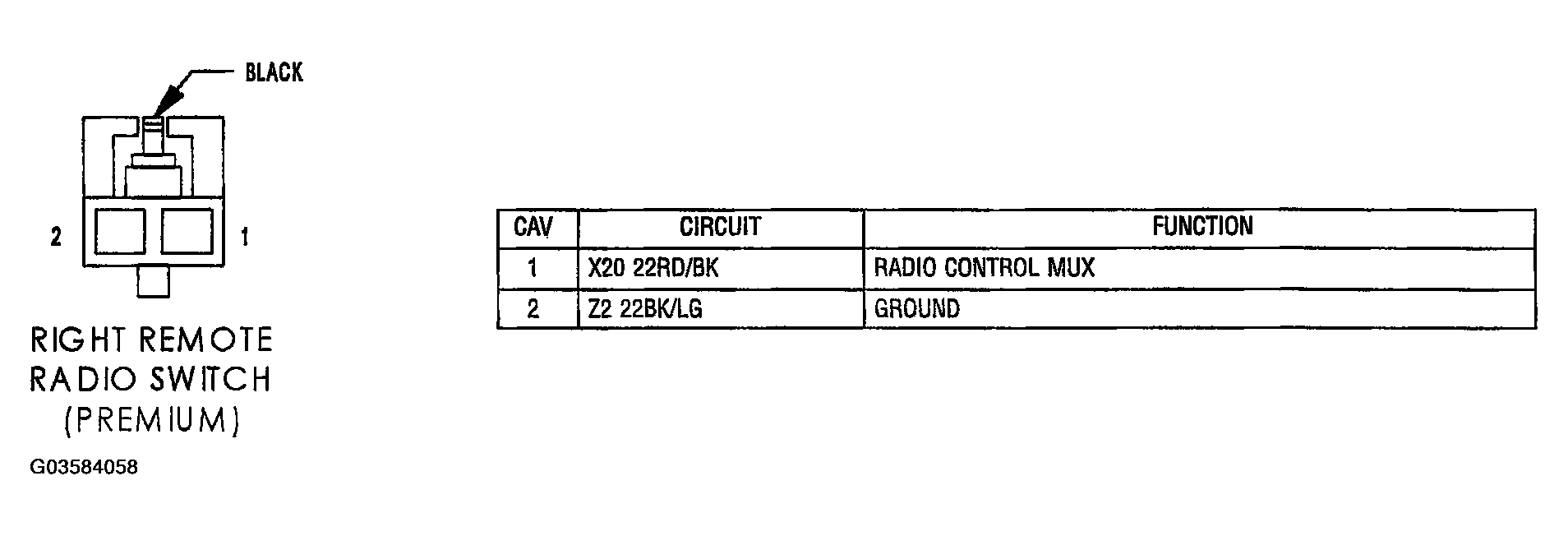

Fig 84: Identifying Connector Right Remote Radio Switch (Premium) - 2-Way
G03584058Courtesy of DAIMLERCHRYSLER CORP.
Fig 85: Identifying Connector Seat Belt Switch (2 Door) - 2-Way
G03584059Courtesy of DAIMLERCHRYSLER CORP.
Fig 86: Identifying Connector Seat Belt Switch (4 Door) - 2-Way
G03584060Courtesy of DAIMLERCHRYSLER CORP.

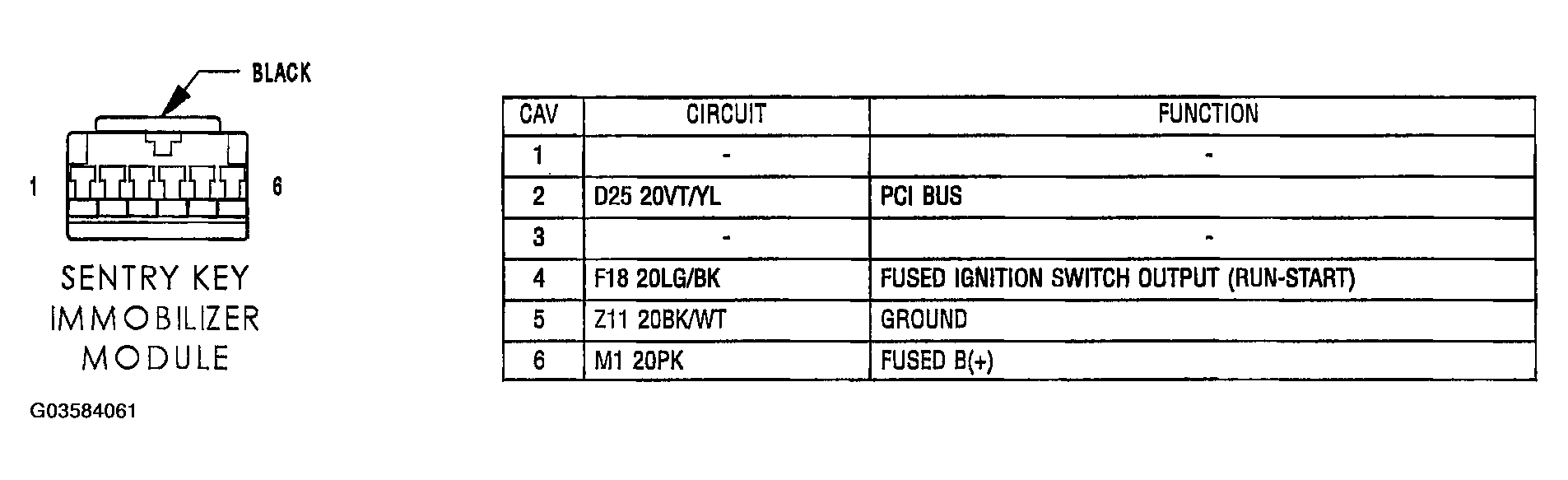

Fig 87: Identifying Connector Sentry Key Immobilizer Module - 6-Way
G03584061Courtesy of DAIMLERCHRYSLER CORP.

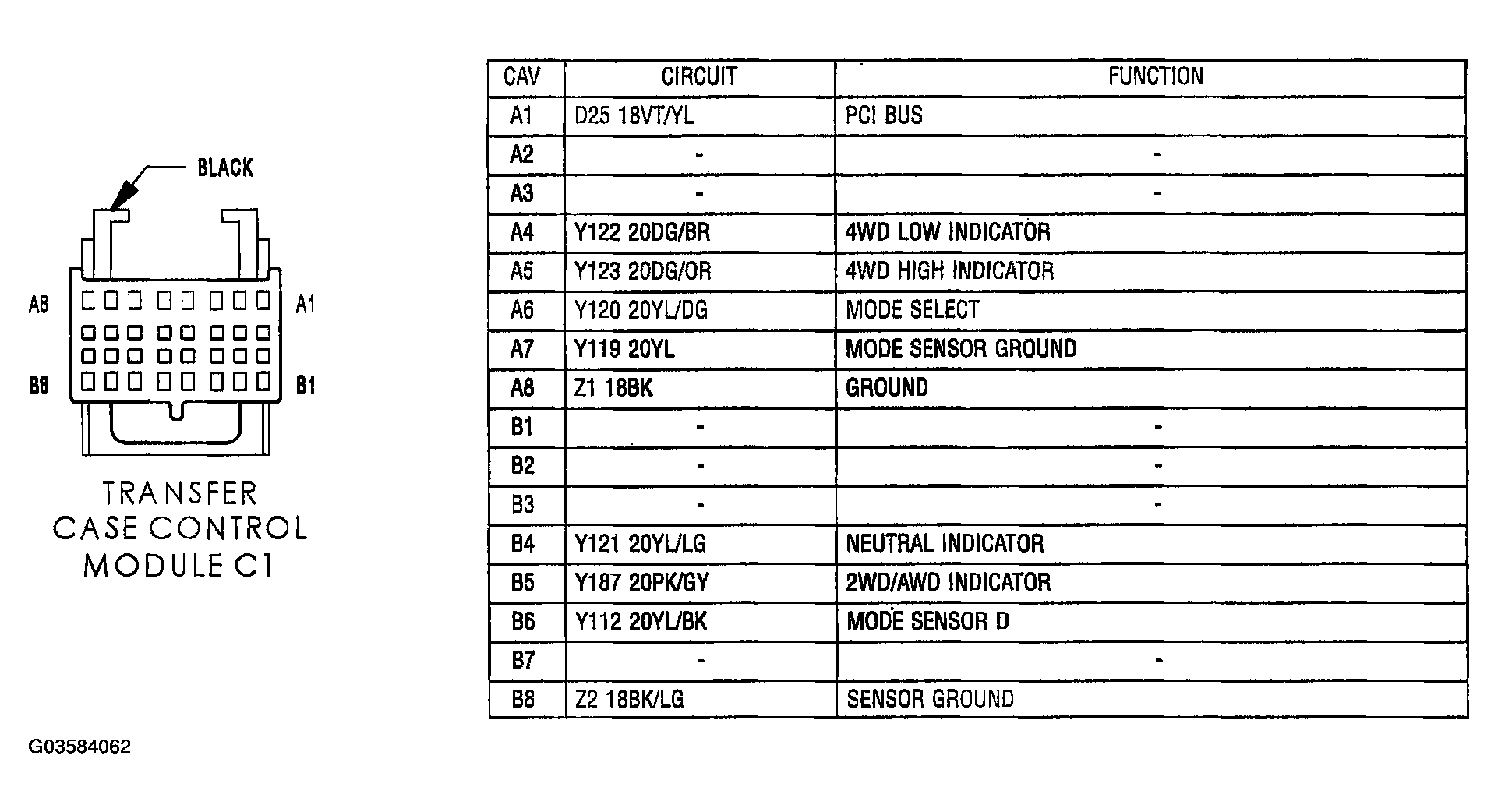

Fig 88: Identifying Connector Transfer Case Control Module C1 - 16-Way
G03584062Courtesy of DAIMLERCHRYSLER CORP.

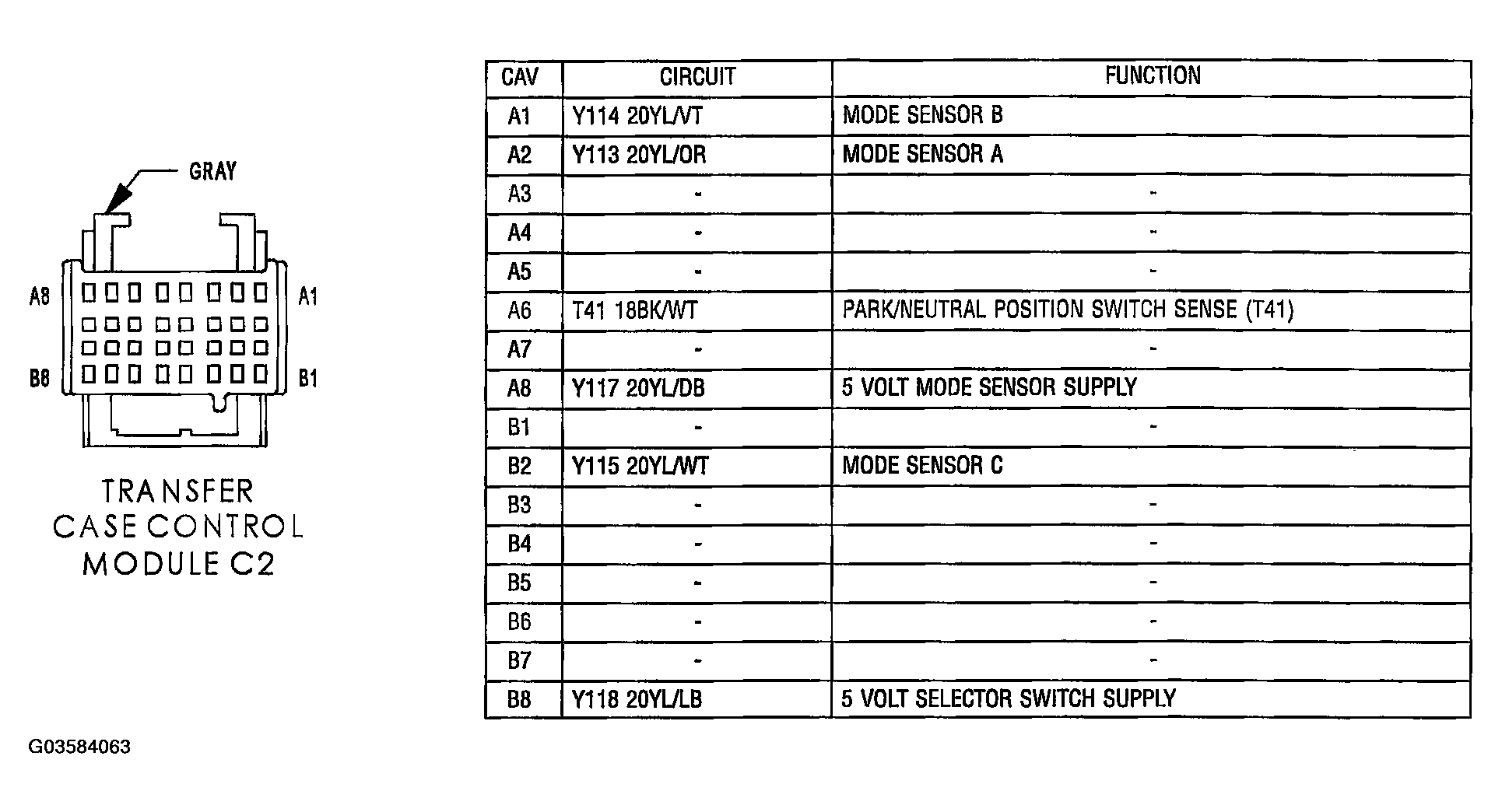

Fig 89: Identifying Connector Transfer Case Control Module C2 - 16-Way
G03584063Courtesy of DAIMLERCHRYSLER CORP.

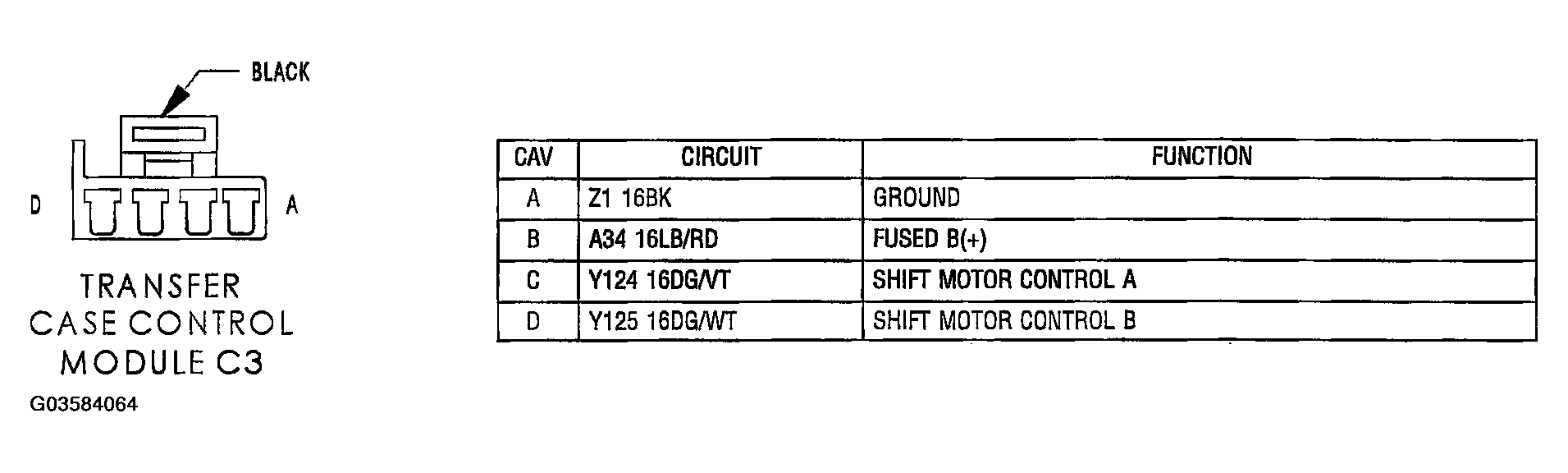

Fig 90: Identifying Connector Transfer Case Control Module C3 - 4-Way
G03584064Courtesy of DAIMLERCHRYSLER CORP.

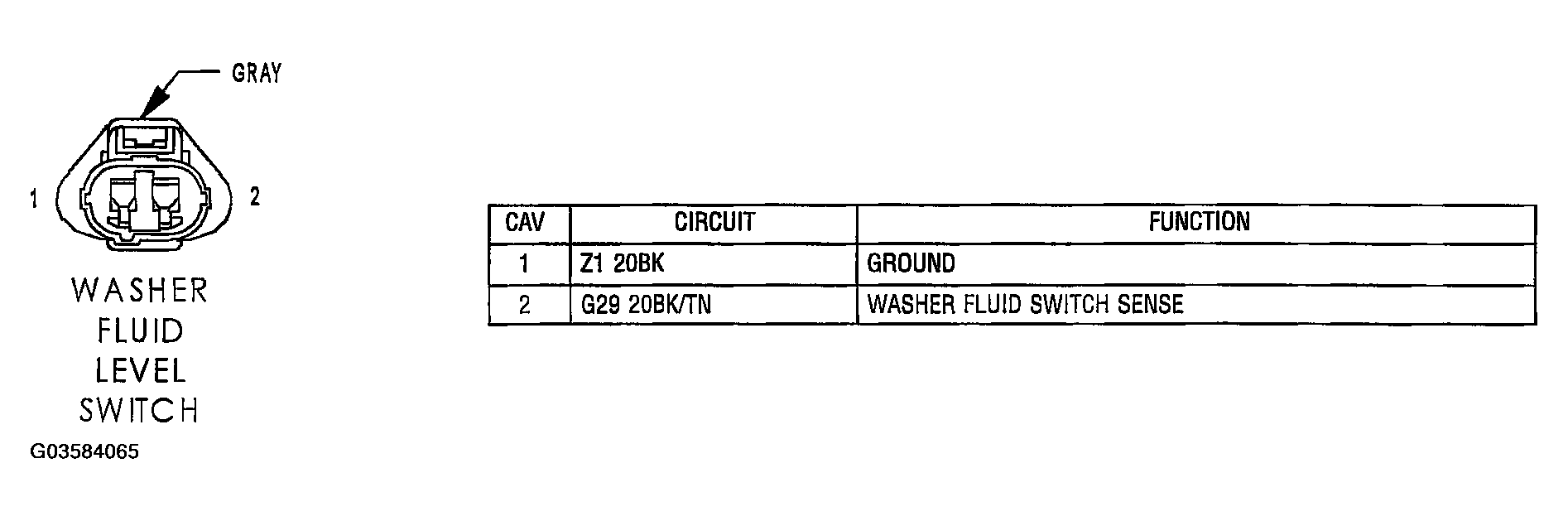

Fig 91: Identifying Connector Washer Fluid Level Switch - 2-Way
G03584065Courtesy of DAIMLERCHRYSLER CORP.
