DRBIII® Error Messages And Blank Screen: Notes

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Under normal operation, the DRBIII® will display one of only two error messages:

User-Requested WARM Boot BY PRESSING MORE AND NO AT THE SAME TIME.

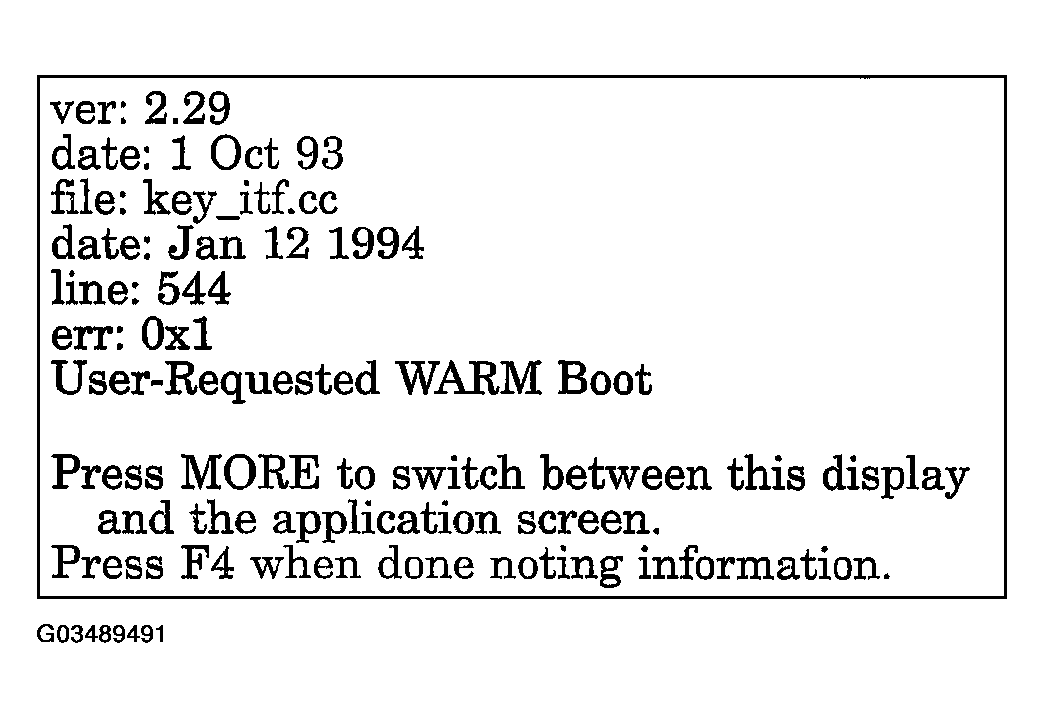

Fig 1: DRBIII® Error Messages (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

or
User-Requested COLD Boot by MORE and YES at the same time.

Fig 2: DRBIII® Error Messages (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

If the DRBIII® should display any other error message, record the entire display and call the STAR Center.
