WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

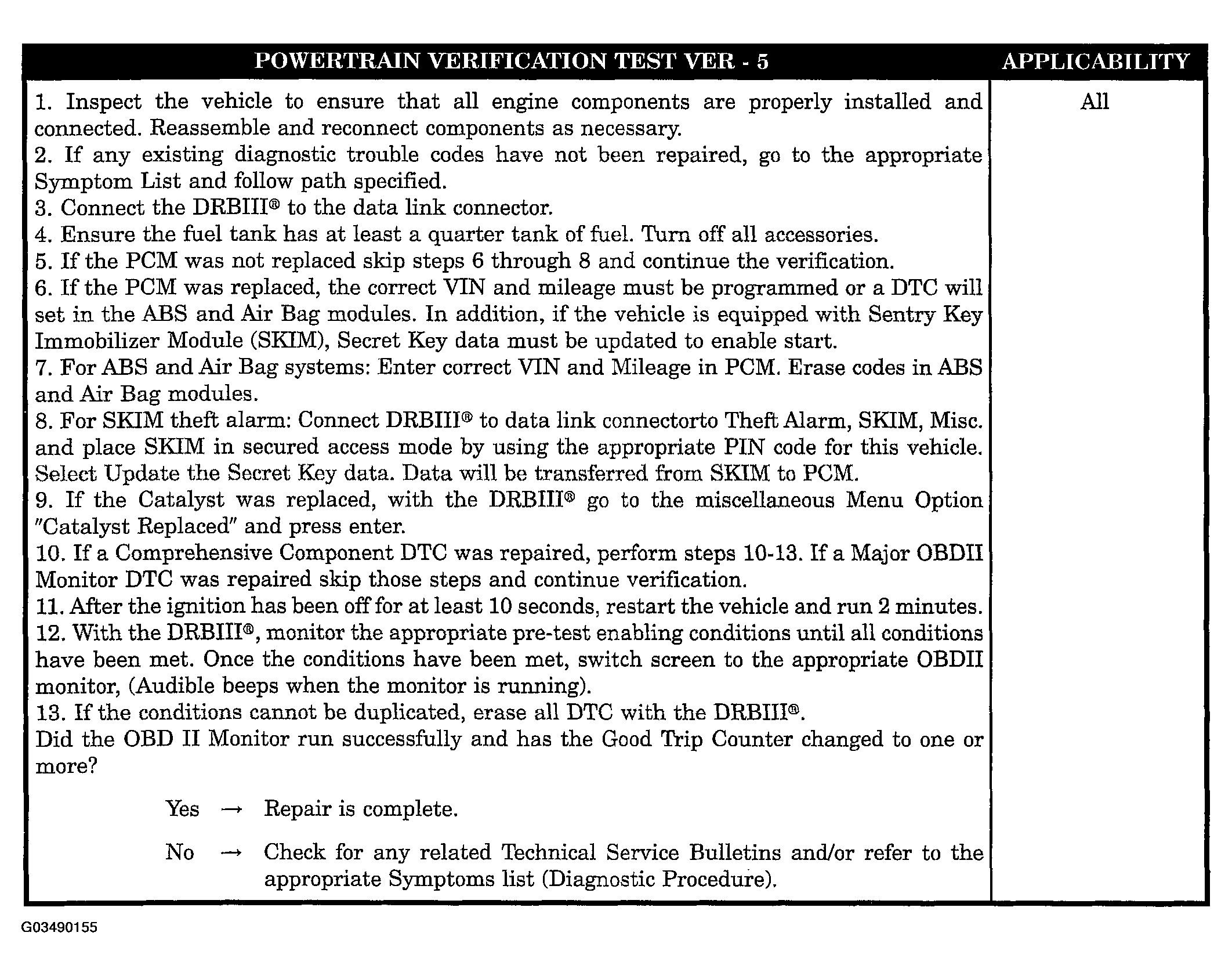

Fig 1: Powertrain Verification Test - VER-5 (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

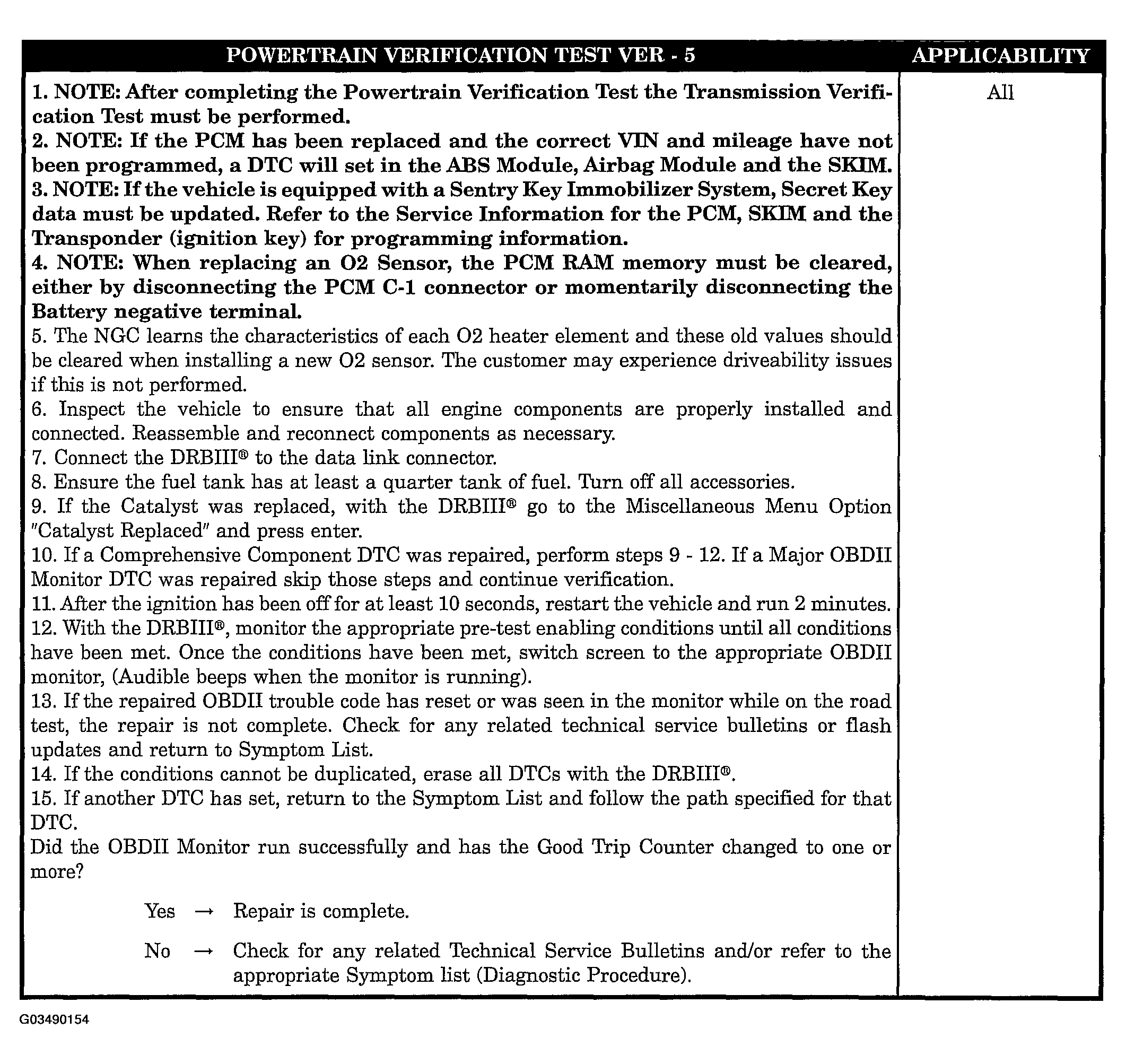

Fig 2: Powertrain Verification Test - VER-5 (2 Of 2)
