(NGC) 45RFE/545RFE Transmission Verification Test - VER-1

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

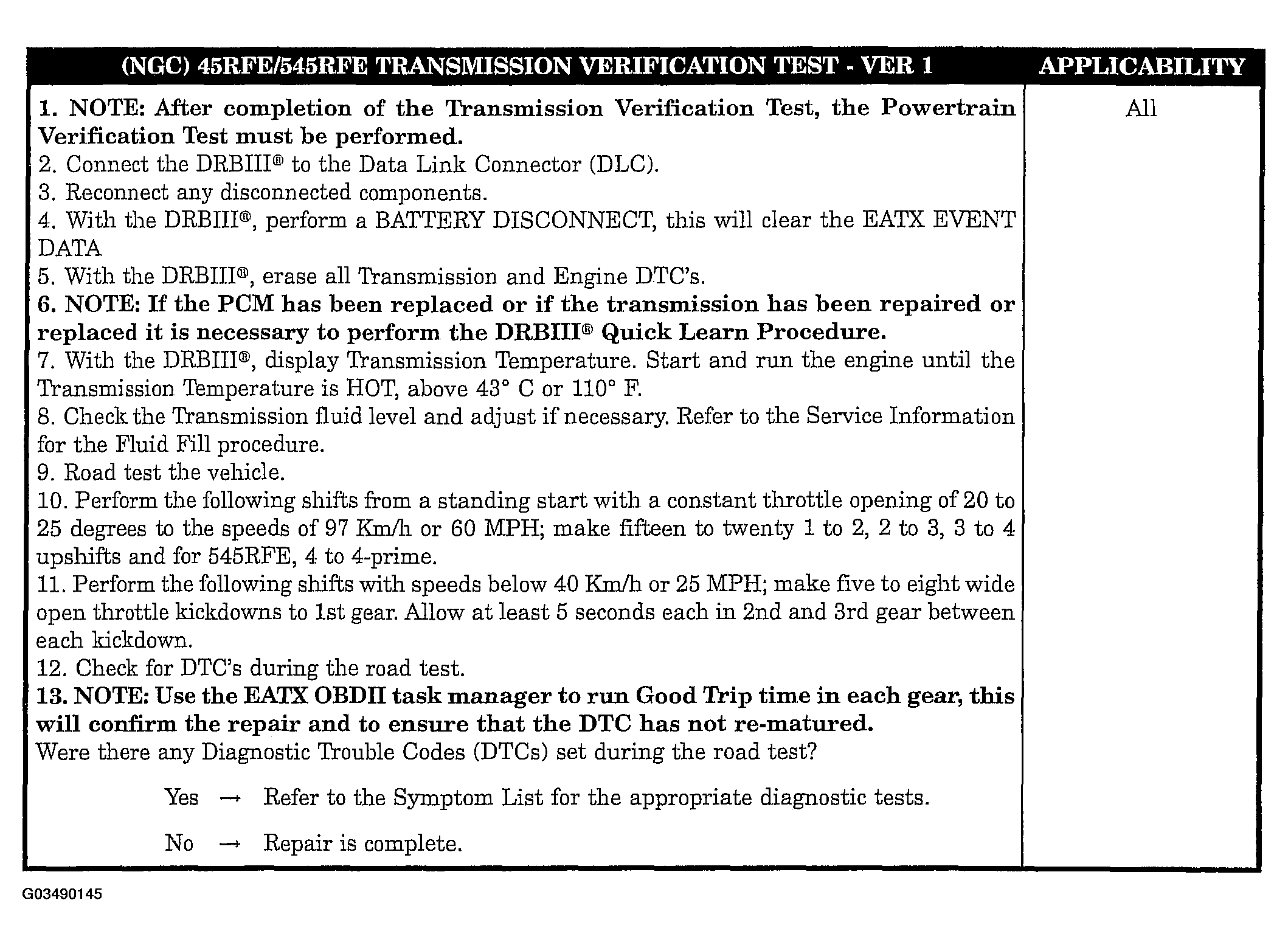

Fig 1: (NGC) 45RFE/545RFE Transmission Verification Test - VER-1
G03490145Courtesy of DAIMLERCHRYSLER CORP.
