Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

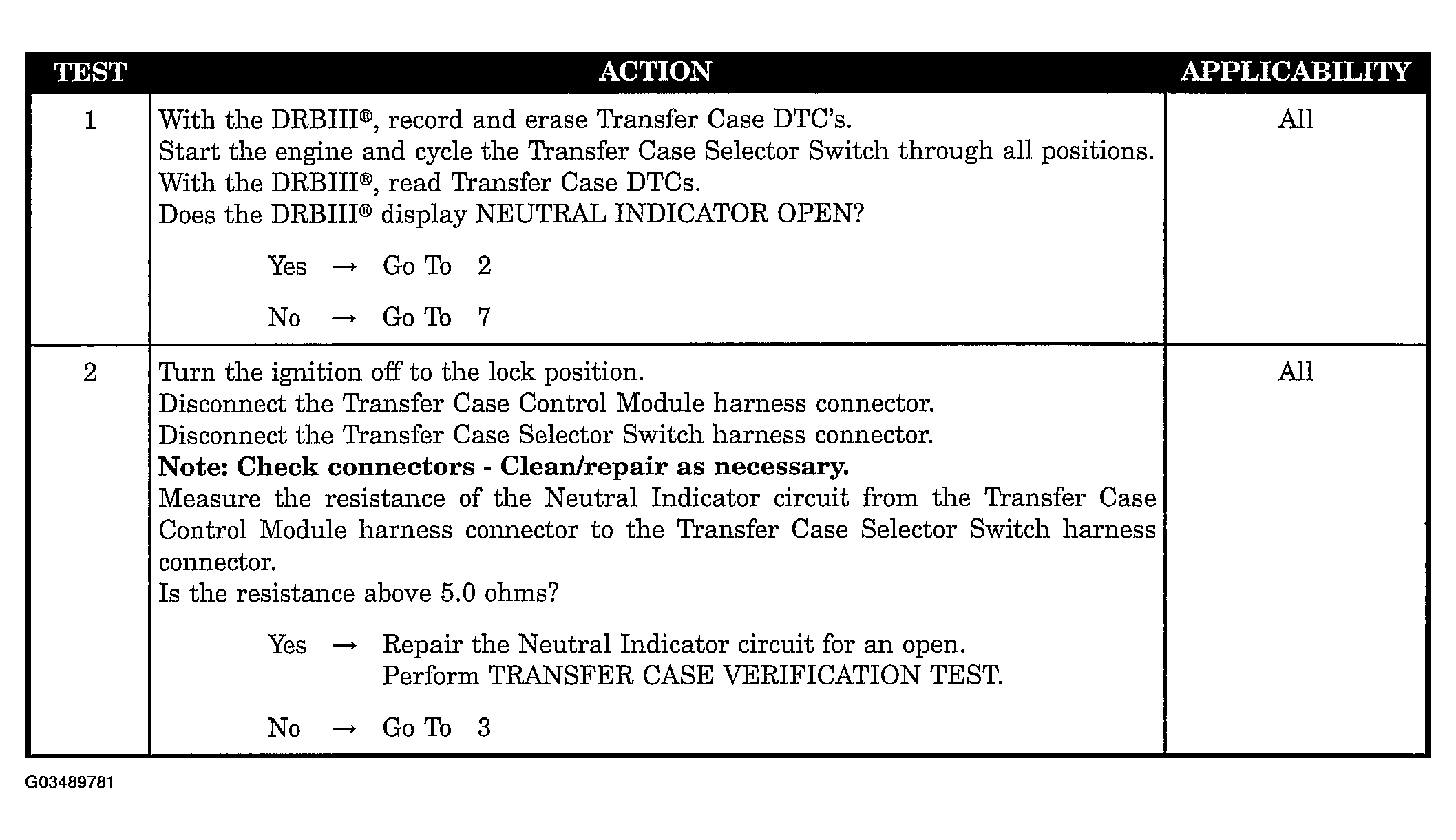

Fig 1: Neutral Indicator Open - Diagnostic Procedure (Test Steps 1 - 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Neutral Indicator Open - Diagnostic Procedure (Test Steps 3 - 6)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Neutral Indicator Open - Diagnostic Procedure (Test Step 7)

Courtesy of DAIMLERCHRYSLER CORP.
