Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Missing Transmission Position Input - Diagnostic Procedure (Test Steps 1 - 3)
G03489777Courtesy of DAIMLERCHRYSLER CORP.

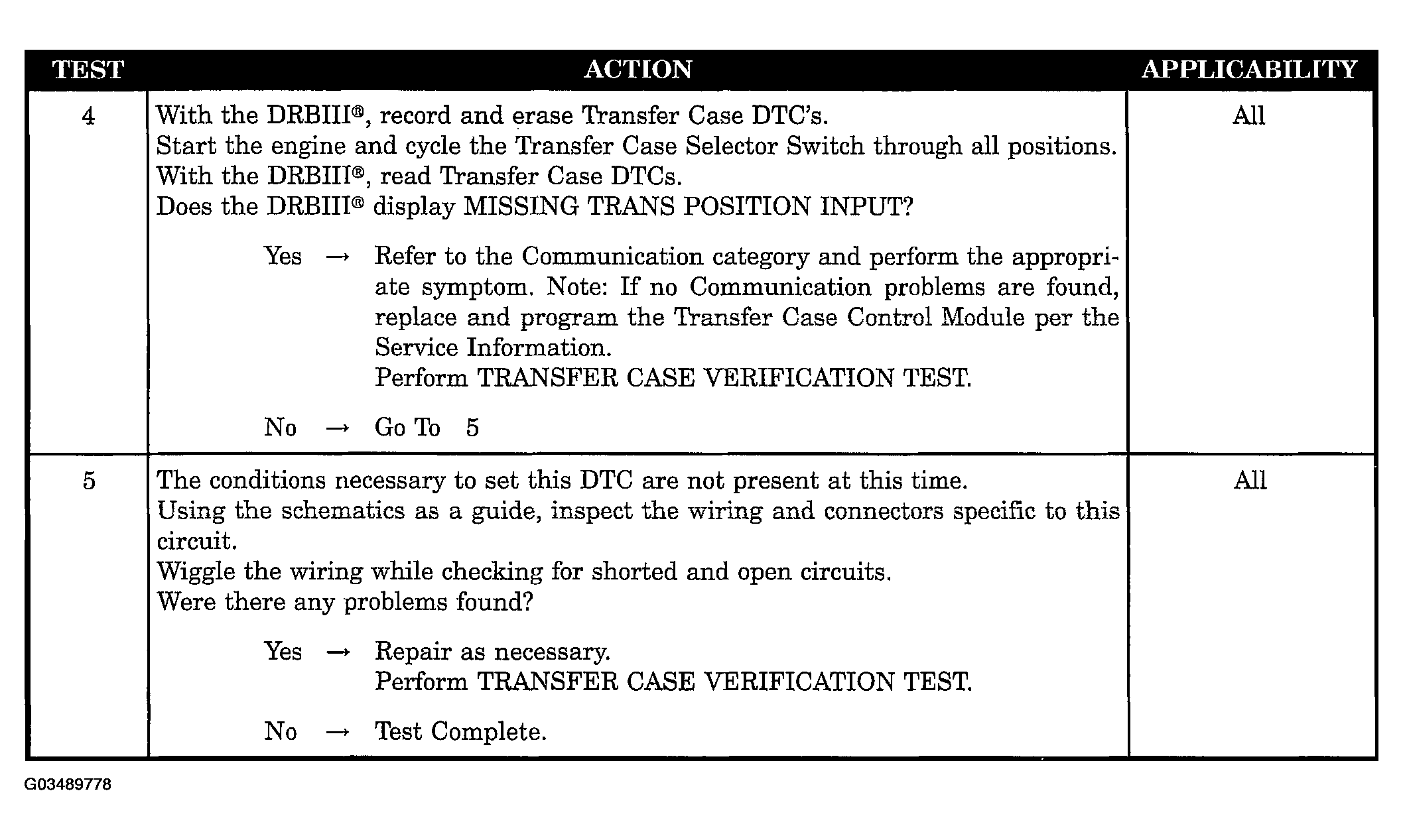

Fig 2: Missing Transmission Position Input - Diagnostic Procedure (Test Steps 4 - 5)
G03489778Courtesy of DAIMLERCHRYSLER CORP.
