Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

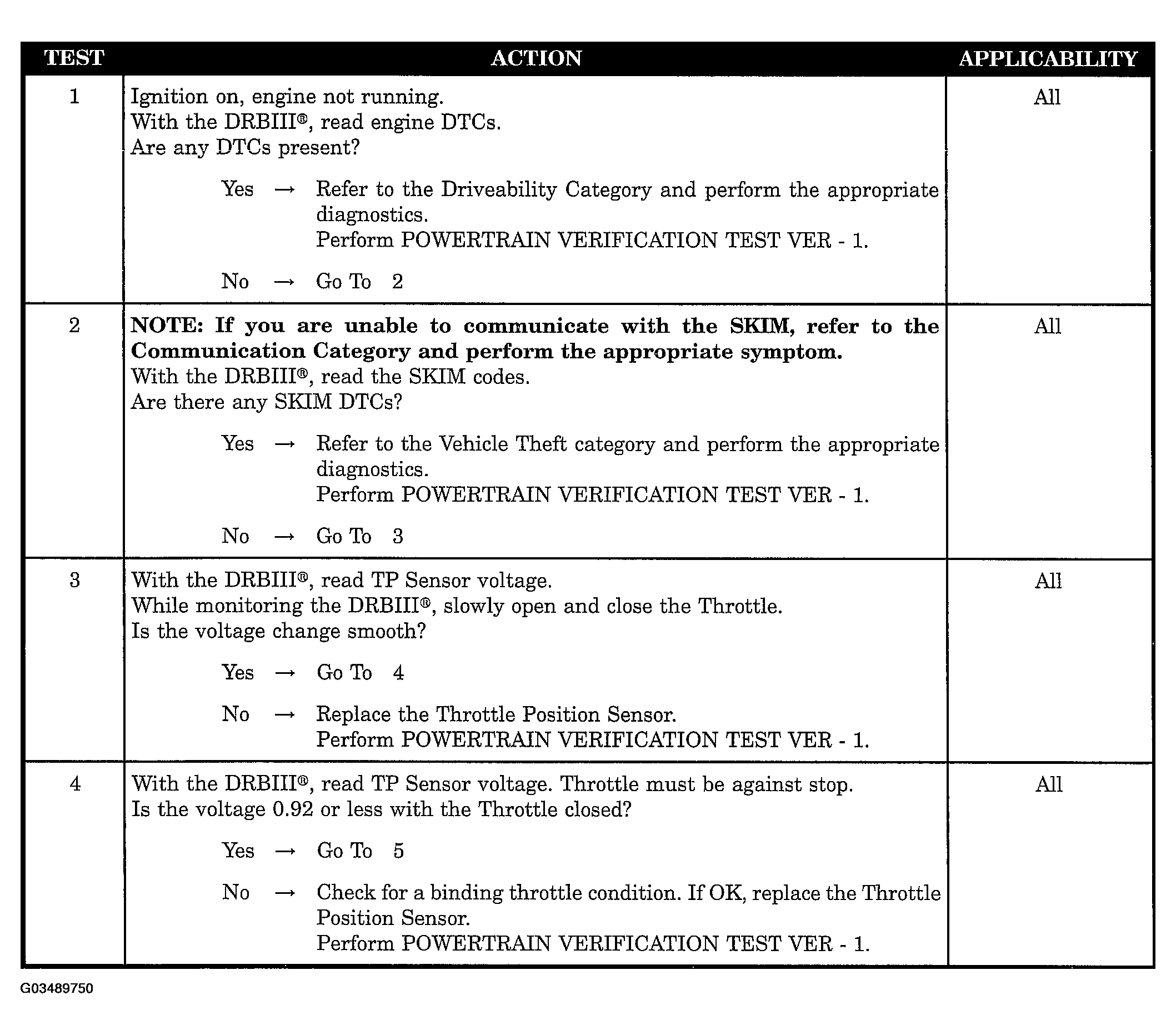

Fig 1: Start And Stall Condition - Diagnostic Procedure (Test Steps 1 - 4)
G03489750Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Start And Stall Condition - Diagnostic Procedure (Test Steps 5 - 7)
G03489751Courtesy of DAIMLERCHRYSLER CORP.
