Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

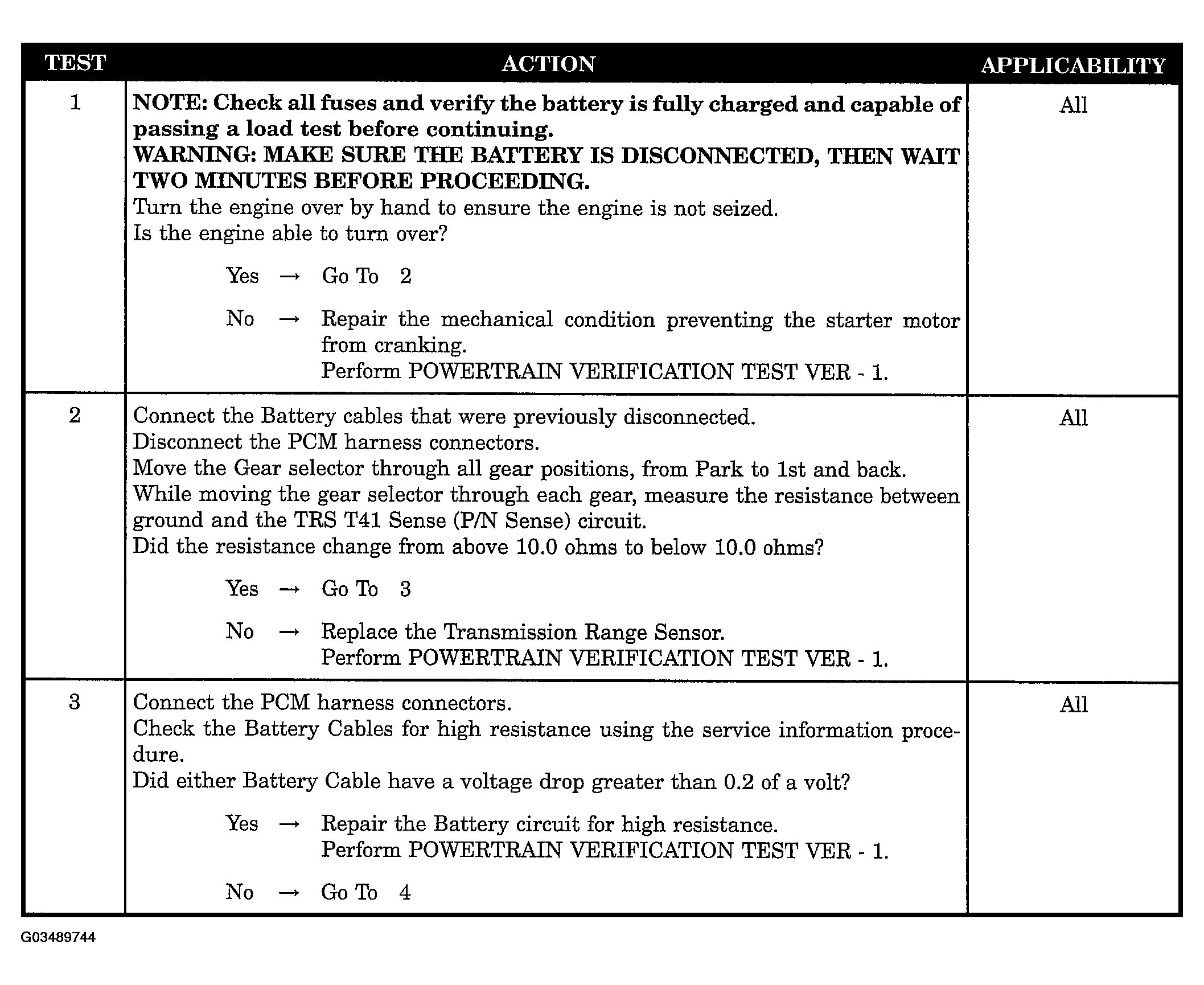

Fig 1: No Crank Condition - Diagnostic Procedure (Test Steps 1 - 3)

Courtesy of DAIMLERCHRYSLER CORP.

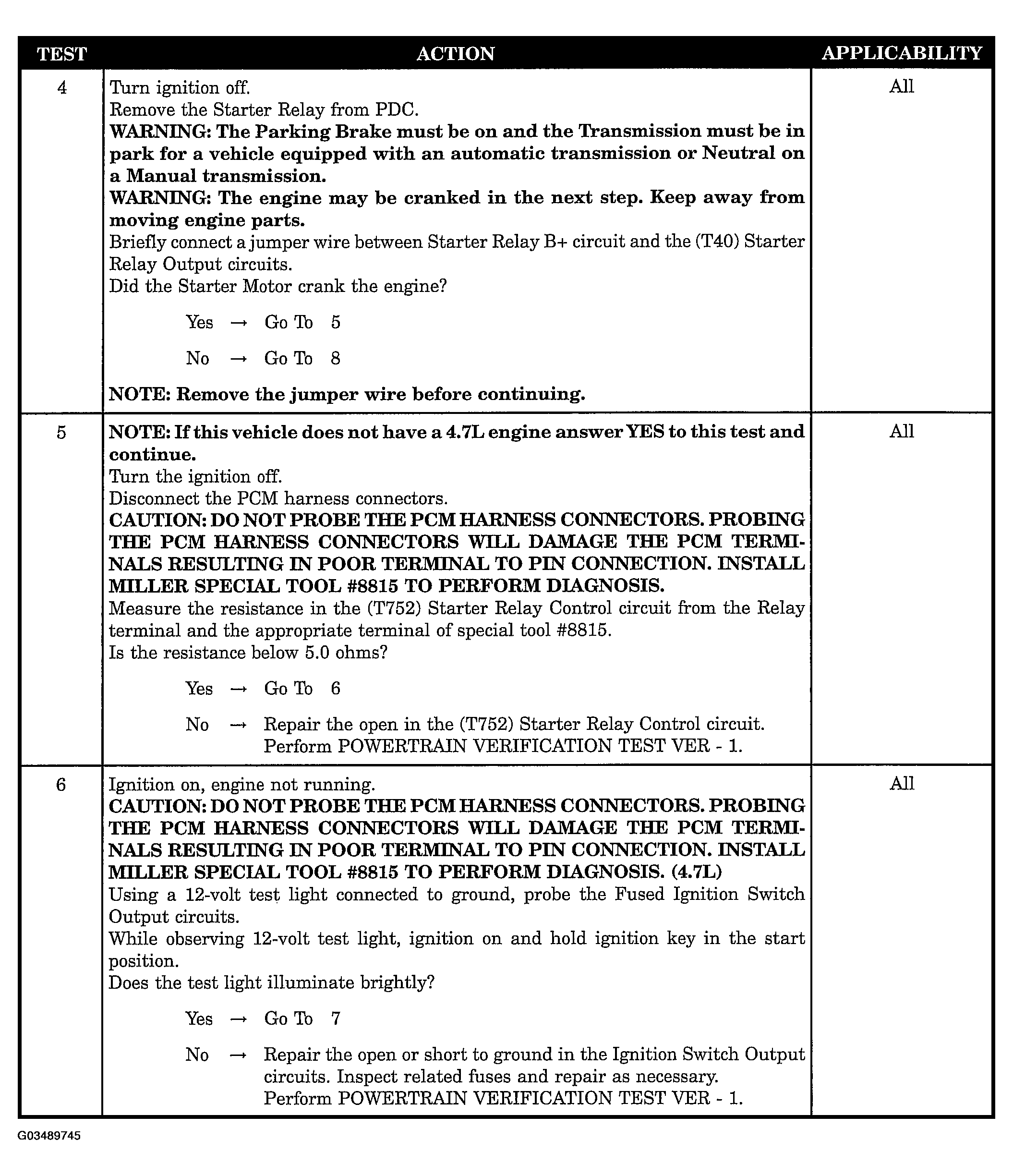

Fig 2: No Crank Condition - Diagnostic Procedure (Test Steps 4 - 6)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: No Crank Condition - Diagnostic Procedure (Test Steps 7 - 10)

Courtesy of DAIMLERCHRYSLER CORP.
