Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

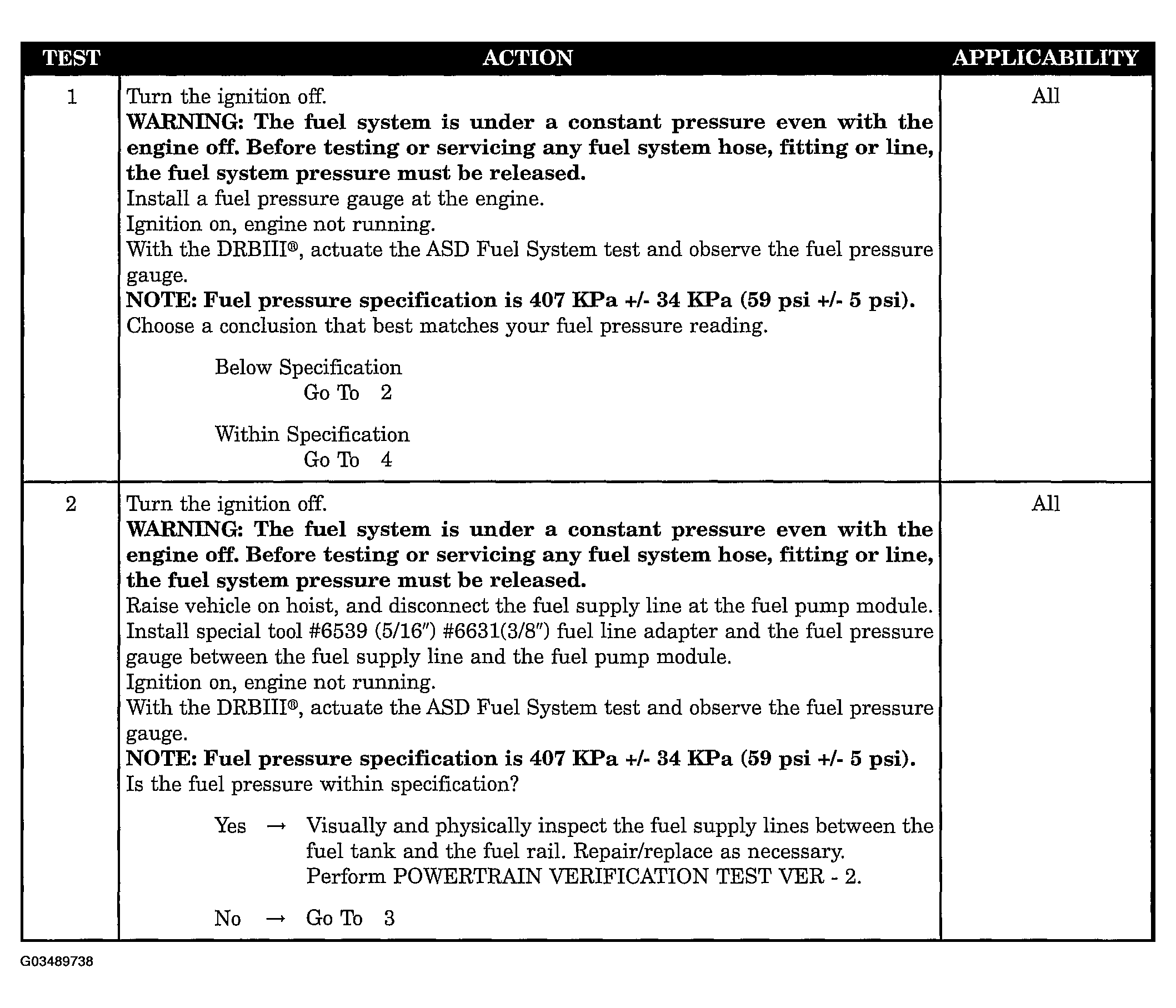

Fig 1: Checking Hard Start (Fuel Delivery System) - Diagnostic Procedure (Test Steps 1 - 2)
G03489738Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Checking Hard Start (Fuel Delivery System) - Diagnostic Procedure (Test Steps 3 - 5)
G03489739Courtesy of DAIMLERCHRYSLER CORP.
