Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

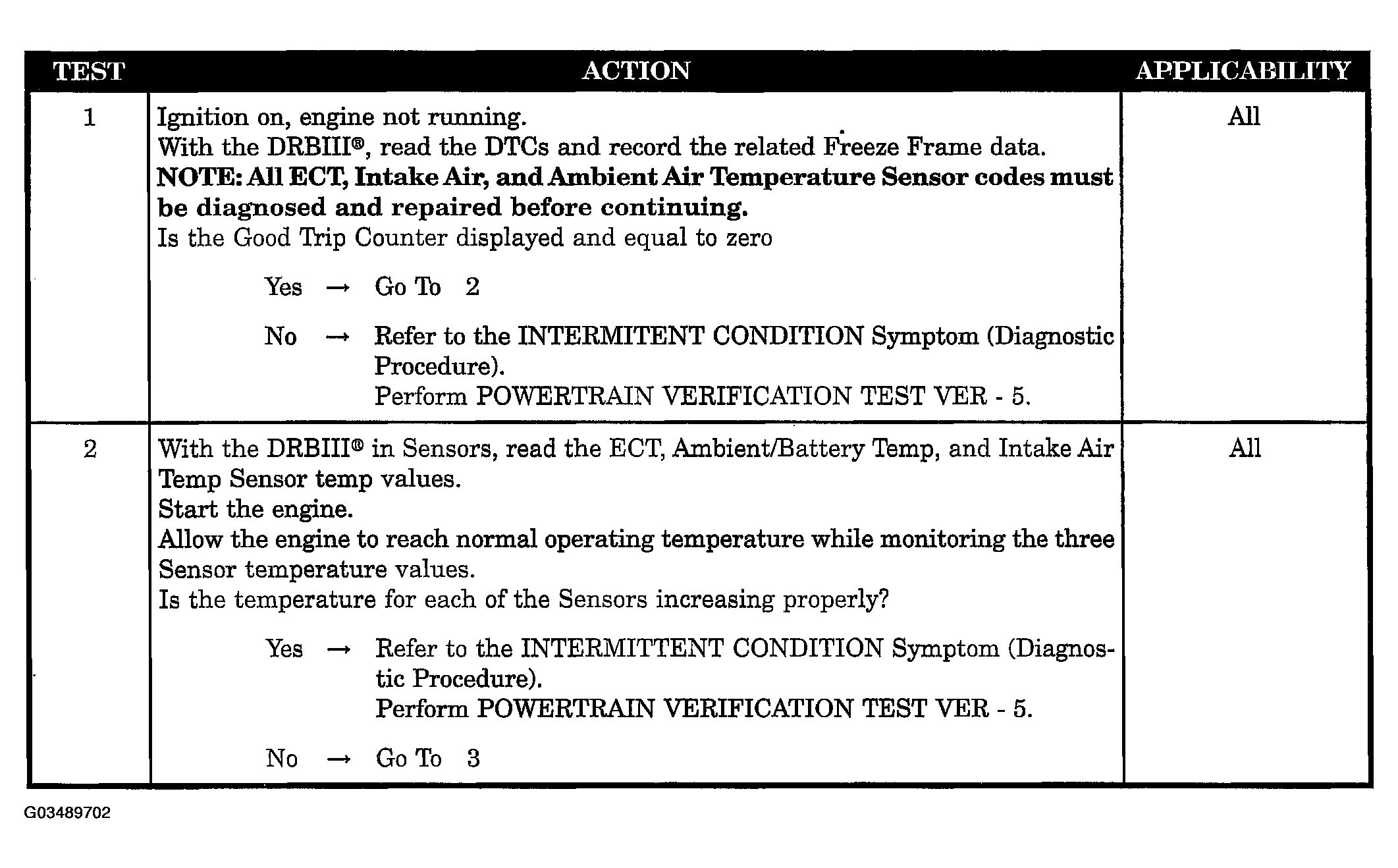

Fig 1: P1115-General Temperature Sensor Performance - Diagnostic Procedure (Test Steps 1 - 2)
G03489702Courtesy of DAIMLERCHRYSLER CORP.

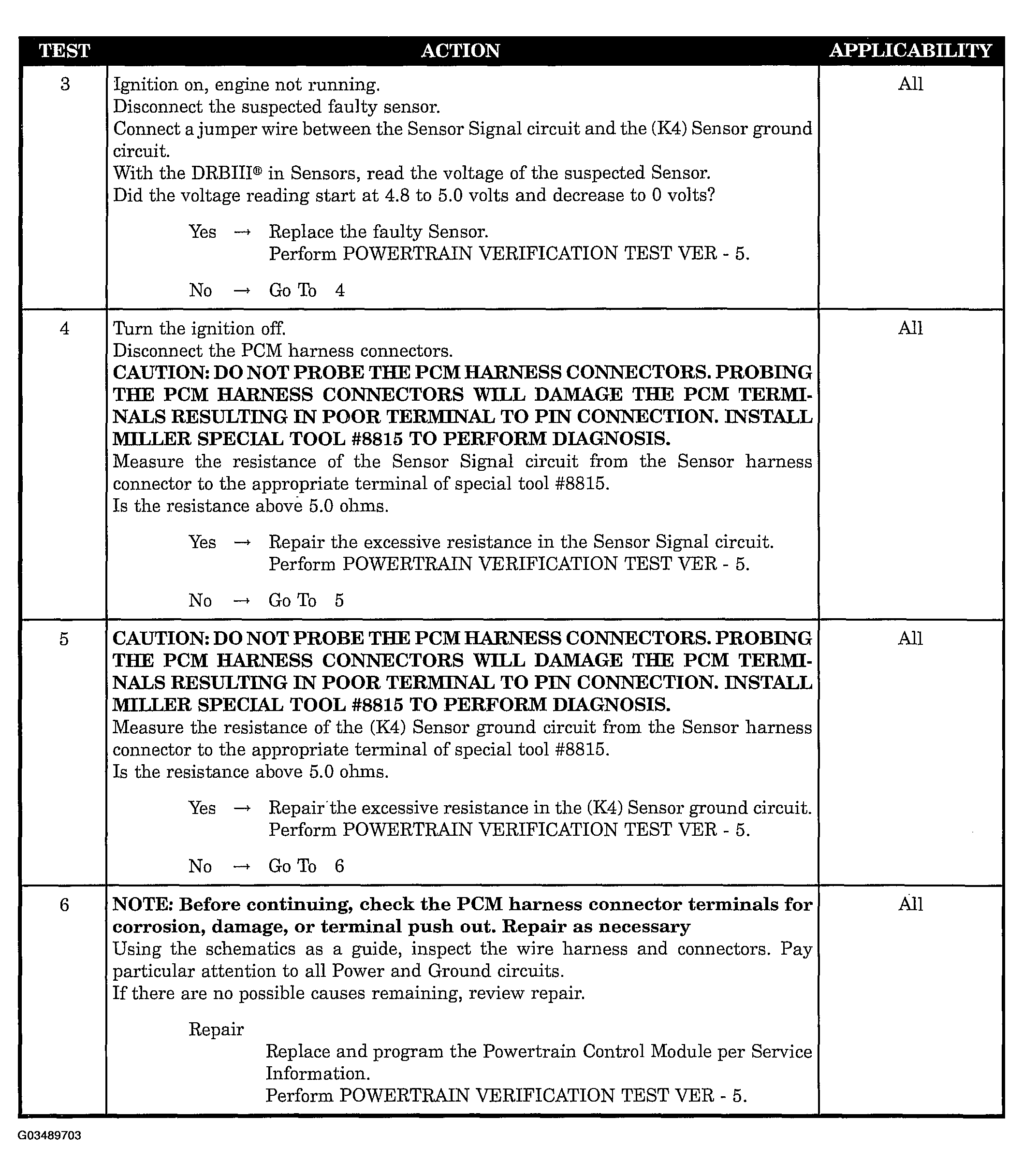

Fig 2: P1115-General Temperature Sensor Performance - Diagnostic Procedure (Test Steps 3 - 6)
G03489703Courtesy of DAIMLERCHRYSLER CORP.
