Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

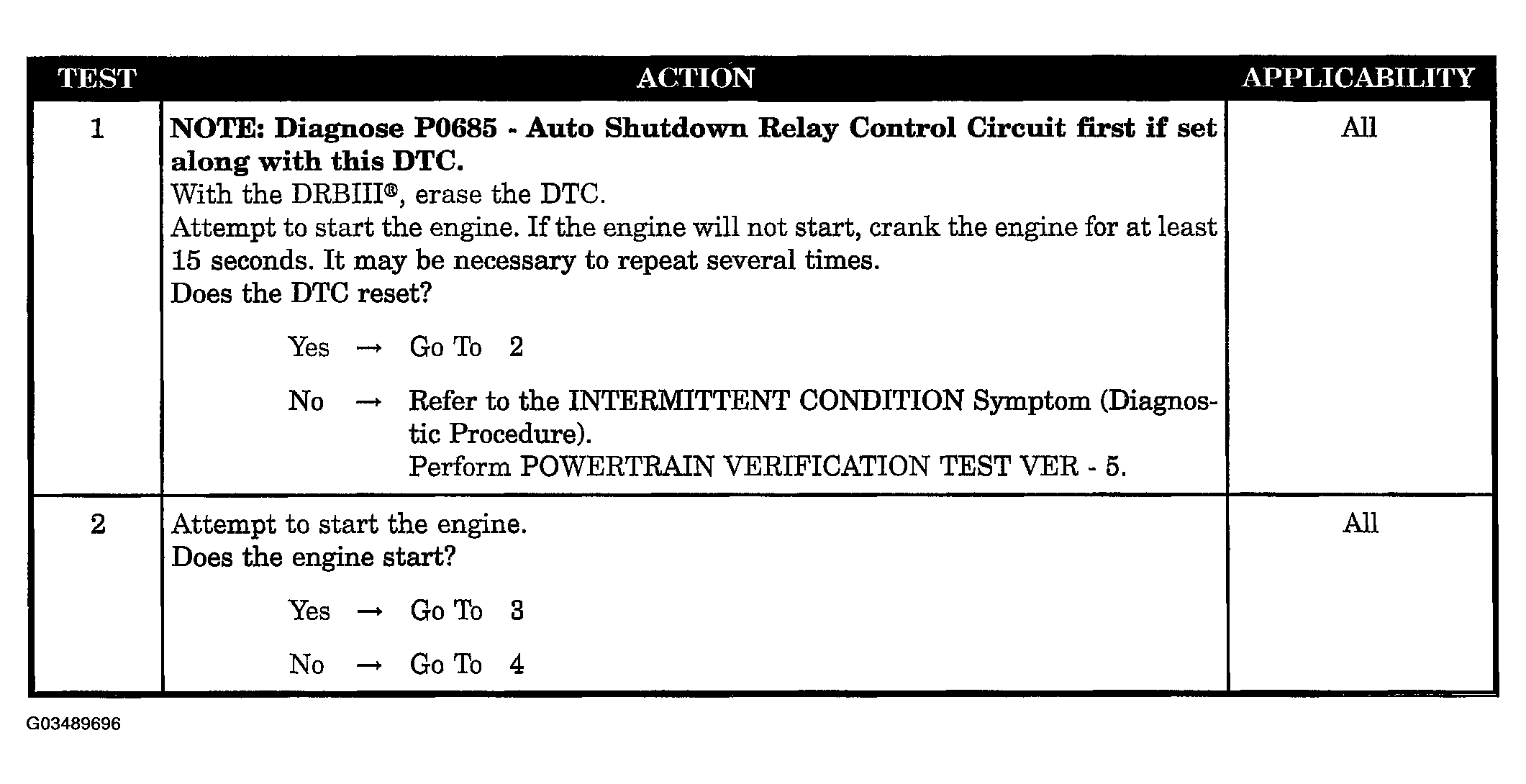

Fig 1: P0688-ASD Relay Sense Circuit Low - Diagnostic Procedure (Test Steps 1 - 2)

Courtesy of DAIMLERCHRYSLER CORP.

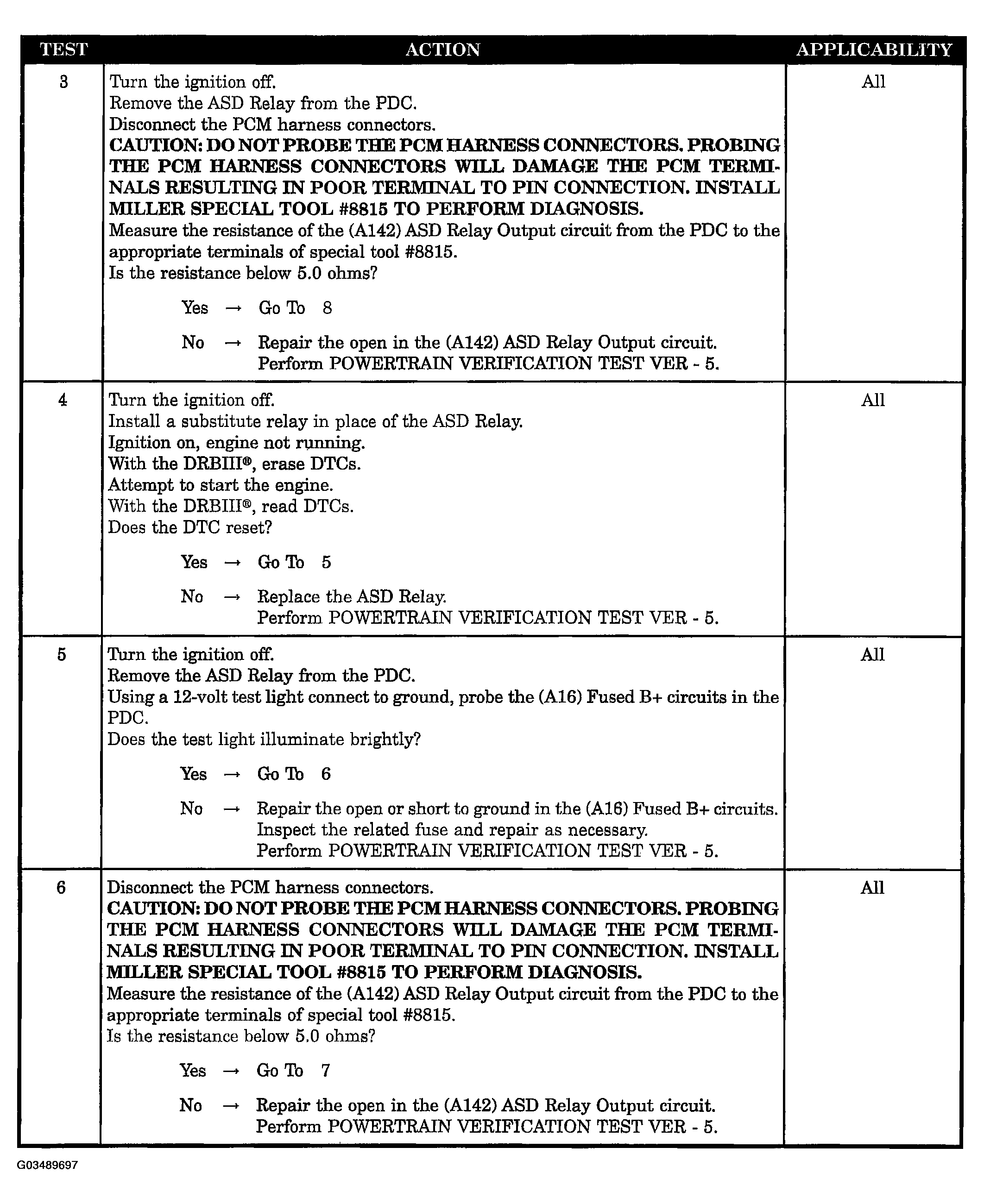

Fig 2: P0688-ASD Relay Sense Circuit Low - Diagnostic Procedure (Test Steps 3 - 6)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: P0688-ASD Relay Sense Circuit Low - Diagnostic Procedure (Test Steps 7 - 8)

Courtesy of DAIMLERCHRYSLER CORP.
