Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: P0685-ASD Relay Control Circuit - Diagnostic Procedure (Test Steps 1 - 3)

Courtesy of DAIMLERCHRYSLER CORP.

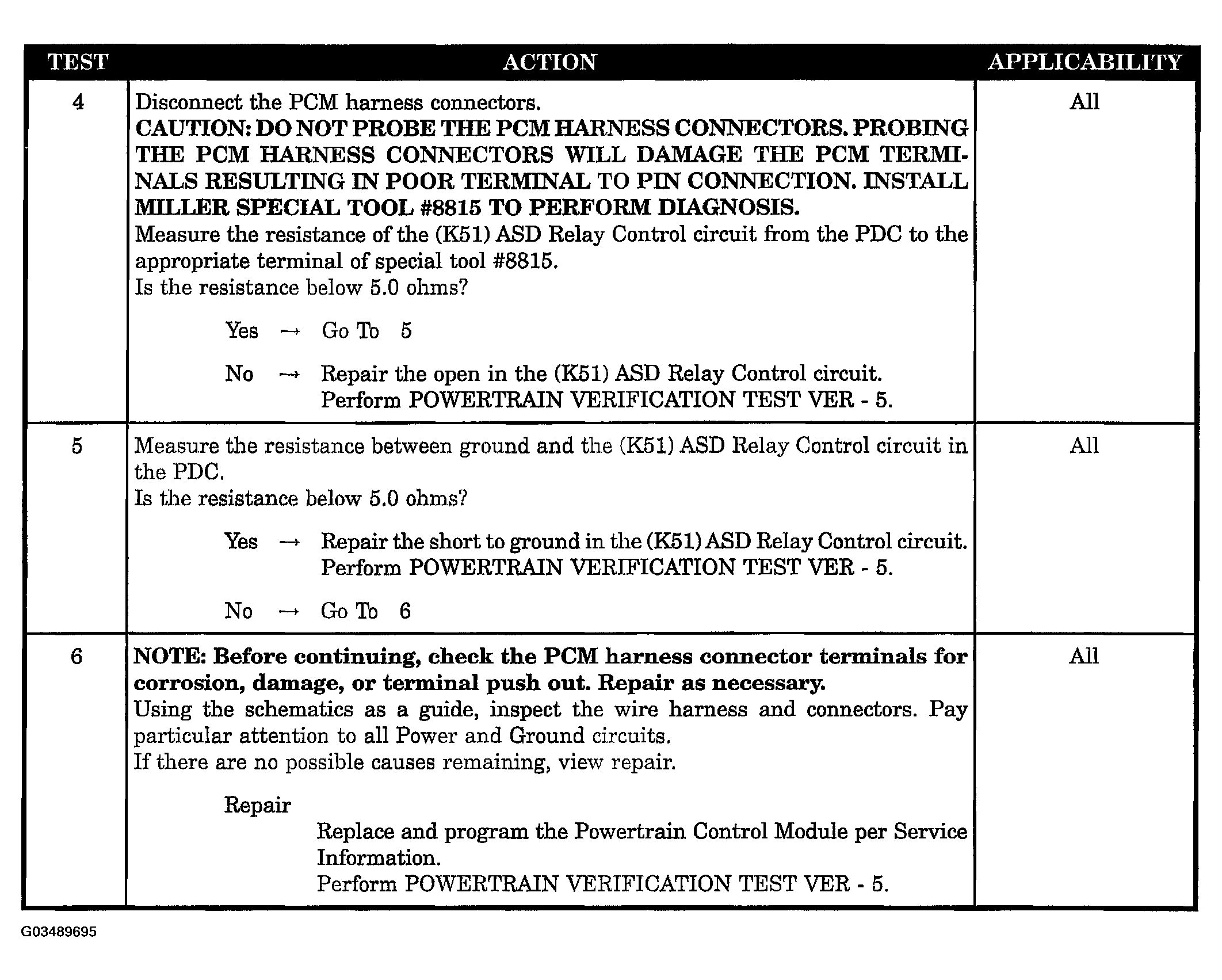

Fig 2: P0685-ASD Relay Control Circuit - Diagnostic Procedure (Test Steps 4 - 6)

Courtesy of DAIMLERCHRYSLER CORP.
