Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: P0340-Camshaft Position Sensor Circuit - Diagnostic Procedure (Test Steps 1 - 2)

Courtesy of DAIMLERCHRYSLER CORP.

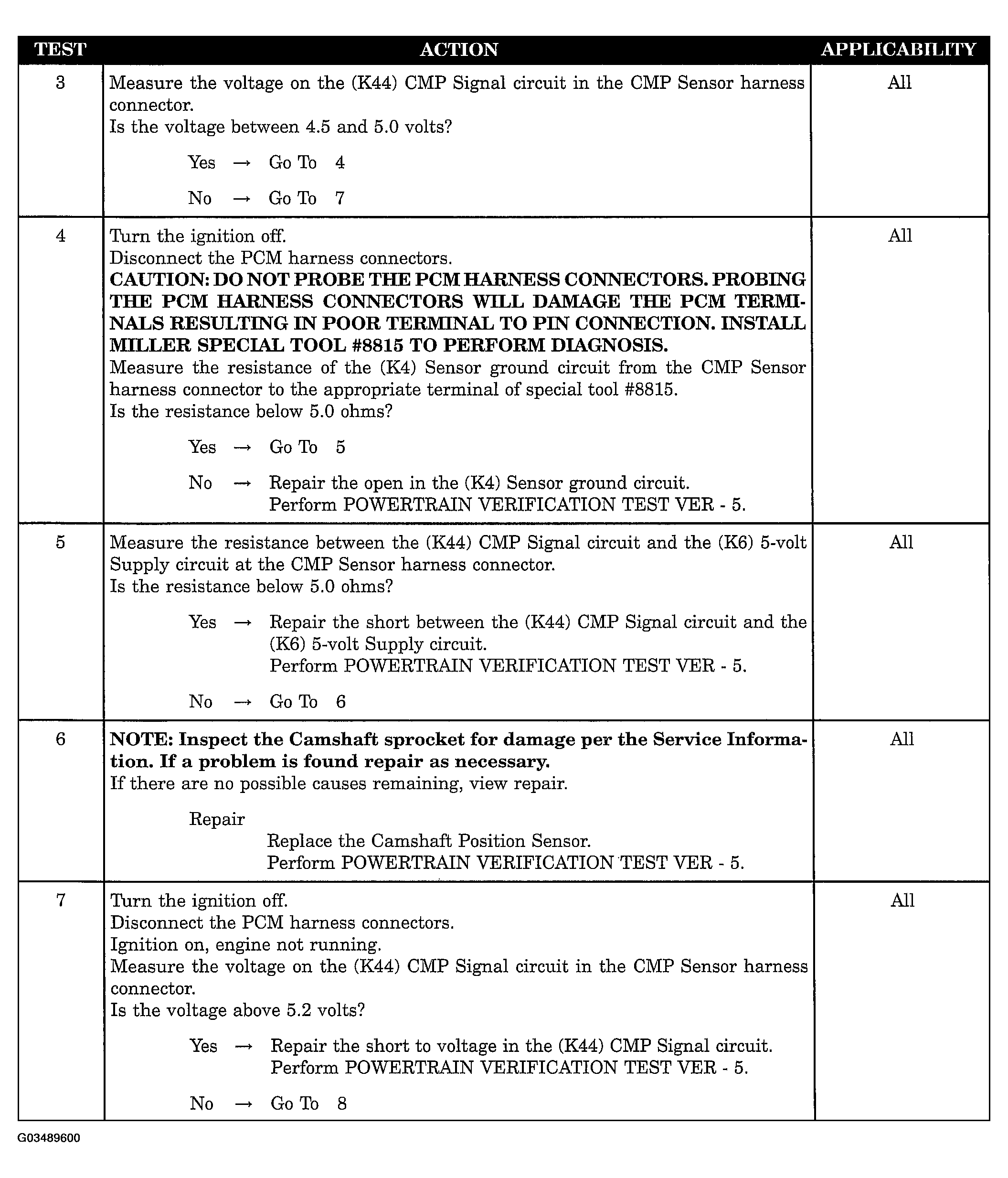

Fig 2: P0340-Camshaft Position Sensor Circuit - Diagnostic Procedure (Test Steps 3 - 7)

Courtesy of DAIMLERCHRYSLER CORP.

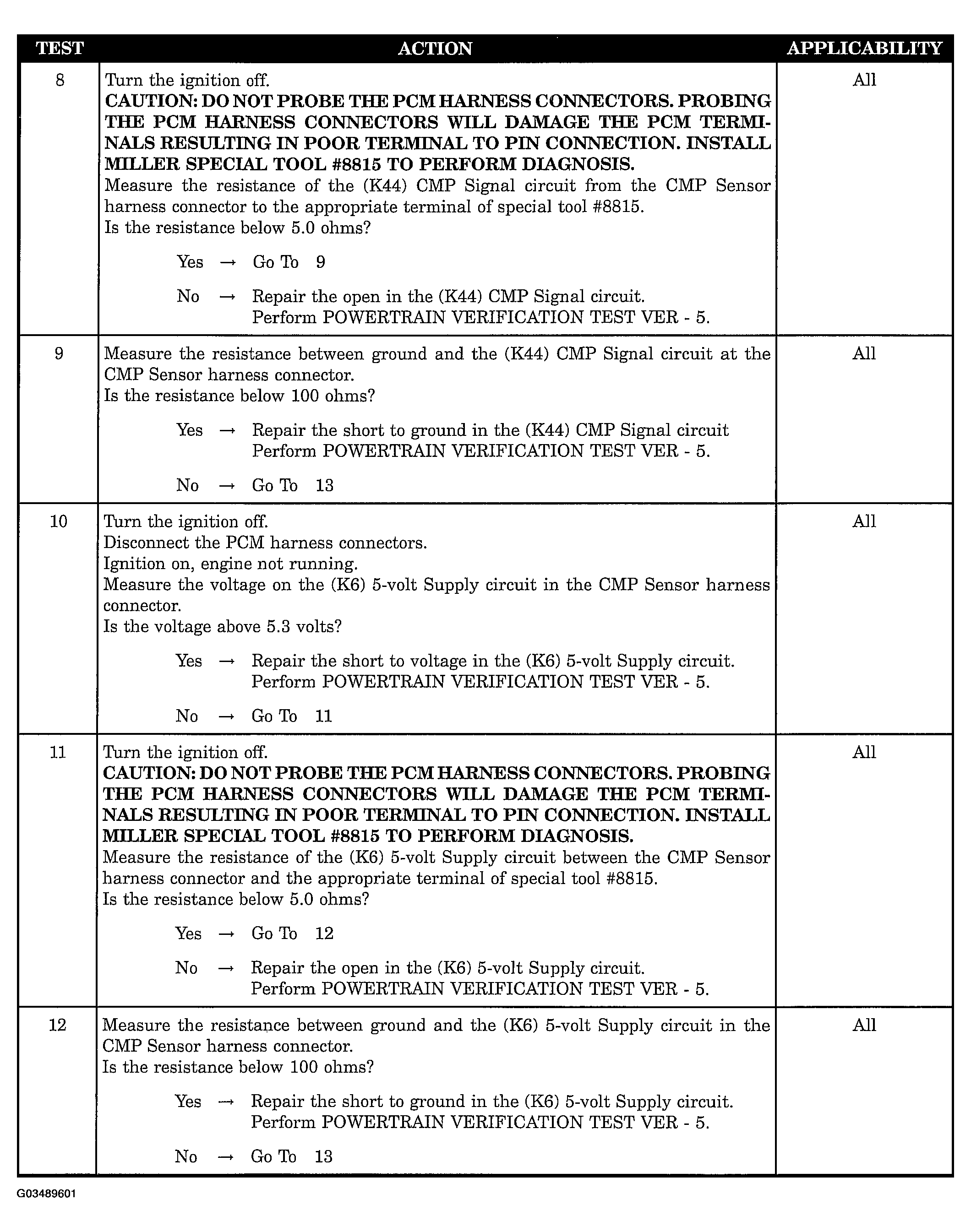

Fig 3: P0340-Camshaft Position Sensor Circuit - Diagnostic Procedure (Test Steps 8 - 12)

Courtesy of DAIMLERCHRYSLER CORP.

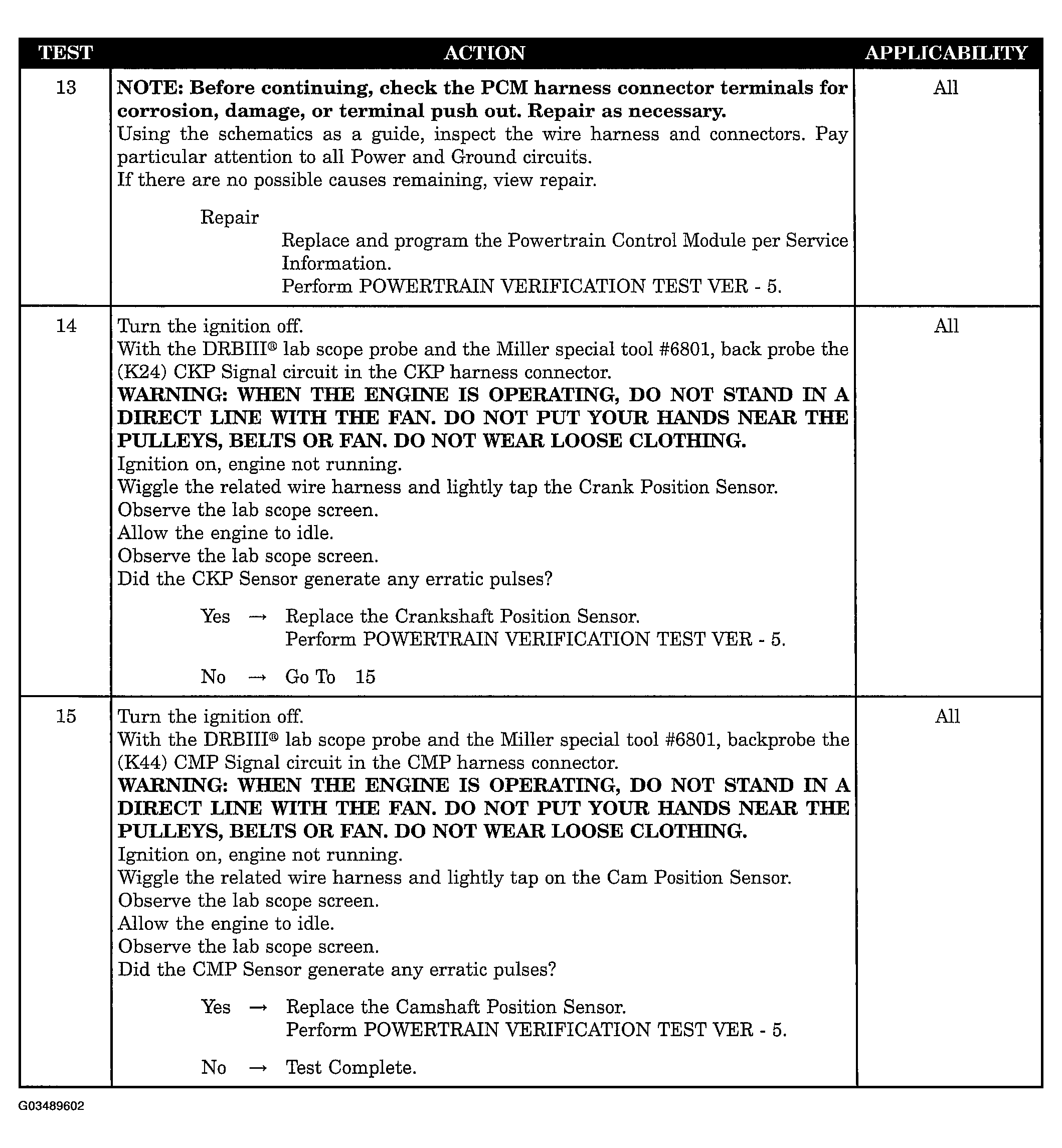

Fig 4: P0340-Camshaft Position Sensor Circuit - Diagnostic Procedure (Test Steps 13 - 15)

Courtesy of DAIMLERCHRYSLER CORP.
