Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

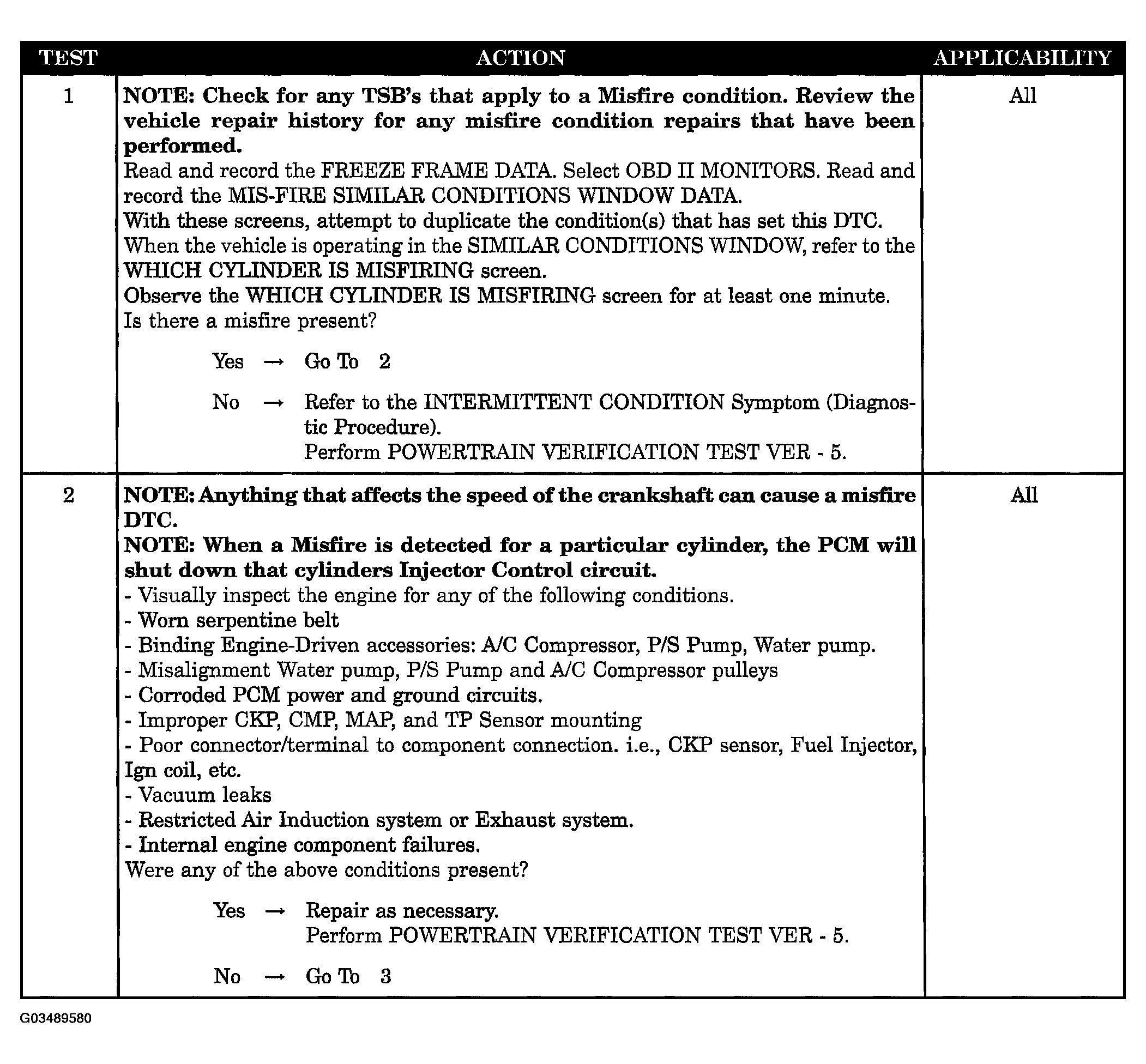

Fig 1: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Steps 1 - 2)

Courtesy of DAIMLERCHRYSLER CORP.

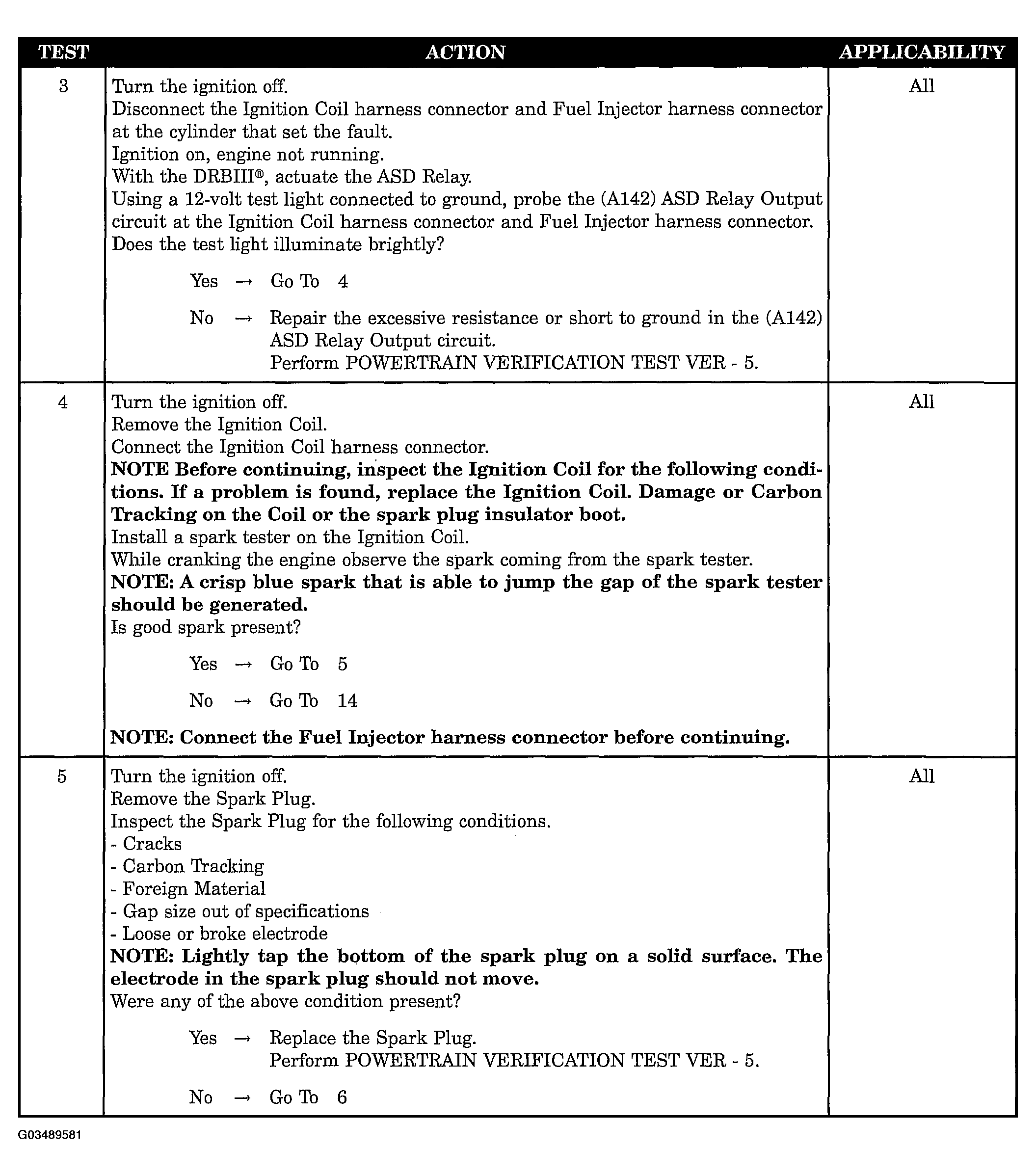

Fig 2: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Steps 3 - 5)

Courtesy of DAIMLERCHRYSLER CORP.

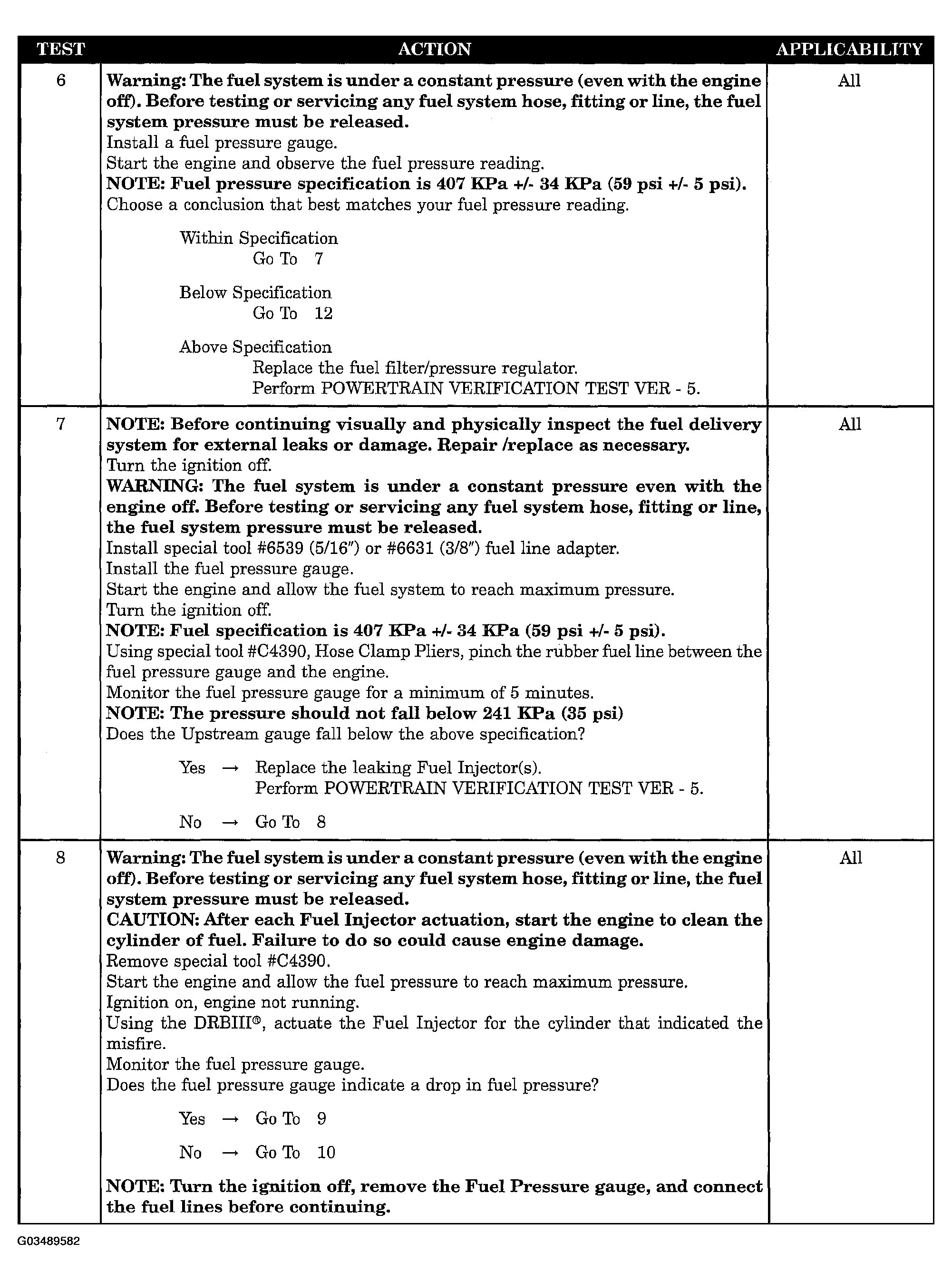

Fig 3: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Steps 6 - 8)

Courtesy of DAIMLERCHRYSLER CORP.

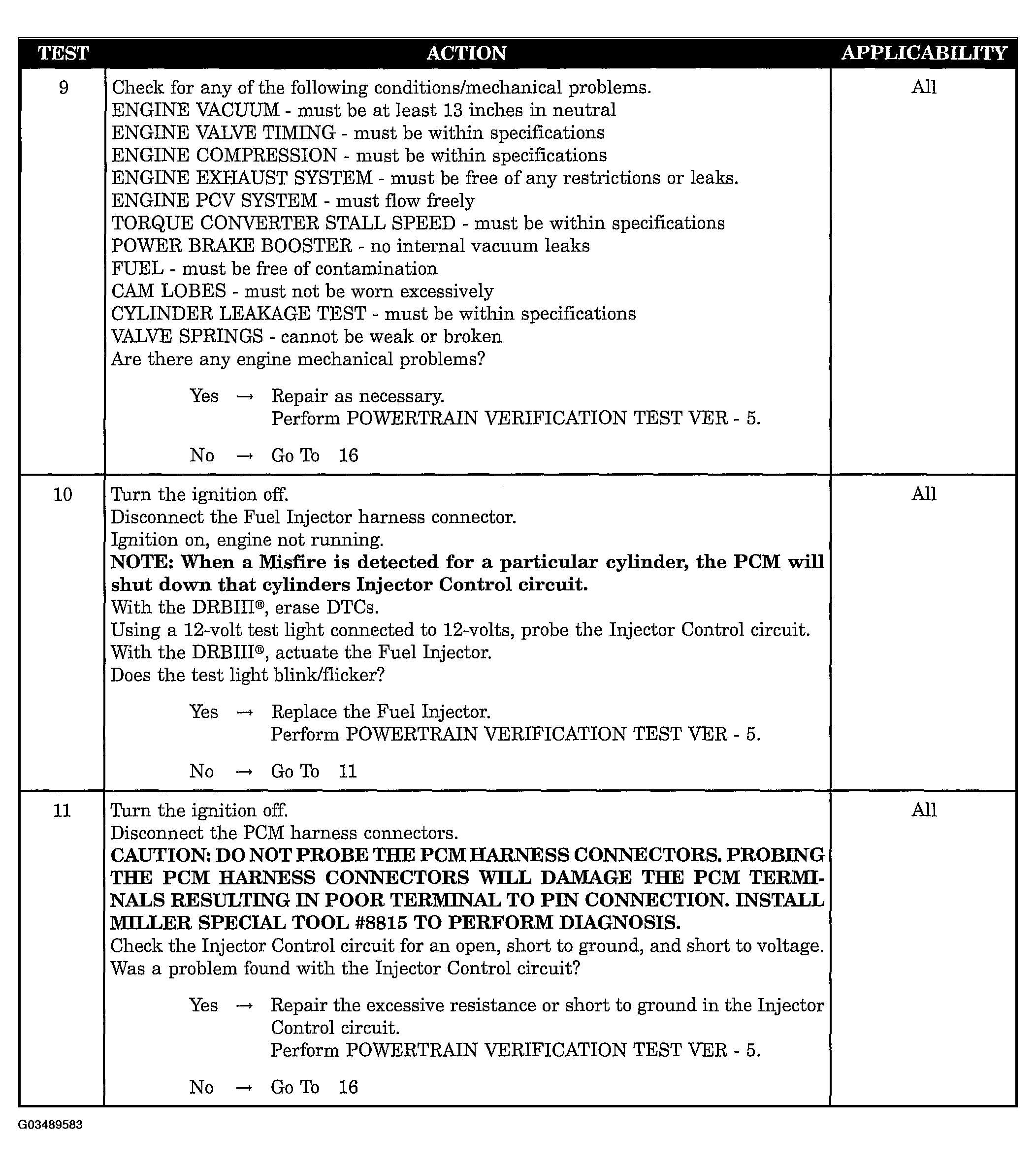

Fig 4: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Steps 9 - 11)

Courtesy of DAIMLERCHRYSLER CORP.

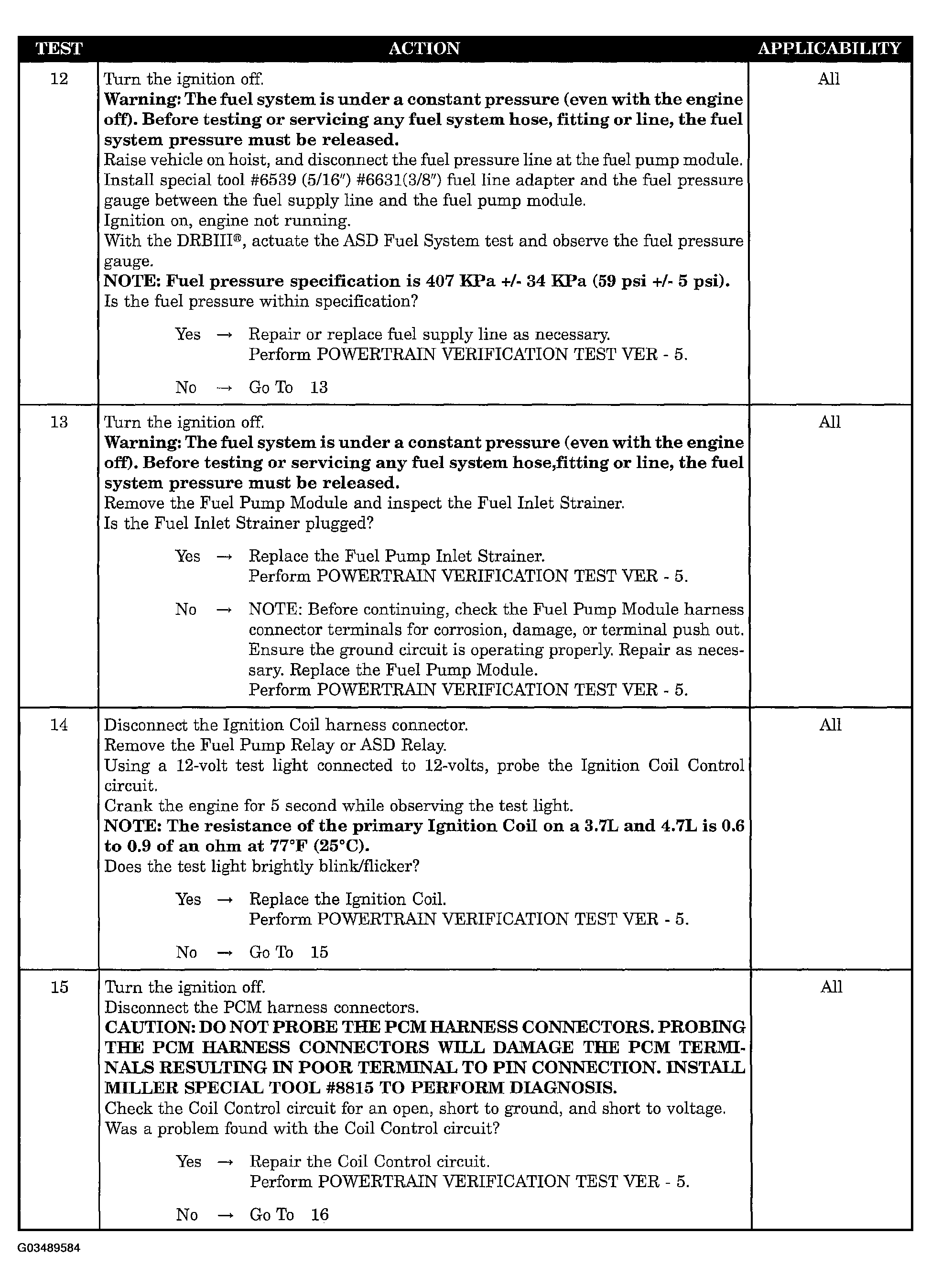

Fig 5: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Steps 12 - 15)

Courtesy of DAIMLERCHRYSLER CORP.

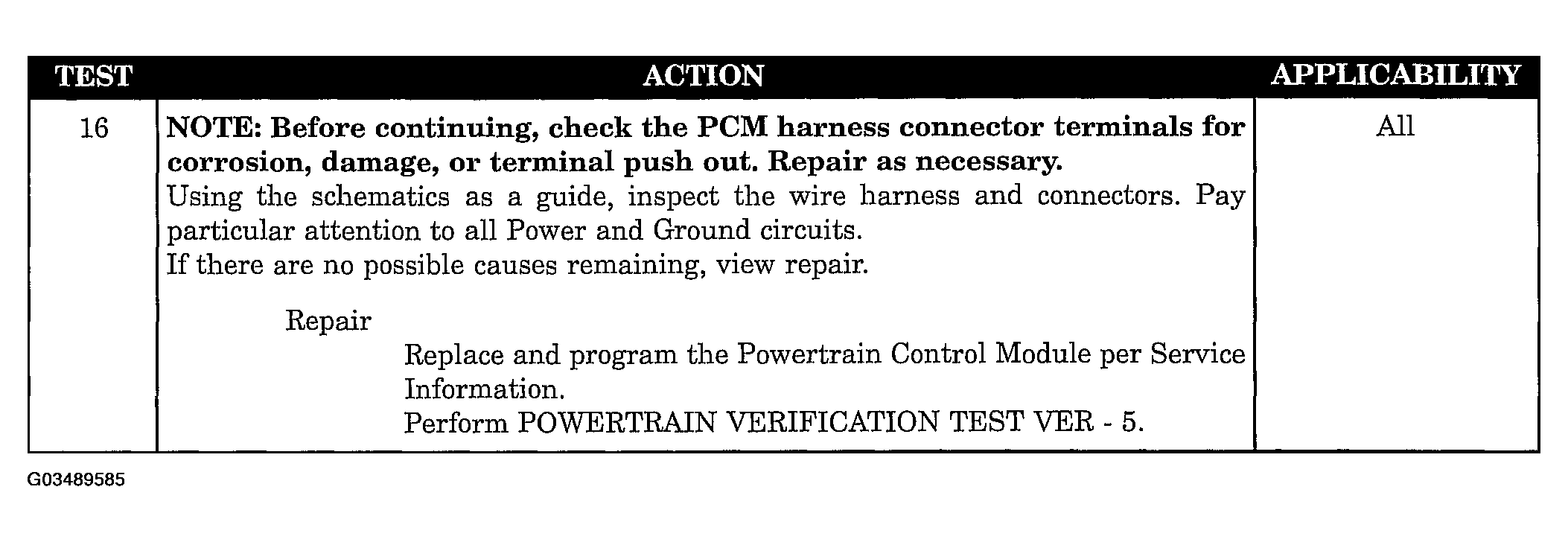

Fig 6: P0300-Multxple Cylinder Misfire- Diagnostic Procedure (Test Step 16)

Courtesy of DAIMLERCHRYSLER CORP.
