Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

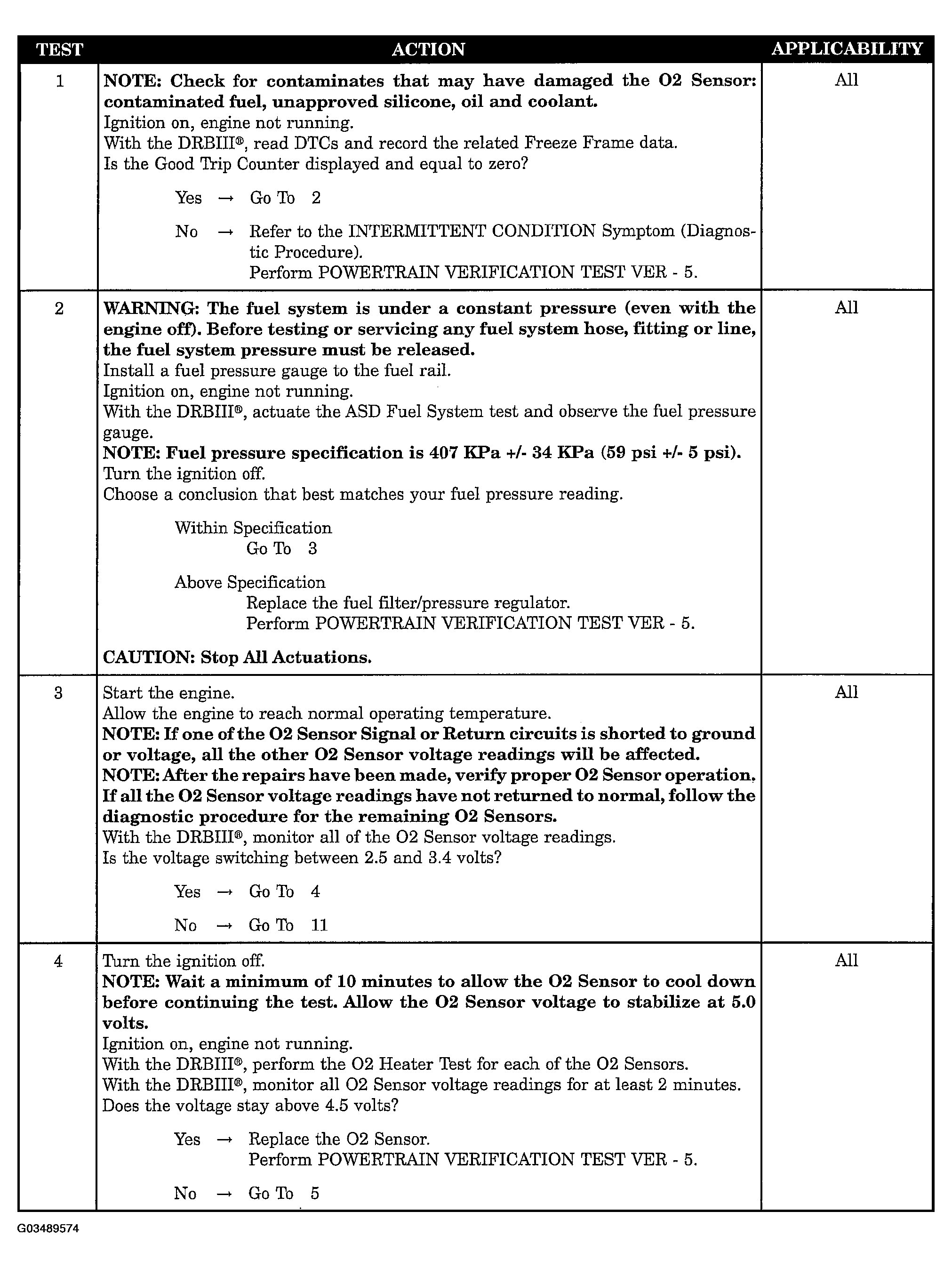

Fig 1: P0172-Fuel System 1/1 Rich - Diagnostic Procedure (Test Steps 1 - 4)

Courtesy of DAIMLERCHRYSLER CORP.

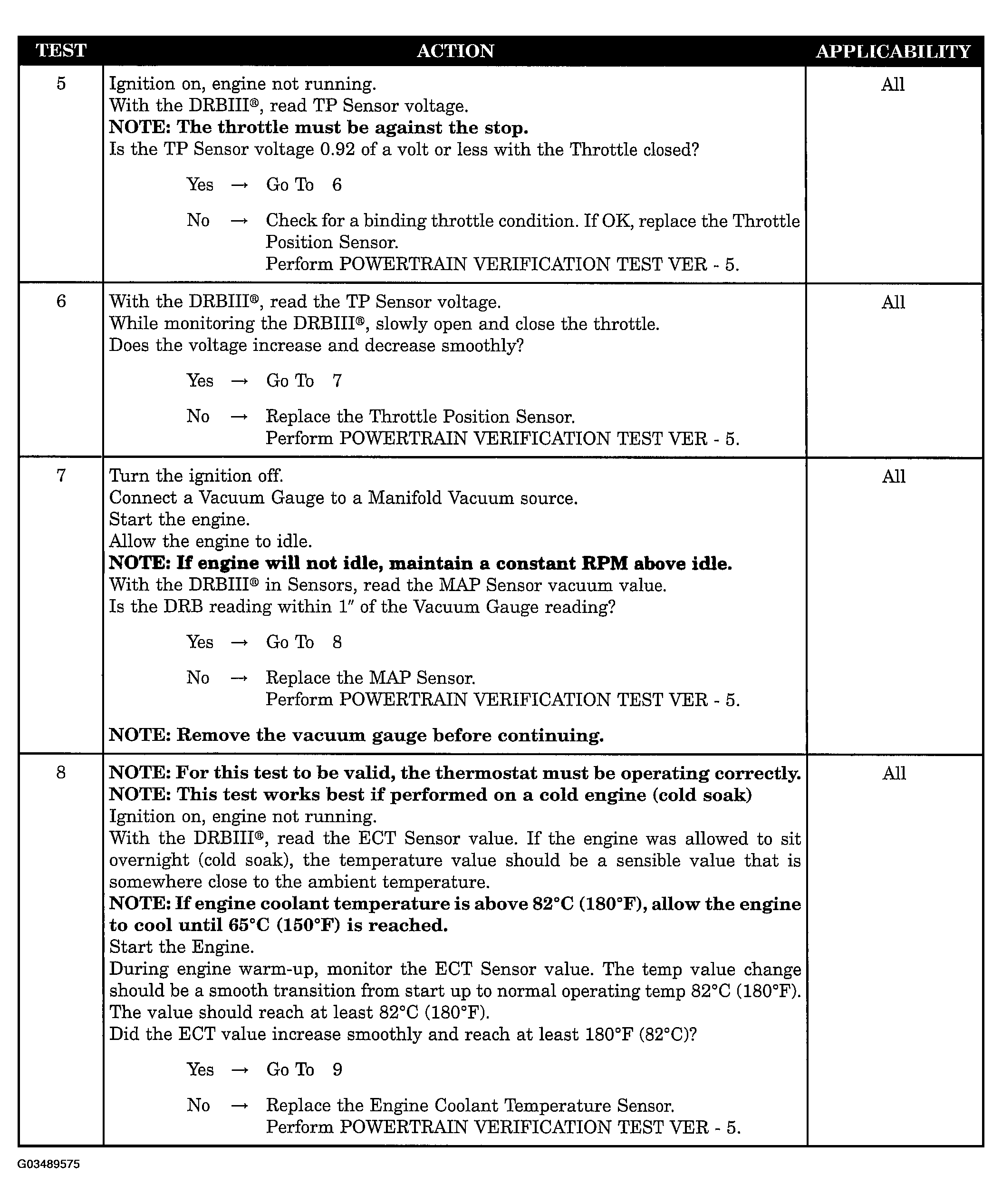

Fig 2: P0172-Fuel System 1/1 Rich - Diagnostic Procedure (Test Steps 5 - 8)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: P0172-Fuel System 1/1 Rich - Diagnostic Procedure (Test Steps 9 - 11)

Courtesy of DAIMLERCHRYSLER CORP.

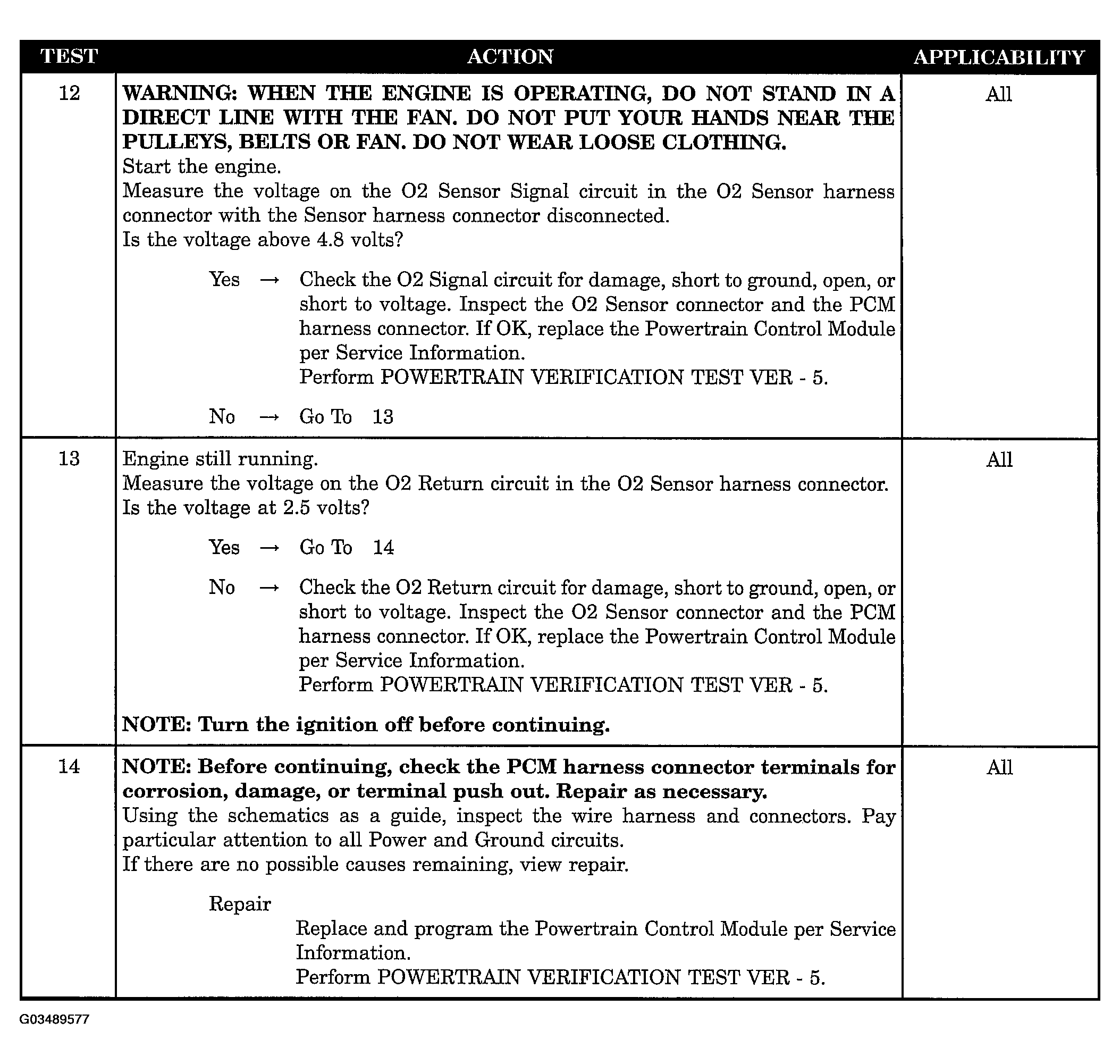

Fig 4: P0172-Fuel System 1/1 Rich - Diagnostic Procedure (Test Steps 12 - 14)

Courtesy of DAIMLERCHRYSLER CORP.
