Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

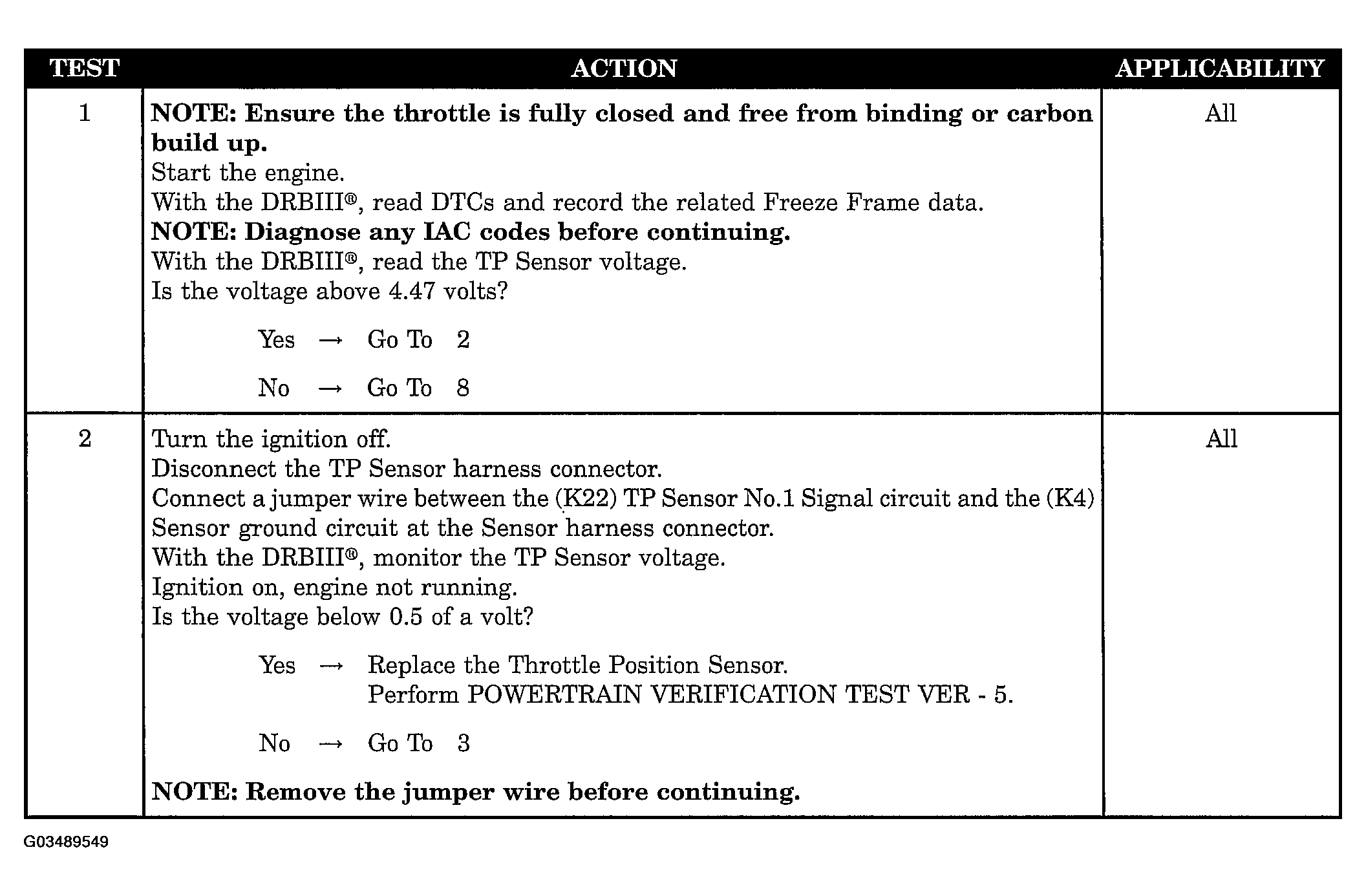

Fig 1: P0123-Throttle Position Sensor No. 1 High - Diagnostic Procedure (Test Steps 1 - 2)
G03489549Courtesy of DAIMLERCHRYSLER CORP.

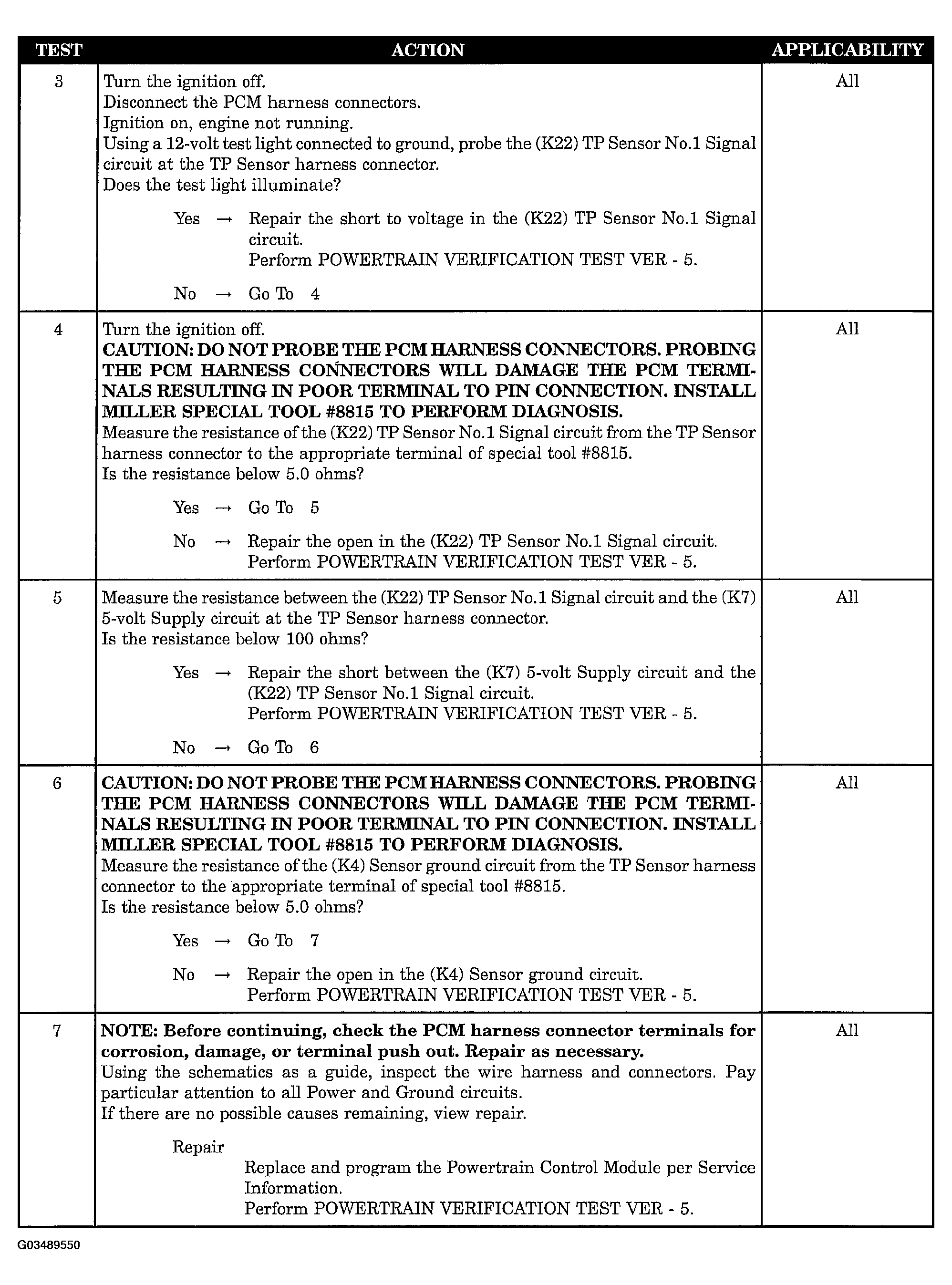

Fig 2: P0123-Throttle Position Sensor No. 1 High - Diagnostic Procedure (Test Steps 3 - 7)
G03489550Courtesy of DAIMLERCHRYSLER CORP.

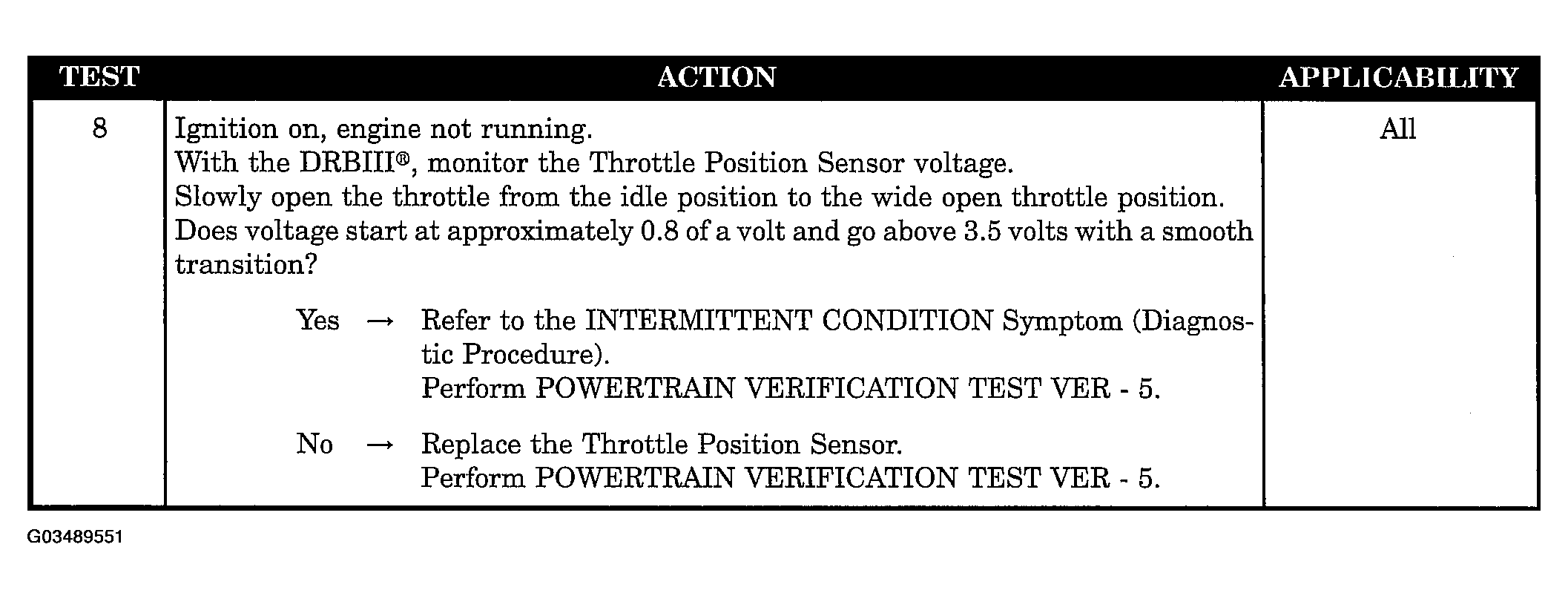

Fig 3: P0123-Throttle Position Sensor No. 1 High - Diagnostic Procedure (Test Step 8)
G03489551Courtesy of DAIMLERCHRYSLER CORP.
