Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

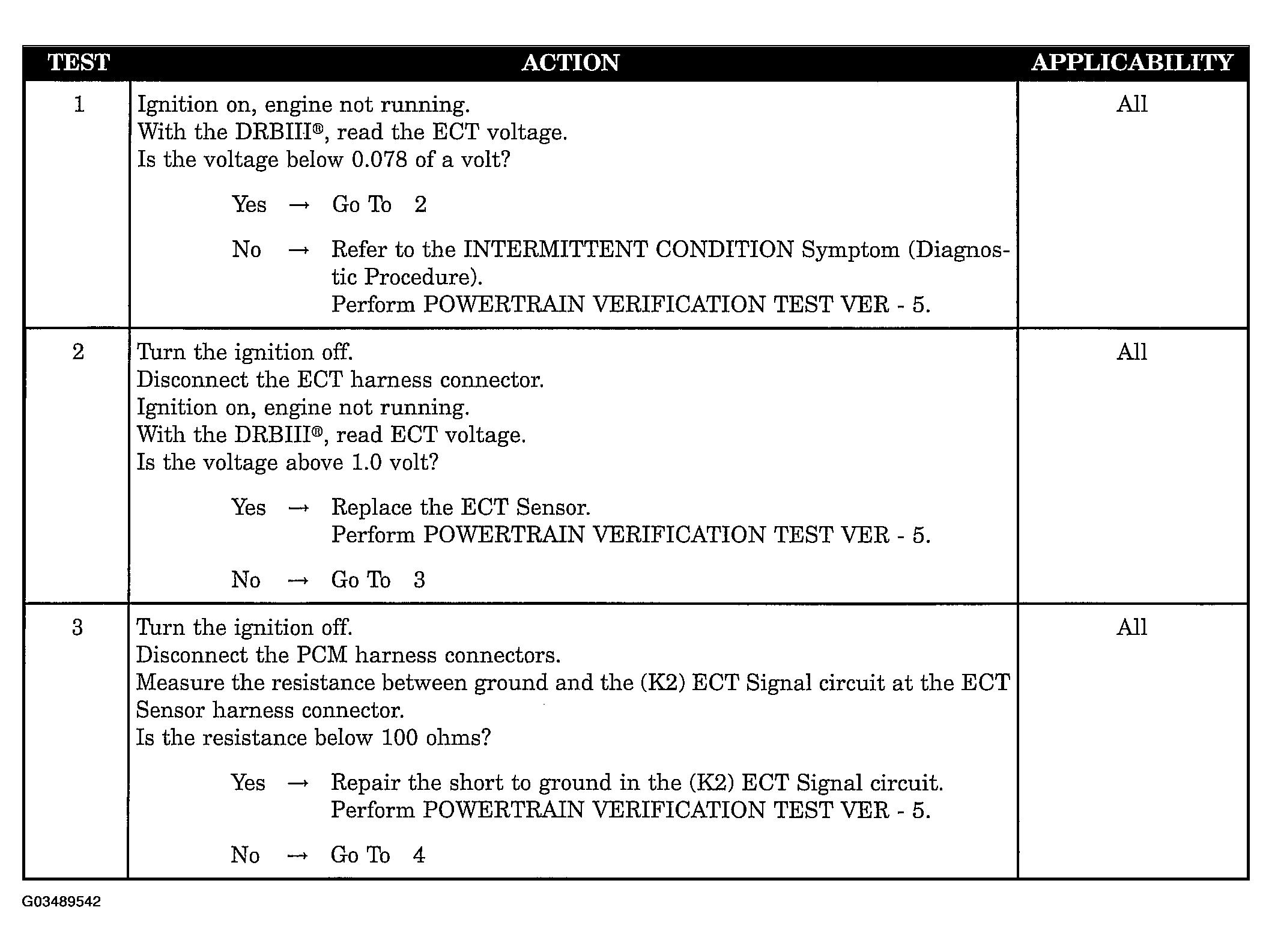

Fig 1: P0117-Engine Coolant Temperature Sensor Circuit Low - Diagnostic Procedure (Test Steps 1 - 3)
G03489542Courtesy of DAIMLERCHRYSLER CORP.

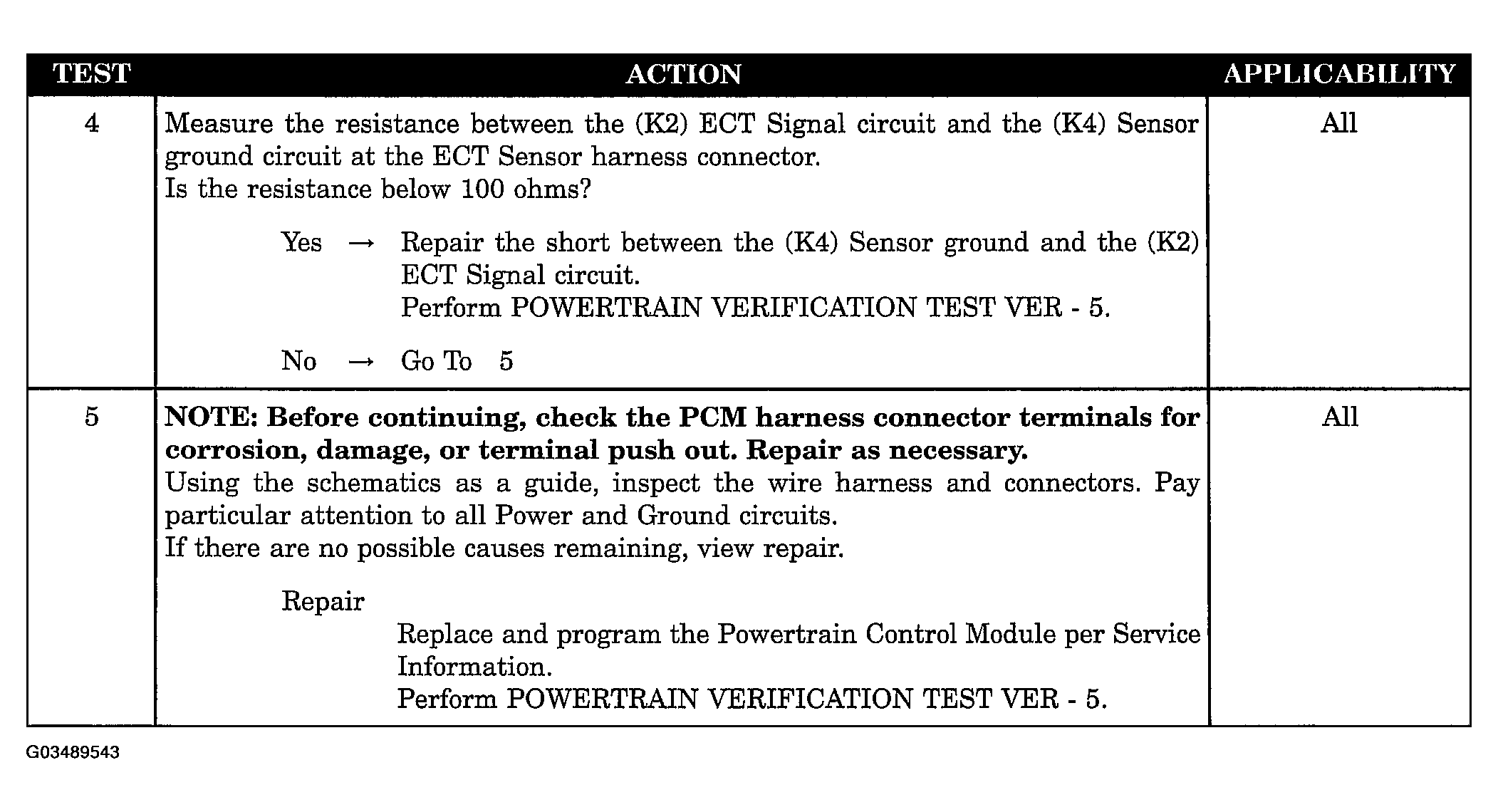

Fig 2: P0117-Engine Coolant Temperature Sensor Circuit Low - Diagnostic Procedure (Test Steps 4 - 5)
G03489543Courtesy of DAIMLERCHRYSLER CORP.
