WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

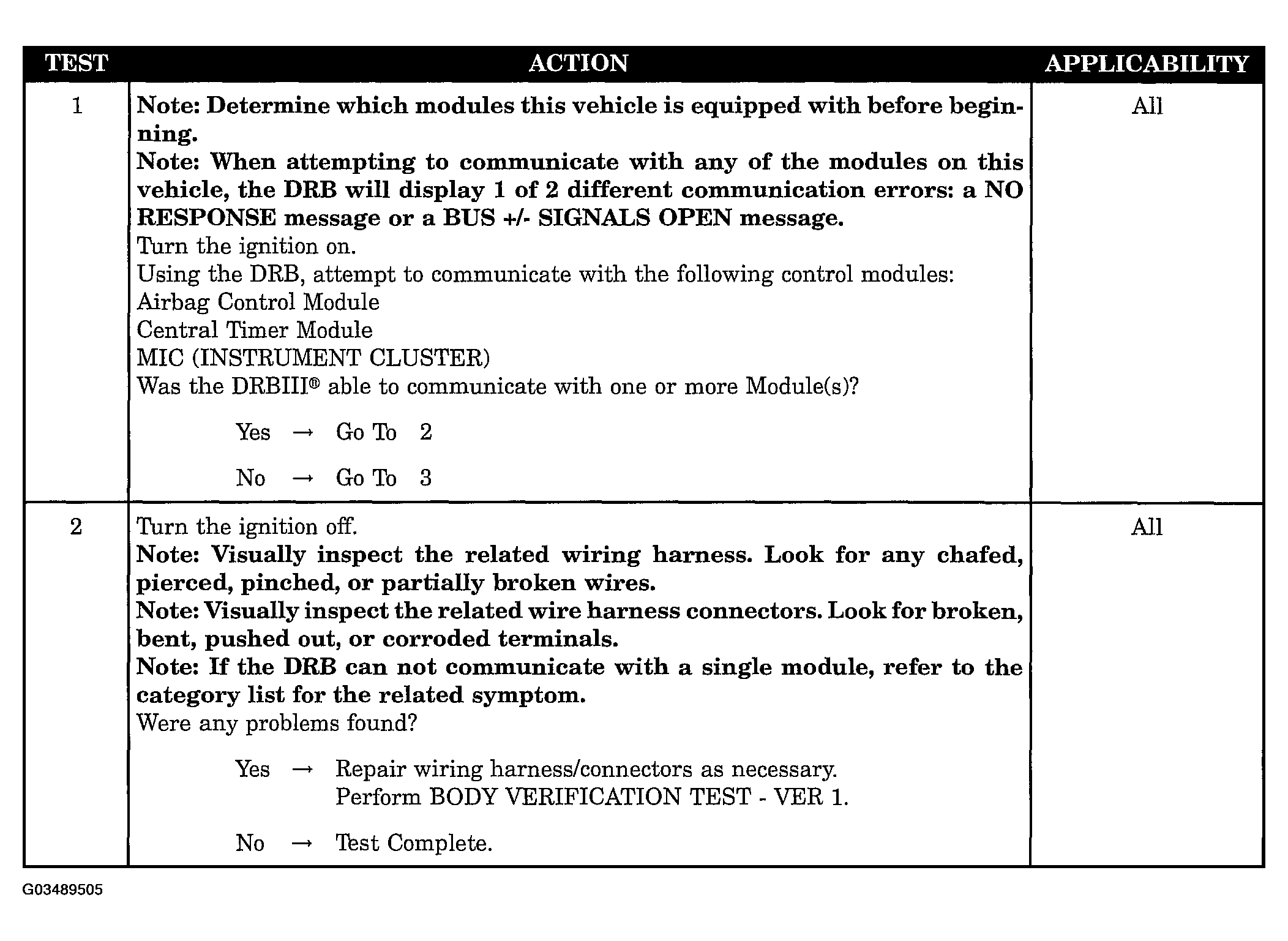

Fig 1: PCI Bus Communication Failure - Diagnostic Procedure (Test Steps 1 - 2)
Courtesy of DAIMLERCHRYSLER CORP.

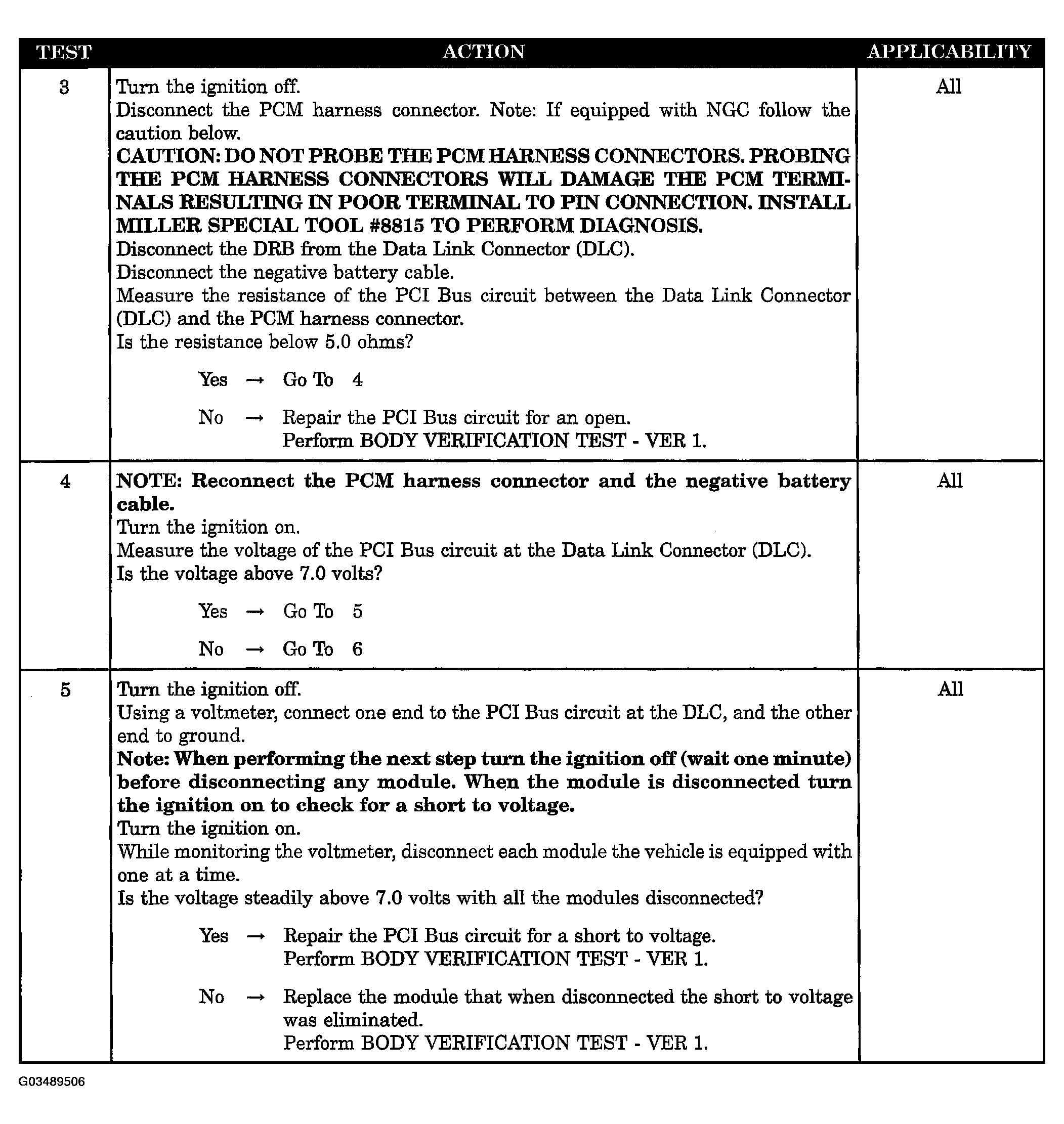

Fig 2: PCI Bus Communication Failure - Diagnostic Procedure (Test Steps 3 - 5)
Courtesy of DAIMLERCHRYSLER CORP.

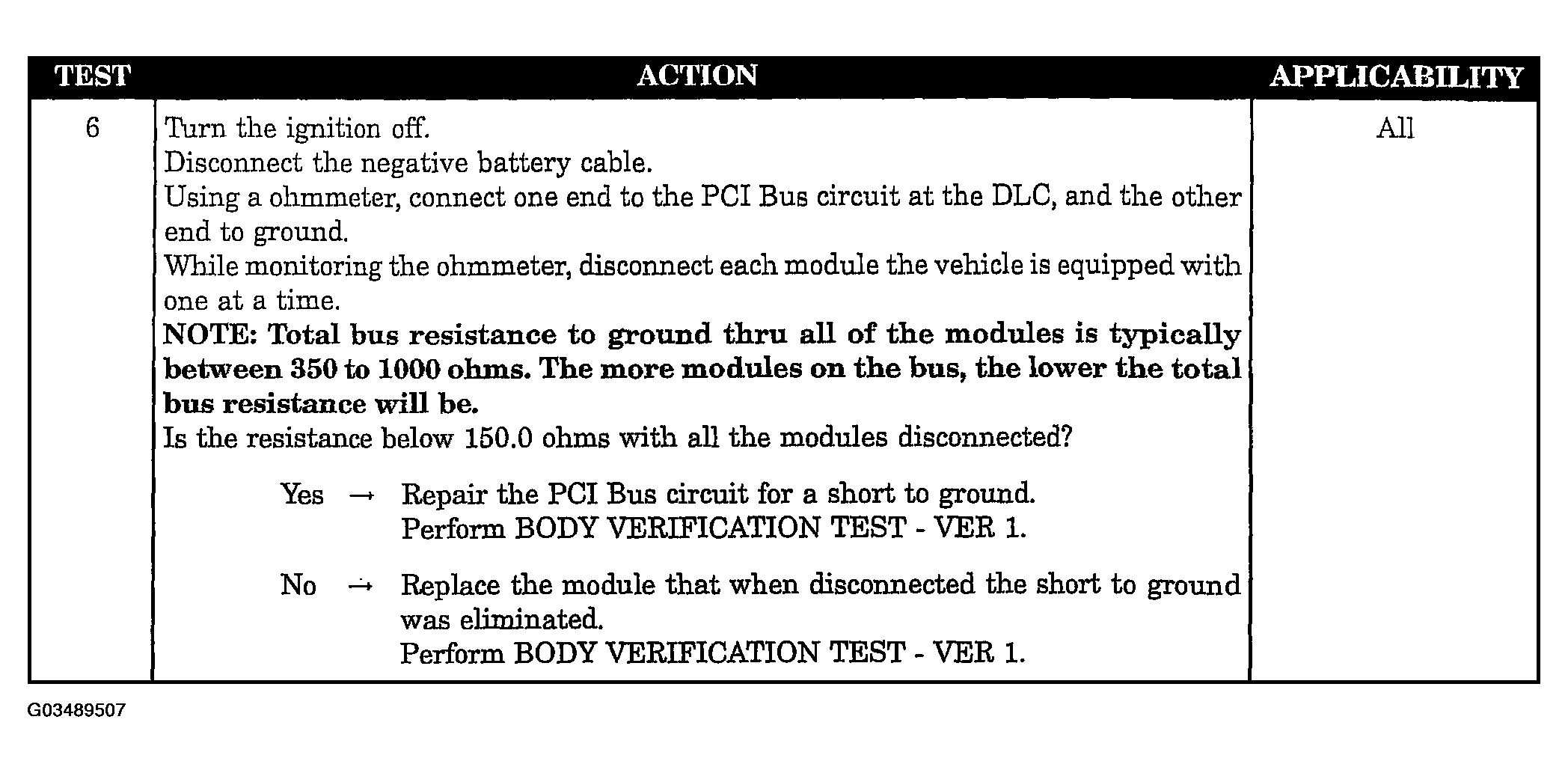

Fig 3: PCI Bus Communication Failure - Diagnostic Procedure (Test Step 6)
