Fuel Pump Relay

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

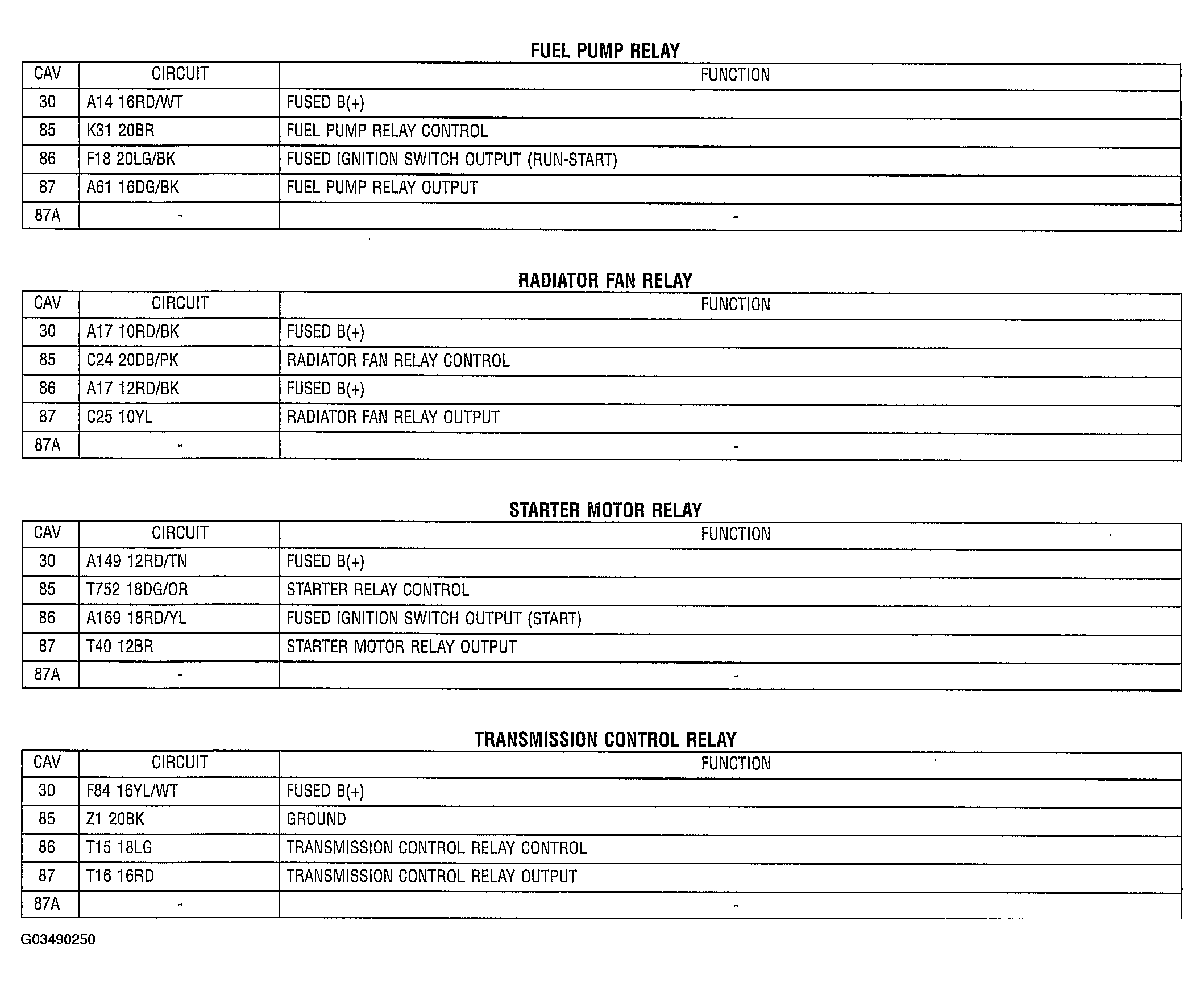

Fig 1: Fuel Pump Relay Circuit Function Chart
G03490250Courtesy of DAIMLERCHRYSLER CORP.
