A/C Pressure Transducer - Black 4 Way

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

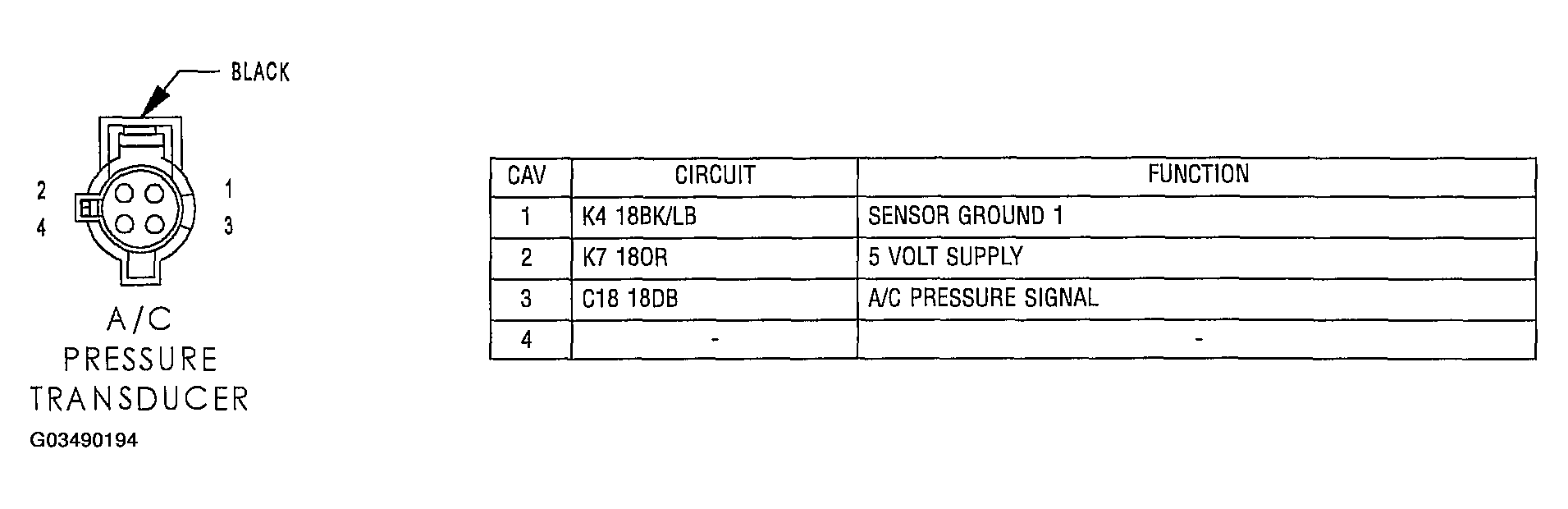

Fig 1: Identifying A/C Pressure Transducer - Black 4 Way Connector Terminals
G03490194Courtesy of DAIMLERCHRYSLER CORP.
