Sensors And Solenoids

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

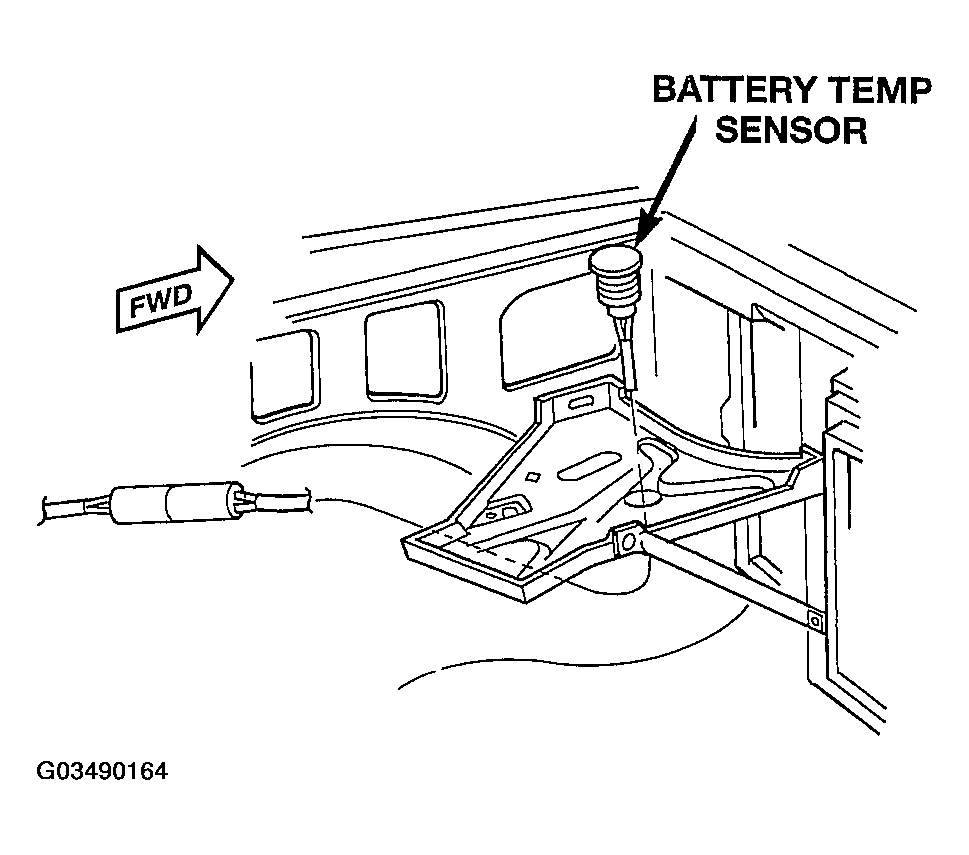

Fig 1: Locating Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

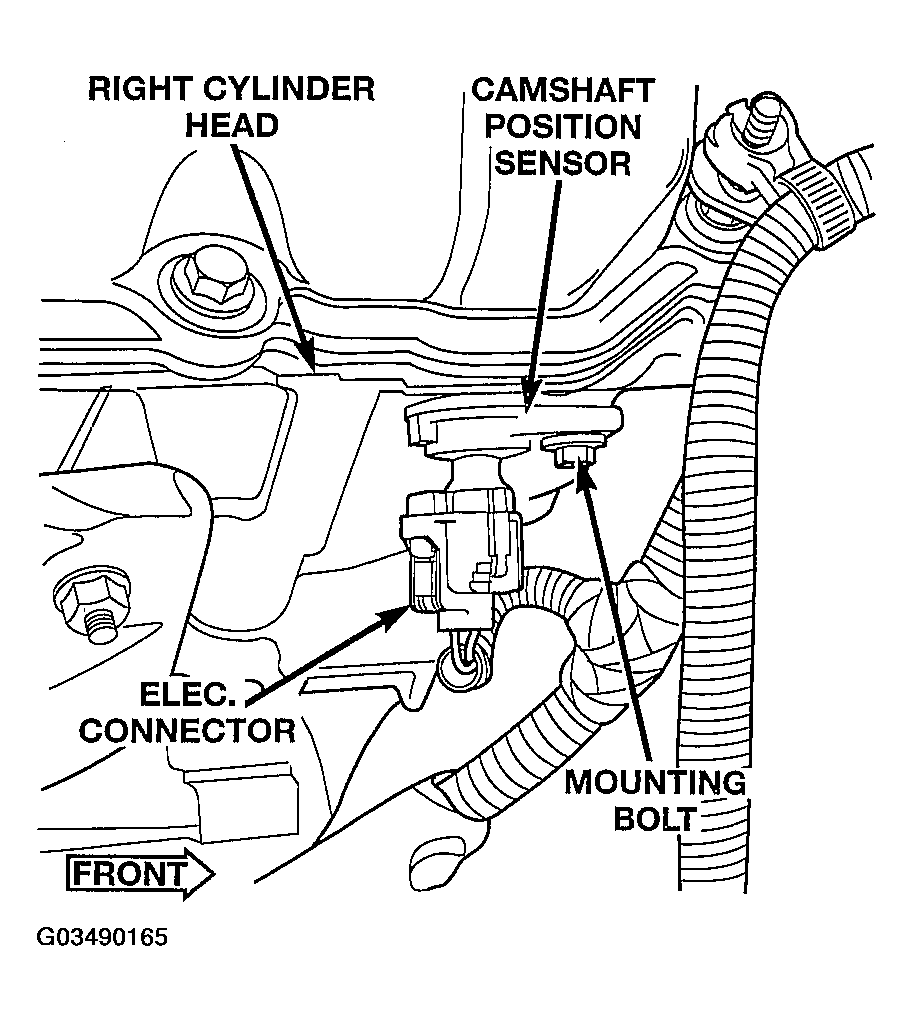

Fig 2: Identifying Camshaft Position Sensor (3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

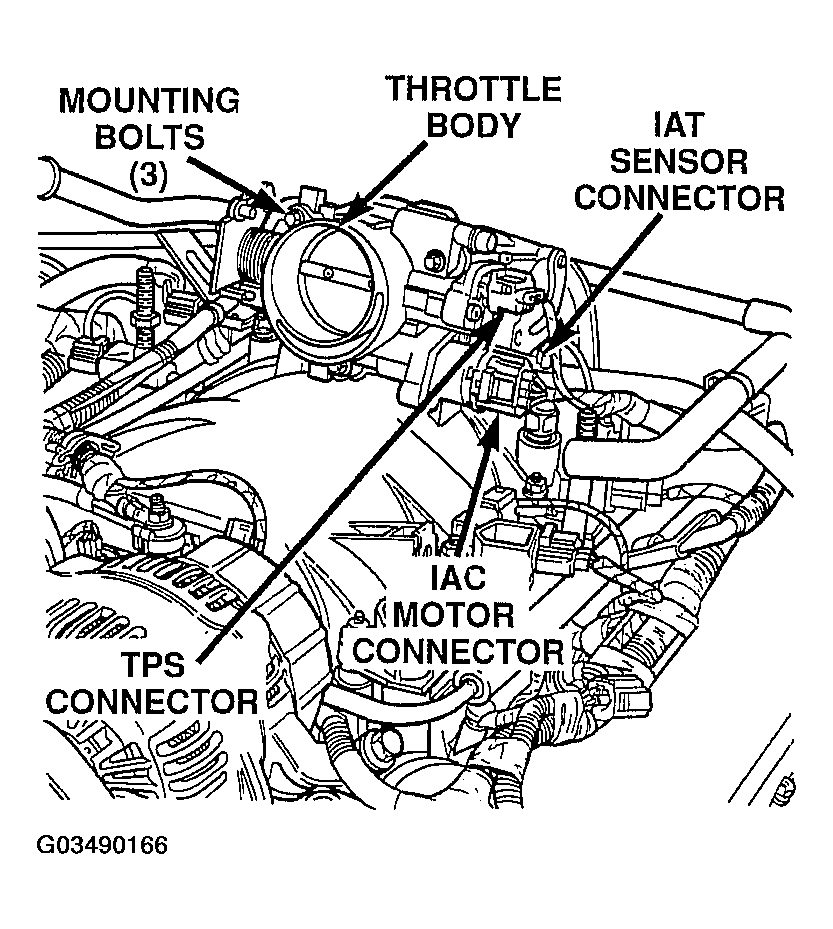

Fig 3: Identifying IAT Sensor, IAC Motor And TPS (3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Crankshaft Position Sensor (3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

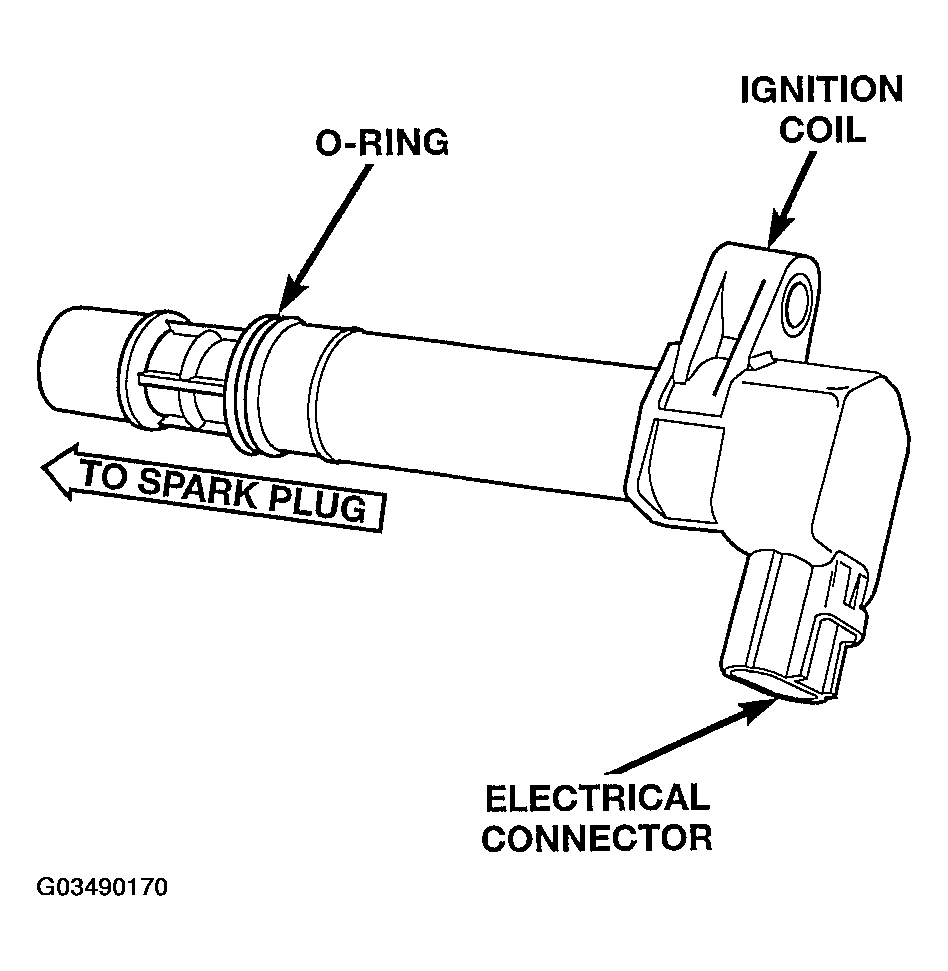

Fig 5: Identifying Ignition Coil (3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

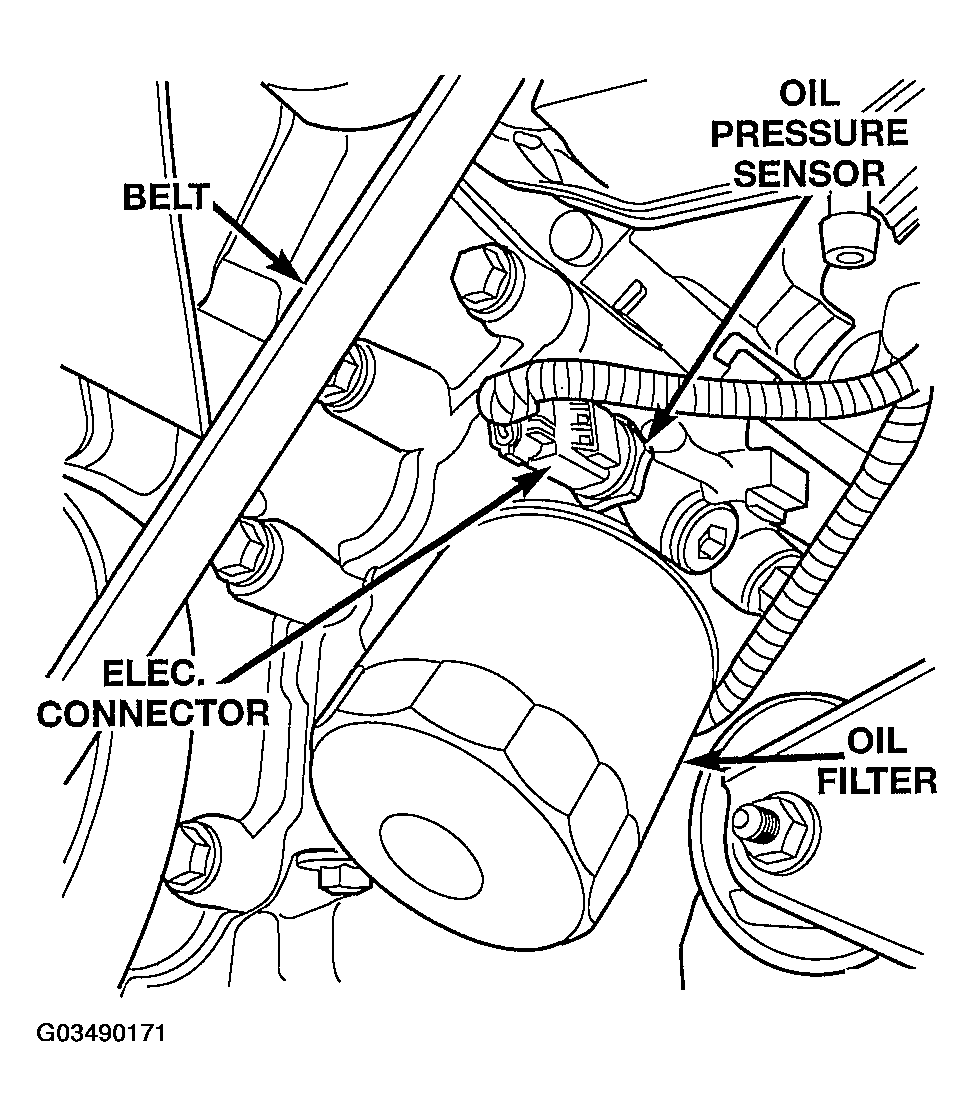

Fig 6: Identifying Oil Pressure Sensor (3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

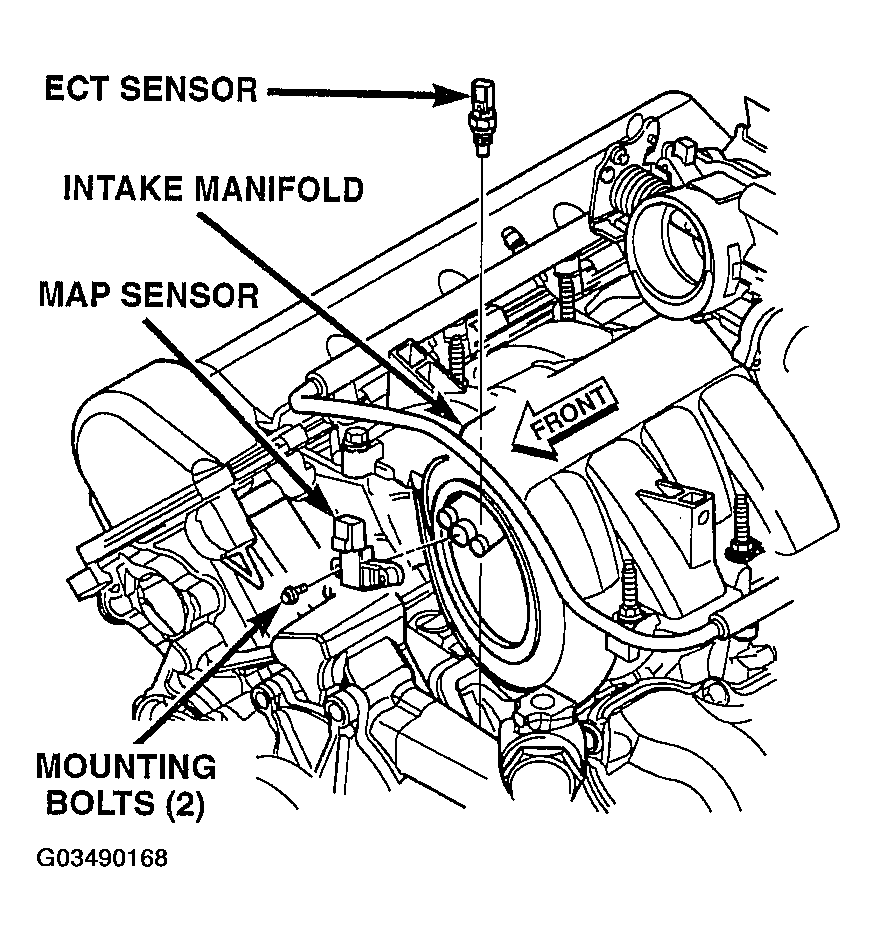

Fig 7: Identifying ECT Sensor And MAP Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

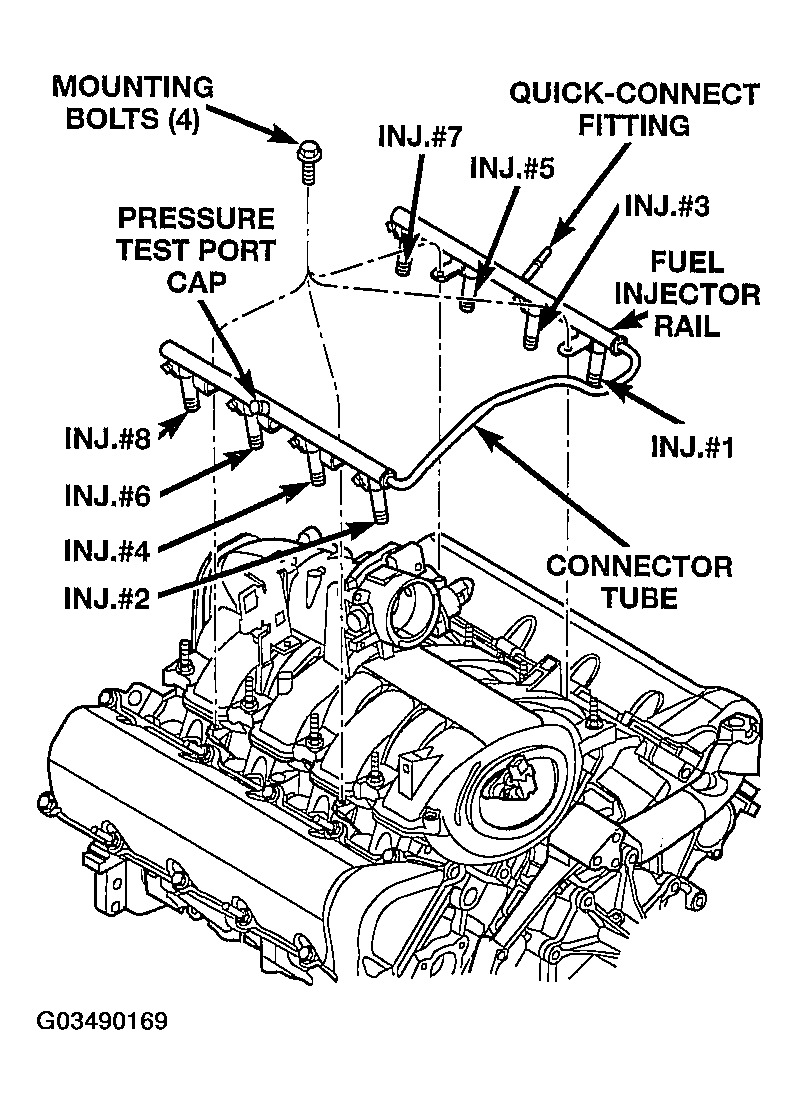

Fig 8: Identifying Fuel Injectors (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

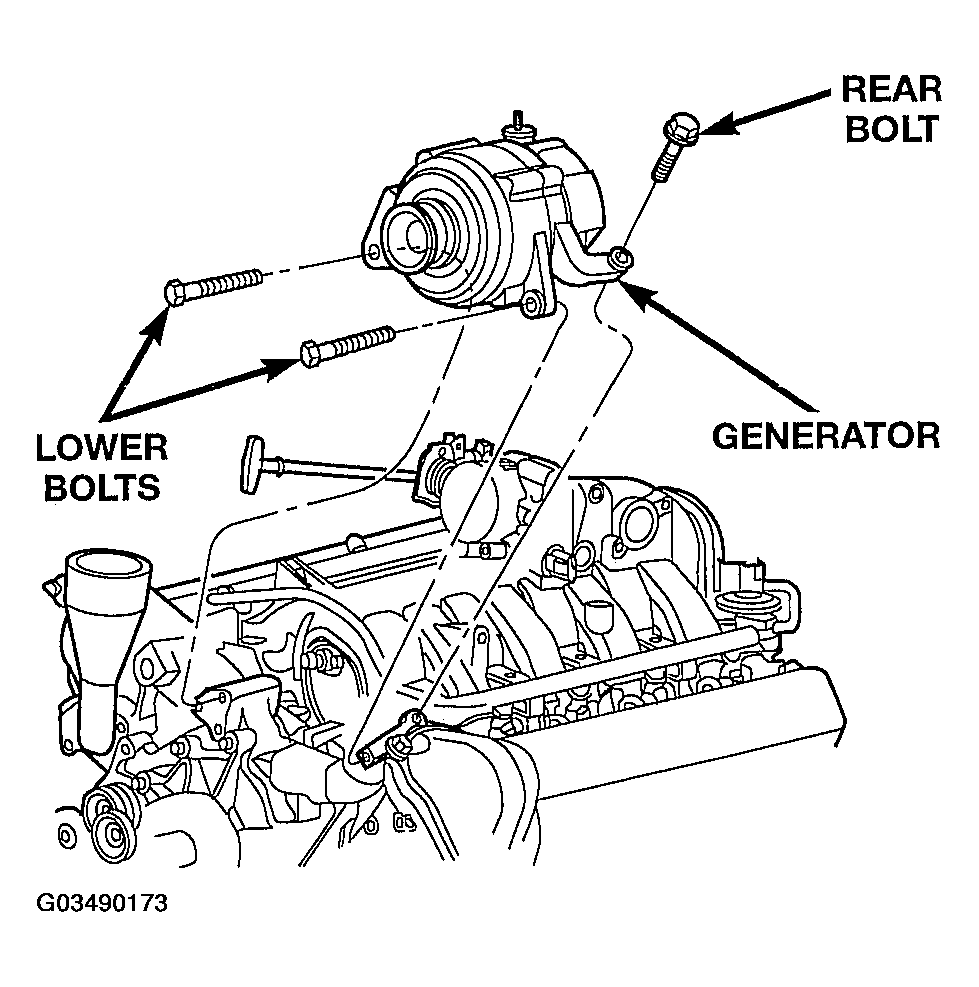

Fig 9: Identifying Generator (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

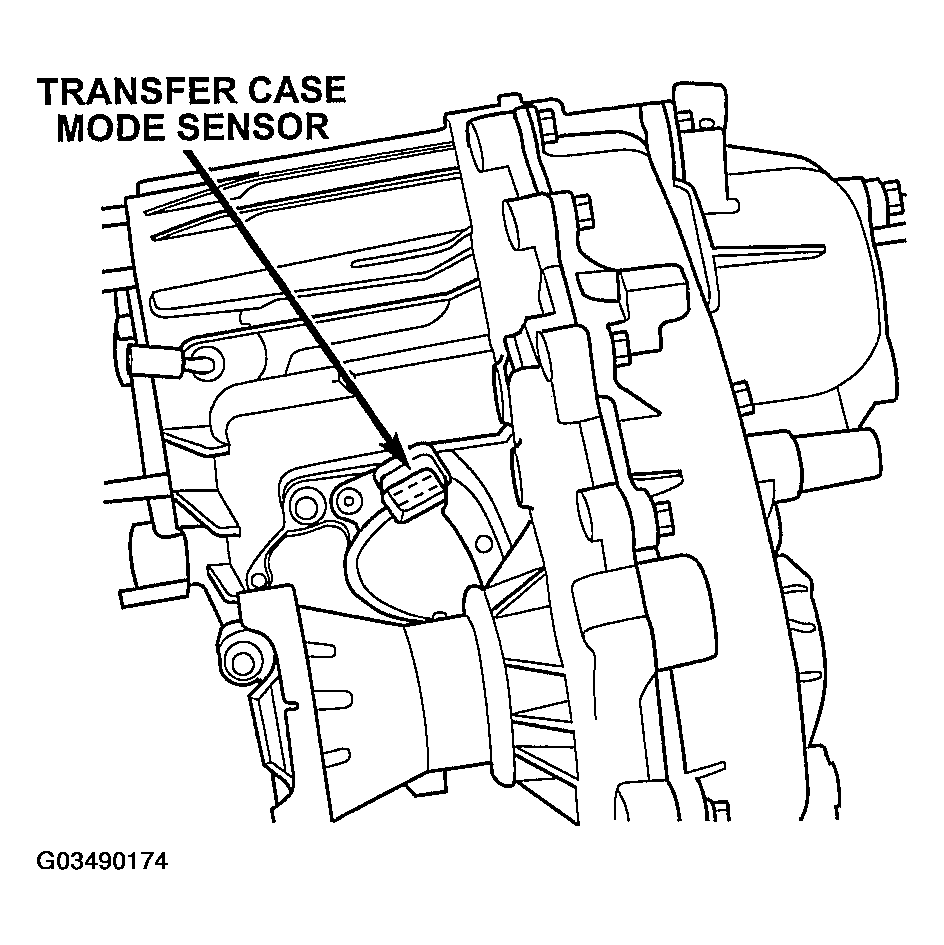

Fig 10: Locating Transfer Case Mode Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Transfer Case Shift Motor

Courtesy of DAIMLERCHRYSLER CORP.

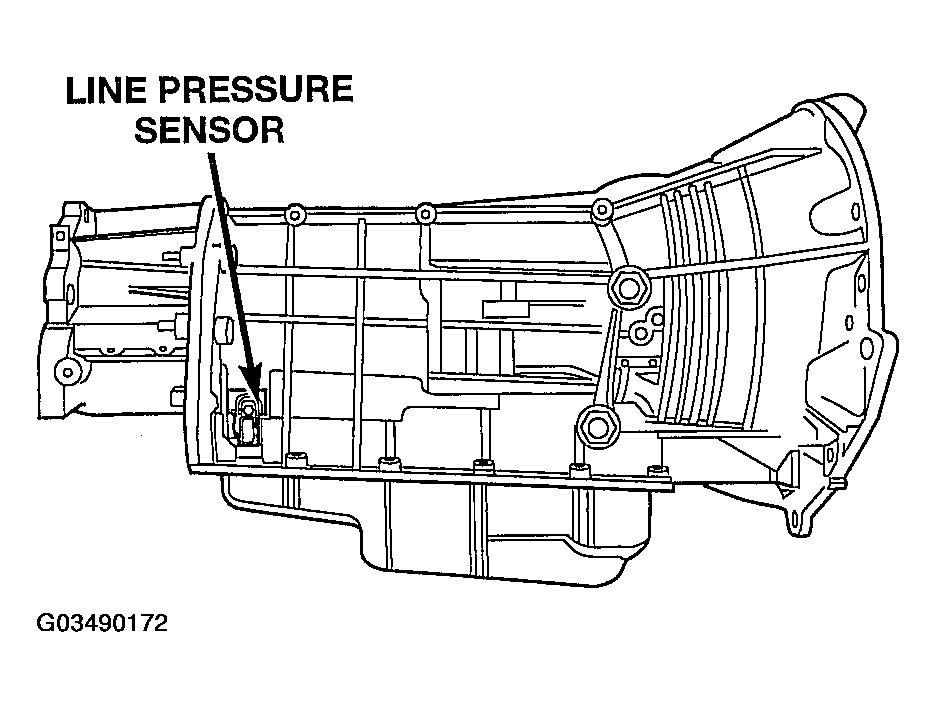

Fig 12: Identifying Line Pressure Sensor (RFE)

Courtesy of DAIMLERCHRYSLER CORP.

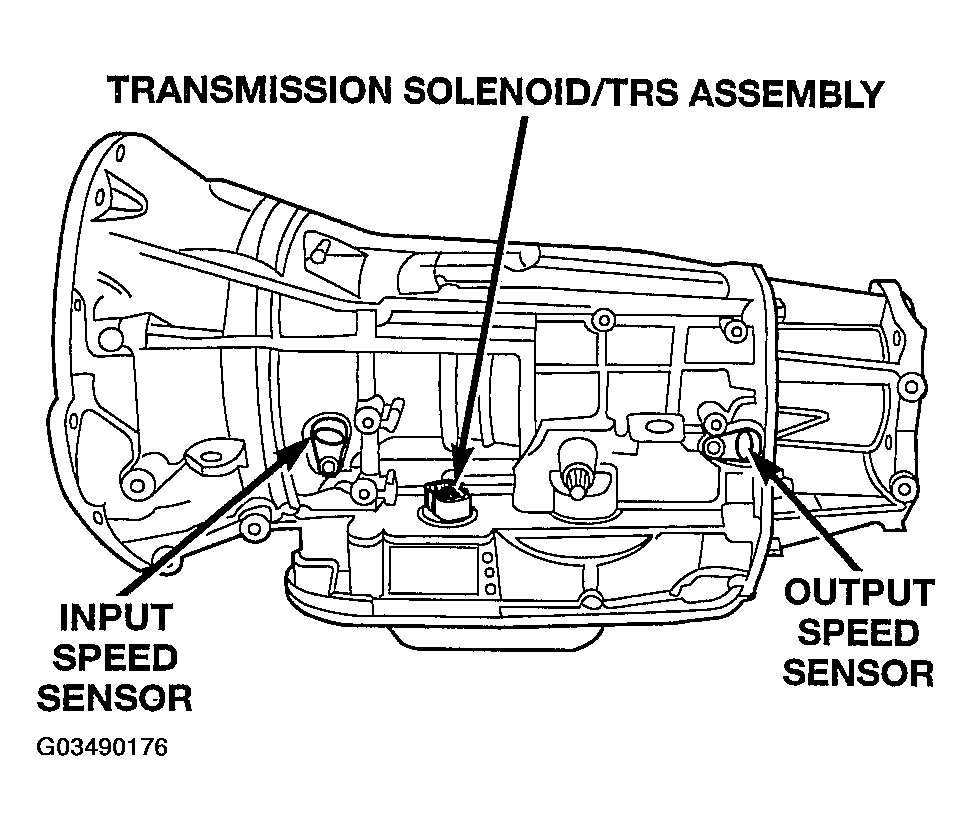

Fig 13: Locating Transmission Solenoid/TRS Assembly, Input Speed Sensor & Output Speed Sensor (RFE)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Locating Transmission Solenoid/Pressure Switch Assembly (42RLE)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Transmission Range Sensor (42RLE)

Courtesy of DAIMLERCHRYSLER CORP.

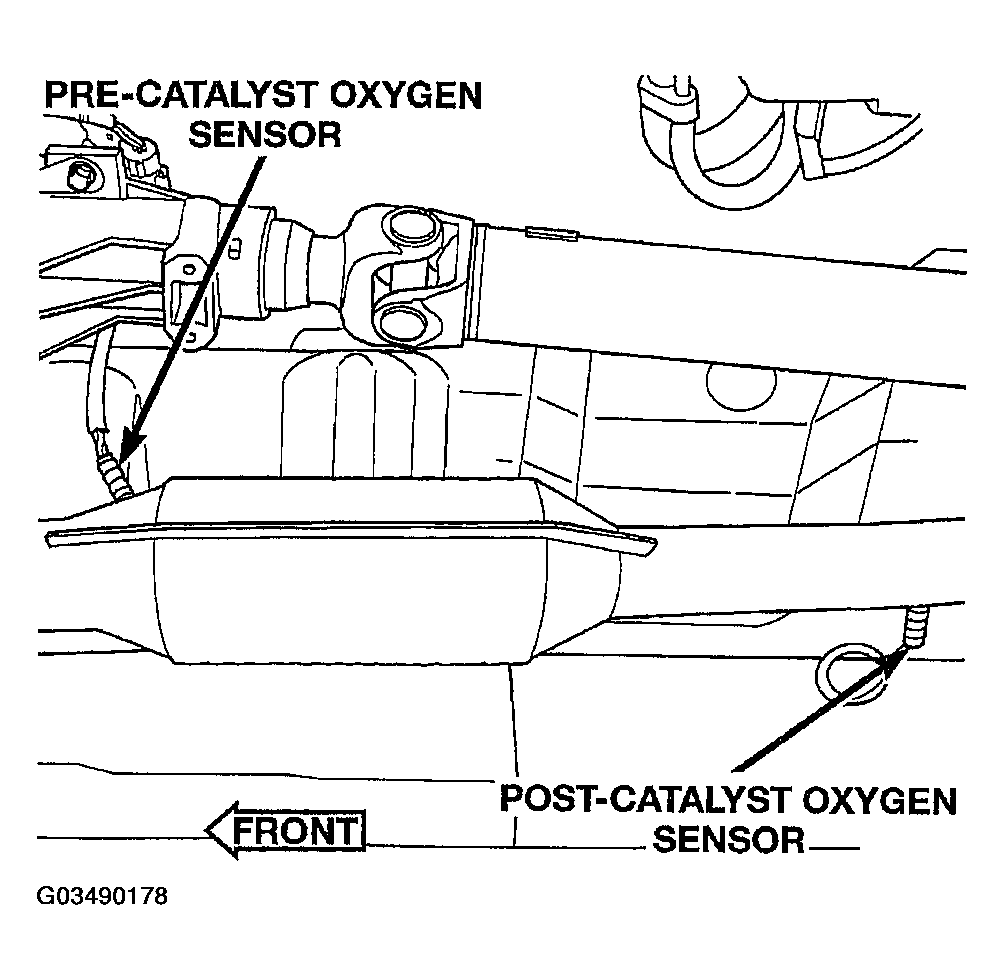

Fig 16: Identifying Pre-Catalyst Oxygen Sensor And Post-Catalyst Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

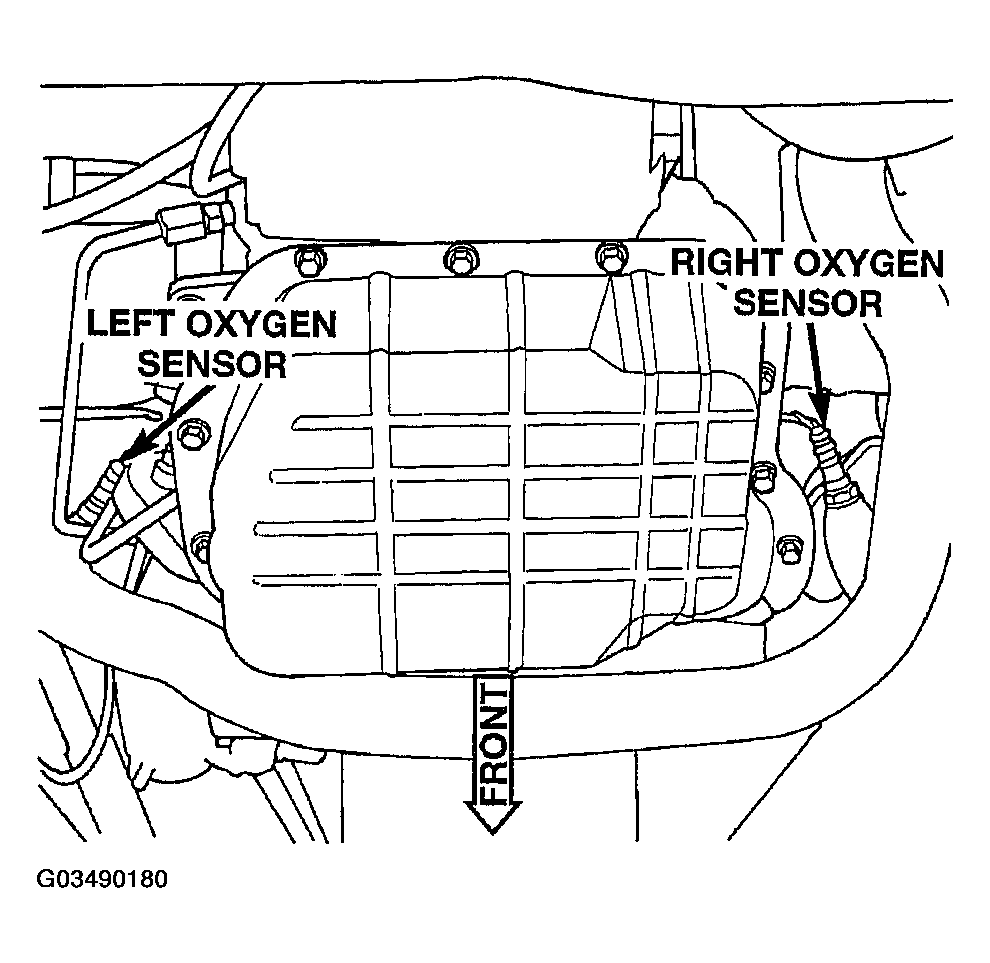

Fig 17: Identifying Left And Right Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

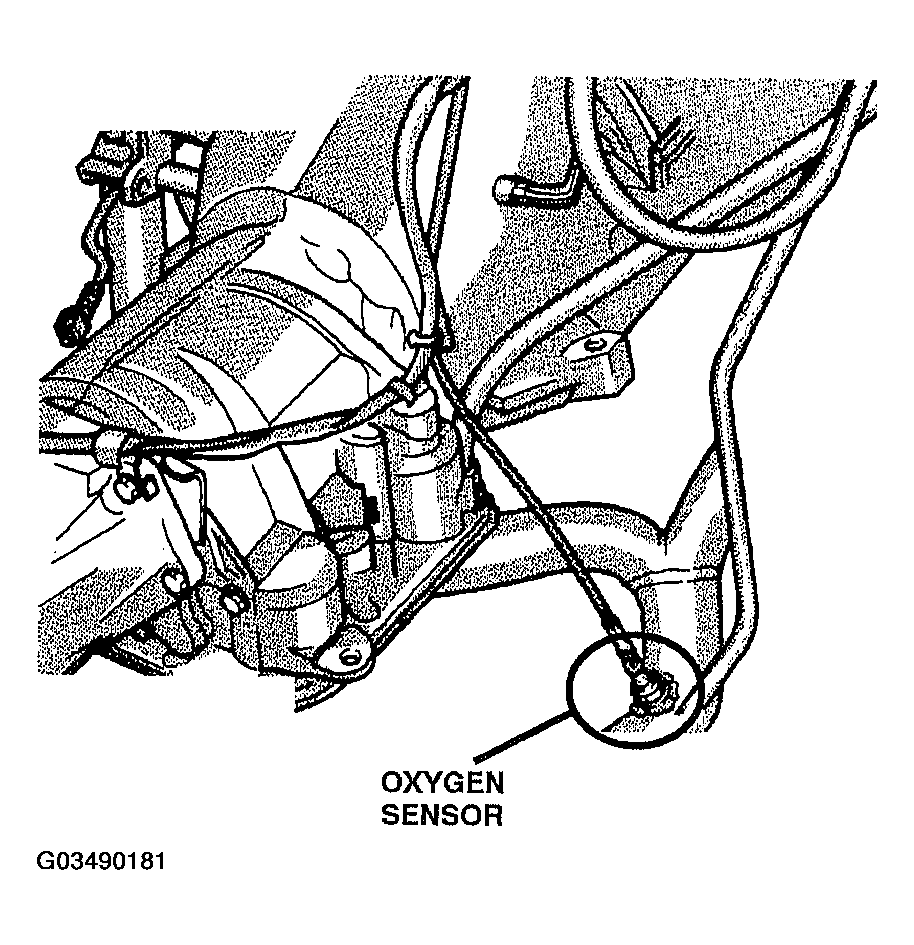

Fig 18: Locating Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

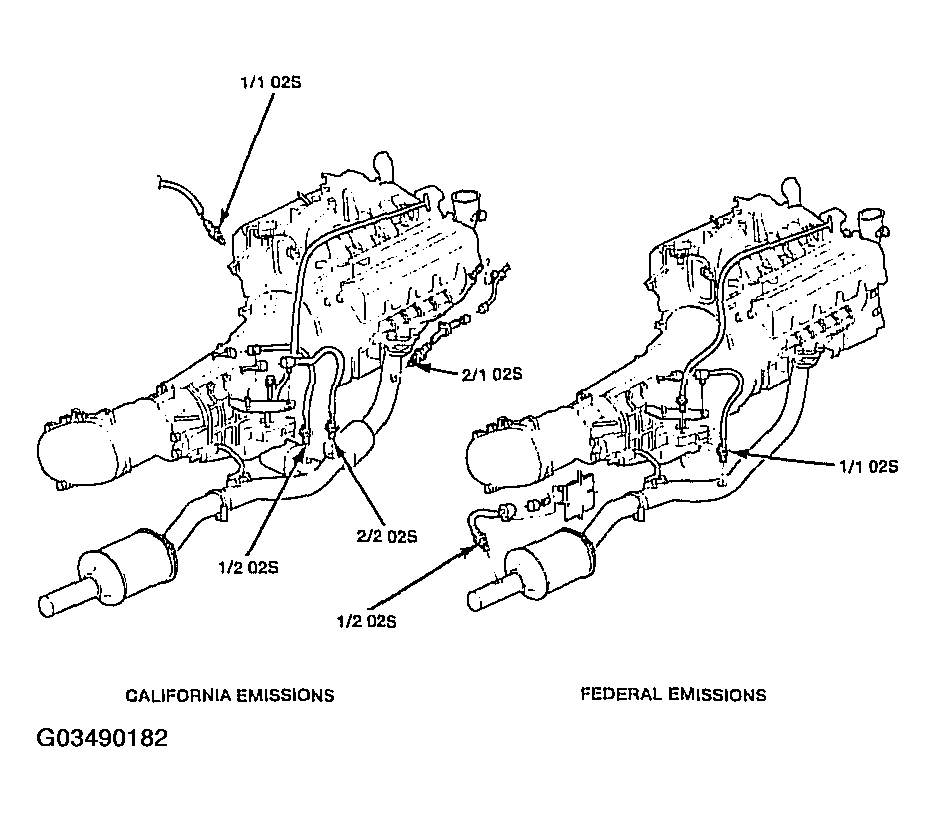

Fig 19: Identifying Oxygen Sensors (California Emission & Federal Emission - 3.7L/4.7L)

Courtesy of DAIMLERCHRYSLER CORP.
