Control Modules And PDC

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

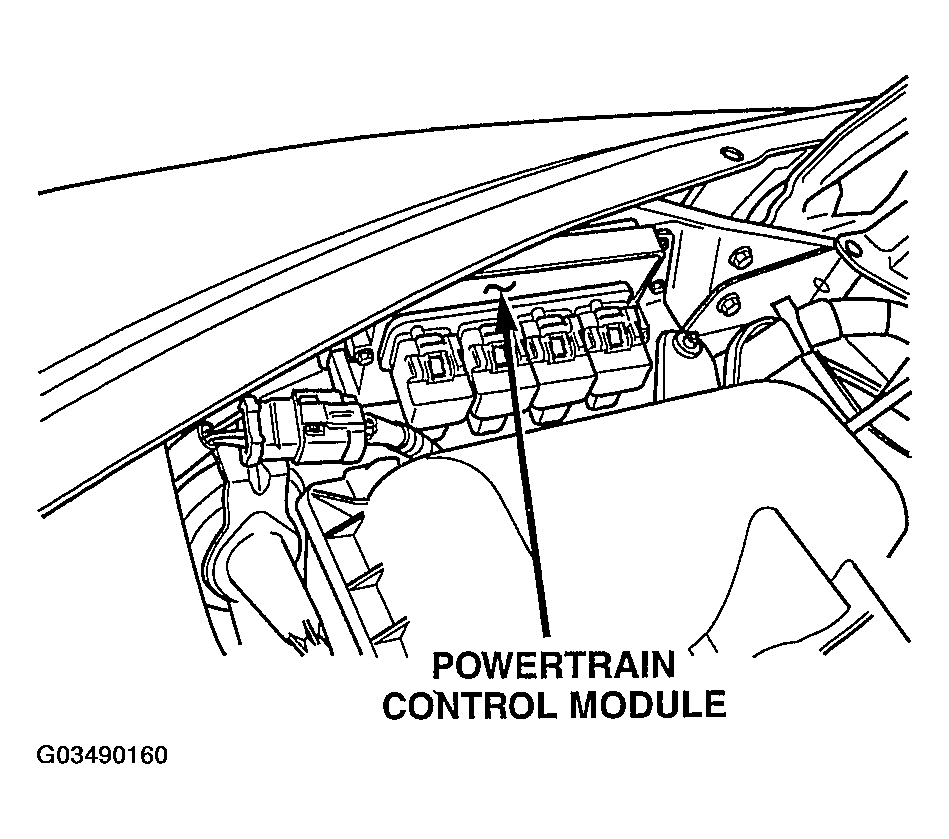

Fig 1: Locating Powertrain Control Module (PGM NGC)

Courtesy of DAIMLERCHRYSLER CORP.

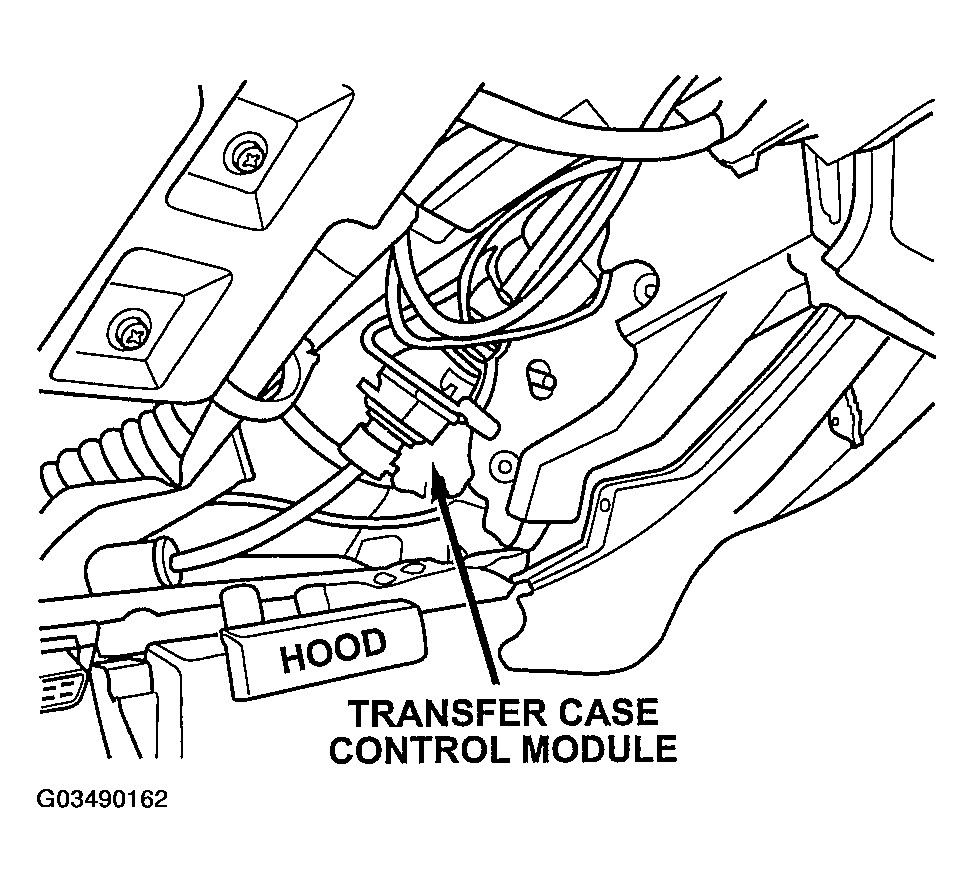

Fig 2: Locating Transfer Case Control Module

Courtesy of DAIMLERCHRYSLER CORP.

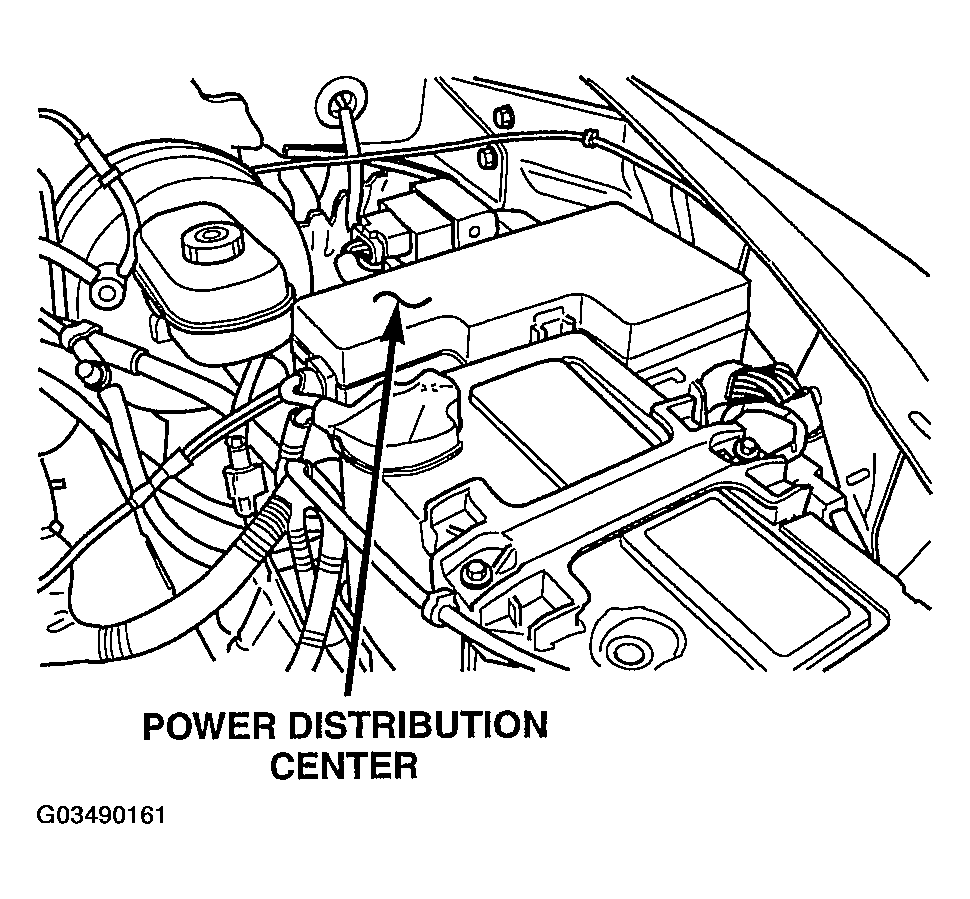

Fig 3: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
