Removal - 4.7

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The TPS is located on the throttle body.

  1. Remove air duct and air resonator box at throttle body.
  2. Disconnect TPS electrical connector.
  3. Remove two TPS mounting bolts (screws) ( Fig 1 ).
  4. Remove TPS from throttle body.

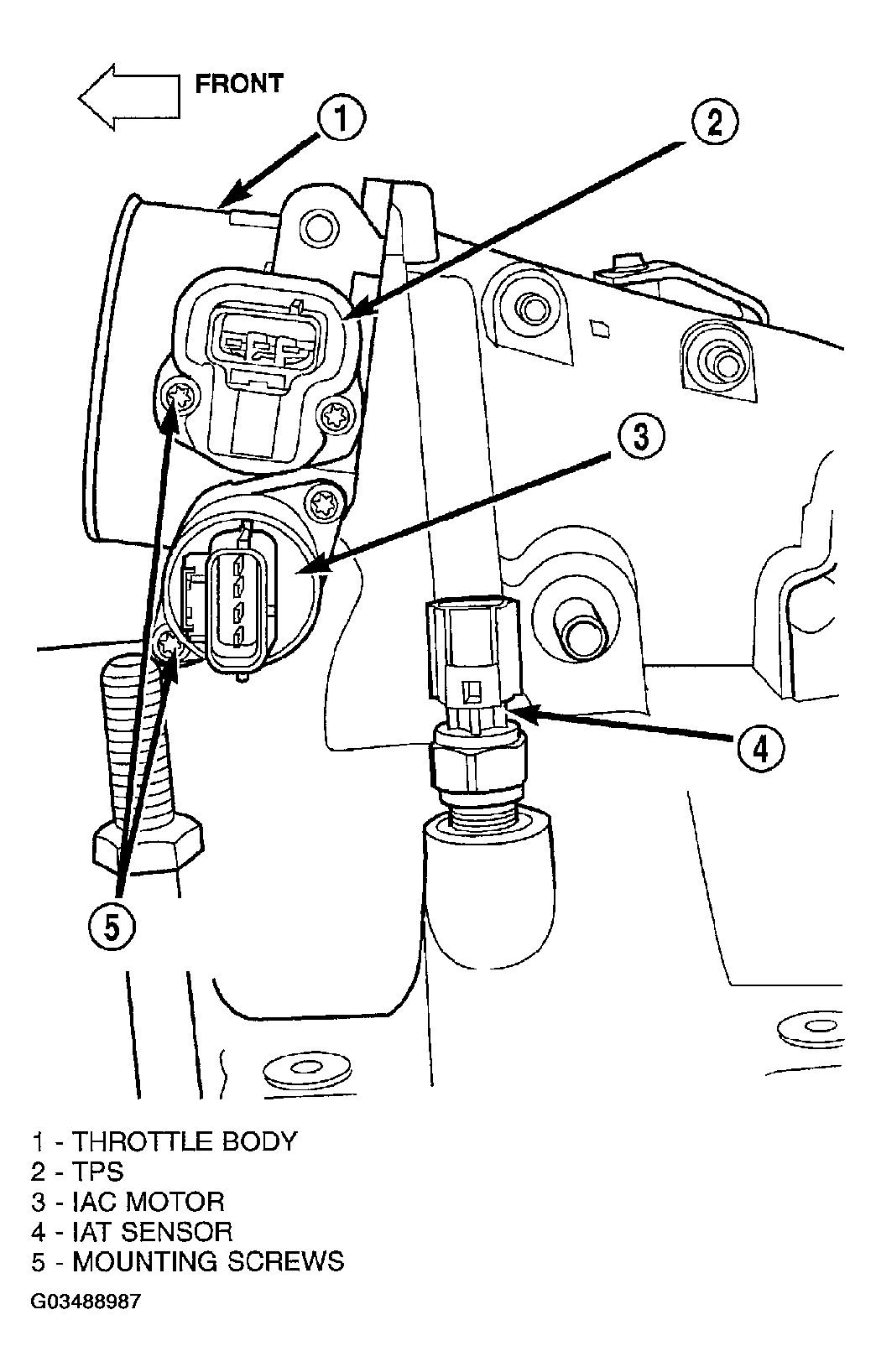

    Fig 1: Identifying Throttle Position Sensor Mounting Bolts - 4.7L
    G03488987Courtesy of DAIMLERCHRYSLER CORP.
