Removal - 3.7L

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The Throttle Position Sensor (TPS) is mounted to the throttle body ( Fig 1 ), or ( Fig 2 ).

Disconnect TPS electrical connector.
Remove 2 TPS mounting screws.
Remove TPS.

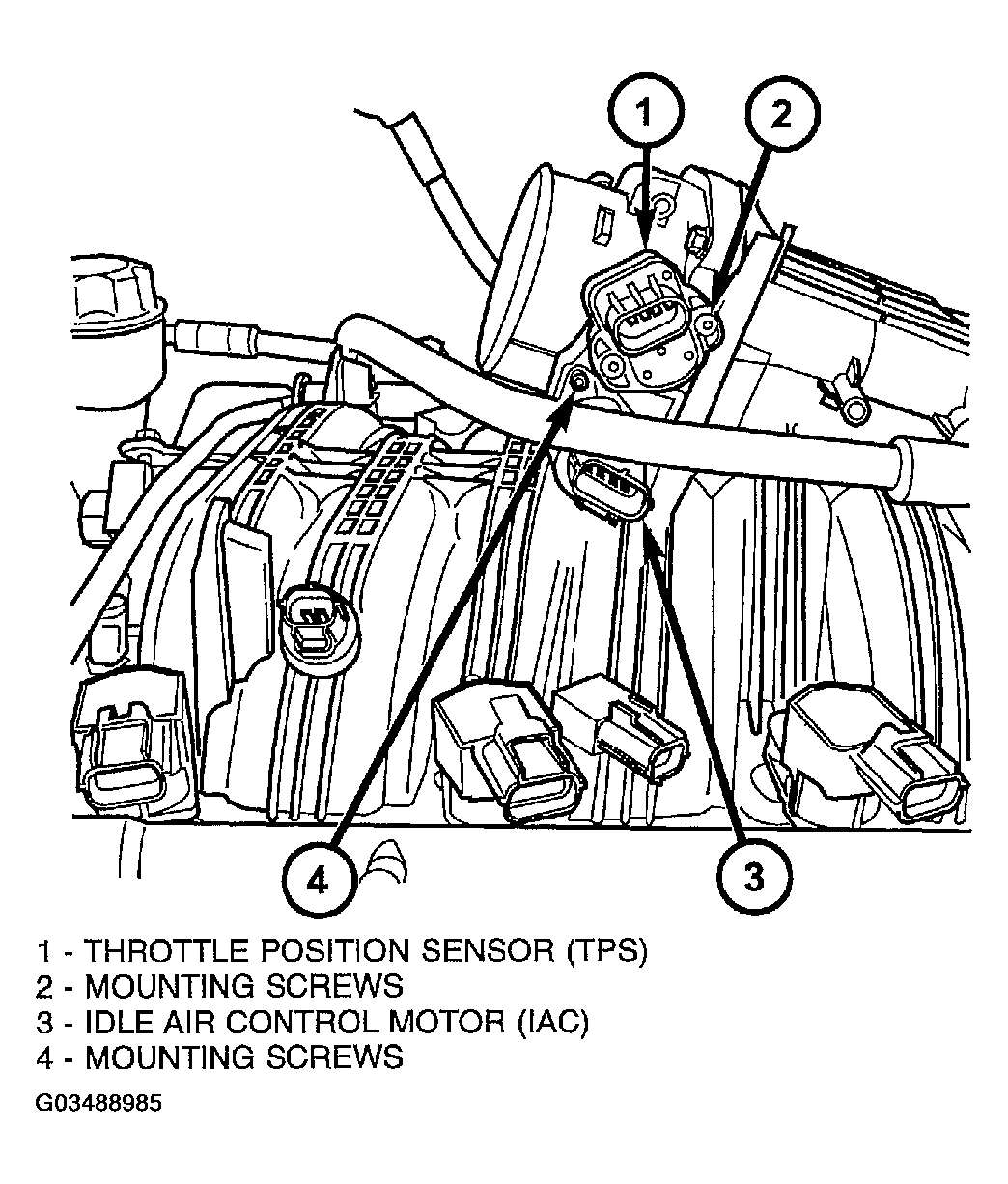

Fig 1: Identifying TPS/IAC Motor - 3.7L
Courtesy of DAIMLERCHRYSLER CORP.

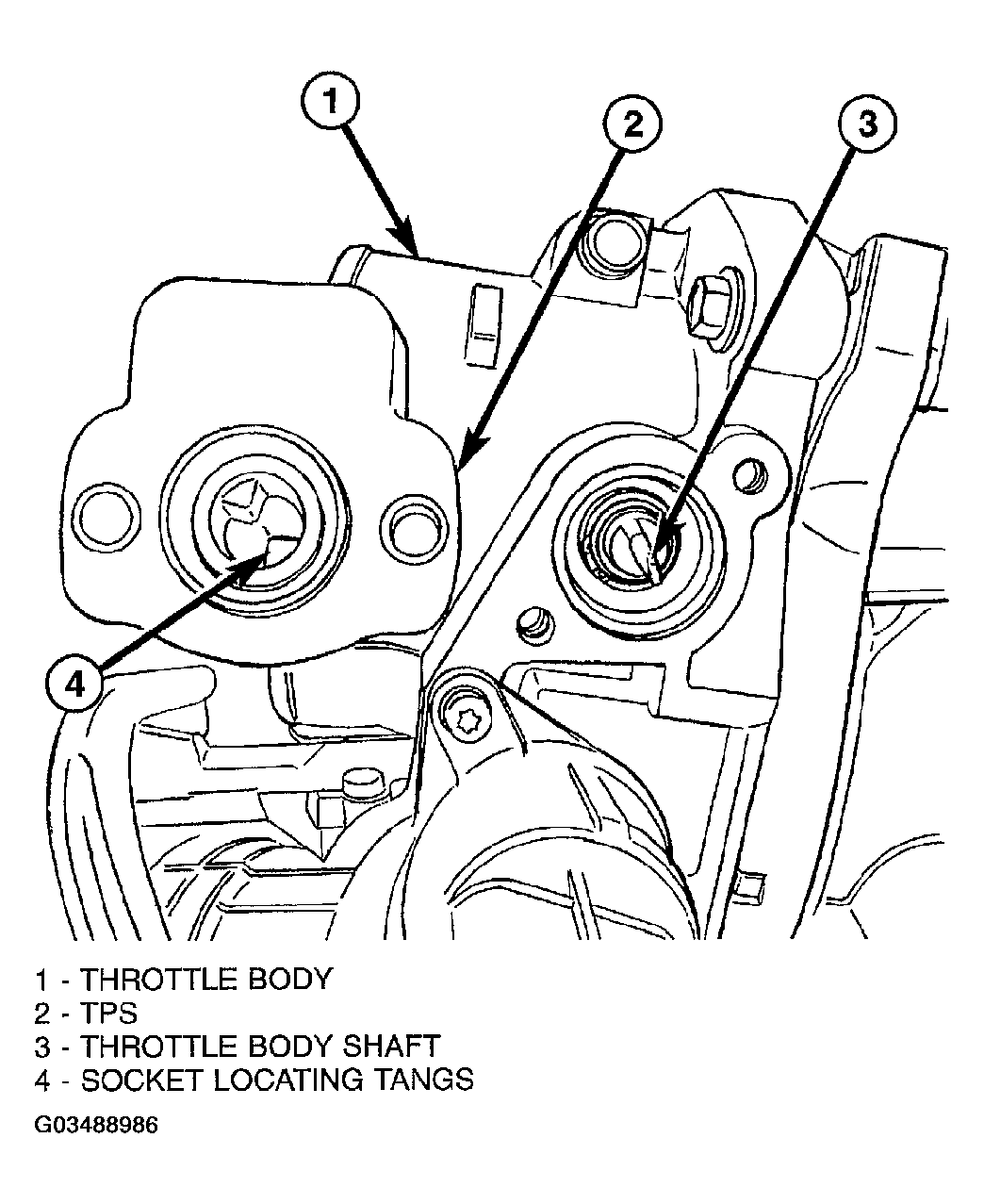

Fig 2: Identifying Throttle Position Sensor - 3.7L
Courtesy of DAIMLERCHRYSLER CORP.
