Removal - 4.7L

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air duct and air resonator box at throttle body.
  2. Disconnect throttle body electrical connectors at IAC motor and TPS ( Fig 1 ).

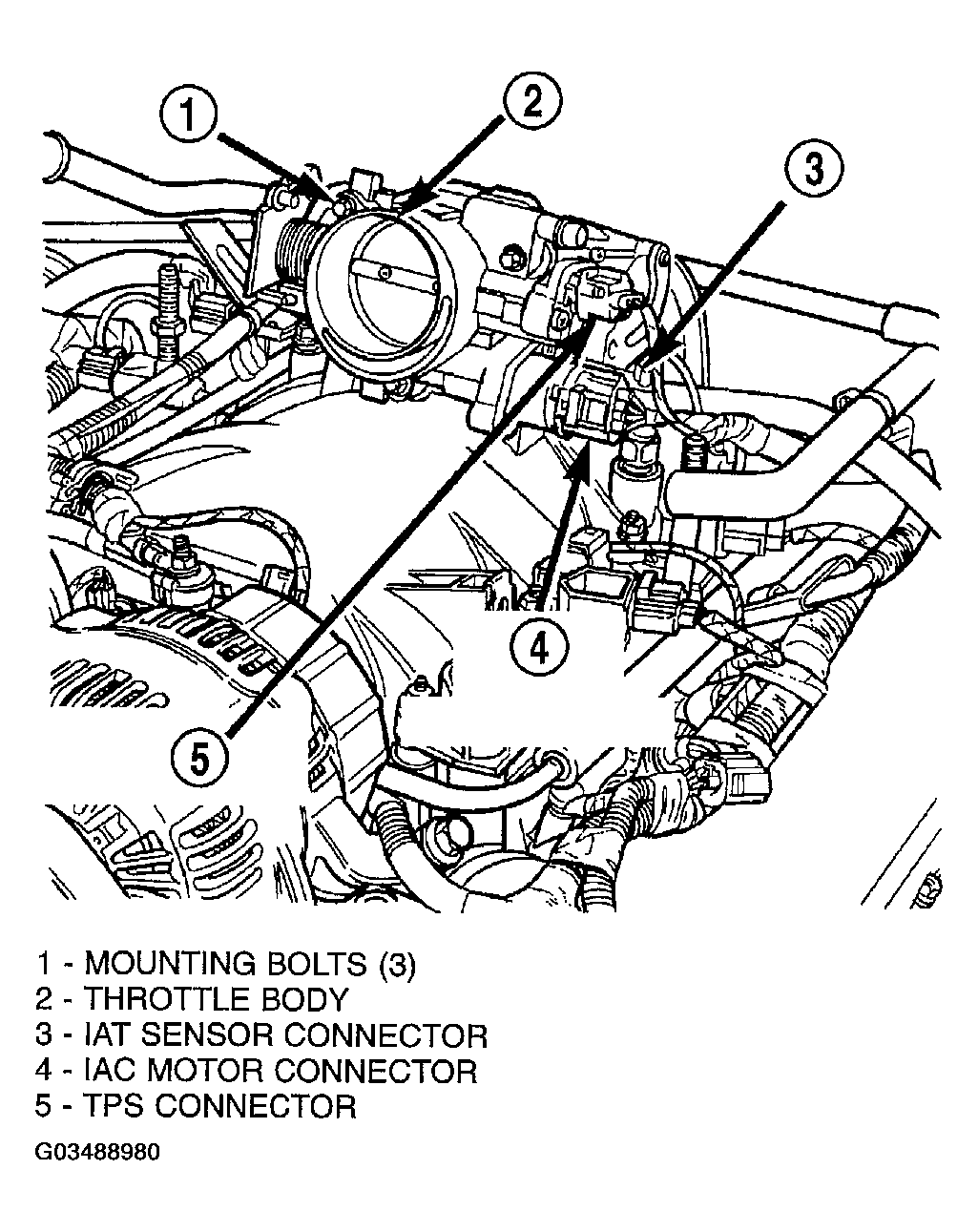

    Fig 1: Identifying Throttle Body Sensors And Electrical Connectors-4.7L V-8 Engine
    G03488980Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove vacuum line at throttle body.
  4. Remove all control cables from throttle body (lever) arm. Refer to THROTTLE CONTROL CABLE  .
  5. Remove three throttle body mounting bolts ( Fig 1 ).
  6. Remove throttle body from intake manifold.
