Removal - 4.7L
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

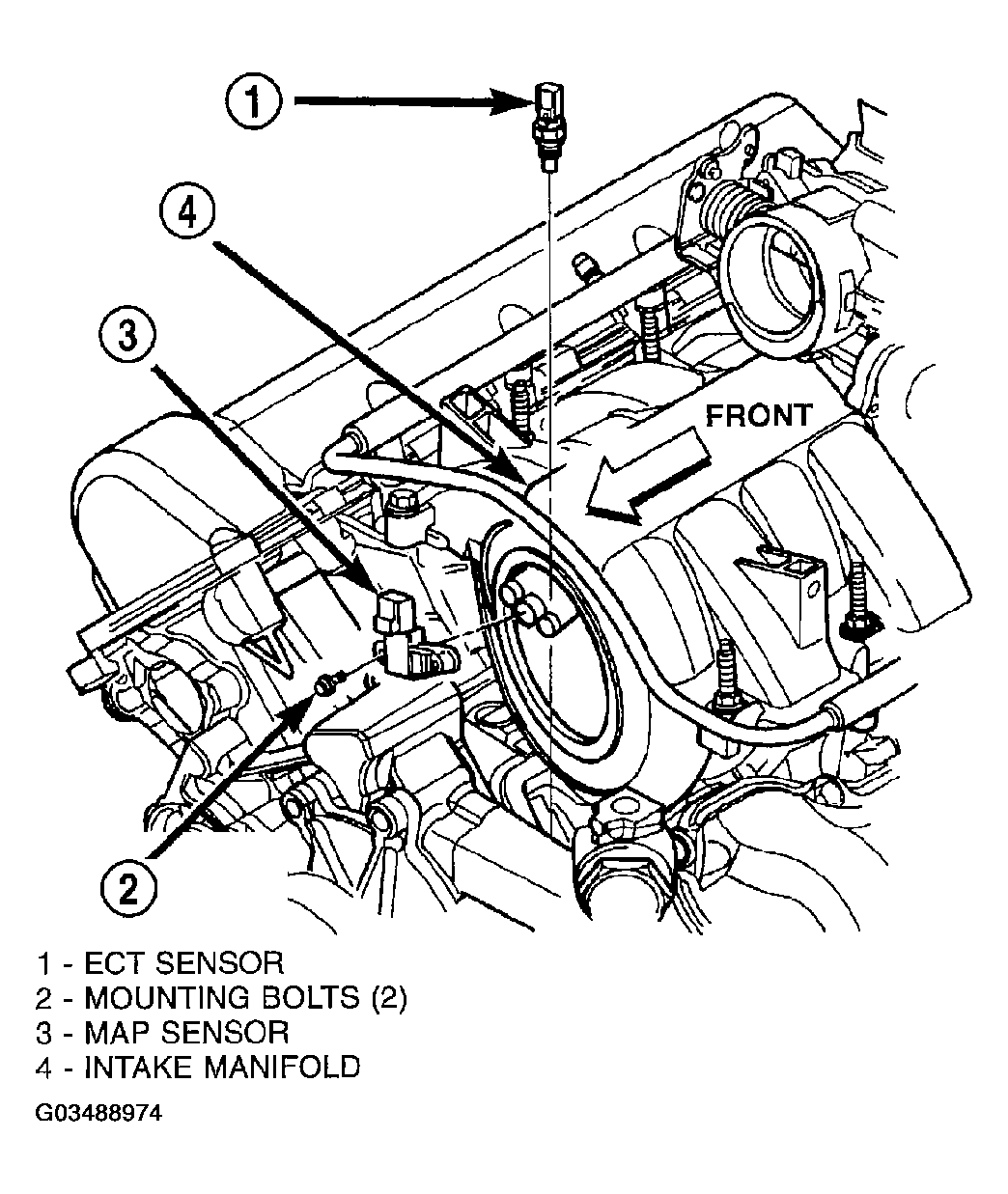

The MAP sensor is located on the front of the intake manifold ( Fig 1
). An o-ring seals the sensor to the intake manifold.
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect electrical connector at sensor.
- Clean area around MAP sensor.
- Remove 2 sensor mounting bolts ( Fig 1
).
- Remove MAP sensor from intake manifold.
