Removal - 3.7L

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The Manifold Absolute Pressure (MAP) sensor is mounted into the front of the intake manifold ( Fig 1 ). An o-ring is used to seal the sensor to the intake manifold ( Fig 2 ).

Disconnect electrical connector at sensor.
Clean area around MAP sensor.
Remove 2 sensor mounting screws.
Remove MAP sensor from intake manifold. (5) Check condition of sensor o-ring ( Fig 2 ).

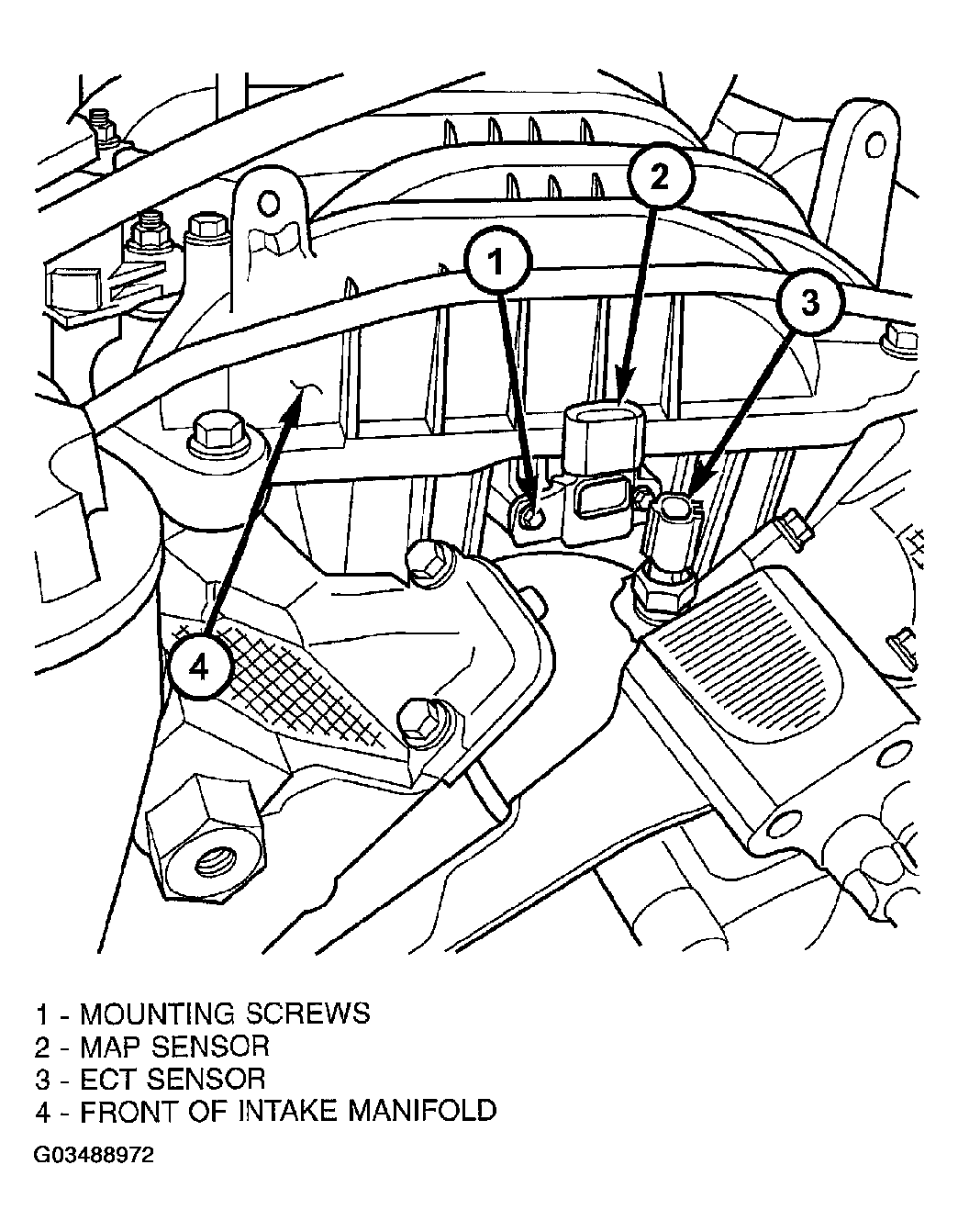

Fig 1: Identifying Map Sensor / ECT Sensor - 3.7L
Courtesy of DAIMLERCHRYSLER CORP.

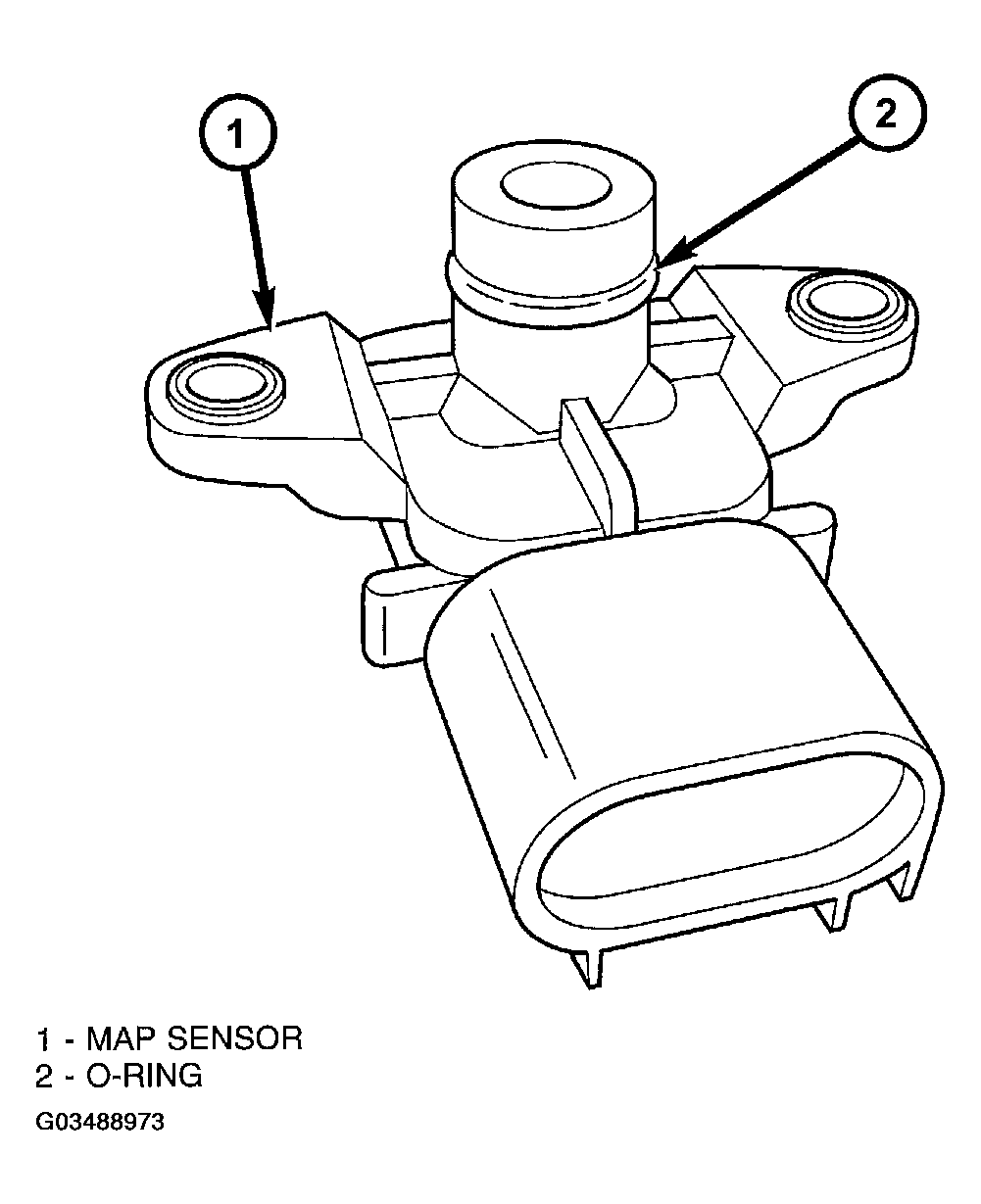

Fig 2: Identifying Map Sensor O-Ring
Courtesy of DAIMLERCHRYSLER CORP.
