Removal - 3.7L
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

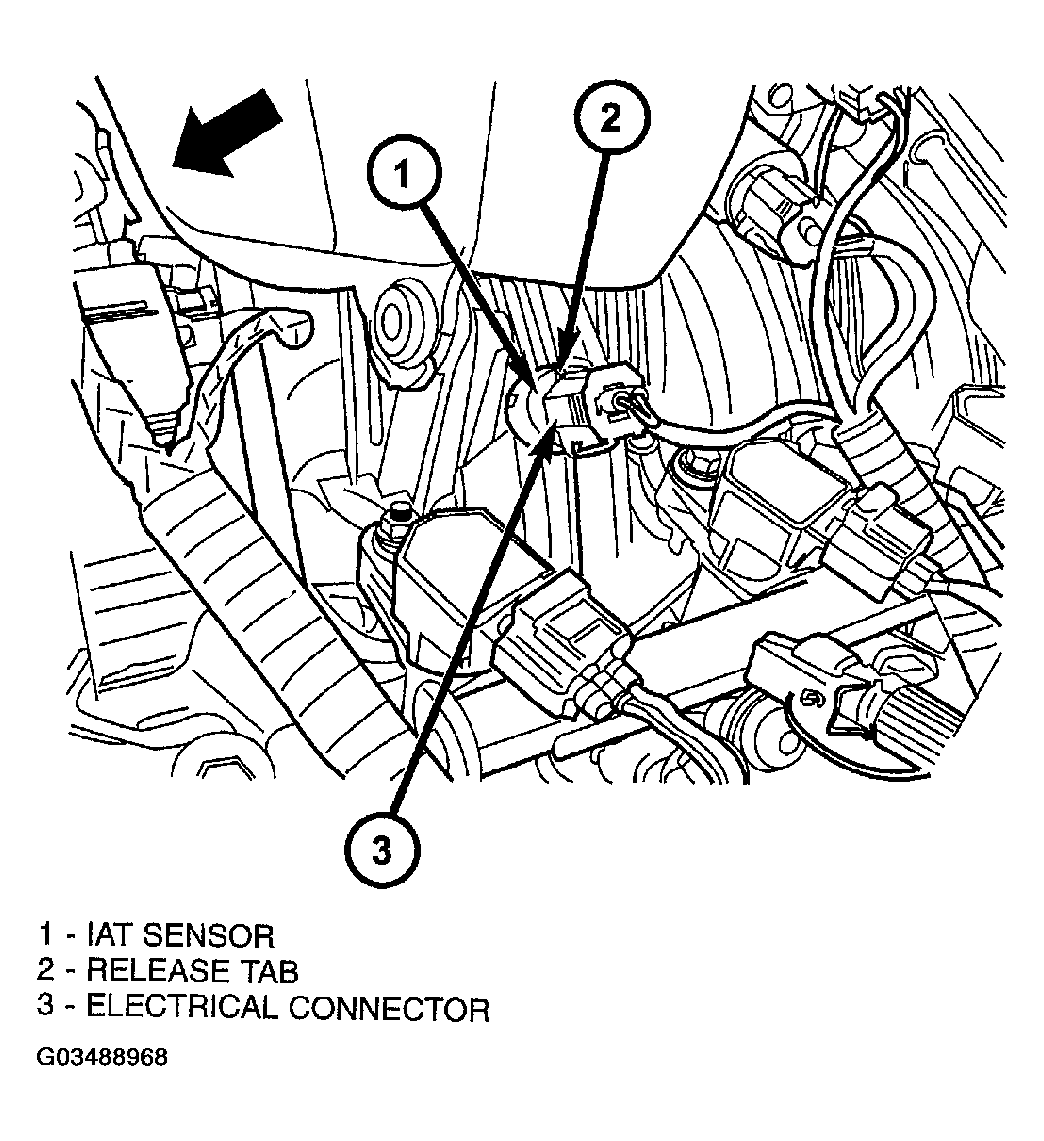

The intake manifold air temperature (IAT) sensor is installed into the left side of intake manifold plenum ( Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect electrical connector from IAT sensor.
- Clean dirt from intake manifold at sensor base.

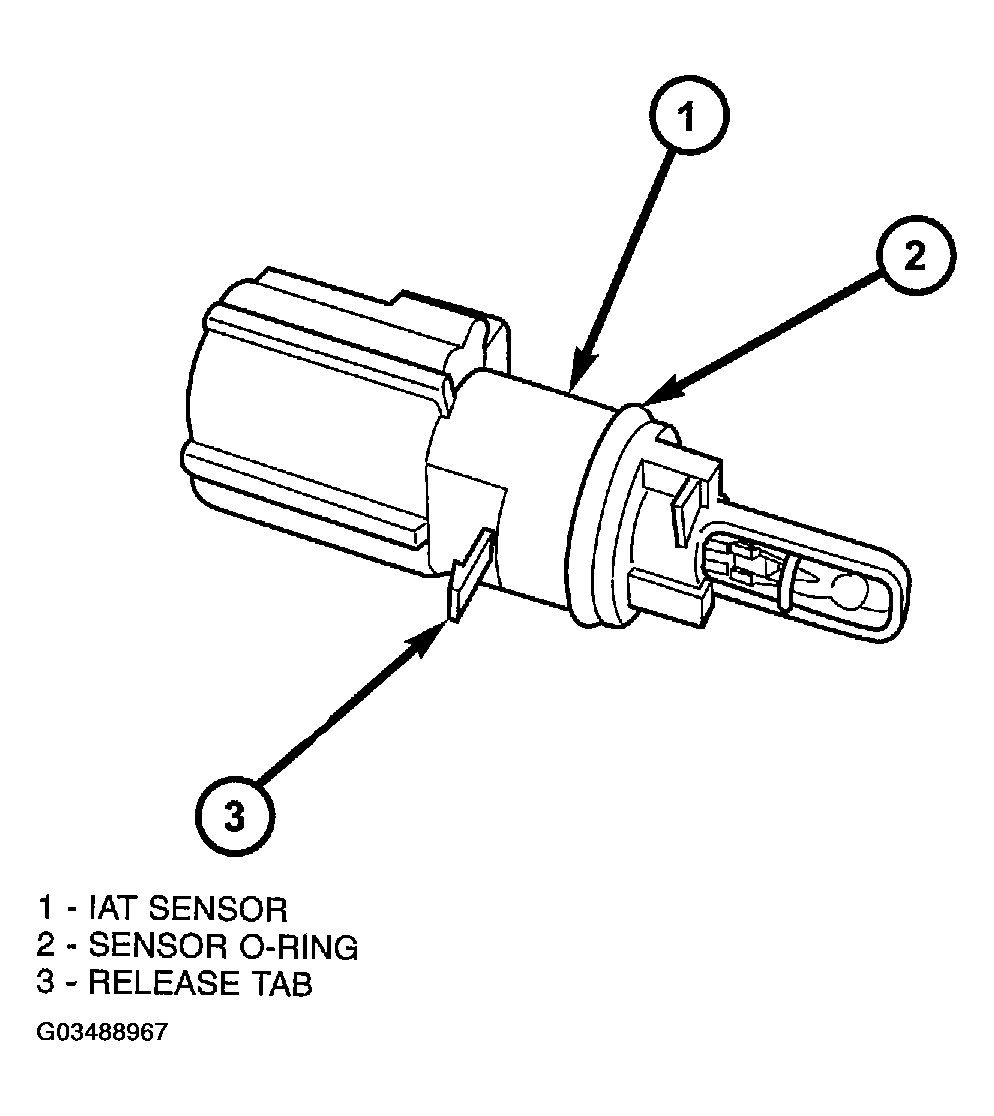

- Gently lift on small plastic release tab ( Fig 1
) or ( Fig 2
) and rotate sensor about 1/4 turn counterclockwise for removal.
- Check condition of sensor o-ring.
Courtesy of DAIMLERCHRYSLER CORP.
