Removal - 4.7L
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
The IAC motor is located on the throttle body.
- Remove air duct and air resonator box at throttle body.
- Disconnect electrical connector from IAC motor.

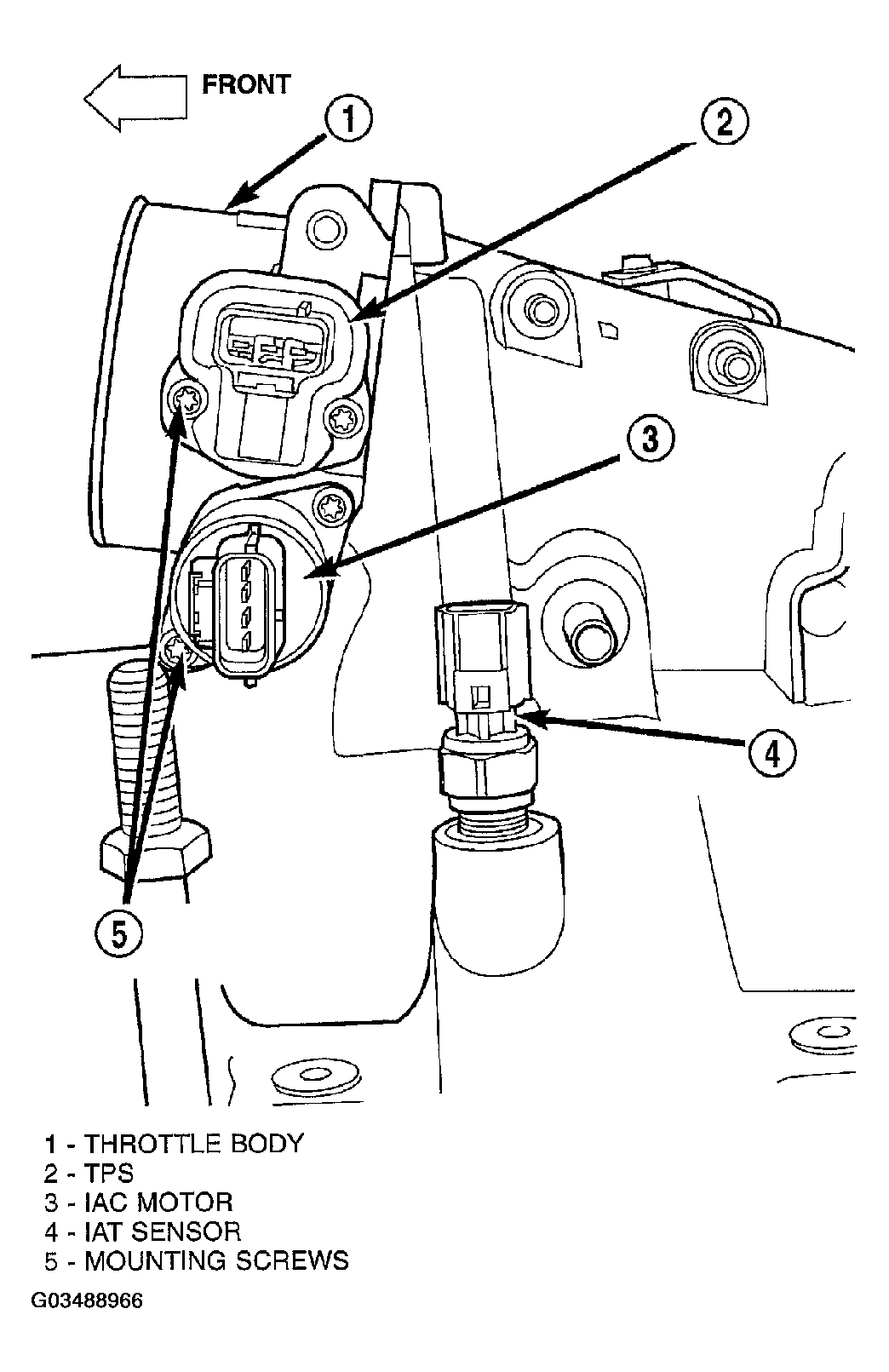

- Remove two mounting bolts (screws) ( Fig 1 ).
- Remove IAC motor from throttle body.
