Fuel Pump Relay: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

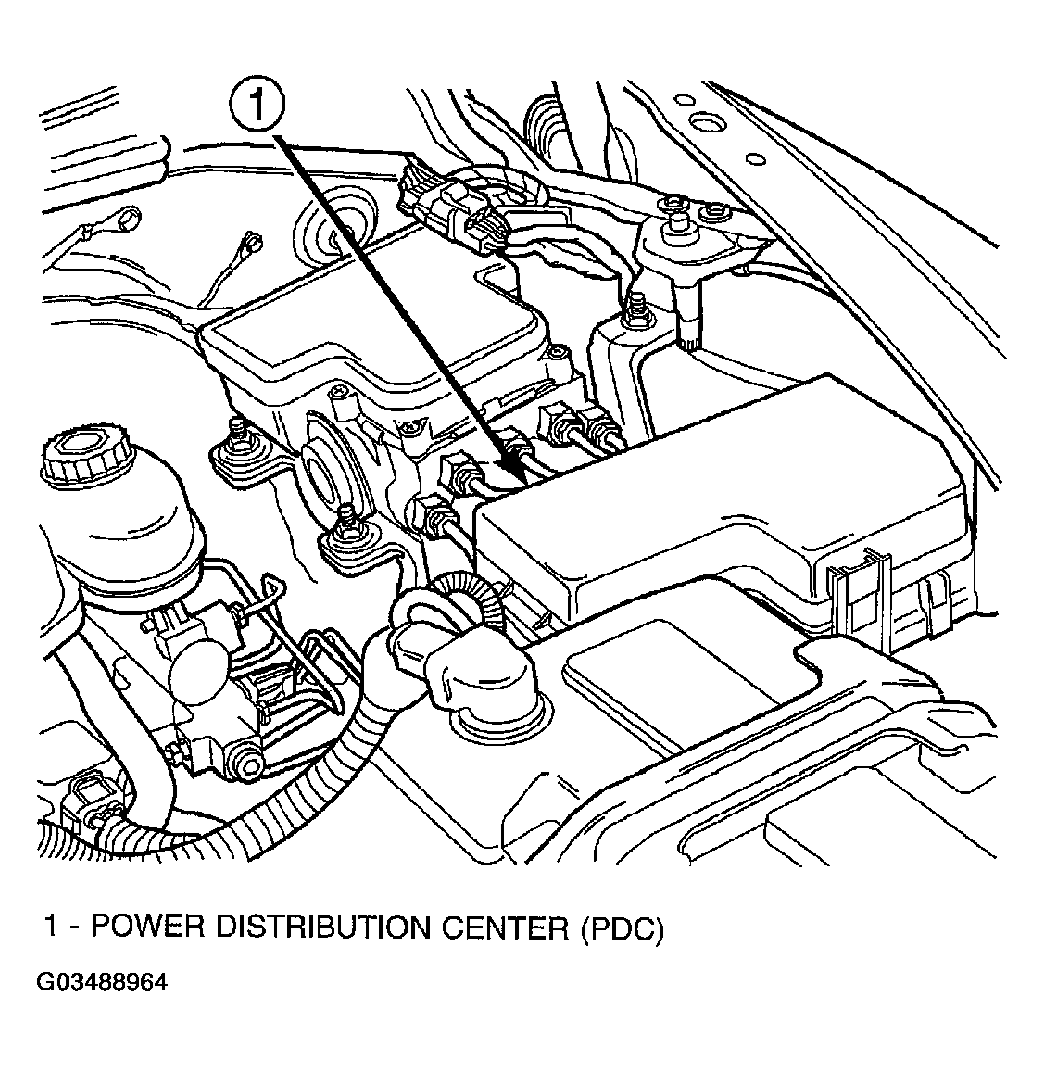

The fuel pump relay is located in the Power Distribution Center (PDC) ( Figure ). Refer to label on PDC cover for relay location.

  1. Install relay to PDC.
  2. Install cover to PDC.
