Component Locations
WARNING: This page is about a different car, the 2002 Dodge Durango and 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||||||
|---|---|---|---|---|---|---|---|
| Air bag control module | Floor panel transmission tunnel, beneath instrument panel | ||||||
| Clockspring | On steering column, behind steering wheel | ||||||

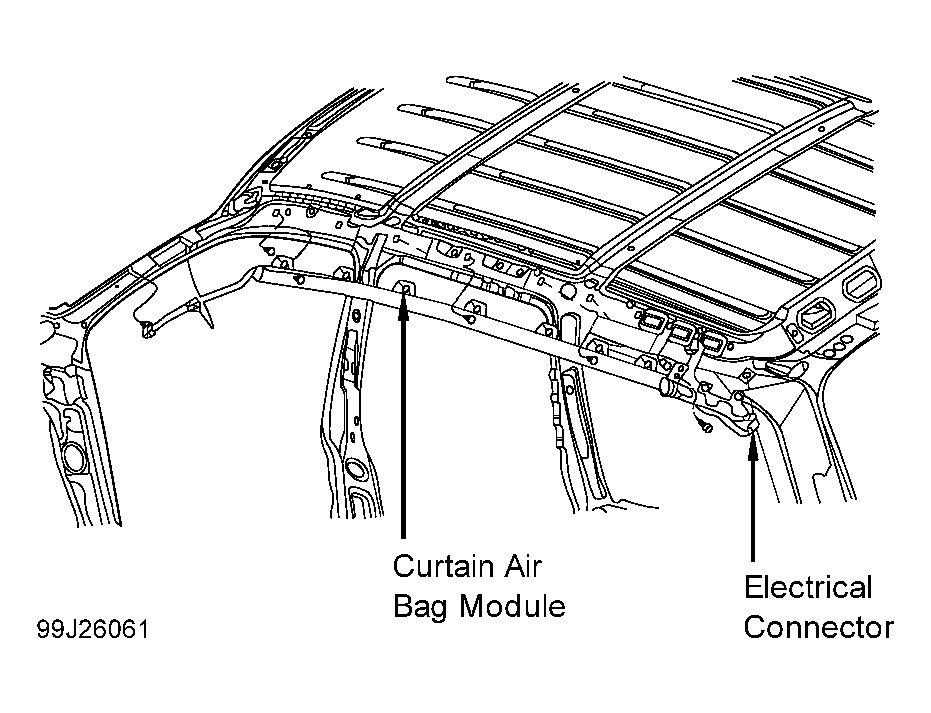

| Curtain air bag module(2) | Outboard edge of roof, behind headliner | ||||||
| Data link connector | Under left side of instrument panel, near steering column | ||||||
| Driver-side air bag module | Front face of steering wheel | ||||||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||||||
| Passenger-side air bag on-off switch(3) | Near center of instrument panel | ||||||
| Seat belt pretensioner | Integral with front seat belt retractor | ||||||
| Side impact air bag control modules(2) | Inside B-pillar, near seat belt retractor | ||||||
|
|||||||
